电缆型号 Type and Description
Type
|
Description
|
|

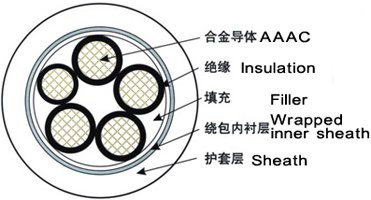

YJHLV
|
aluminum alloy conductor,XLPE insulated and PVC sheathed cable
|
|

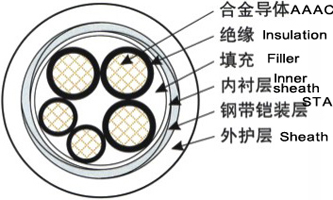

YJHLV22
|
aluminum alloy conductor,XLPE insulated ,steel tape armored and PVC sheathed cable
|
|
YJHL8
|
aluminum alloy conductor,XLPE insulated,aluminum alloy tape self-locking armored cable
|
|

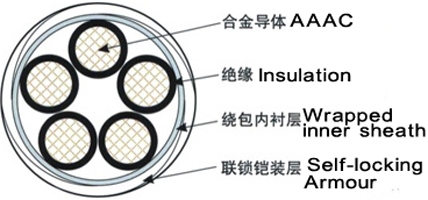

YJHLV8
|
aluminum alloy conductor,XLPE insulated,PVC inner sheathed aluminum alloy tape self-locking armored cable
|
|

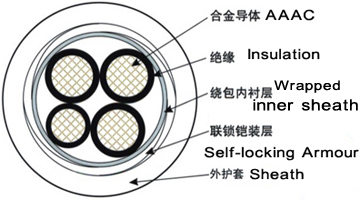

YJHLV82
|
aluminum alloy conductor,XLPE insulated, aluminum alloy tape self-locking armored PVC sheathed cable
|
Model and Specification range
|
Model
|
Rated Voltage
|
|
0.6/1
|
8.7/10
8.7/15
|
26/35
|
|
Nominal Cross Section
|
Cores No.
|
Nominal Cross Section
|
Cores No
|
Nominal Cross Section
|
Cores No
|
|
YJHLV
|
10~500
|
1,3,4,5
3+1
3+2
4+1
|
25~400
|
1,3
|
50~400
|
1,3
|
|
YJHLV22
|
10~500
|
1,3,4,5
3+1
3+2
4+1
|
25~400
|
1,3
|
50~400
|
1,3
|
|
YJHL8
|
10~400
|
1,3,4,5
3+1
3+2
4+1
|
25~400
|
1,3
|
50~400
|
1,3
|
|
YJHLV8
|
10~400
|
1,3,4,5
3+1
3+2
4+1
|
25~400
|
1,3
|
50~400
|
1,3
|
|
YJHLV82
|
10~400
|
1,3,4,5
3+1
3+2
4+1
|
25~400
|
1,3
|
50~400
|
1,3
|
Product Description
Product Name：YJHLV(TC90)
The unarmored cable is applicable for aluminum alloy conductor and sectional area from 16mm2 to 400mm2.The type of core conductor is ASTM Grade B compacted,stranded conductor,which comes to GB/T 1838.3-2001 flame retardant Grade C.
Aluminum alloy cable is in great compliance with GB3956,GB12706.1 and various standards of the latest editon of IEC60502.1
Aluminum alloy cable can be used widely on condition that there is no armored mechanical protection.They can be used for feeder lines such as in office building ,hotels, shopping center and factory lighting,socket and other electrical equipment.
Aluminum alloy cable is applicable for using working temperature 90℃,XLPE insulation,and black PVC outer sheath.
Product Name：YJHLV8(AC90)
YJHLV8(AC90)is a high flexible self-locking aluminum aluminum armored, 90℃XLPE insulated single core or multi-core low smoke and free halogen Grade A cable.
YJHLV8(AC90) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible selflocking aluminum armor and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing, threading and pipe formation.
YJHLV8(AC90) .It can be applied to lay open wiring in non-humid environment.And it applies same performance with the wire laying way of duct. ZA-AC90(-40)is of low smoke and free halogen and is in line with the testing items standards IEC60754,GB1765.2 and GB12706.1.
Product Name：YJHLV82(ACWU90)
ZB-ACWU90(-40) is a highly flexible self-locking aluminum armored,PVC out sheath 90℃ XLPE waterproof insulated single core or multi-core low smoke and free halogen Grade B cable.For it has PVC outer sheath of Grade FT4, ZB-ACWU90(-40) reduces the difficulty in duct wiring and labor cost.The cable has been assembled with highly flexible self-locking aluminum armor and sealing PVC our sheath,and there is no need to conduct the procedures such as duct and its accessories and manual intensive wire drawing,threading and pipe formation. ZB-ACWU90(-40) passed the CSA certification.It can be applied to lay open wiring and buried wiring in dry and humid environment and also in District 1 and District 2 Grade 1 dangerous environment and Grade 2、3 dangerous environment.Trestle,bracket,tray and cable gripper can be used for exposed laying indoor,and direct-buried,cable trench,cable tunnel and so on for out door.There is calibration marks on ZB-ACWU90(-40) per meter so as to ascertain the cable length accurately.It is in great compliance with the testing item standards IEC60502.1 and GB 12706.1.
Lubao Cable (Group)Co.,ltd.can manufacture various kinds of low smoke and free halogen products on customer’s requirements.
