Description

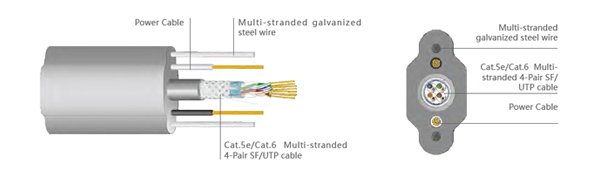

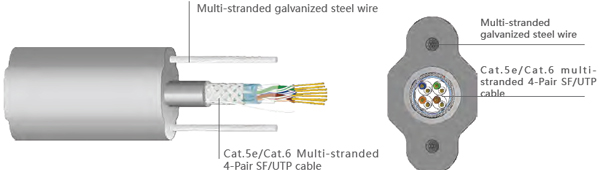

>Flat elevator cable is widely applied for multiple purpose, it is consist of two power cables, Cat.5e/Cat.6 Multi-stranded 4-Pair SF/UTP cable and two Multi-stranded galvanized steel wires.
Reference Standards
- »»GB/T 5023.6-2006
- »»IEC 60227.6:2011
-
-
-
Specification
| Parameter |
Data |
| Conductor Diameter |
7/0.18mm |
| Overall Diameter |
22.0±0.5mm*9.0±0.4mm |
| Sheah Material |
Qualify for elevator cable |
| Power Cable Conductor material |
TR Annealing Copper |
| Power Cable Insulation |
70℃ PVC (Blue,Brown)/td>
|
| Steel Wire Material |
Multi-stranded galvanized steel wire |
| 0.75mm2 Conductor DCR |
≤19.5Ω/100m< |
| Power Cable Voltage Test |
2000V 5min no breakdown |
| Cat5e Conductor Resistance |
≤9.5Ω/100m |
| DC Resistance Unbalance |
≤2.5% |
| Dielectric,DC.1min |
1KV/1min |
| Capacity Max |
5.6nF/100m |
Cable
Bend Radius
D1≥6D0
Installation Bend Radius: ≥6xDiameter
Mechanical Characteristics:
Max Working Height:150M;
Max Free Suspension Length:80M
Max Travelling Speed:6.3M/S;
Max Travelling Acceleration:1.2M/S2
Indoor
Order Information
| Model No. |
Length |
Unit |
| TVVBG Cat.5e SF/UTP+2*0.75 Cable |
Per request |
Meter |
| TVVBG Cat.6 SF/UTP+2*0.75 Cable |
Per request |
Meter |
 |
