Instrumentation Cable is designed for process control, transmission of signal, computer, control system, monitor network and intrinsically safe system in hazardous areas like petrochemical plants, thermal power plants, oil exploration, cement, paper, steel and power generation.
Process control, equipment interconnection, typically in chemical and petrochemical locations. The unarmoured cables are generally use for indoor installation and suitable for wet and damp areas.
Reference Standards
»»PAS/BS 5308
»»BS EN 60228
»»BS EN 50290-2-23
»»RoHS Directives
»»BS EN 50290-2-22
Constructions
1.Conductor: Class 1 / 2 / 5 Oxygen Free Copper
2.Insulation: Polyethylene (PE)
3.Cabling: Twisted Pairs
4.Screened: Al-PET tape with Tinned Copper Drain Wire for
»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C
»»Rated Voltage: 300/500V
»»Test Voltage (DC): 2000V Between Conductors；
2000V Between Each Conductor and Armour
General Characteristics
Conductor Size (mm)
Conductor Class
Max.DCR(Ω/km)
Max. Mutual Capacitance Values (pF/m)
Max. Capacitance Unbalance at 1kHz (pF/250m)
Max.L/R Ratio (uH/km)
Cables with Collective Screens (except 1 pair & 2 pairs)
1Pair & 2Pairs Cable Collectively Screened & All Cables with Individual Pair Screens
0.5
0.5
1
75
115
250
25
1.0
1.0
1
75
115
250
25
0.5
0.5
5
75
115
250
25
1.5
1.5
2
85
120
250
40
Identification of Cable Pairs
Pair No.
Colour
Pair No.
Colour
1
Black
Blue
11
Black
Red
2
Black
Green
12
Blue
Red
3
Blue
Green
13
Green
Red
4
Black
Brown
14
Brown
Red
5
Blue
Brown
15
White
Red
6
Green
Brown
16
Black
Orange
7
Black
White
17
Blue
Orange
8
Blue
White
18
Green
Orange
9
Green
White
19
Brown
Orange
10
Brown
White
20
White
Orange

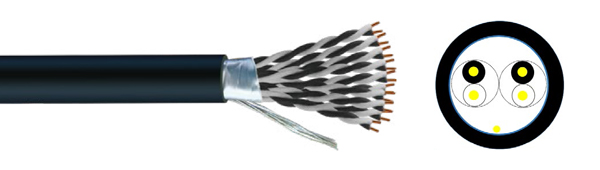

PAS/S55308 Part 1 Type 1: Collectively Screened Unarmoured
Conductor
No. of Pairs
Size (mm)
Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
1
0.5
0.8
5.3
2
0.5
1
0.5
0.8
6.1
5
0.5
1
0.5
1.1
10.6
10
0.5
1
0.5
1.2
14.0
15
0.5
1
0.5
1.2
16.1
20
0.5
1
0.5
1.3
18.4
1
1
1
0.6
0.8
6.4
2
1
1
0.6
0.8
7.4
5
1
1
0.6
1.1
12.1
10
0.5
5
0.6
1.2
16.2
15
0.5
5
0.6
1.3
18.8
20
0.5
5
0.6
1.3
21.3
1
1.5
2
0.6
0.8
7.3
2
1.5
2
0.6
0.9
8.7
5
1.5
2
0.6
1.2
15.4
10
1.5
2
0.6
1.3
20.6
15
1.5
2
0.6
1.5
24.2
20
1.5
2
0.6
1.5
27.5

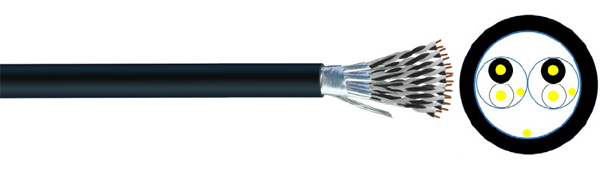

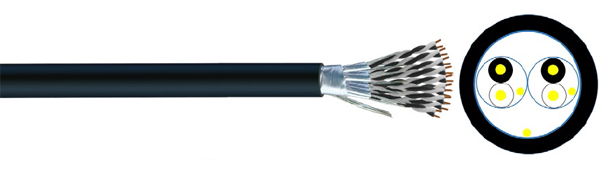

PAS/S55308 Part 1 Type 1: Individually & Collectively Screened Unarmoured
Conductor
No. of Pairs
Size (mm)
Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
2
0.5
1
0.5
0.9
8.5
5
0.5
1
0.5
0.8
10.9
10
0.5
1
0.5
1.1
15.6
15
0.5
1
0.5
1.2
18.1
20
0.5
1
0.5
1.3
20.4
2
1
1
0.6
0.9
10.3
5
1
1
0.6
1.0
13.5
10
1
1
0.6
1.2
19.4
15
1
1
0.6
1.4
22.7
20
1
1
0.6
1.5
25.7
2
0.5
5
0.6
0.9
9.7
5
0.5
5
0.6
1.0
12.6
10
0.5
5
0.6
1.2
18.0
15
0.5
5
0.6
1.3
20.9
20
0.5
5
0.6
1.4
23.6
2
1.5
2
0.6
1.0
12.1
5
1.5
2
0.6
1.1
15.8
10
1.5
2
0.6
1.4
22.9
15
1.5
2
0.6
1.5
26.6
20
1.5
2
0.6
1.6
30.1

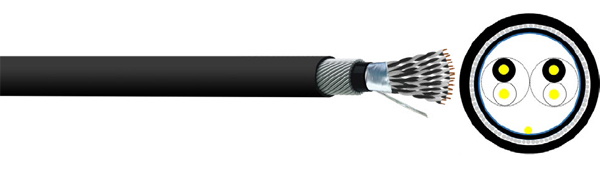

PAS/S55308 Part 1 Type 2: Collectively Screened Armoured
Conductor
No. of Pairs
Size (mm)
Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
2
0.5
1
0.5
1.4
13.1
5
0.5
1
0.5
1.5
15.7
10
0.5
1
0.5
1.6
21.3
15
0.5
1
0.5
1.7
24.7
20
0.5
1
0.5
1.8
27.2
2
1
1
0.6
1.4
14.9
5
1
1
0.6
1.5
19.0
10
1
1
0.6
1.7
26.0
15
1
1
0.6
1.8
29.5
20
1
1
0.6
1.9
32.7
2
0.5
5
0.6
1.4
14.3
5
0.5
5
0.6
1.6
16.1
10
0.5
5
0.6
1.7
24.6
15
0.5
5
0.6
1.8
29.5
20
1
1
0.6
1.9
32.7
2
1.5
2
0.6
2.1
38.3

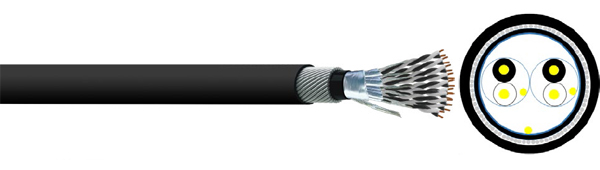

PAS/S55308 Part 1 Type 2: Individual &Collectively Screened Armoured
No. of Pairs
Conductor
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
Size (mm²)
Class
2
0.5
1
0.5
1.4
13.1
5
0.5
1
0.5
1.5
15.7
10
0.5
1
0.5
1.6
21.3
15
0.5
1
0.5
1.7
24.7
20
0.5
1
0.5
1.8
27.2
2
1
1
0.6
1.4
14.9
5
1
1
0.6
1.5
19.0
10
1
1
0.6
1.7
26.0
15
1
1
0.6
1.8
29.5
20
1
1
0.6
1.9
32.7
2
0.5
5
0.6
1.4
14.3
5
0.5
5
0.6
1.5
18.1
10
0.5
5
0.6
1.7
24.6
15
0.5
5
0.6
1.8
27.7
20
0.5
5
0.6
1.9
30.6
2
1.5
2
0.6
1.5
17.6
5
1.5
2
0.6
1.6
21.5
10
1.5
2
0.6
1.8
29.7
15
1.5
2
0.6
1.9
33.6
20
1.5
2
0.6
2.1
38.3
PAS/BS5308 Part 2 Type 1 & 2
Application
Process control, equipment interconnection, typically in chemical and
petrochemical locations. The unarmoured cables are generally use for indoor
installation and suitable for wet and damp areas.
Reference Standards
PAS/BS 5308
BS EN 60228
RoHS Directives
BS EN 50290-2-21
BS EN 50290-2-22
Constructions
1. Conductor: Class2/5 Oxygen Free Copper
2. Insulation: PVC
3.Cabling: Cores, Pairs
4.Screened: Al-PET tape with Tinned Copper Drain Wire for
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
» Rated Voltage: 300/500V
» Test Voltage (DC): 2000V Between Conductors;
2000V Between Each Conductor and Armour
General Characteristics
Conductor Size (mm²)
Conductor Class
Max. DCR (Ω/km)
Max. Mutual Capacitance Values (pF/m)
Max. Capacitance Unbalance at 1kHz (pF/250m)
Max. L/R Ratio (μH/Ω)
Cables with Collective Screens (except 1 pair & 2 pairs)
1 Pair & 2 Pairs Cable Collectively Screened & All Cables with Individual Pair Screens
0.5
5
39.7
250
250
250
450
0.75
5
26.5
250
250
250
450
1.5
2
12.3
250
250
250
450
Identification of Cable Pairs
No. of Pairs
Colour
Pair No.
Colour
1
White
Blue
11
Black
Blue
2
White
Orange
12
Black
Orange
3
White
Green
13
Black
Green
4
White
Brown
14
Black
Brown
5
White
Grey
15
Black
Grey
6
Red
Blue
16
Yellow
Blue
7
Red
Orange
17
Yellow
Orange
8
Red
Green
18
Yellow
Green
9
Red
Brown
19
Yellow
Green
10
Red
Grey
20
Yellow
Grey
PAS/BS5308 Part 2 Type 1: Collectively Screened Unarmoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
4.8
2
0.5
5
0.6
1.0
7.5
3
0.5
5
0.6
0.8
8.1
4
0.5
5
0.6
1.0
9.5
5
0.5
5
0.6
0.8
10.1
6
0.5
5
0.6
1.0
11.2
7
0.5
5
0.6
0.8
11.2
8
0.5
5
0.6
1.0
12.1
9
0.5
5
0.6
0.8
12.2
10
0.5
5
0.6
1.0
13.2
11
0.5
5
0.6
0.8
13.8
12
0.5
5
0.6
1.0
14.2
13
0.5
5
0.6
0.8
14.4
14
0.5
5
0.6
1.0
14.9
15
0.5
5
0.6
0.8
15.5
16
0.5
5
0.6
1.0
16.0
17
0.5
5
0.6
0.8
16.1
18
0.5
5
0.6
1.0
16.8
19
0.5
5
0.6
0.8
16.9
20
0.5
5
0.6
1.0
17.6
PAS/BS5308 Part 2 Type 1: Individually & Collectively Screened Unarmoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
5.3
2
0.5
5
0.6
1.0
8.2
3
0.5
5
0.6
0.8
9.4
4
0.5
5
0.6
1.0
10.7
5
0.5
5
0.6
0.8
11.5
6
0.5
5
0.6
1.0
12.6
7
0.5
5
0.6
0.8
12.9
8
0.5
5
0.6
1.0
13.8
9
0.5
5
0.6
0.8
14.5
10
0.5
5
0.6
1.0
15.7
PAS/BS5308 Part 2 Type 2: Collectively Screened Armoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
7.0
2
0.5
5
0.6
1.0
10.0
3
0.5
5
0.6
0.8
10.7
4
0.5
5
0.6
1.0
12.2
5
0.5
5
0.6
0.8
12.8
6
0.5
5
0.6
1.0
13.9
7
0.5
5
0.6
0.8
14.4
8
0.5
5
0.6
1.0
15.3
9
0.5
5
0.6
0.8
15.7
10
0.5
5
0.6
1.0
16.8

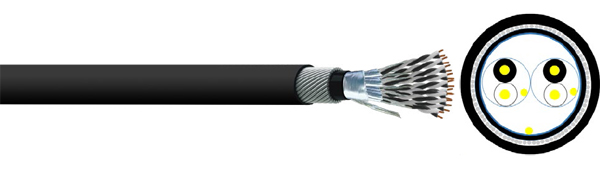

PAS/BS5308 Part 2 Type 2: Individually & Collectively Screened Armoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
7.6
2
0.5
5
0.6
1.0
10.7
3
0.5
5
0.6
0.8
11.7
4
0.5
5
0.6
1.0
13.3
5
0.5
5
0.6
0.8
14.1
6
0.5
5
0.6
1.0
15.2
7
0.5
5
0.6
0.8
15.9
8
0.5
5
0.6
1.0
16.9
9
0.5
5
0.6
0.8
17.7
10
0.5
5
0.6
1.0
18.8

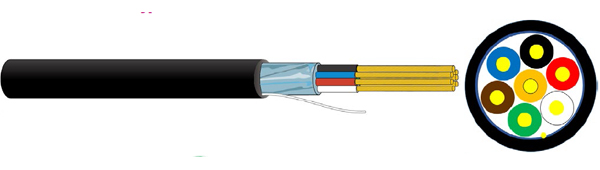

PAS/BS5308 Part 2 Type 1: Multicore Collectively Screened Unarmoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
4.5
2
0.5
5
0.6
1.0
6.9
3
0.5
5
0.6
0.8
7.6
4
0.5
5
0.6
1.0
8.5
5
0.5
5
0.6
0.8
9.3
6
0.5
5
0.6
1.0
10.1
7
0.5
5
0.6
0.8
10.5
8
0.5
5
0.6
1.0
11.3
9
0.5
5
0.6
0.8
11.6
10
0.5
5
0.6
1.0
12.4

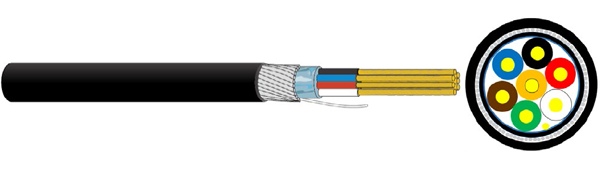

PAS/BS5308 Part 2 Type 2: Multicore Collectively Screened Armoured
No. of Pairs
Conductor Size (mm²)
Conductor Class
Insulation Thickness (mm)
Sheath Thickness (mm)
Overall Diameter (mm)
1
0.5
5
0.6
0.8
6.7
2
0.5
5
0.6
1.0
9.3
3
0.5
5
0.6
0.8
10.2
4
0.5
5
0.6
1.0
11.2
5
0.5
5
0.6
0.8
12.0
6
0.5
5
0.6
1.0
13.1
7
0.5
5
0.6
0.8
13.5
8
0.5
5
0.6
1.0
14.4
9
0.5
5
0.6
0.8
14.9
10
0.5
5
0.6
1.0
15.7
BS EN50288-7
Application
Connecting instruments and control systems for analogue or digital signal transmission.
Reference Standards
»BS EN 50288-7
»BS EN 60228
»BS EN 50290
»RoHS Directives

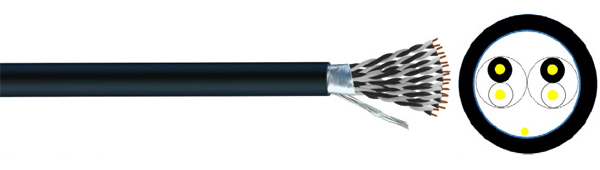

Constructions
1. Conductor: Class 1 / 2 / 5 Oxygen Free Copper
2. Insulation: Polyethylene (PE)
3. Cabling: Cores, Pairs, Triples, Quads
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for armoured cable:
Polyethylene (PE)
PVC
»Installation Temperature: Above 0ºC
»Operating Temperature: -15ºC ~ 65ºC
» Rated Voltage: 90V, 300V, 500V
» Test Voltage (DC): 2000V Between Conductors；
2000V Between Each Conductor and Armour
C.S.Center
WhatsApp
