Description

>Provide up to 2000MHz bandwidth, typical speed rate: 25/40Gbps

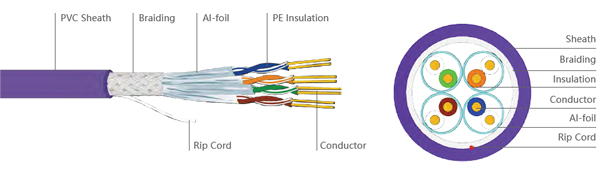

>Optimal Cat.8 design (S/FTP) for high-level shield confidential system anti-EMI, used in horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, chemical foam PE insulation, reliable transmission performance, meets and exceeds
>Cat.8 standard Wrapping Al-foil paired separately and TC braid screen over 4 pairs to improve anti-interference to 90dB, 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality

Reference Standards

• »»YD/T 1019-2013
• »» TIA568C

Specification

Parameter	Data
Conductor Diameter	22AWG
Sheah Material	PVC
Overall Diameter	8.6±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m
