Description

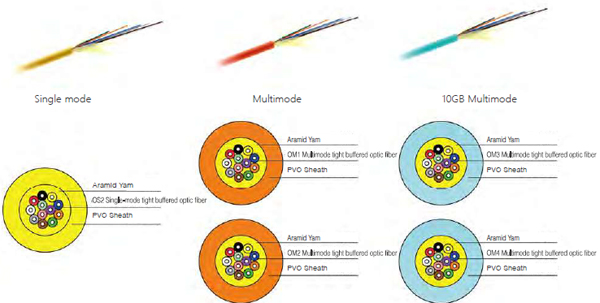

>250μm diameter ultraviolet curing one-off coated fiber tightly covered to make 900μm diameter fiber,process sheath to multi-tight covered fiber and aramid yam to make optic fiber cable; Suitable for indoor cabling application. (max. 12 cores).

Reference Standards

• »»YD/T 1258-2003
• »»YD/T 9771-2008

Specification

Construction
Item	Data
Core	4 Cores	6 Cores	8 Cores	12 Cores
Armid	1580dtex x8	1580dtex x10	1580dtex x10	1580dtex x14
Sheath Color	OM1/OM2 (Orange for Multimode) 0M3 (Aquagreen for Multimode) OS2 (Yellow for Singlemode)
Sheath Material	PVC/LSZH

Order Information

Description

>250μm diameter ultraviolet curing one-off coated fiber tightly covered to make 900μm diameter fiber,
Branching cable construction: The tight buffered fiber locates in center of steel tube, surrounded by aramid yam, and completed by LSZH sheath.

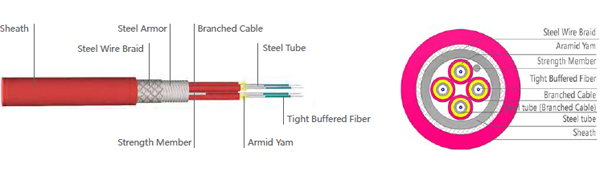

Flexible Armored Optic Fiber Cable: Four single core fiber cables with strength member support, protected by steel armor and covered by steel wire braid, completed with LSZH sheath.
Great bending performance and high durable.
Suitable for indoor cabling application.

Reference Standards

• »»YD/T 2488-2003
• »»YD/T 9771-2008

Specification

Optical Characteristics
Item	Single mode OS2	OM1 Multimode	OM2 Multimode	OM3/OM4 Multimode
Wavelength (nm)	1310/1550	850/1300	850/1300	850/1300
Attenuation (dB/km)	≤0.35/0.22	≤3.5/2.2	≤3.5/2.2	≤3.5/2.2
Bandwidth MHz.km	--	≥200/200	≥300/1000	≥2000/500

Order Information

Description

>250μm diameter ultraviolet curing one-off coated fiber tightly covered to make 900μm diameter fiber,

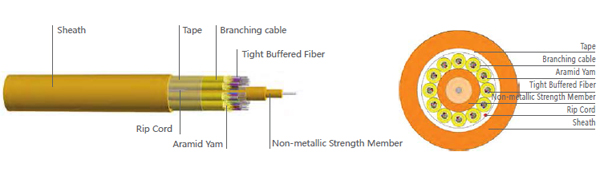

The fibers are placed in a tube.The tubes are surrounded with aramid yam, completed with sheath and taped as bundles. Tubes are stranded around the strength member into a compact and circular cable core. Then, the cable is completed with sheath. Suitable for indoor cabling application (Max. 144 cores).

Reference Standards

• »»YD/T 1258-2003
• »»YD/T 9771-2008

Specification

Optical Characteristics
Item	Single mode OS2	OM1 Multimode	OM2 Multimode	OM3/OM4 Multimode
Wavelength (nm)	1310/1550	850/1300	850/1300	850/1300
Attenuation (dB/km)	≤0.35/0.22	≤3.5/2.2	≤3.5/2.2	≤3.5/2.2
Bandwidth MHz.km	--	≥200/200	≥500/1000	≥2000/500

Order Information

Description

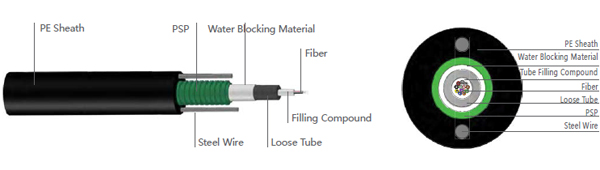

The fibers are placed in a loose tube of PBT. The tube is filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a PE sheath.
Application for small quantity cores optic fiber communication. (Max. 12 cores )

Installation
Type	Diameter mm	Cores	Installation Method
			LAN	Duct	Conduit	Cable Trench	Aerial	Direct Burial	Dielectric
GYXTW	8-9	2-12	✓	Δ		✓	Δ
Note: Δ available ， ✓ Optional

Reference Standards

• »»YD/T 769-2019
• »»YD/T 9771-2008

Specification

Item	Data
Cores	2-12cores
Loose Tube	≤PBT
Tube Diameter	3.0
Strength Member	2 Phosphating Steel Wires
Steel wire Diameter(mm)	0.9
Armour	PSP
PSP Thickness*width(mm)	0.25*17
Outer Sheath	PE
