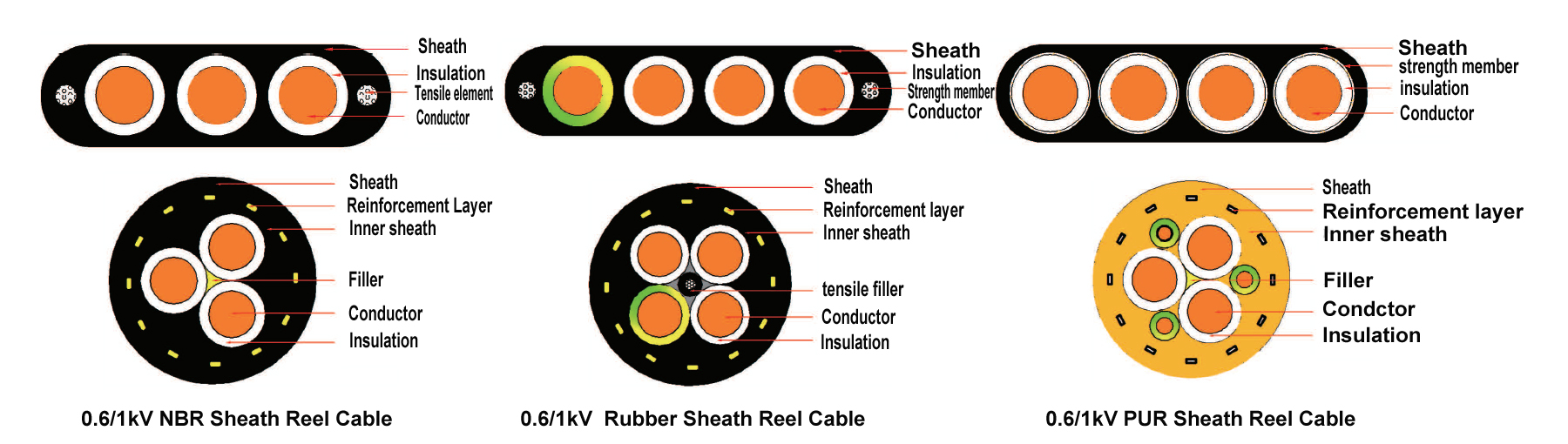

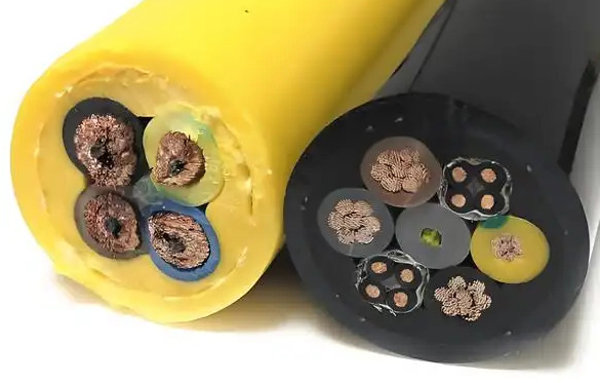

Grouped short lay stranding, with central / lateral filled strength members.
Inner Sheath(Round)
Special Abrasion ,oil resistant NBR Compound
Abrasion ,oil resistant Type 5GM3 Chlorinated Rubber Compound
Special Abrasion ,oil resistant PUR
Reinforcement Layer (Round)
Aramid Braiding
Outer sheath
Special Abrasion ,oil resistant NBR Compound
Abrasion ,oil resistant Type 5GM3 Chlorinated Rubber Compound
Special Abrasion ,oil resistant PUR
Sheath color
Black(RAL9005) or Grey(RAL7001) or Yellow
Technical Index
Rated Voltage:
U0/U 0.6/1kV
Test Voltage
3500V/5min
Min.Bending Radius
Fixed laying
5×D(Cable OD)
For moving installation
10×D(Cable OD)
Maximum Tensile Force(Round)
15N/mm2
Max. Reeling Speed (Round)
120m/min
Operating temperature
Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Executive standard
Performance Requirements
Applications
♦Excellent tensile resistance, tear resistance and stable performance.
♦Superior oil resistance, abrasion resistance, low-temperature flexibility and weather resistance.
♦Steel wire reinforced for flat cable is optinal.
♦PUR sheath has more propertis of Acid and alkali resistant, UV-resistant, suitable for outdoor use
The cable is suitable for high-abrasion environments. It serves as connection and control cables for cable reels, conveyors and transport machinery. Meanwhile, it can also be applied in cable chain systems as reeling and trailing cables, performing winding and unwinding movements guided by support shafts or other similar devices. This cable may be installed indoors in dry or humid conditions, in damp industrial environments, as well as for outdoor open-air laying.
Certification
Technical Properties
(0.6/1kV Rubber Sheath Flat Reel Cable Datasheet)
Cores No.X Cross Section
Maximum Tensile Force
Width mm
Thickness mm
Appro. weight kg/m
Core Constructure
3×10
900
35
9.5
0.7
flat linear arrangement
4×10
1200
44
9.5
0.8
flat linear arrangement
5×10
1500
52
9.5
0.96
flat linear arrangement
3×16
1440
40
11.2
0.92
flat linear arrangement
4×16
1920
50
11.2
1.15
flat linear arrangement
5×16
2400
60
11.2
1.40
flat linear arrangement
3×25
2250
47
13.2
1.32
flat linear arrangement
4×25
3000
58
13.2
1.62
flat linear arrangement
5×25
3750
70
13.2
2.00
flat linear arrangement
3×35
3150
53
15.2
1.75
flat linear arrangement
4×35
4200
66
15.2
2.22
flat linear arrangement
5×35
5250
79
15.2
2.70
flat linear arrangement
3×50
4500
61
18.2
2.45
flat linear arrangement
4×50
6000
77
18.2
3.10
flat linear arrangement
5×50
7500
93
18.2
3.80
flat linear arrangement
3×70
6300
69
21.2
3.2
flat linear arrangement
4×70
8400
86
21.2
4.2
flat linear arrangement
5×70
10500
106
21.2
5.2
flat linear arrangement
3×95
8550
81
25.5
4.50
flat linear arrangement
4×95
11400
102
25.5
5.80
flat linear arrangement
5×95
14250
125
25.5
7.20
flat linear arrangement
3×120
10800
89
28.5
5.60
flat linear arrangement
4×120
14400
114
28.5
7.30
flat linear arrangement
5×120
18000
137
28.5
8.90
flat linear arrangement
3×150
13500
96
31.5
6.80
flat linear arrangement
4×150
18000
123
31.5
8.80
flat linear arrangement
5×150
22500
145
31.5
10.70
flat linear arrangement
3×185
16650
105
35.0
8.30
flat linear arrangement
4×185
22200
132
35.0
10.60
flat linear arrangement
3×240
21600
114
37.0
10.00
flat linear arrangement
4×240
28800
143
37.0
12.80
flat linear arrangement
3×10+1×6
1080
44
9.5
0.79
flat linear arrangement
3×16+1×10
1740
50
11.2
1.10
flat linear arrangement
3×25+1×16
2730
56
13.2
1.50
flat linear arrangement
3×35+1×16
3630
63
15.2
2.00
flat linear arrangement
3×50+1×16
5250
73
18.2
2.80
flat linear arrangement
3×70+1×35
7350
83
21.2
3.70
flat linear arrangement
3×95+1×50
10050
97
25.5
5.20
flat linear arrangement
3×120+1×70
12900
107
28.5
6.50
flat linear arrangement
3×150+1×95
16350
116
31.5
7.85
flat linear arrangement
3×185+1×95
19500
126
35.0
9.50
flat linear arrangement
3×240+1×120
25200
137
37.0
11.50
flat linear arrangement
3×10+2×6
1260
53
9.5
0.93
flat linear arrangement
3×16+2×10
1560
60
11.2
1.30
flat linear arrangement
3×25+2×16
3210
68
13.2
1.80
flat linear arrangement
3×35+2×16
4110
73
15.2
2.30
flat linear arrangement
3×50+2×25
6000
85
18.2
3.20
flat linear arrangement
3×70+2×35
8400
97
21.2
4.40
flat linear arrangement
3×95+2×50
11550
114
25.5
6.00
flat linear arrangement
3×120+2×70
15000
127
28.5
7.70
flat linear arrangement
3×150+2×95
19200
134
31.5
9.00
flat linear arrangement
3×185+2×95
22350
145
35.0
11.0
flat linear arrangement
3×1.5
68
12.3
5.6
0.12
flat linear arrangement
4×1.5
90
16.3
5.6
0.16
flat linear arrangement
5×1.5
113
20.2
5.6
0.20
flat linear arrangement
7×1.5
158
26.3
5.6
0.27
flat linear arrangement
10×1.5
225
35.5
5.6
0.37
flat linear arrangement
12×1.5
270
41.6
5.6
0.44
flat linear arrangement
16×1.5
360
54.7
5.6
0.58
flat linear arrangement
18×1.5
405
62.6
5.6
0.66
flat linear arrangement
6×4×1.5
540
56.6
10.5
1.04
Cloverleaf Arrangement
3×2.5
113
15.0
6.6
0.18
flat linear arrangement
4×2.5
150
19.7
6.6
0.24
flat linear arrangement
5×2.5
188
24.3
6.6
0.30
flat linear arrangement
7×2.5
263
31.8
6.6
0.40
flat linear arrangement
10×2.5
375
43.1
6.6
0.55
flat linear arrangement
12×2.5
450
50.6
6.6
0.65
flat linear arrangement
16×2.5
600
66.5
6.6
0.86
flat linear arrangement
18×2.5
675
75.8
6.6
0.98
flat linear arrangement
6×4×2.5
900
66.3
12.6
1.51
Cloverleaf Arrangement
3×4.0
180
17.4
7.5
0.25
flat linear arrangement
4×4.0
240
22.9
7.5
0.33
flat linear arrangement
5×4.0
300
28.3
7.5
0.42
flat linear arrangement
3×6.0
270
19.8
8.3
0.34
flat linear arrangement
4×6.0
360
26.1
8.3
0.44
flat linear arrangement
5×6.0
450
32.3
8.3
0.55
flat linear arrangement
3×10
450
27.6
9.8
0.55
flat linear arrangement
4×10
600
36.1
9.8
0.73
flat linear arrangement
5×10
750
44.6
9.8
0.91
flat linear arrangement
3×16
720
32.5
11.3
0.80
flat linear arrangement
4×16
960
42.5
11.3
1.05
flat linear arrangement
5×16
1200
52.5
11.3
1.30
flat linear arrangement
3×25
1125
37.0
13.2
1.12
flat linear arrangement
4×25
1500
48.5
13.2
1.48
flat linear arrangement
5×25
1875
60.0
13.2
1.84
flat linear arrangement
3×35
1575
43.1
15.3
1.53
flat linear arrangement
4×35
2100
56.3
15.3
2.02
flat linear arrangement
5×35
2625
69.5
15.3
2.51
flat linear arrangement
3×50
2250
51.9
18.3
2.20
flat linear arrangement
4×50
3000
67.7
18.3
2.90
flat linear arrangement
5×50
3750
83.5
18.3
3.59
flat linear arrangement
3×70
3150
58.9
21.3
2.98
flat linear arrangement
4×70
4200
76.7
21.3
3.91
flat linear arrangement
5×70
5250
94.5
21.3
4.85
flat linear arrangement
3×95
4275
68.4
25.8
4.13
flat linear arrangement
4×95
5700
89.2
25.8
5.43
flat linear arrangement
5×95
7125
110.0
25.8
6.73
flat linear arrangement
3×10+1×6
540
36.5
9.8
0.69
flat linear arrangement
3×16+1×10
870
42.5
11.5
0.99
flat linear arrangement
3×25+1×16
1365
48.5
13.2
1.39
flat linear arrangement
3×35+1×16
1815
53.1
15.3
1.79
flat linear arrangement
3×50+1×25
2625
63.4
18.3
2.57
flat linear arrangement
3×70+1×35
3675
72.7
21.5
3.52
flat linear arrangement
3×95+1×50
5025
84.7
25.8
4.87
flat linear arrangement
3×120+1×70
6450
94.3
29.0
6.16
flat linear arrangement
3×150+1×70
7800
101.3
32.0
7.35
flat linear arrangement
3×185+1×95
9750
111.4
35.2
9.02
flat linear arrangement
3×240+1×120
12600
122.1
37.7
11.04
flat linear arrangement
3×10+2×6
630
45.0
9.8
0.83
flat linear arrangement
3×16+2×10
1020
52.5
11.5
1.21
flat linear arrangement
3×25+2×16
1605
60.0
13.2
1.69
flat linear arrangement
3×35+2×16
2055
63.1
15.3
2.09
flat linear arrangement
3×50+2×25
3000
74.9
18.3
3.00
flat linear arrangement
3×70+2×35
4200
85.3
21.3
4.06
flat linear arrangement
3×95+2×50
5775
101.0
25.8
5.72
flat linear arrangement
3×120+2×70
7500
112.6
29.0
7.27
flat linear arrangement
3×150+2×70
8850
119.6
32.0
8.54
flat linear arrangement
3×185+2×95
10425
127.2
35.2
10.01
flat linear arrangement

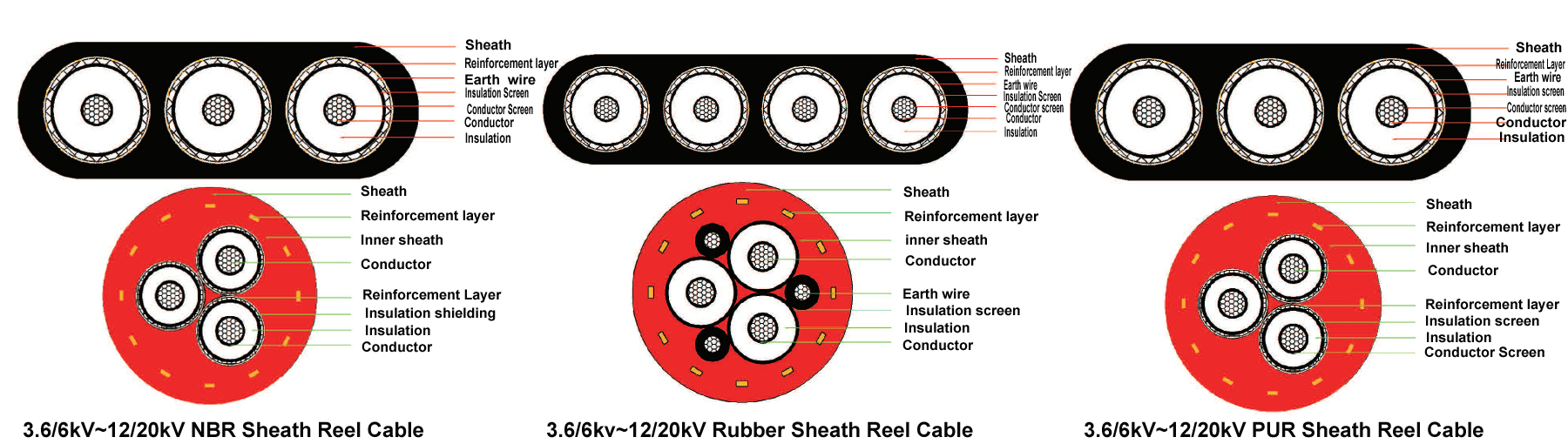

3.6/6kV~12/20kV Medium Voltage Reel Cable
Structure & Technical Index
Constructure
3.6/6~12/20kV NBR Sheath Reel Cable
3.6/6~12/20kV Rubber Sheath Reel Cable
3.6/6~12/20kV PUR Sheath Reel Cable
Conductor:
Multi strands precision twisted oxygen free copper wire complies with GB/T3956 Class 5 standard
Conductor Screen
Semi-conductive tape for each cond.
Insulation
Type 3GI3 EPR Compound
Insulation Screen
Semi-conductive tape+tinned copper wire braiding
Earthing wire
Each core braided by tinned copper wire ,density more than 80%
Core Construction(Flat)
Flat linear core
Reinforcement layer(Flat)
Aramid braiding
Laying-up (Round)
Short lay stranding,
Inner Sheath(Round)
Special Abrasion ,oil resistant NBR Compound
Abrasion ,oil resistant Type 5GM3 Chlorinated Rubber Compound
Special Abrasion ,oil resistant PUR
Reinforcement Layer (Round)
Aramid Braiding
Outer sheath
Special Abrasion ,oil resistant NBR Compound
Abrasion ,oil resistant Type 5GM3 Chlorinated Rubber Compound
Special Abrasion ,oil resistant PUR
Sheath color
Black(RAL9005) or Grey(RAL7001) or Red or Yellow
Technical Index
Rated Voltage:
U0/U 3.6/6kV~12/20kV
Test Voltage
3.5XU0/5min
Min.Bending Radius
Fixed laying
5×D(Cable OD)
For moving installation
10×D(Cable OD)
Maximum Tensile Force(Round)
15N/mm2
Max. Reeling Speed (Round)
120m/min
Operating temperature
Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Executive standard
Performance Requirements
Applications
♦Flexibility and bendability.
♦Excellent tensile resistance, tear resistance and stable performance.
♦ PUR sheath reel cable has more properties of Excellent resistance to oil, abrasion, low temperature, weather, acid and alkali, as well as UV radiation, suitable for outdoor applications.
This product is applied to reel or spool equipment requiring flat cables for stacker-reclaimers, ship unloaders, and is suitable for scenarios such as ports, terminals, metallurgy, iron and steel plants, coking plants, coal mines, power plants and cement plants.

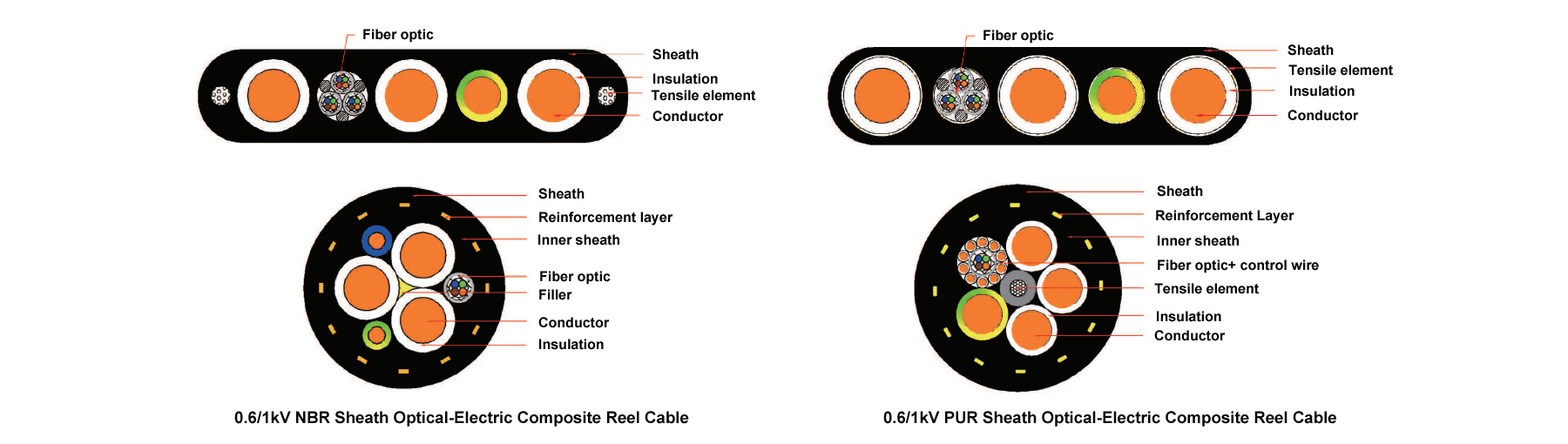

Grouped Short lay stranding, with central/lateral filled strength menbers
Inner Sheath(Round)
Special Abrasion ,oil resistant NBR Compound
Special Abrasion ,oil resistant PUR
Reinforcement Layer (Round)
Aramid Braiding
Outer sheath
Special Abrasion ,oil resistant NBR Compound
Special Abrasion ,oil resistant PUR
Sheath color
Black or Yellow
Technical Index
Rated Voltage:
U0/U 0.6/1kV
Test Voltage
3.5kV/5min
Min.Bending Radius
Fixed laying
5×D(Cable OD)
For moving installation
10×D(Cable OD)
Maximum Tensile Force(Round)
15N/mm2
Max. Reeling Speed (Round)
120m/min
Operating temperature
Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Executive standard
Performance Requirements
Applications
♦Excellent flexibility and bending resistance
♦Excellent tensile resistance, tear resistance and stable performance.
♦Excellent resistance to oil, abrasion, low temperature, weather
♦ PUR sheath reel cable has more properties of Excellent resistance to acid and alkali, as well as UV radiation, suitable for outdoor applications.
(Flat)The cable features a flexible flat structure, designed for high-abrasion environments. It serves as connection and control cables for reel machines, conveyors and conveying machinery. It can also be used as reel trailing cables in cable chain systems, performing winding and unwinding movements guided by supporting shafts or other similar devices.
This cable is suitable for installation in dry or damp indoor areas, humid industrial environments, as well as outdoor open-air applications. (Round)Designed for high-abrasion environments, this cable acts as connection and control cable for reel machines, conveyors and conveying equipment. It can also be deployed as reel and trailing cables inside energy chain systems, carrying out winding and unwinding motions guided by support shafts or other comparable devices. It is suitable for applications subject to moderate mechanical stress, including tensile and torsional loads.

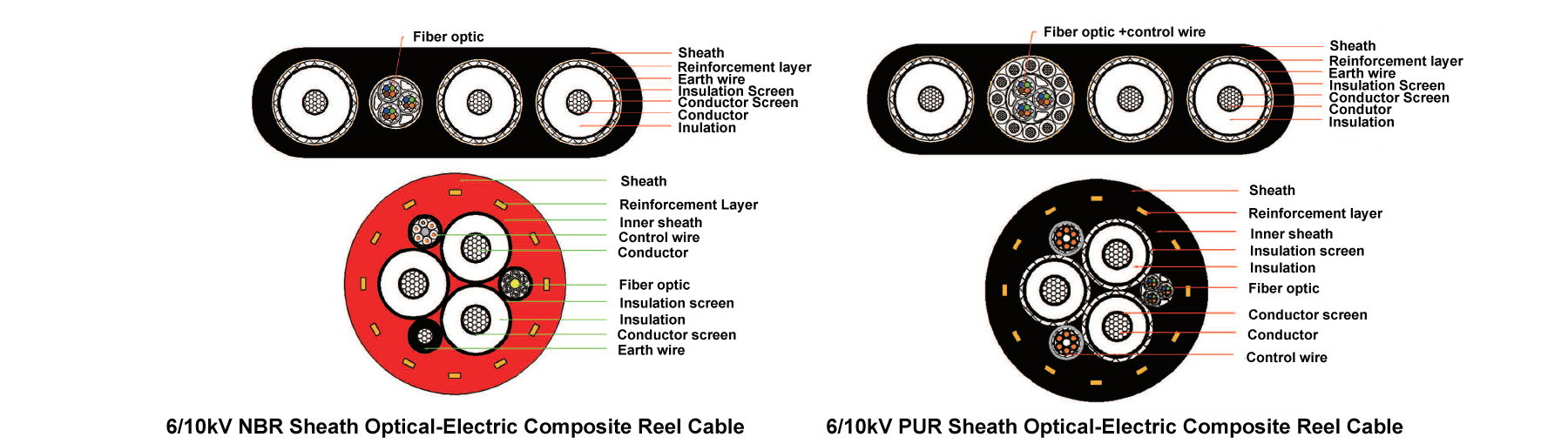

Multi strands precision twisted oxygen free copper wire complies with GB/T3956 Class 5 standard
Conductor Screen
Semi-conductive tape for each cond.
Insulation
Type 3GI3 EPR Compound
Insulation Screen
Semi-conductive tape+tinned copper wire braiding
Earthing wire
Each core braided by tinned copper wire ,density more than 80%
Fiber optic
Single-mode / Multi-mode Optical Fibre, 4 to 24 cores (50/125, 62.5/125 and E9/125)
Reinforcement layer(Flat)
Aramid braiding
Laying-up (Round)
Short lay stranding,
Inner Sheath(Round)
Special Abrasion ,oil resistant NBR Compound
Special Abrasion ,oil resistant PUR
Reinforcement Layer (Round)
Aramid Braiding
Outer sheath
Special Abrasion ,oil resistant NBR Compound
Special Abrasion ,oil resistant PUR
Sheath color
Black(RAL9005) or Grey(RAL7001) or Red
Technical Index
Rated Voltage:
U0/U 3.6/6kV~12/20kV
Test Voltage
3.5XU0/5min
Min.Bending Radius
Fixed laying
5×D(Cable OD)
For moving installation
10×D(Cable OD)
Maximum Tensile Force(Round)
15N/mm2
Max. Reeling Speed (Round)
120m/min
Operating temperature
Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Executive standard
Performance Requirements
Applications
♦Flexibility and bendability.
♦Excellent tensile resistance, tear resistance and stable performance.
♦ PUR sheath reel cable has more properties of Excellent resistance to oil, abrasion, low temperature, weather, acid and alkali, as well as UV radiation, suitable for outdoor applications.
(Flat)This product is applied to reel or spool equipment requiring flat cables for bucket wheel stacker-reclaimers and ship unloaders, and suitable for scenarios including ports, docks, metallurgical plants, iron & steel works, coking plants, coal mines, power plants and cement plants. (Round)This product is designed for reel and spool equipment of port machinery, and widely applied in ports, docks, metallurgical plants, steel works, coal mines, power plants and cement plants.

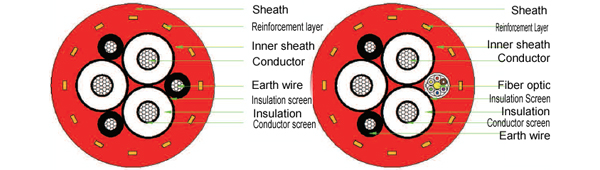

Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Rated Voltage:
U0/U 3.6/6kV~12/20kV
Conductor Screen
Semi-conductive tape
Test Voltage
3.5U0V/5min
Insulation
high tensile EPR Insulation
Min.Bending Radius
Insulation Screen
semi-conductive tape+ tinned copper wire braiding
Fixed laying
5×D(Cable OD)
>
Earthing wire
tinner wire braiding,density more than 80%
For moving installation
10×D(Cable OD)
Fiber Optic
(if applicable)Single-mode / Multi-mode Optical Fibre, 4 to 24 cores (50/125, 62.5/125 and 9/125)
Operating temperature
Laying-up
Optimal pitch stranding
Fixed laying
-40 °C to +90°C
Inner sheath
Abrasion &Oil resistant NBR
For moving installation
-30 °C to +90°C
Reinforcement Layer
Aramid braiding
Flame Retardant Property
comply with IEC60332-1
Outer sheath
Abrasion &Oil resistant NBR or Neoprene
Sheath color
Black /Red
Performance Requirements
Applications
♦High tensile & tear resistance, stable overall properties. ♦Excellent resistance to oil, abrasion, low temperature and weathering.
This material is widely used for cables on reels subjected to frequent winding and unwinding, including Tunnel Boring machines and other engineering machinery.
It is extensively adopted in tunnel construction, where cables are required to feature great flexibility, abrasion resistance, bending resistance and crush resistance.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Maximum Tensile Force N
6/10KV
3×25+3×25/3
2.90
45.0
2700
3×35+3×25/3
3.40
49.0
3100
3×50+3×25/3
4.00
53.0
3900
3×70+3×35/3
5.10
57.0
4500
3×95+3×50/3
6.15
62.0
5400
3×120+3×70/3
7.80
67.0
6700
3×150+3×70/3
8.85
70.0
7600
3×185+3×95/3
10.30
74.0
9000
3×240+3×120/3
13.10
79.0
12000
8.7/15KV
3×25+3×25/3
2.90
45.0
2700
3×35+3×25/3
3.40
49.0
3100
3×50+3×25/3
4.00
53.0
3900
3×70+3×35/3
5.10
57.0
4500
3×95+3×50/3
6.15
62.0
5400
3×120+3×70/3
7.80
67.0
6700
3×150+3×70/3
8.85
70.0
7600
3×185+3×95/3
10.30
74.0
9000
3×240+3×120/3
13.10
79.0
12000

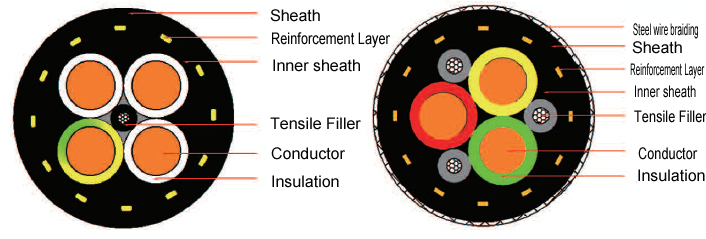

0.6/1kV High Temperature Resistant Steel Mill Reel Cable
Structure & Technical Index
Constructure
Technical Index
Conductor:
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Rated Voltage:
U0/U 0.6/1kV
Insulation
High Temperature Resistant Special Elastomer Insulation
Test Voltage
3500V/5min
Color Code
Black with Code
Min.Bending Radius
Laying-up
Grouped short lay stranding, tensile members filled at core & interstices
Fixed laying
5×D(Cable OD)
Inner sheath
High Temperature Resistant Special Elastomer
For moving installation
10×D(Cable OD)
Reinforcement layer
Aramind braiding
Max. Tensile force
20N/mm2
Outer Sheath
Abrasion &Oil resistant PUR
Max. moving speed
180m/min2
Sheath color
Black/Yellow
Operating temperature
Fixed laying Moving installation
-40 °C to +90°C -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Performance Requirements
Applications
♦Flexibility & bendability.
♦High tensile strength and tear resistance with stable performance.
♦Excellent oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance,Suitable for outdoor applications.

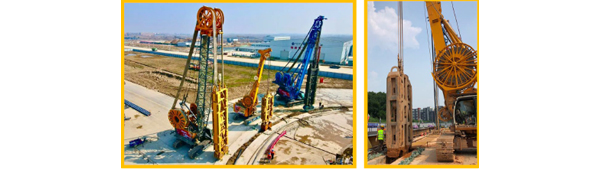

Applicable to diaphragm wall trench grabs, high-stress reel connection cables, lifting machinery, lifting systems, cable trolleys, vertical reel operations, surface and underground mining, designed for mobile applications under heavy loads.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force N
1x10
0.20
10.5
200
1x16
0.26
11.6
320
1x25
0.37
13.3
500
1x35
0.50
15.0
700
1x50
0.65
17.2
1000
1x70
0.87
18.6
1400
1x95
1.12
21.0
1900
1x120
1.14
24.0
2400
1x150
1.73
26.0
3000
1x185
2.07
27.7
3700
1x240
2.66
30.5
4800
3x1.5
0.25
13.0
68
3x2.5
0.31
14.5
113
3x4.0
0.39
16.0
240
3x6.0
0.52
18.2
360
3x10
0.76
21.3
600
3x16
1.08
24.6
960
3x25
1.47
28.0
1500
3x35
2.00
32.0
2100
3x50
2.68
37.0
3000
3x70
3.53
41.0
4000
3x95
4.40
45.5
5500
3x120
5.70
51.5
7000
3x150
7.00
57.5
9000
3x185
8.32
62.0
11000
3x240
10.80
70.0
14000
3x50+3G25/3
2.73
35.8
3000
3x70+3G35/3
3.70
41.2
4200
3x95+3G50/3
4.69
45.5
5500
3x120+3G70/3
6.22
51.7
7000
3x150+3G70/3
7.48
57.5
9000
3x185+3G95/3
9.00
62.0
11000
3x240+3G120/3
11.70
69.8
14000
3x300+3G150/3
13.90
72.5
21000
4G1.5
0.28
14.3
90
4G2.5
0.35
15.3
150
4G4.0
0.46
17.0
320
4G6.0
0.61
19.5
480
4G10
0.92
23.0
800
4G16
1.31
26.5
1200
4G25
1.86
31.2
2000
4G35
2.45
34.8
2800
4G50
3.30
40.0
4000
4G70
4.42
44.0
5500
4G95
5.60
50.8
7500
4G120
7.35
58.0
9500
4G150
8.70
63.2
12000
4G185
10.70
69.8
14000
4G240
13.50
76.2
19000
5G1.5
0.32
15.0
110
5G2.5
0.41
16.8
188
5G4.0
0.57
19.0
400
5G6.0
0.72
21.0
600
5G10
1.14
25.5
1000
5G16
1.55
28.6
1600
5G25
2.10
34.3
2500
5G35
3.00
38.5
3500
5G50
4.00
43.8
5000
5G70
5.45
50.2
7000
5G95
7.00
56.8
9500
4x10+4x2.5
1.06
24.3
800
4x16+4x2.5
1.36
26.6
1250
4x25+4x2.5
1.91
31.2
2000
4x35+4x2.5
2.53
34.5
2800
4x50+4x4.0
3.30
39.6
4000
7x1.5
0.41
16.8
158
12x1.5
0.58
20.1
270
18x1.5
0.76
22.7
405
24x1.5
1.00
26.7
570

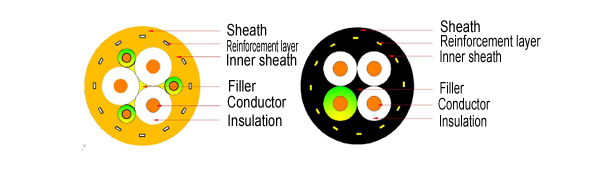

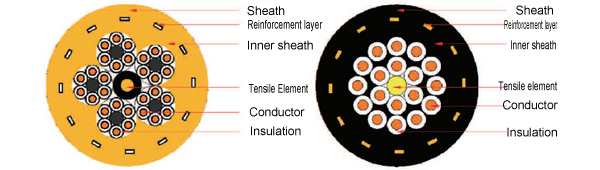

0.6/1KV Telescope Arm Reel Cable
Structure & Technical Index
Constructure
Technical Index
Conductor:
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Rated Voltage:
U0/U 0.6/1kV
Insulation
Special Elastomer Insulation
Test Voltage
3500V/5min
Color Code
Black with Code
Min.Bending Radius
Fiber Optic
(if applicable) Single-mode / Multi-mode Optical Fibre, 4 to 24 cores (50/125, 62.5/125 and 9/125)
Fixed laying
5×D(Cable OD)
Laying-up
Grouped short lay stranding, tensile members filled at core & interstices
For moving installation
10×D(Cable OD)
Inner sheath
Abrasion &Oil resistant NBR or PUR
Max. Tensile force
20N/mm2
Reinforcement layer
Aramind braiding
Max. moving speed
180m/min
Outer sheath
Abrasion &Oil resistant PUR
Operating temperature
Sheath color
Black/Yellow
Fixed laying Moving installation
-40 °C to +90°C -30 °C to +90°C
Flame Retardant Property
comply with IEC60332-1
Performance Requirements
Applications
♦Flexibility & bendability.
♦High tensile strength and tear resistance with stable performance.
♦Excellent oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance,
Suitable for outdoor applications.

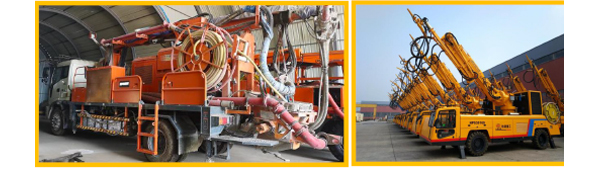

Ideal for heavy-wear environments; applicable to ovens, electric motors, aircraft structures, steel plants and hot rolling mills, as well as areas with high temperatures and extreme temperature fluctuations.
Suitable for applications subject to high mechanical stress, tensile load and torsional stress.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force N
18x1.0(3x6x1.0)
0.52
19.5
1500
19x1.0（double sheath）
0.55
19.5
1700
19x1.0（single sheath）
0.45
17.0
1700
48x1.0(6x8x1.0)
1.40
28.7
2000
18x1.5(6x3x1.5)
0.75
19.5
3000
18x2.5(6x3x2.5)
1.00
25.4
3200
19x2.5
1.05
25.4
3300
24x2.5(6x4x2.5)
1.50
31.0
3500
30x2.5(6x5x2.5)
1.60
32.5
4000
36x2.5(6x6x2.5)
2.05
36.5
4500
42x2.5(6x7x2.5)
2.25
39.0
5000
54x2.5(6x9x2.5)
2.80
45.0
6000
3x1.5
0.25
13.0
68
3x2.5
0.31
14.5
113
3x4.0
0.39
16.0
240
3x6.0
0.52
18.2
360
4G1.5
0.28
14.3
90
4G2.5
0.35
15.3
150
4G4.0
0.46
17.0
320
4G6.0
0.61
19.5
480
5G1.5
0.32
15.0
110
5G2.5
0.41
16.8
188
5G4.0
0.57
19.0
400
5G6.0
0.72
21.0
600
7x1.5
0.41
16.8
158
12x1.5
0.58
20.1
270
18x1.5
0.76
22.7
405
24x1.5
1.00
26.7
570
30x1.5
1.10
27.7
675
36x1.5
1.35
30.2
810
42x1.5
1.55
31.8
945
7x2.5
0.57
19.1
260
12x2.5
0.76
22.2
450
18x2.5
1.00
25.7
650
24x2.5
1.45
30.2
900
30x2.5
1.60
31.5
1100
36x2.5
1.85
33.4
1350
7x4.0
0.64
21.5
420
7x6.0
0.96
26.3
630
12x4.0
1.80
26.0
720
18x4.0
1.85
29.4
1080
3x(2x1.0)C
0.67
22.0
90
3x(2x1.5)C
0.74
22.5
135
3x(2x2.5)C
0.98
25.5
135
6x(2x1.0)C
1.00
28.0
180
6x(2x1.5)C
1.20
29.3
270
6x(2x2.5)C
1.57
32.1
450
4x0.34
0.04
4.8
1000
5x0.34
0.05
5.0
1000
6x0.34
0.06
6.0
1000
7x0.34
0.07
6.7
1000
8x0.34
0.08
7.0
1000
9x0.34
0.09
7.5
1000
10x0.34
0.10
8.2
1000
12x0.34
0.11
8.4
1000

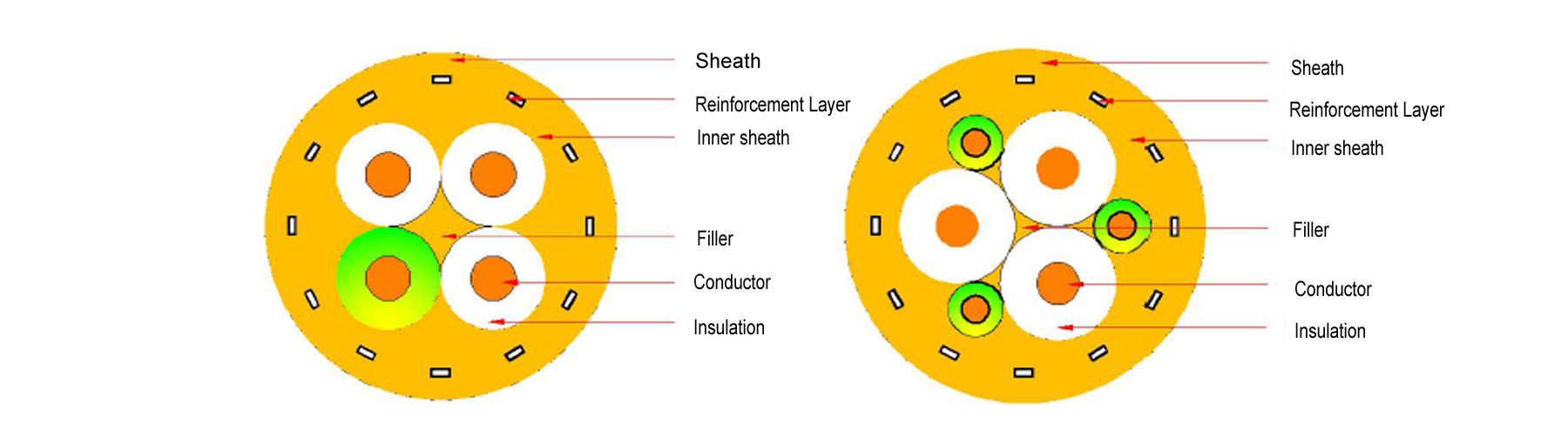

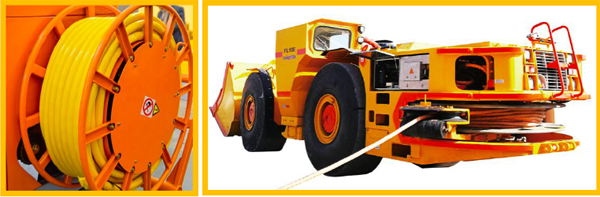

Scraper Cable
Application
Electric scraper cables are mostly used underground, and as the equipment moves, the cables will be subjected to varying degrees of wear and tear. The wear is mostly caused by contact with the ground,and the wear resistance of the outer sheath is very high.
Products Features
♦Flexibility
♦High tensile strength, tear resistance, high wear resistance
♦Excellent oil resistance, wear resistance,cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
Structure & Technical Data
Cable structure
Technical description
Conductor
Multi strand precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard.
Rated voltage U0/U
0.6/1kV
Insulation
Special elastomer insulation
Test voltage
3500V/5min
Color
Black core wire (numbered sequentially with white numbers)/Color separation
Minimum bending radius
Fixed laying4×D(Cable outer diameter)
Mobile installation10×D(Cable outer diameter)
Twisting
Filling tensile components
Maximum tension
25N/mm² (dynamic)
Winding layer
/
Max. Speed
180m/min
Inner Sheath
Special wear-resistant and flexible elastomers
Temperature
Fixed -40℃ to +90℃
Mobile -30℃ to +90℃
Reinforcing layer
Aramid weaving
Flame Retardancy
Complies with IEC60332-1 standard
Out Sheath
Special wear-resistant, flexible oil-resistant polyurethane (PUR) outer sheath, PUR

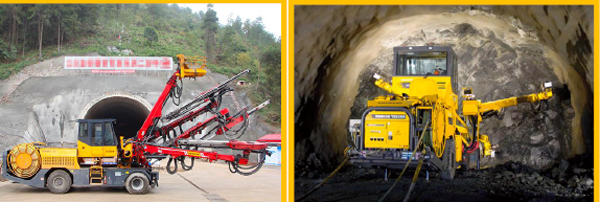

Widely used in underground mining rock wall drilling and rock drilling operations of major mining enterprises, and so on.
Used on drums for back and forth movement or retraction in various harsh underground environments such as coal mines or iron mines.
Products Features
♦Flexibility
♦High tensile strength, tear resistance, high wear resistance
♦Excellent oil resistance, wear resistance,cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
Structure & Technical Data
Cable structure
Technical description
Conductor
Multi strand precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard.
Rated voltage U0/U
0.6/1kV
Insulation
Special elastomer insulation
Test voltage
3500V/5min
Color
Black core wire (numbered sequentially with white numbers)/Color separation
Minimum bending radius
Fixed laying4×D(Cable outer diameter)
Mobile installation10×D(Cable outer diameter)
Twisting
Short lay grouped stranding with tensile filler elements at core & interstices.
Maximum tension
25N/mm² (dynamic)
Winding layer
/
Max. Speed
180m/min
Inner Sheath
Special wear-resistant and flexible elastomers
Temperature
Fixed -40℃ to +90℃
Mobile -30℃ to +90℃
Reinforcing layer
Aramid weaving
Flame Retardancy
Complies with IEC60332-1 standard
Out Sheath
Special wear-resistant, flexible oil-resistant polyurethane (PUR) outer sheath, PUR
Oil Resistance
Compliant with VDE 0281 Part 13
Specification
4G16,4G25,4G70,4G95, 4G120,4G150,4G185, 3x35+3x16/3,3x185+3x95/3,3x35+3x16/3+2x2.5,3x70+3x25/3+2x2.5, 3x95+3x50/3+2x2.5,3x120+3x50/3+2x2.5.
Custom design & customization are acceptable as per client specifications.
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force N
Wet Shotcrete Jumbo Cable
Application
Wet Shotcrete Jumbo Cable are mostly used in tunnels or mountain reinforcement projects.As the equipment moves, the cables will be subjected to varying degrees of wear and tear, which is mostly caused by contact with the ground. The wear resistance of the outer sheath is very high.
Products Features
♦Flexibility
♦High tensile strength, tear resistance, high wear resistance
♦Excellent oil resistance, wear resistance,cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
Structure & Technical Data
Cable structure
Technical description
Conductor
Multi strand precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard.
Rated voltage U0/U
0.6/1kV
Insulation
Special elastomer insulation
Test voltage
3500V/5min
Color
Black core wire (numbered sequentially with white numbers)/Color separation
Minimum bending radius
Fixed laying4×D(Cable outer diameter)
Mobile installation10×D(Cable outer diameter)
Twisting
Short lay grouped stranding with tensile filler elements at core & interstices.
Maximum tension
25N/mm² (dynamic)
Winding layer
/
Max. Speed
180m/min
Inner Sheath
Special wear-resistant and flexible elastomers
Temperature
Fixed -40℃ to +90℃
Mobile -30℃ to +90℃
Reinforcing layer
Aramid weaving
Flame Retardancy
Complies with IEC60332-1 standard
Out Sheath
Special wear-resistant, flexible oil-resistant polyurethane (PUR) outer sheath, PUR
Oil Resistance
Compliant with VDE 0281 Part 13
Specification
3x16、3x35、3x50、4G16、4G35、4G70、3x16+1x10、3x35+1x16、3x70+1x25、3x95+1x50
Custom design & customization are acceptable as per client specifications.
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force N
Diaphragm Wall Grab Trenching Machine Reel Cable
Application
Suitable for applications such as continuous
wall grab slotting machines, large mechanical stress reel connection lines, mobile lifting equipment, lifting systems, traveling cableconveyors and cable carts, mechanical vertical reel operations, and can also be used for surface and underground mining.
Products Features
♦Flexibility
♦High tensile strength, tear resistance, high wear resistance
♦Excellent oil resistance, wear resistance,cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
Structure & Technical Data
Cable structure
Technical description
Conductor
Multi strand precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard.
Rated voltage U0/U
0.6/1kV
Insulation
Special elastomer insulation
Test voltage
3500V/5min
Color
Black core wire (numbered sequentially with white numbers)/Color separation
Minimum bending radius
Fixed laying4×D(Cable outer diameter)
Mobile installation10×D(Cable outer diameter)
Twisting
Short lay grouped stranding with tensile filler elements at core & interstices.
Maximum tension
25N/mm² (dynamic)
Winding layer
/
Max. Speed
180m/min
Inner Sheath
Special wear-resistant and flexible elastomers
Temperature
Fixed -40℃ to +90℃
Mobile -30℃ to +90℃
Reinforcing layer
Aramid weaving
Flame Retardancy
Complies with IEC60332-1 standard
Out Sheath
Special wear-resistant, flexible oil-resistant polyurethane (PUR) outer sheath, PUR
Oil Resistance
Compliant with VDE 0281 Part 13
Specification
18x1.0,19x1.0,48x1.0,18x2.5,19x2.5,24x2.5,30x2.5,36x2.5,42x2.5,54x2.5
Custom design & customization are acceptable as per client specifications.
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force N

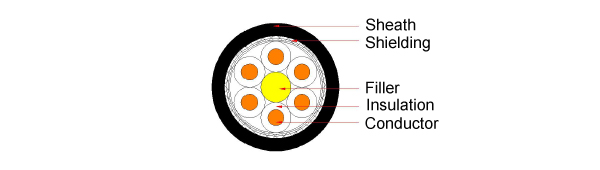

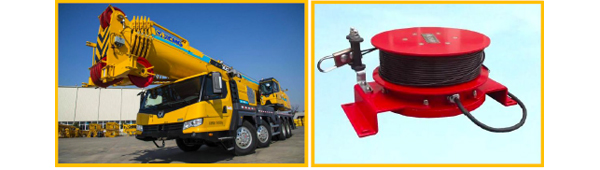

Mobile Crane Telescopic Boom Reel Cable
Application
Used as a cable for the telescopic arm pull box of a car crane, the cable needs to be repeatedly moved during use, with superior oil resistance, wear resistance, and bending resistance.
Products Features
♦Flexibility
♦High tensile strength, tear resistance, high wear resistance
♦Excellent oil resistance, wear resistance,cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
Structure & Technical Data
Cable structure
Technical description
Conductor
Multi strand precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard.
Rated voltage U0/U
300/300V
Insulation
Special elastomer insulation
Test voltage
1500V/5min
Color
Black core wire (numbered sequentially with white numbers)/Color separation
Minimum bending radius
Fixed laying5×D(Cable outer diameter)
Mobile installation10×D(Cable outer diameter)
Twisting
Short lay grouped stranding with tensile filler elements at core & interstices.
Maximum tension
25N/mm² (dynamic)
Winding layer
/
Max. Speed
180m/min
Inner Sheath
Special wear-resistant and flexible elastomers
Temperature
Fixed -40℃ to +90℃
Mobile -30℃ to +90℃
Reinforcing layer
Aramid weaving
Flame Retardancy
Complies with IEC60332-1 standard
Out Sheath
Special wear-resistant, flexible oil-resistant polyurethane (PUR) outer sheath, PUR
Oil Resistance
Compliant with VDE 0281 Part 13
Specification
4x0.34, 5x0.34, 6x0.34、 7x0.34, 8x0.34, 9x0.34, 10x0.34, 12x0.34 Custom design & customization are acceptable as per client specifications.
C.S.Center
SKYPE
