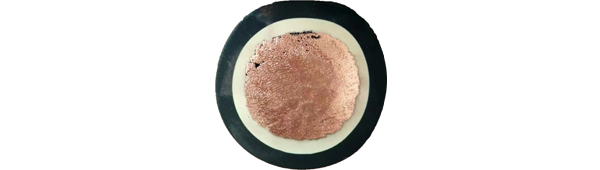

| DLO Cable DCYEDH DC2000V 1X120mm2 (4/0AWG) |
|
|
|
|---|
EPR Rubber Insulated Cable for Railway Vehicles
Application
This cable is intended for power and control system on railway vehicles or other vehicles.
Reference Standards
Service Property Parameter
| Main Parameter |
Performance Index |
| AC Rated voltage |
750V,1500V,3000V |
| Long time permisssible maximum operating temperature |
For DCEH/3, 70℃
For DCEH/3-100,100℃ |
| Cables can be used in fields |
such as polluted by mineral oil and fuel oil. |
| Laying permitted bending radius |
Overall diameter of cable(D) less than 20mm ≥3D (D: Cable diameter.mm)
Overall diameter of cable(D) more than 20mm ≥5D (D: Cable diameter.mm) |
Type and Description
| Type |
Description |
| DCEH/3 |
铜芯乙丙绝缘氯化聚乙烯/氯磺化聚乙烯护套机车车辆用电缆
Copper wire EPR insulated CPE/CSP sheathed cable for railway vehicles |
| DCEH/3-100 |
铜芯耐热乙丙绝缘氯化聚乙烯/氯磺化聚乙烯护套机车车辆用电缆
Copper wire heat-resisting EPR insulated CPE/CSP sheathed cable for railway vehicles |
Cable Specification
| Type |
Rated voltage |
No.of cores |
Nominal section |
Construction sizw sheet |
| DCEH/3 |
750V
1500V
3000
|
1
1
1 |
0.5-300
1-300
2.5-300 |
Table1
Table2
Table3 |
| DCEH/3-100 |
750V
1500V
3000
|
1
1
1 |
0.5-300
1-300
2.5-300 |
Table1
Table2
Table3 |
Construction Size
Table 1 type DCEH/3, DCEH/3-100 750V copper wire EPR insulated CPE/CSP sheathed cable(cord) for raiway vehicles
omit
Table 2 type DCEH/3, DCEH/3-100 1500V copper wire EPR insulated CPE/CSP sheathed cable(cord) for raiway vehicles
omit
Table 3 type DCEH/3, DCEH/3-100 3000V copper wire EPR insulated CPE/CSP sheathed cable(cord) for raiway vehicles
omit
|
XLPO Rubber Insulated Cable for Railway Vehicles
![]()
Application
This cable is intended for power and control system rated a.c. voltage up to and including 3kV on railway vehicles or other vehicles.
Reference Standards
Service Property Parameter
| Main Parameter |
Performance Index |
| AC Rated voltage |
750V,1500V,3000V |
Long time permisssible maximum operating temperature
For WDZ-DCYJ-125,WDZ-DCYJ/B125
For WDZ-DCYJ/B150 |
125℃
150℃ |
Min. application ambient temperature:
For WDZ-DCYJ-125
For WDZ-DCYJ/B125,WDZ-DCYJ/B150 |
-40℃
-60℃ |
| Permited Operating condition |
| WDZ-DCYJ-125 | Oil pollution condition |
| WDZ-DCYJ/B-125,WDZ-DCYJ/B-150 | use in harsh environments with various types of oil contamination and non-high-concentration acid or alkali contamination. |
| Laying permitted bending radius |
Overall diameter of cable(D) less than 20mm ≥3D
Overall diameter of cable(D) more than 20mm ≥5D |
Type and Description
| Type |
Rated voltage(V) |
Description |
| WDZ-DCYJ-125 |
500,750,
1500,3000 |
Copper wire heat-resisting 125°C XLPO insulated halogen-free low-smoke flame-retardant cable for railway vehicles |
| WDZ-DCYJ/B-125 |
750 |
Copper wire heat-resisting 125°C high-strengthened thin-walled XLPO insulated halogen-free low-smoke flame-retardant cable for railway vehicles |
| WDZ-DCYJ/B-150 |
750 |
Copper wire heat-resisting 150°C high-strengthened thin-walled XLPO insulated halogen-freelow-smoke flame-retardant cable for railway vehicles |
Cable Specification and construction
omit
|
NR+SBR Insulated Cable for Railway Vehicles
![]()
Application
This cable is intended for power and control systemrated a.c. voltage up to and including 1.5kV on railway vehicles or other vehicles.
Reference Standards
Service Property Parameter
| Main Parameter |
Performance Index |
| Rated voltage |
AC 750V,1500V
1.5 times of AC |
| Permited Operating condition |
used in fields polluted by mineral oil But without fuel oil pollution. |
| Long time permisssible maximum operating temperature |
70℃ |
| Laying permitted bending radius |
Overall diameter of cable(D) less than 20mm ≥3D
Overall diameter of cable(D) more than 20mm ≥5D |
Type and Description
| Type |
Type |
Description |
| DCXF/2 |
750,1500 |
Copper wire NR+SBR insulated PCP rubber sheathed cable for railway vehicles |
Cable Specification
Omit
|
CSP Rubber Insulated Cable for Railway Vehicles
![]()
Application
This cable is intended for power and control systemrated a.c. voltage up to and including 750V on railway vehicles or other vehicles.
Reference Standards
Service Property Parameter
| Main Parameter |
Performance Index |
| Rated voltage |
750V |
| Long time permisssible maximum operating temperature |
For DCH/3, 70℃
For DCH/3-100, 100℃ |
| Permited Operating condition |
used in fields such as polluted by mineral oil and fuel oil . |
| Laying permitted bending radius |
Overall diameter of cable(D) less than 20mm ≥3D
Overall diameter of cable(D) more than 20mm ≥5D |
Type and Description
| Type |
Description |
| DCH/3 |
Copper conductor CSP insulated cable for railway vehicles |
| DCH/3-100 |
Copper conductor heat-resisting 100℃ CSP insulated cable for railway vehicles |
Cable Specification
Conductor nominal cross
section(mm²) |
Conductor
specification |
Insulation nominal cross
section(mm) |
Average overall
diameter |
| 0.5 |
A |
1.0 |
3.4 |
| B |
1.0 |
3.4 |
| 0.75 |
A |
1.0 |
3.8 |
| B |
1.0 |
3.8 |
| 1.0 |
A |
1.2 |
4.4 |
| B |
1.2 |
4.4 |
| 1.5 |
A |
1.2 |
4.7 |
| B |
1.2 |
4.7 |
| 2.5 |
A |
1.2 |
5.2 |
| B |
1.2 |
5.2 |
| 4 |
A |
1.2 |
6.0 |
| B |
1.2 |
6.0 |
| 6 |
A |
1.2 |
7.4 |
| B |
1.2 |
7.4 |
| 10 |
A |
1.4 |
9.0 |
| B |
1.4 |
9.0 |
| 16 |
A |
1.4 |
10.5 |
| B |
1.4 |
10.0 |
| 25 |
A |
1.6 |
12.5 |
| B |
1.6 |
12.5 |
| 35 |
A |
1.6 |
14.0 |
| B |
1.6 |
14.0 |
| 50 |
A |
1.8 |
16.5 |
| B |
1.8 |
16.0 |
| 70 |
A |
1.8 |
18.5 |
| B |
1.8 |
18.0 |
| 95 |
A |
2.0 |
20.5 |
| B |
2.0 |
20.5 |
| 120 |
A |
2.0 |
22.5 |
| B |
2.0 |
22.5 |
| 150 |
A |
2.2 |
25.5 |
| B |
2.2 |
25.0 |
| 185 |
A |
2.4 |
27.5 |
| B |
2.4 |
27.5 |
| 240 |
A |
2.6 |
31.0 |
| B |
2.6 |
31.0 |
| 300 |
A |
2.8 |
34.0 |
| B |
2.8 |
34.0 |
```
|
|
