Description

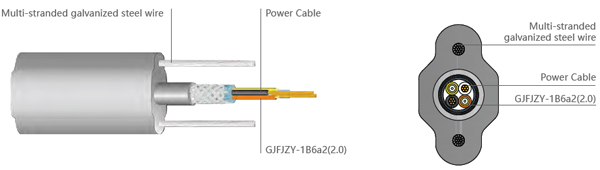

>Flat elevator optic fiber cable is widely applied for multiple purpose, it is consist of two multi-stranded galvanized steel wires, two power cables and two GJFJZY-1B6a2(2.0) tight-buffered fibers.
Reference Standards
- »»GB/T 5023.6-2006
- IEC 60227-6:2011
-
-
-
Specification
| Parameter |
Data |
| Overall Diameter |
16.4±1.0mm*8.7±0.5mm |
| Outer Sheath Material
|
PVC/ST5 |
| Steel Wire Material |
High Strength galvanized Steel |
| Steel Wire Diameter |
1.5mm |
| Power Cable Conductor |
Annealing Copper |
| Power Cable Conductor Dimension |
30/0.171(±0.004mm) |
| Power cable Insulation |
PVC/D (Black White) |
| Power Cable Insulation Dimension |
Avg Thickness: 0.4mm,
Thinnest: 0.26mm |
| Power Cable 20℃ Conductor DCR |
≤26Ω/km |
| Fiber Model |
GJFJZY-1B6a2(2.0) |
| Fiber Dimension |
9/125 |
| Tight Buffered Coating |
TPEE |
| Tight Buffer Diameter |
0.9±0.05mm |
| Strength Member |
Aramid Yarn |
|
Fiber Outer Sheath |
LSZH(Yellow/Orange) |
| Fiber Attenuation |
@1300nm≤1.5dB/km
@850nm≤3.5dB/km |
| Fiber Short-term tension |
60N |
| Crush on Fiber (Short Term) |
500N/100mm |
Cable
Bend Radius
D1≥6D0
Installation Bend Radius: ≥6xDiameter
Mechanical Characteristics:
Max Free Suspension Length:80M
Max Travelling Speed:4M/S;
Order Information
| Model No. |
Length |
Unit |
| TVVBG-2F 2F+2*RV0.75+2S |
Per request |
Meter |
 |
