Application

75 ohm coaxial cable is suitable for CCTV signal transmission, satellite TV signal reception andtransmission, etc., used in TV station terminal wiring, home closed-circuit TV, and civil and militarysatellite video signal reception. It can also be used for high-frequency equipment connection and internal Wiring, transmission wires, etc.

Product Features

With low attenuation loss, excellent anti-interference ability, signal transmission performance,flame-retardant eco-friendly materials and long-life service, it can meet special applicationrequirements such as water resistance, oil resistance, sunlight resistance, salt resistance, com-pression resistance, rodent resistance, and insect bite resistance.

Constructure and Technical Parameters

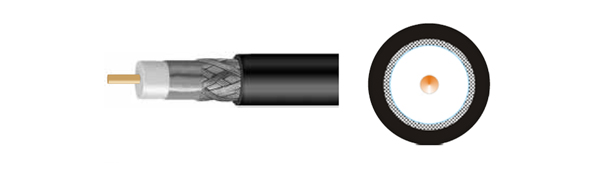

Cable Structure
Conductor	bare copper/tinned copper/silver-plated copper/copper-clad steel, copper-clad aluminum, solid or stranded
Insulation	Solid polyethylene, foamed polyethylene
Shield	aluminum foil + metal wire braiding, copper foil + metal wire braiding (bare copper/-tinned copper/silver-plated copper/copper clad steel, copper clad aluminuml. Single shield (aluminum tubel, double shield, triple shield, quadruple shield etc.
Sheath	PVC,LSZH,PE,PU, etc.
Optional	with hanging cord, power cord, twin cable, waterproof, anti-ultraviolet, environmental protection, flame retardant, armored
Technical Parameters
Temperature range	Fixed installation: -20~+80℃, Mobile installation: -5~+70℃
Insulation resistance	Solid PE insulation: ≥5000MΩ·km(20℃), Foam PE insulation: ≥10000MΩ·km(20℃)
Minimum bending radius	Fixed installation: 20xd, Mobile installation: 15xd
Characteristic impedance	75±3Ω
Environmental performance	RoHS 2.0 or REACH compliant
Flame retardant performance (optional)	UL444 CMX, CM, CMR, CMG or equivalent flame retardant test,CPR

Technical Standards

Serial number	Model	Approximate outer diameter	Theoretical cable weight	Reference standard
1	SYV-75-2-1	3.2	16.5	GB/T14864
2	SYV-75-2-2	4	25
3	SYV-75-3-42	5.4	42
4	SYV-75-2-1X8	/	/
5	SYV-75-2-2X8	/	/
6	SYV-75-5-41	7.2	74
7	SYV-75-5-42	7.9	85
8	SYWV-75-5	7.2	52	GY/T 135
9	SYWV-75-7	10.3	118
10	SYWV-75-9	12.3	155
11	RG59	6.1	28	ANSI/SCTE74
12	RG6	6.9	52
13	RG7	8.0	118
14	RG11	10.3	118
15	1.5C-2V	2.9	13	JIS C3501
16	2.5C-2V	4	25
17	3C-2V	5.4	42
18	5C-2V	7.4	74
19	7C-2V	10.4	140
20	10C-2V	13	220
21	17VATC/PATC/VRTC	6.8	40	EN50117
22	19VATC/PATC/VRTC	6.8	29
23	21VATC/PATC/VRTC	6.8	33
24	11VATC/PATC/VRTC	9.8	/
25	Trunk 320/412/500/540/625(m)	/	/
