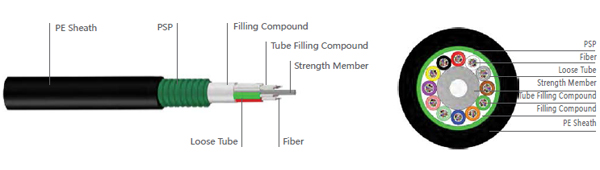

Description

Single-mode or multi-mode fibers are positioned in a high modulus loose tube, which is filled with a water-resistantcompound.
One metal strength member is in the centre of cable, which is covered by PE for some cores cable.
Centre strength member is stranded by loose tubes into compact and circular cable core, which is filled water-blocking material.
PSP is longitudinally applied over the cable core and PE sheath is extruded. (max. 144 cores)

Installation
Type	Diameter mm	Cores	Installation Method
			LAN	Duct	Conduit	Cable Trench	Aerial	Direct Burial	Dielectric
GYTS	10-22	1-144	✓	Δ	✓	✓	Δ
Note: Δ available ， ✓ Optional

Reference Standards

• »»YD/T 901-2009
• »»YD/T 9771-2008

Specification

Item	Data
Strength Member	Single Phosphating Steel Wire
Armour	PSP
Loose Tube	PBT
Water-blocking Material	Gel/Powder
Outer sheath	PE

Order Information

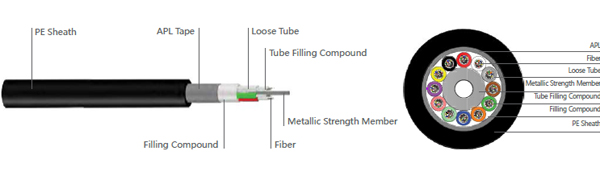

Description

Single-mode or multi-mode fibers are positioned in a high modulus loose tube, which is filled with a water-resistant compound.
One metal strength member is in the centre of cable, which is covered by PE for some cores cable. Centre strength member is stranded by loose tubes into compact and circular cable core, which is filled water-blocking material.
APL is longitudinally applied over the cable core and PE sheath is extruded. To compare with GYTS, tensile strength of GYTA is weaker, but it weights lighter and better water-blocking performance . (max. 144 cores)

Installation
Type	Diameter mm	Cores	Installation Method
			LAN	Duct	Conduit	Cable Trench	Aerial	Direct Burial	Dielectric
GYTA	10-22	1-144	✓	Δ	✓	✓	Δ
Note: Δ available ， ✓ Optional

Reference Standards

• »»YD/T 901-2009
• »»YD/T 9771-2008

Specification

Item	Data
Central Strength Member	Single Phosphating Steel Wire
Armour	APL
Loose Tube	PBT
Outer sheath	PE

Order Information

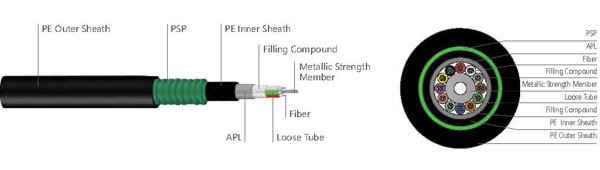

Description

Single-mode or multi-mode fibers are positioned in a high modulus loose tube, which is filled with a water-resistant compound.
One metal strength member is in the centre of cable, which is covered by PE for some cores cable. Centre strength member is stranded by loose tubes into compact and circular cable core, which is filled water-blocking material.
APL is longitudinally applied over the cable core and PE inner sheath is extruded, then PSP wrapped and PE outer sheath. GYTA53 has both good tensile strength and water-blocking ability as GYTS and GTYA. (max. 144 cores)

Installation
Type	Diameter mm	Cores	Installation Method
			LAN	Duct	Conduit	Cable Trench	Aerial	Direct Burial	Dielectric
GYTA53	10-22	1-144	✓		✓	✓		Δ
Note: Δ available ， ✓ Optional

Reference Standards

• »»YD/T 901-2009
• »»YD/T 9771-2008

Specification

Item	Data
Central Strength Member	Single Phosphating Steel Wire
Armour	APL
Inner Sheath	PE
Outer Armour	PSP
Loose Tube	PBT
Water-blocking Material	Gel/Powder
Outer sheath	PE

Order Information

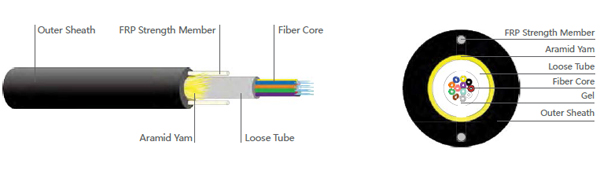

Description

>Small diameter,light weight and friendly installation.
>Good mechanical and temperature performance
>Lightning protection
>High strength loose tube that is hydrolysis resistant
>Long-distance communication

Reference Standards

• »»YD/T 769-2010
• »»YD/T 9771-2008

Optical Characteristics

Item	Data
Wavelength(nm)	1310	1550
Attenuation(dB/km)	≤0.35	≤0.22

Geometrical Characteristics

Type	Diameter(mm)	Weight kg/km	Bending Radius Min.(mm)
			Installation	Operation
GYFXTW-2~12B1)	7.5	30	20D	10D
GYFXTW-14~24B1	8.2	36	20D	10D
