Application

The composite cable is a special cable that combines video, audio, power, signal, control, etc., withcompact structure and easy installation. It is suitable for monitoring wiring, network wiring, andweak current security projects.

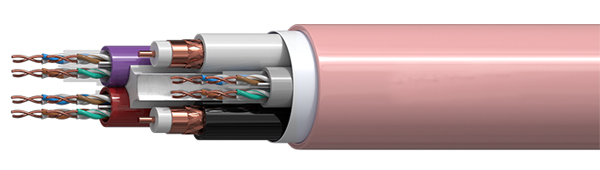

Cable Structure

Temperature range	Fixed installation:-20~+80 °C Mobile occuasion:-5~+70°C
Insulation resistance	Solid PE core insulation≥5000MΩ.km(20°C) Mobile occuasion:≥1000MΩ.km(20°C)
Minimum bending radius	Fixed installation:20D Mobile occuasion:30D
Environmental performance	RoHS 2.0 compliant
Flame retardant performance (optional)	Pass UL444 CMX,CM,CMR,CMG or equivalent flame retardant test
Optional	Eco-friendly, Flame-retardant, ,Waterproof, Anti-ultraviolet, Armored

Technical Parameter

Conductor	Bare copper, Tinner copper, Sliver clad copper,copper clad steel,Solid or Stranded
Insulation	Foamed polyethylene or polyethylene
Shielding	Aluminum foil + Metal wire braid, Double shield, Triple shield, Quad shield, etc
Sheath	PVC, LSHF, PE, etc.



Technical Standards

Serial number	Model	Approximate wire diameter	Cable weight kg/km
1	5x17VATC/PATC/VRTC	20	300
2	5x25VATC/PATC/VRTC	15.5	200
3	9x17VATC/PATC/VRTC	26	600
4	2CT100+2CAT6+1CAT5	19	180
5	2CT100+2CTA6	17.5	200
6	RG6+Category 5E	6.9*5.0	70
7	RG6+Category6	6.9*5.2	75
8	2xRG6 Quard+2xCategory 5E	16.5	220
9	2xRG6 Quard+2xCategory 6	16.5	240
10	8cores Mini aRG59	16.5	320
11	RG59+2C power cable	6.1*4.5	65
12	RG6/U+2C power cable	6.9*4.0	35
13	2XRG6 Quad+2xCAT5e +2C multimode fiber	16.5	250
14	RG174+2C power cable	5.7	40
15	F/UTP Cat6A+3Cx2C mm2 +1Px24 AWG Composite Cable	15	190
