拖链电缆
Drag Chain Cable


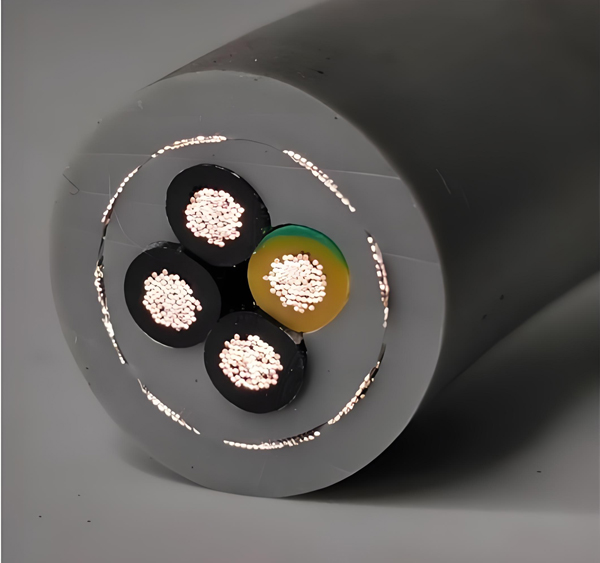

Drag Chain Control Cable


Construction & Technical Parameters

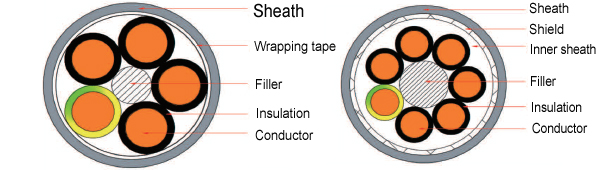

Construction
Low /Medium/High/Ultra Speed Drag Chain Control Cable Low /Medium/High/Ultra Speed Drag Chain Shielding Control Cable
Conductor: Multi strands precision twisted oxygen free copper wire
complies with IEC60228 Class 6 standard
Insulation Special PVC(low speed) Compound
Special TPE Compound
Insulation Color Black with code+Y/G or various color separation
Laying-up Optimal pitch cabling with layered, gap filling for round shape
Wrapping tape non-woven tape(if applicable)
Inner Sheath (high speed)Special Abrasion ,oil resistant NBR /PUR/TPE Compound
Shielding Layer tinned copper wire braiding,density more than 85%
Outer sheath Special Abrasion ,oil resistant NBR/PUR/TPE Compound Special Abrasion ,oil resistant NBR/PUR/TPE Compound
Sheath color Green or Black or Dark Grey
Technical Index
Rated Voltage: 300/500V
Test Voltage 2000V/5min
Min.Bending Radius
Fixed laying 7×D(PVC/PUR low speed)
4×D(PVC/PUR medium/high speed)
3×D(PUR/TPE Ultra high speed) (Cable Φ)		 7×D(PVC low speed)
4×D(PVC/PUR medium/high speed)
3×D(PUR/TPE Ultra high speed) (Cable Φ)
For moving installation 12.5×D(PVC/PUR low speed)
7.5×D(PVC/PUR medium speed)
6.8×D(PVC/PUR High speed)
5×D(PUR/TPE Ultra high speed) (Cable Φ)		 12.5×D(PVC/PUR low speed)
7.5×D(PVC/PUR medium speed)
6.8×D(PVC/PUR High speed)
5×D(PUR/TPE Ultra high speed)(Cable Φ)
Maximum Tensile Force(Round) 15N/mm2
Operating temperature Fixed laying:-15 °C to +70 °C(PVC)
-50 °C to +80°C(PUR)
-50 °C to +100°C(TPE)
for moving installation:
-5 °C to +70 °C(PVC)
-25 °C to +80°C(PUR)
-35 °C to +100°C(TPE)
Flame Retardant Property Comply with IEC60332-1
Oil Resistance Comply with DIN EN50363-10-2
Travel Distance Low speed chain cable is suitable for Overhead application
PVC medium speed chain cable is suitable for Overhead application & sliding applications with travel distance less than 50 m,
PUR medium speed chain cable ,less than 20m;
PVC/PUR high speed chain cable and PUR Ultra high speed with less than 100 m
TPE ultra high speed chain cable with travel distance less than 400 m
Performance Requirements Applications
♦Oil resistant
♦Low temperature resistant
♦ Superior abrasion resistance
♦ High tensile breaking resistance
♦ Excellent chemical resistance
♦ Small bending radius
♦ Low speed Overhead laying speed: 3 m/s;
♦ Medium speed overhead laying speed:3 m/s; Sliding speed:2 m/s
♦ High speed Overhead laying speed: 10 m/s; Sliding speed: 5 m/s
♦ TPE Ultra High speed Overhead laying speed: 10 m/s; Sliding speed: 6 m/s
 Suitable for applications requiring high-flexibility cables with ultra-small bending radius, commonly used with cable drag chains.
The shielding layer guarantees interference-free transmission of signals and pulses, making it an ideal anti-interference control cable.
The outer sheath of this product features outstanding abrasion and tear resistance, with robust construction and excellent oil resistance.
Certification


Technical Properties

    (PUR Sheath High Speed Drag Chain Cable Datasheet)
Cores No.X Cross Section Outer Dia.
mm		 Appro. weight
kg/m
PUR Sheath High Speed Drag Chain Cable
4x0.25 5.5 35
4x0.34 6.0 40
4x0.50 6.0 44
5x0.50 6.5 52
7x0.50 7.5 80
12x0.50 10.0 132
18x0.50 12.0 184
25x0.50 14.0 247
30x0.50 15.0 325
3x0.75 6.5 55
4x0.75 7.0 64
5x0.75 7.5 75
7x0.75 8.5 106
12x0.75 12.0 192
18x0.75 13.5 260
20x0.75 14.5 292
25x0.75 16.0 368
36x0.75 19.0 524
42x0.75 21.0 604
2x1.0 6.5 54
3x1.0 6.5 65
4x1.0 7.0 79
5x1.0 8.0 97
7x1.0 9.0 119
12x1.0 12.5 234
18x1.0 15.0 339
25x1.0 17.5 452
42x1.0 22.5 708
3x1.5 7.5 86
4x1.5 8.0 105
5x1.5 8.5 125
7x1.5 10.5 174
12x1.5 14.0 308
18x1.5 17.0 477
25x1.5 19.5 630
36x1.5 23.5 891
42x1.5 26.5 1040
3x2.5 8.5 124
4x2.5 9.5 155
5x2.5 10.5 192
7x2.5 12.5 270
4x4.0 11.5 256
5x4.0 12.0 302
5x6.0 14.0 428
5x10.0 19.0 724
5x16.0 22.5 1098
5x25.0 28.0 1635
PUR Sheath High Speed Shielded Drag Chain Cable
(4x0.50)C 8.0 79
(5x0.5)C 8.0 94
(7x0.50)C 9.5 123
(9x0.5)C 11.0 148
(12x0.50)C 12.5 207
(18x0.5)C 14.5 257
(25x0.50)C 16.0 366
(3x0.75)C 8.0 79
(4x0.75)C 8.5 99
(5x0.75)C 9.5 108
(7x0.75)C 10.5 146
(12x0.75)C 13.5 252
(18x0.75)C 15.5 367
(36x0.75)C 22.0 728
(42x0.75)C 24.5 800
(3x1.0)C 8.5 90
(4x1.0)C 9.0 107
(5x1.0)C 9.5 124
(7x1.0)C 11.0 170
(12x1.0)C 14.5 307
(18x1.0)C 17.0 424
(25x1.0)C 20.0 567
(3x1.5)C 9.5 133
(4x1.5)C 10.0 139
(5x1.5)C 10.5 166
(7x1.5)C 12.5 226
(12x1.5)C 16.0 403
(18x1.5)C 19.0 564
(25x1.5)C 22.5 755
(36x1.5)C 26.5 1147
(42x1.5)C 29.5 1360
(4x2.5)C 11.5 212
(5x2.5)C 12.5 247
(7x2.5)C 14.5 350
(4x4.0)C 14.0 342




Drag Chain Power Cable


Construction & Technical Parameters

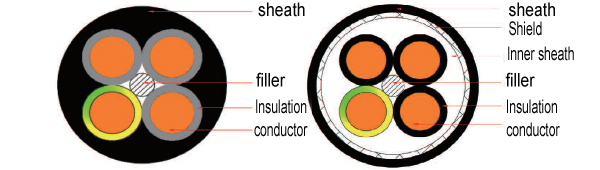

Construction
Low /Medium/High/Ultra Speed Drag Chain Power Cable,
eg.PVC high speed Power cable		 Low /Medium/High/Ultra Speed Drag Chain Shielding Power Cable.
eg.PVC high speed Shielding Power cable
Conductor: Multi strands precision twisted oxygen free copper wire
complies with IEC60228 Class 6 standard
Insulation Special TPE Compound
Insulation Color Black with code+Y/G or various color separation
Laying-up Optimal pitch cabling with layered, gap filling for round shape
Wrapping tape non-woven tape(if applicable)
Inner Sheath Special Abrasion ,oil resistant NBR Compound
Shielding Layer tinned copper wire braiding,density more than 85%
Outer sheath Special Abrasion ,oil resistant NBR Compound Special Abrasion ,oil resistant NBR Compound
Sheath color Black
Technical Index
Rated Voltage: 600/1000V
Test Voltage 3500V/5min
Min.Bending Radius
Fixed laying 4×D(Cable Φ) 4×D (Cable Φ)
For moving installation 7.5×D (Cable Φ) 7.5×D(Cable Φ)
Maximum Tensile Force(Round) 15N/mm2
Operating temperature Fixed laying:-15 °C to +70 °C
for moving installation:
-5 °C to +70 °C
Flame Retardant Property Comply with IEC60332-1
Oil Resistance Comply with DIN EN50363-10-2
Travel Distance suitable for Overhead application & sliding applications with travel distance less than 100 m,
Performance Requirements Applications
♦Flexible & and bendability
♦ Superior abrasion resistance
♦ Small bending radius
♦ Overhead laying speed: 10 m/s; Sliding speed: 5 m/s
 It is widely used as power connecting wires. In control units with bending requirements, it serves for electric control servo motors of supply cables and DNC vehicle connections.
The high-density shielding layer enables interference-free transmission of signals and pulses.
Certification


Technical Properties

    (PVC Sheath High Speed Drag Chain Power Cable Datasheet)
Cores No.X Cross Section Outer Dia.
mm		 Appro. weight
kg/m
PVC Sheath High Speed Drag Chain Power Cable
4x1.5 8.5 106
4x2.5 10.5 160
5x2.5 11.5 210
4x4.0 12.0 258
5x4.0 13.0 315
4x6.0 14.0 362
5x6.0 15.5 444
4x10.0 17.5 614
5x10.0 20.0 758
4x16.0 21.0 918
5x16.0 24.0 1164
4x25.0 25.5 1417
4x35.0 29.0 1936
4x50.0 35.0 2764
PVC Sheath High Speed Shielded Drag Chain Power Cable
(4x1.5)C 10.5 168
(4x2.5)C 12.0 233
(5x2.5)C 13.0 295
(4x4.0)C 13.5 345
(5x4.0)C 15.0 424
(4x6.0)C 16.0 488
(5x6.0)C 18.0 598
(4x10.0)C 20.5 833
(5x10.0)C 22.5 954
(4x16.0)C 23.5 1127
(4x25)C 28.5 1718
(4x35)C 32.5 2298
(4x50)C 37.5 3173
(4x70)C 43.0 4085




Drag Chain Data Cable



Construction & Technical Parameters

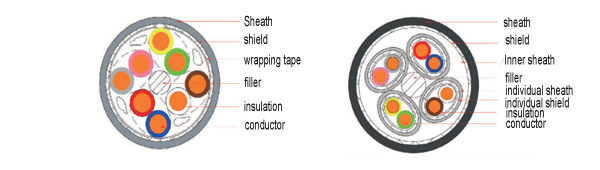

Construction
PVC high speed pair-twisted Shielded Data cable TPE high speed (pair-twisted Shielded+individual sheath) Data cable
Conductor: Multi strands precision twisted oxygen free copper wire
complies with IEC60228 Class 6 standard
Insulation Special TPE Compound
Insulation Color Black with code+Y/G or various color separation
Pair-twisted Twist conductors in pairs two conductor twised with shortest pitch
Individual Shield tinned copper wire braided, density more than 85%
Individual Inner sheath Special Abrasion ,oil resistant TPE Compound
Overall laying-up cabling all paired units together,gap filling to achieve round shape Cabling all paired units with short pitch
Wrapping tape PET tape
Inner Sheath Special Abrasion ,oil resistant TPE Compound
Shielding Layer tinned copper wire braiding,density more than 85% tinned copper wire braiding,density more than 85%
Outer sheath Special Abrasion ,oil resistant NBR Compound Special Abrasion ,oil resistant TPE Compound
Sheath color Black /Grey Black /Dark Grey
Technical Index
Rated Voltage: 300/300V
Test Voltage 1500V/5min
Min.Bending Radius
Fixed laying 4×D(Cable Φ) 5×D (Cable Φ)
For moving installation 7.5×D (Cable Φ) 10×D(Cable Φ)
Maximum Tensile Force(Round) 15N/mm2
Operating temperature Fixed laying:-15 °C to +70 °C
for moving installation: -5 °C to +70 °C		 Fixed laying:-55 °C to +100 °C
for moving installation: -35 °C to +100 °C
Flame Retardant Property Comply with IEC60332-1
Oil Resistance Comply with DIN EN50363-10-2
Travel Distance suitable for Overhead application & sliding applications with travel distance less than 100 m, suitable for Overhead application & sliding applications with travel distance less than 400 m,
Performance Requirements ♦Flexible & and bendability
♦ Superior abrasion resistance
♦ Overhead laying speed: 5 m/s; Sliding speed: 3 m/s
 ♦Oil resistant
♦Low temperature resistant
♦ Superior abrasion resistance
♦ High tensile breaking resistance
♦ Excellent chemical resistance
♦ Overhead laying speed: 10 m/s; Sliding speed: 6 m/s
Applications Suitable for high-frequency working conditions, it can resist external electrical interference that disturbs pulse transmission, thus providing stable operating environment.
It is generally applied to machinery, machining equipment and other scenarios with frequent reciprocating movement.
The tightly woven tinned copper braid shields against external electromagnetic interference. The pair-twisted core structure effectively prevents crosstalk between adjacent wire pairs, ensuring secure data transmission and extending cable service life.
It features excellent EMC (Electromagnetic Compatibility) performance.		 Designed for high-frequency applications, it resists external electrical interference that distorts pulse transmission. Its pair-twisted core structure effectively eliminates crosstalk between adjacent wire pairs, ensuring secure data transmission and extending cable service life with excellent EMC (Electromagnetic Compatibility) performance.
The outer sheath of this cable delivers outstanding abrasion resistance, tear strength, robust mechanical performance and oil resistance.
Certification


Technical Properties


Cores No.X Cross Section Dia.
mm±10%		 Appro. weight
kg/m
PVC high speed pair-twisted Shielded Data cable
(2x0.25)C 5.0 30
(4x0.25)C 6.0 39
(3x(2x0.25))C 7.0 62
(4x(2x0.25))C 8.0 64
(5x(2x0.25))C 8.5 84
(6x(2x0.25))C 9.0 106
(8x(2x0.25))C 10.5 142
(10x(2x0.25))C 12.0 174
(14x(2x0.25))C 12.0 196
(3x(2x0.34))C 8.0 84
(8x(2x0.34))C 11.5 174
(10x(2x0.34))C 13.0 197
(2x0.50)C 5.5 43
(4x0.50)C 7.0 64
(3x(2x0.50))C 9.0 106
(4x(2x0.50))C 9.5 132
(5x(2x0.50))C 10.5 154
(6x(2x0.50))C 11.5 179
(8x(2x0.50))C 13.5 233
(10x(2x0.50))C 15.5 286
(14x(2x0.50))C 15.5 301
TPE high speed (pair-twisted Shielded+individual sheath) Data cable
(2x(2x0.25)C)C 11.0 153
(3x(2x0.25)C)C 11.0 163
(4x(2x0.25)C)C 11.0 177
(5x(2x0.25)C)C 13.0 228
(3x(2x0.50)C)C 13.5 232
(4x(2x0.50)C)C 14.5 270
(5x(2x0.50)C)C 15.5 341
(6x(2x0.50)C)C 17.0 397
(8x(2x0.50)C)C 20.5 527
(10x(2x0.50)C)C 23.0 614
(14x(2x0.50)C)C 23.0 725
(6x(2x1.0)C)C 20.0 551
