Type and Description
Bus Cable is used for the digital signal transmission between sensors and the corresponding display units, also designed for high-speed data transmission of industrial fieldbus systems and industrial Ethernet in automation and process control applications.

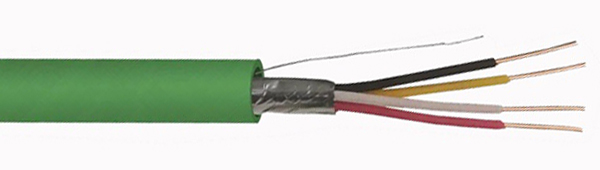

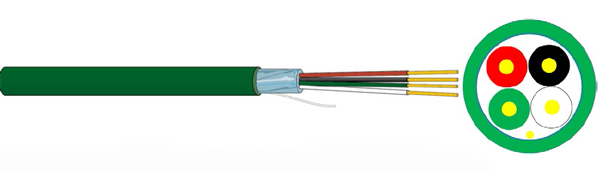

KNX/EIB Cable
Application
For use in KNX system, formely know as EIB, application to lighting, heating or ventilation in pipe, dry, moist and wet areas.
»» Installation Temperature: Above 0°C
Reference Standards
»»BS EN 50090
»»BS EN 60228
»»BS EN 50290
»»RoHS Directives
»»IEC60332-1
Electrical Performance
Working Voltage
150V
Working Voltage
4KV
Conductor DCR
37.0 Ω/km (Max. @ 20°C)
Insulation Resistance
100 MΩ/km(min.)
Mutual Capacitance
100 nF/Km (Max. @ 800Hz)
Unbalanced Capacitance
200 pF/100m (Max.)
91.80 Ω/km (Max. @ 20°C) for 24AWG
Mechanical Characteristics
Test Object
Sheath
Test Material
PVC
Before Aging
Tensile Strength (Mpa)≥10
Elongation (%)≥100
Aging Condition (°CXhrs)
100X168
After Aging
Tensile Strength (Mpa)≥70% unaged
Elongation (%)≥60% unaged
Cold Bend (-20°CX4hrs)
No crack
Impact Test (-15°C)
No crack
Longitudinal Shrinkage (%)
≤5
Cable Construction
Part No.
LBYE00819 for PVC
LB-KNX 2x2x20AWG
LBYE00820 for PVC
LBYE00905 for LSZH
LB-KNX 2x2x20AWG LSZH
LBYE00906 for LSZH
1x2x20AWG
2x2x20AWG
4x20AWG
Conductor Material
Solid Oxygen Free Copper
Conductor Size
0.80mm
Insulation
S-PE
Identification
Red, Black
Red, Black, Yellow, White
Red, Black, Yellow, White
Cabling
Cores Twisted into a Pair
Cores Twisted into Pairs, Pairs Laying-up
Cores Twisted into a Quad
Screen
Aluminium/Polyester Foil
Drain Wire
Tinned Copper Wire
Sheath
PVC, LSZH
Sheath Color
Green
Cable Diameter
5.10mm
5.80mm
7.50mm
Back Top

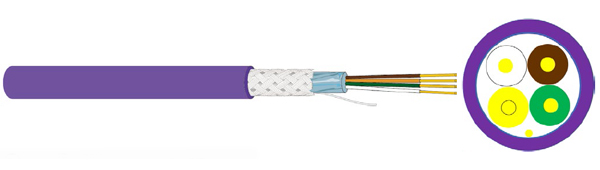

CAN Bus Cable
Application
CAN Bus (Control Area Network) is a non addressable system for fast changing needs of automation industry.
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: S-FPE
3. Identification:
1 Pair: White, Brown
1 Quad: White, Brown, Green, Yellow
4. Wrapping Polyester Tape
5. Screened:Tinned Copper Wire Braided
6. Sheath: PVC/LSZH
7. Sheath: Violet
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
250V
Test Voltage
1.5KV
Characteristic Impedance
120 Ω ± 10 Ω @ 1MHz
Conductor DCR
89.50 Ω/km (Max. @ 20°C) for 24AWG
56.10 Ω/km (Max. @ 20°C) for 22AWG
39.0 Ω/km (Max. @ 20°C) for 20AWG
Insulation Resistance
500 MΩhms/km (Min.)
Mutual Capacitance
40 nF/Km @ 800Hz
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
1x2x24AWG
7/0.20
0.5
0.8
TC Braided
5.4
1x4x24AWG
7/0.20
0.5
1.0
TC Braided
6.5
1x2x22AWG
7/0.25
0.6
0.9
TC Braided
6.4
1x4x22AWG
7/0.25
0.8
1.0
TC Braided
7.5
1x2x20AWG
7/0.30
0.6
1.0
TC Braided
6.8
1x4x20AWG
7/0.30
0.6
1.1
TC Braided
7.9
Back Top

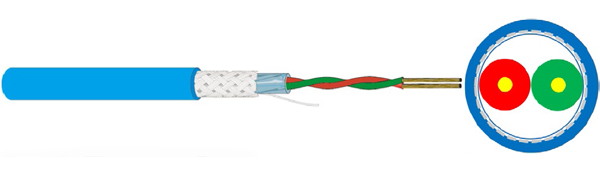

PROFIBUS PA Cable
Application
For the connection of control systems to field instruments on process automation applications.
Reference Standards
»BS EN/IEC 61158
»IEC60332-1
»BS EN 60228
»BS EN 50290
»RoHS Directives
Constructions
1. Solid Oxygen Free Copper (Class 1)
2. Insulation: S-PE
3. Identification: Red, Green
4.Filler: Halogen Free Compound
5. Screened:Tinned Copper Wire Braided
1.Aluminium/Polyester Tape
2.Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH
7. Sheath: Blue
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Test Voltage
2.5KV
Characteristic Impedance
100 Ω ± 10 Ω @ 1MHz
Conductor DCR
22.80 Ω/km (Max. @ 20°C)
Insulation Resistance
1000 MΩhms/km (Min.)
Mutual Capacitance
60 nF/Km @ 800Hz
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB-PROFIBUS PA
1x2x18AWG
1/1.0
1.2
1.0
AL-Foil + TC Braided
7.5
LB70001E
1x2x18AWG
16/0.25
1.2
1.1
AL-Foil + TC Braided
8
LB70110E
1x2x18AWG
16/0.25
1.2
1.0
AL-Foil + TC Braided
7.8
Back Top

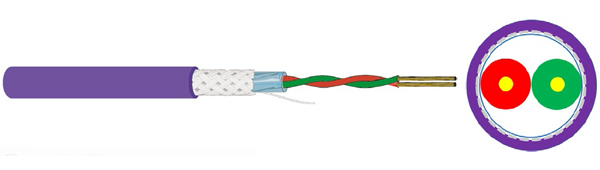

PROFIBUS DP Cable
Application
For deliver time-critical communication between process automation systems and distributed peripherals. This cable is usually referred as S iemens profibus.
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
» BS EN 50290
» EC60332-1
» RoHS Directive
<
Constructions
1.Conductor: Solid Oxygen Free Copper (Class 1)
2. Insulation: S-FPE
3.Identification: Red, Green
4.Bedding: PVC
5.Screen
1.Aluminium/Polyester Tape
2.Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH/PE
7. Sheath: Violet
>>Installation Temperature: Above 0ºC
Electrical Performance
Operating Voltage
350V
Test Voltage
1.5 KV
Characteristic Impedance
150 Ω ± 15 Ω @ 1MHz
Conductor DCR
57.1 Ω/km (Max. @ 20°C)
Insulation Resistance
1000 MΩhms/km (Min.)
Mutual Capacitance
30 nF/Km @ 800Hz
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB3079A 1x2x22AWG 1/0.64 0.9 1.0 AL-Foil + TC Braided 8.0 LB3079ANH 1x2x22AWG 1/0.64 0.9 1.0 AL-Foil + TC Braided 8.0 LB3079E 1x2x22AWG 7/0.25 0.9 1.0 AL-Foil + TC Braided 8.0 LB70101E 1x2x22AWG 1/0.64 0.9 1.0 AL-Foil + TC Braided 8.0 LB70101NH 1x2x22AWG 1/0.64 0.9 1.0 AL-Foil + TC Braided 8.0 LB70102E 1x2x22AWG 7/0.25 0.9 1.0 AL-Foil + TC Braided 8.0 LB70103E 1x2x22AWG 1/0.64 0.9 1.0 AL-Foil + TC Braided 8.4
Back Top

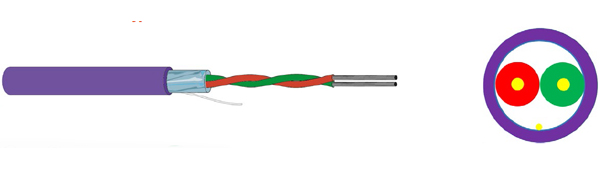

Foundation Fieldbus Type A Cable
Application
For process control automation industry and quick connection of the cable to the respective plugs in the field area
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
»BS EN 50290
»RoHS Directives
»IEC60332-1
Constructions
1.Conductor: Stranded Oxygen Free Copper
2. Insulation: S-FPE
3. Identification: Red, Green
4. Bedding: PVC
5. Screen:
1.Aluminium/Polyester Tape
2.Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Characteristic Impedance
150 Ω ± 15 Ω @ 1MHz
Conductor DCR
57.1 Ω/km (Max. @ 20°C)
Insulation Resistance
1000 MΩhms/km (Min.)
Mutual Capacitance
35 nF/Km @ 800Hz
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
1x2x22AWG 7/0.25 0.7 1.0 AL-Foil + TC Braided 8.1
Back Top

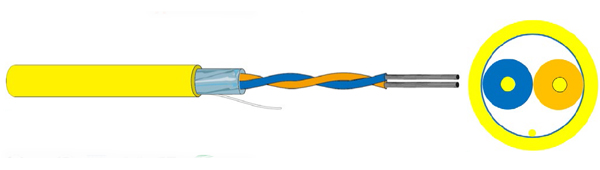

Foundation Fieldbus Type A Cable
Application
For process control automation industry and quick connection of the cable to the respective plugs in the field area
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
»BS EN 50363
»RoHS Directives
»IEC60332-1
Constructions
1.Conductor: Stranded Tinned Copper Wire
2. Insulation: Polyolefin
3. Identification: Blue, Orange
4. Screen: Individual & Overall Screen
5. Sheath: PVC/LSZH
6. Sheath: Yellow
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Conductor DCR
21.5 Ω/km (Max. @ 20°C) for 18AWG
13.8 Ω/km (Max. @ 20°C) for 16AWG
8.2 Ω/km (Max. @ 20°C) for 14AWG
Insulation Resistance
1000 MΩhms/km (Min.)
Mutual Capacitance
79 nF/m
Velocity of Propagation
66%
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB3076F
1x2x18AWG
19/0.25
0.5
0.8
AL-Foil
6.3
LB1327A
2x2x18AWG
19/0.25
0.5
1.0
AL-Foil
11.2
LB1328A
5x2x18AWG
19/0.25
0.5
1.2
AL-Foil
13.7
LB1360A
1x2x16AWG
30/0.25
0.9
1.0
AL-Foil
9.0
LB1361A
2x2x16AWG
30/0.25
0.9
1.2
AL-Foil
14.7
LB1334A
1x2x18AWG
19/0.25
0.5
1.0
AL-Foil + TC Braided
7.3
LB1335A
1x2x16AWG
30/0.25
0.9
1.0
AL-Foil + TC Braided
9.8
LB1336A
1x2x14AWG
49/0.25
1.0
1.0
AL-Foil + TC Braided
10.9
Back Top

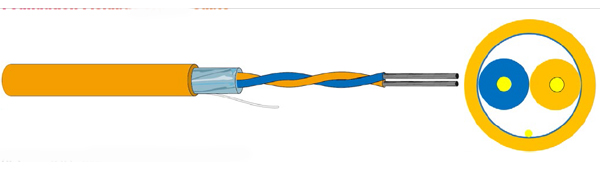

Foundation Fieldbus Type B Cable
Application
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
»BS EN 50290
»RoHS Directive
»IEC60332-1
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-FPE
3.Identification: White, Black
4.Bedding: PVC
5. Screened: Aluminium/Polyester Tape
6. Sheath: PVC/LSZH
7. Sheath: Orange
>> Insulation cores are in blue and white color with number printed.
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Characteristic Impedance
100 Ω ± 15 Ω @ 1MHz
Conductor DCR
56.5 Ω/km (Max. @ 20°C)
Insulation Resistance
1000 MΩhms/km (Min.)
Mutual Capacitance
35 nF/Km @ 800Hz
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB3078F
1x2x22AWG
7/0.25
1
1.2
AL-Foil
8.0
Back Top

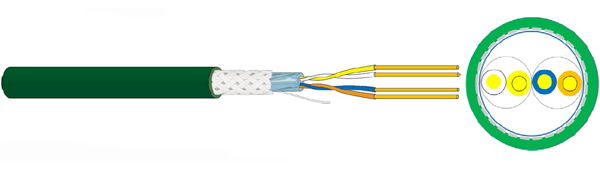

PROFINET Cable Type A
Application
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
»BS EN 50290
»RoHS Directive
»IEC60332-1
Constructions
1.Conductor: Solid Oxygen Free Copper (Class 1)
2. Insulation: S-PE
3.Identification: White, Yellow, Blue, Orange
4.Cabling: Star Quad
5.Inner Sheath: PVC/LSZH
6. Screened:
1,Aluminium/Polyester Tape
2. Tinned Copper Wire Braided (60%)
7. Outer Sheath: PVC/LSZH
8. Sheath: Green
>> Insulation cores are in blue and white color with number printed.
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Characteristic Impedance
100 Ω ± 15 Ω @ 1MHz
Conductor DCR
57.0 Ω/km (Max. @ 20°C)
Insulation Resistance
500 MΩhms/km (Min.)
Mutual Capacitance
50 nF/Km
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
1x2x22AWG
7/0.25
0.7
1.0
AL-Foil+TC Braided
8.1
Back Top

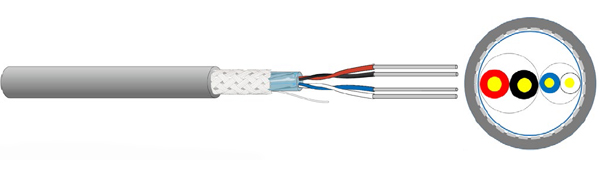

DeviceNet Cable
Application
For interconnection various industrial devices, such as SPS controls or limit switches, integrated with a power supply pair and a data pair together.
Reference Standards
»BS EN/IEC 61158
»BS EN 60228
»BS EN 50290
»RoHS Directives
»IEC60332-1
Constructions
1.Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC,SPE,S-FPE
3. Identification: Blue, Orange
Data: White, Blue
Power: Red, Black
4. Cabling: Twisted Pair Laying-up
5. Screen:
1.Aluminium/Polyester Tape
2.Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH
7. Sheath: Violet/Grey/Yellow
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Characteristic Impedance
120 Ω ± 10 Ω @ 1MHz
Conductor DCR
92.0 Ω/km (Max. @ 20°C) for 24AWG
57.0Ω/km (Max. @ 20°C) for 22AWG
23.2 Ω/km (Max. @ 20°C) for 18AWG
11.3 Ω/km (Max. @ 20°C) for 15AWG
Insulation Resistance
500 MΩhms/km (Min.)
Mutual Capacitance
40 nF/m
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB3084A
1x2x22AWG+1X2X24AWG
7/0.20
0.5
1.0
AL-Foil+TC Braided
7.0
7/0.25
0.5
LB3082A
1x2x15AWG+1X218AWG
19/0.25
0.6
1.5
AL-Foil+TC Braided
12.2
37/0.25
0.6
LB7895A
1x2x18AWG+1x2x20AWG
19/0.25
0.6
1.2
AL-Foil+TC Braided
9.8
19/0.20
0.6
Back Top

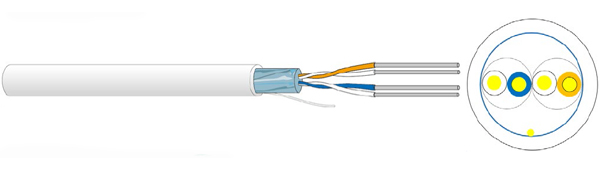

LonWorks Cable
Application
Reference Standards
»EN 50090
»BS EN 60228
»BS EN 50290
»RoHS Directive
»IEC60332-1
Constructions
1.Conductor: Solid Oxygen Free Copper
2. Insulation: S-PE,S-FPE
3.Identification: Pair
1: White, Blue Pair
2: White, Orange
4.Twisted Pair
5.Screen: Aluminium/Polyester Tape
6. Outer Sheath: LSZH
7. Sheath: White
>> Insulation cores are in blue and white color with number printed.
Electrical Performance
Working Voltage
300V
Test Voltage
1.5 KV
Characteristic Impedance
100 Ω ± 10 Ω @ 1~20MHz
Conductor DCR
57.0 Ω/km (Max. @ 20°C)
Insulation Resistance
500 MΩhms/km (Min.)
Mutual Capacitance
50 nF/Km
Part No.
No. of Cores
Conductor Construction (mm)
Insulation Thickness (mm)
Sheath Thickness (mm)
Screen (mm)
Overall Diameter (mm)
LB7701NH
1x2x22AWG
1/0.64
0.3
0.6
/
3.6
LB7702NH
2x2x22AWG
1/0.64
0.3
0.6
/
5.5
LB7703NH
1x2x22AWG
1/0.64
0.45
0.6
Al-foil
4.4
LB7704NH
2x2x22AWG
1/0.64
0.45
0.6
Al-foil
6.6
Back Top

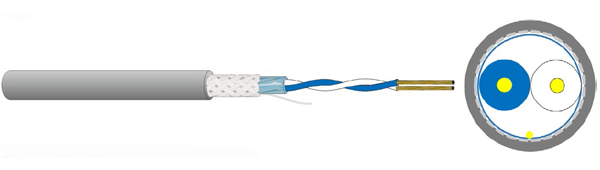

ControlBus Cable
Application
Reference Standards
»BS EN 60228
»BS EN 50290
»RoHS Directive
»IEC60332-1
Constructions
1.Conductor: Oxygen Free Copper or Tinned Copper Wire
2. Insulation: S-PE,S-FPE
3.Identification: Color Coded
4.Twisted Pair
5.Screen:
1.Aluminium/Polyester Tape
2.Tinned Copper Wire Braided 6. Outer Sheath: LSZH
>> Insulation cores are in blue and white color with number printed.
Part No.
Conductor Construction (mm)
Insulation Material
Screen (mm)
Sheath
Material
Size
LB9207 TC 1x20AWG S-PE AL-Foil + TC Braided PVC BC 1x20AWG LB9207NH TC 1x20AWG S-PE AL-Foil + TC Braided LSZH BC 1x20AWG LB9250 BC 1x18AWG S-PE Double Braid PVC BC 1x18AWG LB9271 TC 1x2x24AWG S-PE Al-foil PVC LB9272 TC 1x2x20AWG S-PE Braid PVC LB9463 TC 1x2x20AWG S-PE AL-Foil + TC Braided PVC LB9463DB TC 1x2x20AWG S-PE AL-Foil + TC Braided PE LB9463NH TC 1x2x20AWG S-PE AL-Foil + TC Braided LSZH LB9182 TC 1x2x22AWG S-FPE Al-foil PVC LB9182NH TC 1x2x22AWG S-FPE Al-foil LSZH LB9860 BC 1x2x16AWG S-FPE AL-Foil + TC Braided PVC
Back Top

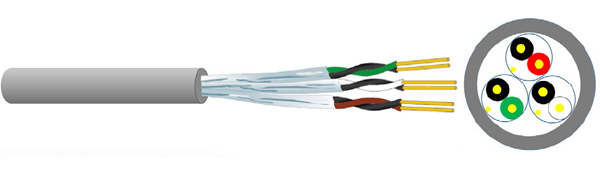

MODBUS Cable
Application
For data transmission to instrumentation and computer cable
Reference Standards
»BS EN 60228
»BS EN 50290
»RoHS Directives
»IEC60332-1
Constructions
1.Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE,S-FPE
3. Identification: Color Coded
4. Cabling: Twisted Pair
5. Screen: Aluminium/Polyester Tape
6. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Test Voltage
1.0 KV
Velocity of Propagation
66%
Conductor DCR
57.0 Ω/km (Max. @ 20°C)
Insulation Resistance
500 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation Material
Screen (mm)
Sheath
Material
Size
LB8777
TC
3X2X22AWG/0.20
S-PP
IS AL-FOIL
PVC
LB8777NH
TC
3X2X22AWG
S-PP
IS AL-FOIL
LSZH/td>
Back Top
Return to the previous page
C.S.Center
SKYPE
