Type and Description

Industrial Cable is used for industrial robotics, power generation, seaport cranes, and petrochemical and natural gas production industries withstanding tough, high temperature environments, high-voltage uses and harsh treatment such as abrasion and contact with flames.
YY Cable PVC/LSZH
CY Cable PVC/LSZH
LiYY Cable PVC
LiYY TP Cable PVC
LiHH Cable LSZH

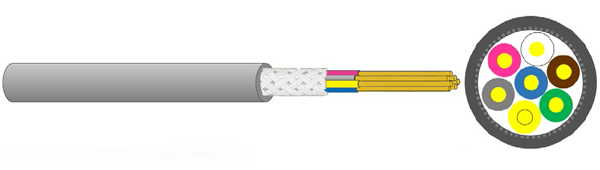

LiYcY Cable PVC

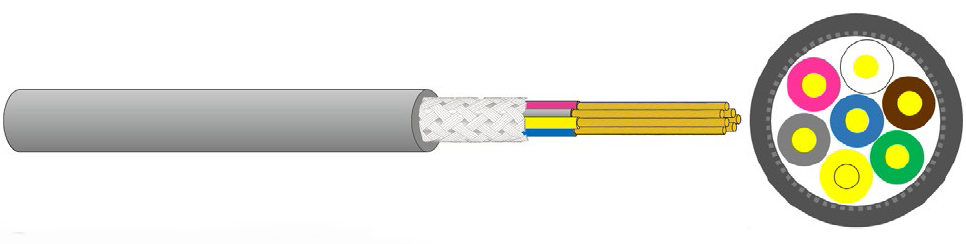

LiHcH Cable LSZH

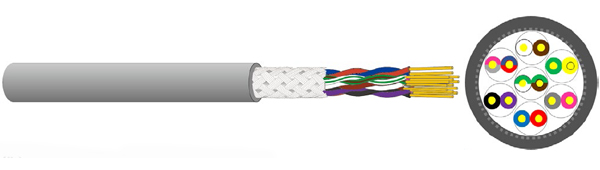

LiYcY TP Cable PVC

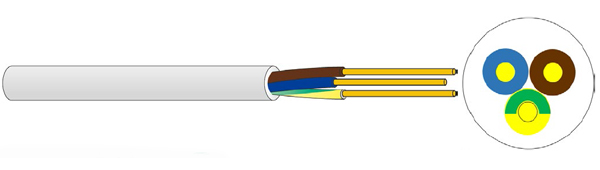

218Y/B, 2192Y/B

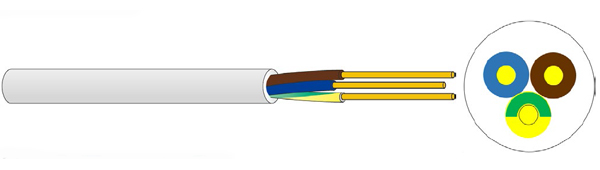

318Y/B, 3192Y/B

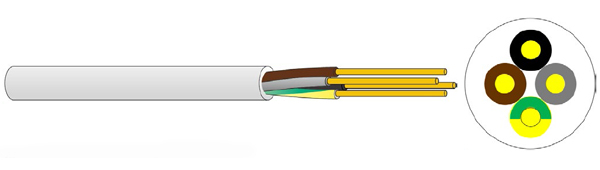

309Y to BS6500

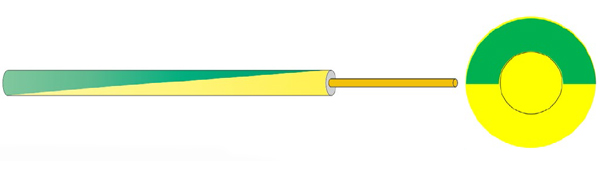

Single Core Non-sheathed Cable to EN50525-2-31

Return to the previous page

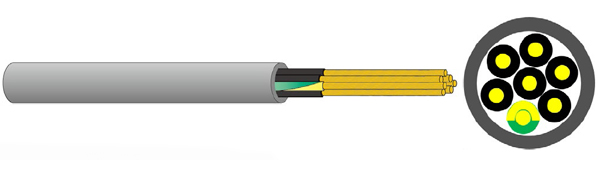

YY Cable PVC/LSZH

Application

For interconnecting cables within industrial process automation applications, including signal transmission, measurement, control and regulation.

»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 70°C

Reference Standards

»»BS EN 50090
»»BS 6500
»»BS EN 60228/li>
»»BS EN 50525-2-11
»»BS EN 50363-3
»»BS EN 50363-7
»»BS EN 50363-4-1
»»BS EN 50363-8
»»RoHS Directives
»»IEC60332-1

Constructions

1.Conductor: Class 5 Oxygen Free Copper
2.Insulation: PVC/LSZH
3.Identification:
Black Cores with White Number
1pc Green/Yellow Core
4.Sheath: PVC/LSZH (Grey)

Cable Construction

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max. DCR (Ω/km)
0.5mm^²
2	16/0.20	0.4	0.7	4.8	39
3	16/0.20	0.4	0.7	5.1	39
4	16/0.20	0.4	0.7	5.5	39
5	16/0.20	0.4	0.8	6.2	39
7	16/0.20	0.4	0.8	6.7	39
8	16/0.20	0.4	0.9	7.2	39
10	16/0.20	0.4	1	8.6	39
12	16/0.20	0.4	1	9.1	39
0.75mm^²
2	24/0.20	0.4	0.7	5.2	26
3	24/0.20	0.4	0.7	5.5	26
4	24/0.20	0.4	0.8	6.2	26
5	24/0.20	0.4	0.8	6.7	26
7	24/0.20	0.4	0.9	7.5	26
8	24/0.20	0.4	0.9	8.1	26
10	24/0.20	0.4	1	9.4	26
12	24/0.20	0.4	1	10	26
16	24/0.20	0.4	1.1	11.2	26
1.0mm^²
2	32/0.20	0.4	0.7	5.6	19.5
3	32/0.20	0.4	0.8	6.2	19.5
4	32/0.20	0.4	0.8	6.7	19.5
5	32/0.20	0.4	0.9	7.5	19.5
7	32/0.20	0.4	0.9	8.1	19.5
8	32/0.20	0.4	1	9	19.5
10	32/0.20	0.4	1	10.4	19.5
12	32/0.20	0.4	1.1	10.9	19.5
16	32/0.20	0.4	1.1	12.1	19.5
1.5mm^²
2	30/0.25	0.4	0.8	6.4	13.3
3	30/0.25	0.4	0.8	6.8	13.3
4	30/0.25	0.4	0.9	7.6	13.3
5	30/0.25	0.4	0.9	8.3	13.3
7	30/0.25	0.4	1	9.2	13.3
8	30/0.25	0.4	1	10	13.3
10	30/0.25	0.4	1.1	11.8	13.3
12	30/0.25	0.4	1.2	12.4	13.3
16	30/0.25	0.4	1.2	13.7	13.3
16	16/0.20	0.4	1	10	39
2.5mm^²
2	48/0.25	0.5	0.9	7.6	7.98
3	48/0.25	0.5	0.9	8.3	7.98
4	48/0.25	0.5	1	9.3	7.98
5	48/0.25	0.5	1.1	10.3	7.98
7	48/0.25	0.5	1.1	11.2	7.98
8	48/0.25	0.5	1.1	11.8	7.98
10	48/0.25	0.5	1.2	14	7.98
12	48/0.25	0.5	1.2	14.6	7.98
16	48/0.25	0.5	1.3	16.3	7.98
4.0mm^²
3	56/0.30	0.6	1.0	10.4	4.95
4	56/0.30	0.6	1.1	11.4	4.95
5	56/0.30	0.6	1.2	12.7	4.95
7	56/0.30	0.6	1.2	13.8	4.95
8	56/0.30	0.6	1.2	15.0	4.95

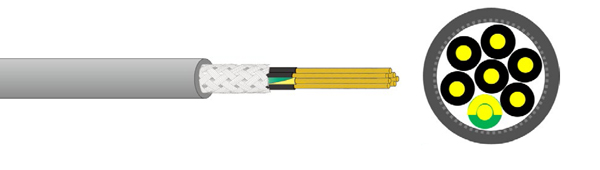

CY Cable PVC/LSZH

Application

For interconnecting cables within industrial process automation applications, including signal transmission, measurement, control and regulation, required interference-free transmission.

Reference Standards

BS 6500

BS 50525-2-11

BS EN 60228

BS EN 50363-3

BS EN 50363-7

BS EN 50363-4-1

BS EN 50363-8

RoHS Directives

IEC60332-1

Constructions

1. Conductor: Class 5 Oxygen Free Copper

2. Insulation: PVC/LSZH

3. Identification:

Black Cores with White Number

1pc Green/Yellow Core

4. Screened:Tinned Copper Wire Braided

5. Sheath: PVC/LSZH(Grey)

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
Rated Voltage: 300/300V

No. of Cores Conductor Construction (mm) Insulation Thickness (mm) Sheath Thickness (mm) Screen (mm) Overall Diameter (mm) Max.DCR (Ω/km)

0.5mm^²

2 16/0.20 0.4 0.8 TC Braided 5.6 39

3 16/0.20 0.4 0.8 TC Braided 5.9 39

4 16/0.20 0.4 0.8 TC Braided 6.3 39

5 16/0.20 0.4 0.8 TC Braided 6.8 39

7 16/0.20 0.4 0.8 TC Braided 7.3 39

8 16/0.20 0.4 0.8 TC Braided 8 39

10 16/0.20 0.4 1 TC Braided 0.6 39

12 16/0.20 0.4 1 TC Braided 9.9 39

16 16/0.20 0.4 1.1 TC Braided 11 39

0.75mm^²

2 24/0.20 0.4 0.8 TC Braided 6 26

3 24/0.20 0.4 0.8 TC Braided 6.3 26

4 24/0.20 0.4 0.8 TC Braided 6.8 26

5 24/0.20 0.4 0.9 TC Braided 7.33 26

7 24/0.20 0.4 0.9 TC Braided 8.1 26

8 24/0.20 0.4 0.9 TC Braided 8.9 26

10 24/0.20 0.4 0.9 TC Braided 10.2 26

12 24/0.20 0.4 1 TC Braided 10.8 26

16 24/0.20 0.4 1.1 TC Braided 12 26

1.0mm^²

2 32/0.20 0.4 0.8 TC Braided 6.4 19.5

3 32/0.20 0.4 0.8 TC Braided 6.8 19.5

4 32/0.20 0.4 0.8 TC Braided 7.3 19.5

5 32/0.20 0.4 0.9 TC Braided 8.1 19.5

7 32/0.20 0.4 0.9 TC Braided 8.9 19.5

8 32/0.20 0.4 1 TC Braided 9.8 19.5

10 32/0.20 0.4 1 TC Braided 11.2 19.5

12 32/0.20 0.4 1.1 TC Braided 11.7 19.5

16 32/0.20 0.4 1.2 TC Braided 13.1 19.5

1.5mm^²

2 30/0.25 0.4 0.8 TC Braided 7 13.3

3 30/0.25 0.4 0.8 TC Braided 7.4 13.3

4 30/0.25 0.4 0.9 TC Braided 8.2 13.3

5 30/0.25 0.4 0.9 TC Braided 9.1 13.3

7 30/0.25 0.4 1 TC Braided 10 13.3

8 30/0.25 0.4 1.1 TC Braided 11 13.3

10 30/0.25 0.4 1.2 TC Braided 12.8 13.3

12 30/0.25 0.4 1.2 TC Braided 13.2 13.3

16 30/0.25 0.4 1.3 TC Braided 14.7 13.3

2.5mm^²

2 48/0.25 0.5 0.9 TC Braided 8.2 7.98

3 48/0.25 0.5 0.9 TC Braided 9.1 7.98

4 48/0.25 0.5 1 TC Braided 10.1 7.98

5 48/0.25 0.5 1.1 TC Braided 11.1 7.98

7 48/0.25 0.5 1.2 TC Braided 12.2 7.98

8 48/0.25 0.5 1.2 TC Braided 12.8 7.98

10 48/0.25 0.5 1.3 TC Braided 15 7.98

12 48/0.25 0.5 1.3 TC Braided 15.6 7.98

16 48/0.25 0.5 1.4 TC Braided 17.3 7.98

4.0mm^²

3 56/0.30 0.6 1.1 TC Braided 11.4 4.95

4 56/0.30 0.6 1.2 TC Braided 12.4 4.95

5 56/0.30 0.6 1.2 TC Braided 13.5 4.95

7 56/0.30 0.6 1.3 TC Braided 14.8 4.95

8 56/0.30 0.6 1.3 TC Braided 16.0 4.95

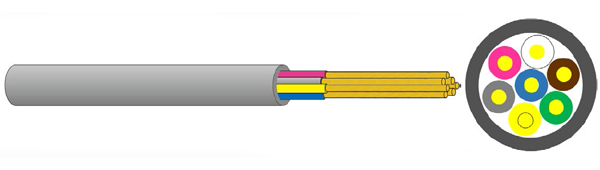

LiYY Cable PVC

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units.

Reference Standards

»VDE 0812

»DIN 1704

»VDE 0207

»IEC60332-1

»RoHS Directives

Constructions

Class 5 Oxygen Free Copper (Class 1)

2. Insulation: PVC

3. Identification: Colored

6. Sheath: PVC

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area Rated Voltage Test Voltage Min.Insulation Resistance at 20°C (MΩ/km)

0.14~0.34mm^² 250/250V 1200V 200

0.5~0.75mm^² 300V 2000V 200

1.0~1.5mm^² 300/500V 3000Ve 200

No. of Cores Conductor Construction (mm) Insulation Thickness (mm) Sheath Thickness (mm) Overall Diameter (mm) Max.DCR at 20°C (Ω/km)

0.14mm²

2 12/0.12 0.35 0.4 3.2 148

3 12/0.12 0.35 0.4 3.5 148

4 12/0.12 0.35 0.5 3.9 148

5 12/0.12 0.35 0.5 4.3 148

7 12/0.12 0.35 0.6 4.8 148

8 12/0.12 0.35 0.6 5.2 148

10 12/0.12 0.35 0.7 6.2 148

12 12/0.12 0.35 0.7 6.5 148

14 12/0.12 0.35 0.7 6.7 148

0.25mm²

2 14/0.15 0.4 0.4 3.6 79.9

3 14/0.15 0.4 0.4 3.9 79.9

4 14/0.15 0.4 0.5 4.4 79.9

5 14/0.15 0.4 0.5 4.8 79.9

7 14/0.15 0.4 0.6 5.4 79.9

8 14/0.15 0.4 0.6 5.8 79.9

10 14/0.15 0.4 0.7 7.0 79.9

12 14/0.15 0.4 0.7 7.3 79.9

14 14/0.15 0.4 0.7 7.6 79.9

0.34mm²

2 20/0.15 0.4 0.5 4.2 57

3 20/0.15 0.4 0.5 4.5 57

4 20/0.15 0.4 0.6 5.1 57

5 20/0.15 0.4 0.6 5.5 57

7 20/0.15 0.4 0.7 6.2 57

8 20/0.15 0.4 0.7 6.7 57

10 20/0.15 0.4 0.8 8.0 57

12 20/0.15 0.4 0.8 8.3 57

14 20/0.15 0.4 0.8 8.7 57

0.5mm²

2 16/0.20 0.45 0.6 4.8 39

3 16/0.20 0.45 0.6 5.2 39

4 16/0.20 0.45 0.6 5.6 39

5 16/0.20 0.45 0.6 6.1 39

7 16/0.20 0.45 0.6 6.6 39

8 16/0.20 0.45 0.7 7.4 39

10 16/0.20 0.45 0.7 8.6 39

12 16/0.20 0.45 0.8 9.2 39

14 16/0.20 0.45 0.9 9.8 39

0.75mm²

2 24/0.20 0.5 0.6 5.4 26

3 24/0.20 0.5 0.6 5.8 26

4 24/0.20 0.5 0.6 6.3 26

5 24/0.20 0.5 0.7 7.1 26

7 24/0.20 0.5 0.7 7.7 26

8 24/0.20 0.5 0.8 8.6 26

10 24/0.20 0.5 0.8 10.0 26

12 24/0.20 0.5 0.9 10.6 26

14 24/0.20 0.5 1.0 11.3 26

1.0mm²

2 32/0.20 0.6 0.6 6.2 19.5

3 32/0.20 0.6 0.6 6.7 19.5

4 32/0.20 0.6 0.7 7.5 19.5

5 32/0.20 0.6 0.7 8.2 19.5

7 32/0.20 0.6 0.8 9.1 19.5

1.5mm²

2 30/0.25 0.6 0.6 6.8 13.3

3 30/0.25 0.6 0.7 7.6 13.3

4 30/0.25 0.6 0.7 8.2 13.3

5 30/0.25 0.6 0.8 9.2 13.3

7 30/0.25 0.6 0.9 10.5 13.3

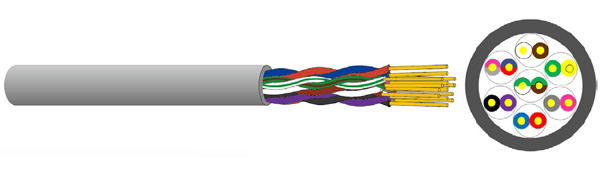

LiYY TP Cable PVC

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units.

Reference Standards

»VDE 0812
»DIN 1704
» VDE 0207
» RoHS Directive
» EC60332-1

Constructions

1.Conductor: Class 5 Oxygen Free Copper
2. Insulation: PVC
3.Identification: Colored
4.Cabling:Twisted
6. Sheath: PVC

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area	Rated Voltage	Test Voltage	Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm^²	250/250V	1200V	200
0.5~0.75mm^²	300V	2000V	200
1.0~1.5mm^²	300/500V	3000Ve	200

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max. DCR at 20°C (Ω/km)
0.14mm^²
1	12/0.12	0.35	0.4	3.2	148
2	12/0.12	0.35	0.6	5.3	148
3	12/0.12	0.35	0.6	5.7	148
4	12/0.12	0.35	0.7	6.4	148
6	12/0.12	0.35	0.8	8.6	148
10	12/0.12	0.35	0.9	10.4	148
12	12/0.12	0.35	1.1	11.6	148
15	12/0.12	0.35	1.1	11.6	148
0.25mm^²
1	14/0.15	0.4	0.4	3.6	79.9
2	14/0.15	0.4	0.6	6.0	79.9
3	14/0.15	0.4	0.6	6.4	79.9
4	14/0.15	0.4	0.7	7.2	79.9
6	14/0.15	0.4	0.8	8.8	79.9
8	14/0.15	0.4	0.8	9.8	79.9
10	14/0.15	0.4	1.0	11.5	79.9
12	14/0.15	0.4	1.0	12.1	79.9
15	14/0.15	0.4	1.1	13.5	79.9
0.34mm^²
1	20/0.15	0.4	0.5	4.2	57
2	20/0.15	0.4	0.6	6.7	57
3	20/0.15	0.4	0.6	7.2	57
4	20/0.15	0.4	0.7	8.0	57
6	20/0.15	0.4	0.9	10.0	57
8	20/0.15	0.4	1.0	11.4	57
10	20/0.15	0.4	1.1	13.1	57
12	20/0.15	0.4	1.1	13.4	57
15	20/0.15	0.4	1.2	14.9	57
0.5mm^²
1	16/0.20	0.45	0.6	4.8	39
2	16/0.20	0.45	0.7	7.5	39
3	16/0.20	0.45	0.8	8.1	39
4	16/0.20	0.45	0.8	9.0	39
6	16/0.20	0.45	1.0	11.2	39
8	16/0.20	0.45	1.1	12.8	39
10	16/0.20	0.45	1.2	14.7	39
12	16/0.20	0.45	1.2	15.0	39
15	16/0.20	0.45	1.3	16.7	39
0.75mm^²
1	24/0.20	0.5	0.6	5.4	26
2	24/0.20	0.5	0.7	8.6	26
3	24/0.20	0.5	0.8	9.5	26
4	24/0.20	0.5	0.9	10.4	26
6	24/0.20	0.5	1.0	12.7	26
8	24/0.20	0.5	1.1	14.5	26
10	24/0.20	0.5	1.2	16.7	26
12	24/0.20	0.5	1.3	17.6	26
15	24/0.20	0.5	1.4	19.6	26
1.0mm^²
1	32/0.20	0.6	0.6	6.8	19.5
2	32/0.20	0.6	0.9	10.3	19.5
3	32/0.20	0.6	1.0	11.4	19.5
4	32/0.20	0.6	1.0	12.3	19.5
6	32/0.20	0.6	1.2	15.2	19.5
8	32/0.20	0.6	1.3	16.6	19.5
10	32/0.20	0.6	1.4	19.8	19.5
1.5mm^²
1	30/0.25	0.6	0.6	6.8	13.3
2	30/0.25	0.6	0.9	10.3	13.3
3	30/0.25	0.6	1.0	12.7	13.3
4	30/0.25	0.6	1.1	13.7	13.3
6	30/0.25	0.6	1.3	16.9	13.3
8	30/0.25	0.6	1.3	18.3	13.3

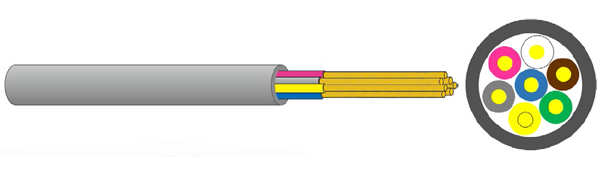

LiHH Cable LSZH

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units with low smoke zero halogen and flame retardant requirement.

Reference Standards

»VDE 0812
»DIN 1704
»VDE 0207
»RoHS Directives
»IEC60332-1
»IEC60754

Constructions

1.Conductor: Class 5 Oxygen Free Copper
2. Insulation: PE
3. Identification: Colored
4. Sheath: LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area	Rated Voltage	Test Voltage	Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm^²	250/250V	1200V	200
0.5~0.75mm^²	300V	2000V	200
1.0~1.5mm^²	300/500V	3000V	200

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max.DCR at 20°C (MΩ/km)
0.14mm^²
2	12/0.12	0.3	0.6	3.4	148
3	12/0.12	0.3	0.6	3.6	148
4	12/0.12	0.3	0.6	3.9	148
5	12/0.12	0.3	0.6	4.2	148
7	12/0.12	0.3	0.6	4.5	148
8	12/0.12	0.3	0.6	4.8	148
10	12/0.12	0.3	0.6	5.6	148
12	12/0.12	0.3	0.7	6	148
14	12/0.12	0.3	0.7	6.3	148
0.25mm^²
2	14/0.15	0.3	0.6	3.8	79.9
3	14/0.15	0.3	0.6	4.1	79.9
4	14/0.15	0.3	0.6	4.4	79.9
5	14/0.15	0.3	0.6	4.7	79.9
7	14/0.15	0.3	0.6	5.1	79.9
8	14/0.15	0.3	0.6	5.5	79.9
10	14/0.15	0.3	0.6	6.6	79.9
12	14/0.15	0.3	0.7	6.9	79.9
14	14/0.15	0.3	0.7	7.2	79.9
0.34mm^²
2	20/0.15	0.3	0.6	4	57
3	20/0.15	0.3	0.6	4.3	57
4	20/0.15	0.3	0.6	4.6	57
5	20/0.15	0.3	0.6	5	57
7	20/0.15	0.3	0.6	5.4	57
8	20/0.15	0.3	0.6	5.8	57
10	20/0.15	0.3	0.7	7	57
12	20/0.15	0.3	0.7	7.3	57
14	20/0.15	0.3	0.7	7.6	57
0.5mm^²
2	16/0.20	0.3	0.6	4.3	39
3	16/0.20	0.3	0.6	4.6	39
4	16/0.20	0.3	0.6	5	39
5	16/0.20	0.3	0.6	5.4	39
7	16/0.20	0.3	0.6	5.9	39
8	16/0.20	0.3	0.7	6.5	39
10	16/0.20	0.3	0.7	7.6	39
12	16/0.20	0.3	0.7	7.9	39
14	16/0.20	0.3	0.7	8.3	39
0.75mm^²
2	24/0.20	0.4	0.6	5.2	26
3	24/0.20	0.4	0.6	5.6	26
4	24/0.20	0.4	0.6	6.1	26
5	24/0.20	0.4	0.7	6.6	26
7	24/0.20	0.4	0.7	7.2	26
8	24/0.20	0.4	0.7	8	26
10	24/0.20	0.4	0.8	9.6	26
12	24/0.20	0.4	0.8	10	26
14	24/0.20	0.4	0.9	10.7	26
1.0mm^²
2	32/0.20	0.5	0.6	5.8	19.5
3	32/0.20	0.5	0.6	6.3	19.5
4	32/0.20	0.5	0.7	7.1	19.5
5	32/0.20	0.5	0.7	7.6	19.5
7	32/0.20	0.5	0.8	8.5	19.5
1.5mm^²
2	30/0.25	0.5	0.6	6.4	13.3
3	30/0.25	0.5	0.7	7.1	13.3
4	30/0.25	0.5	0.7	7.6	13.3
5	30/0.25	0.5	0.8	8.6	13.3
7	30/0.25	0.5	0.9	9.6	13.3

LiYcY Cable PVC

Application

For signal and control cable in electronics of computer systems, electronic control equipment, office machine or process control units, which requires protection from electromagnetic interference (EMI) and electromagnetic radiation (EMR).

Reference Standards

»VDE 0812
»DIN 1704
»VDE 0207
»RoHS Directives
»IEC60332-1

Constructions

1.Conductor: Class 5 Oxygen Free Copper
2. Insulation: PVC
3. Identification: Colored
4. Screen: Tinned Copper Wire Braided
5. Sheath: PVC

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area	Rated Voltage	Test Voltage	Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm^²	250/250V	1200V	200
0.5~0.75mm^²	300V	2000V	200
1.0~1.5mm^²	300/500V	3000V	200

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max.DCR at 20°C (MΩ/km)
0.14mm²
2	12/0.12	0.35	0.7	4.4	148
3	12/0.12	0.35	0.7	4.7	148
4	12/0.12	0.35	0.7	4.9	148
5	12/0.12	0.35	0.7	5.3	148
7	12/0.12	0.35	0.8	6.2	148
8	12/0.12	0.35	0.8	7.3	148
10	12/0.12	0.35	0.8	7.5	148
12	12/0.12	0.35	0.8	7.5	148
14	12/0.12	0.35	0.8	7.5	148
0.25mm²
2	14/0.15	0.4	0.7	4.8	79.9
3	14/0.15	0.4	0.7	5.1	79.9
4	14/0.15	0.4	0.7	5.4	79.9
5	14/0.15	0.4	0.7	5.8	79.9
7	14/0.15	0.4	0.8	6.4	79.9
8	14/0.15	0.4	0.8	6.8	79.9
10	14/0.15	0.4	0.8	7.8	79.9
12	14/0.15	0.4	0.8	8.1	79.9
14	14/0.15	0.4	0.8	8.2	79.9
0.34mm²
2	20/0.15	0.4	0.7	5.2	57
3	20/0.15	0.4	0.7	5.5	57
4	20/0.15	0.4	0.7	5.9	57
5	20/0.15	0.4	0.7	6.3	57
7	20/0.15	0.4	0.7	6.8	57
8	20/0.15	0.4	0.8	7.5	57
10	20/0.15	0.4	0.8	8.6	57
12	20/0.15	0.4	0.8	9.1	57
14	20/0.15	0.4	0.8	9.5	57
0.5mm²
2	16/0.20	0.45	0.7	5.6	39
3	16/0.20	0.45	0.7	6.0	39
4	16/0.20	0.45	0.7	6.4	39
5	16/0.20	0.45	0.7	6.9	39
7	16/0.20	0.45	0.8	7.6	39
8	16/0.20	0.45	0.8	8.2	39
10	16/0.20	0.45	0.8	9.8	39
12	16/0.20	0.45	0.8	10.2	39
14	16/0.20	0.45	0.9	10.6	39
0.75mm²
2	24/0.20	0.5	0.8	6.4	26
3	24/0.20	0.5	0.8	6.8	26
4	24/0.20	0.5	0.8	7.3	26
5	24/0.20	0.5	0.8	7.9	26
7	24/0.20	0.5	0.8	8.5	26
8	24/0.20	0.5	0.9	9.4	26
10	24/0.20	0.5	0.9	11.0	26
12	24/0.20	0.5	0.9	11.4	26
14	24/0.20	0.5	1.0	12.1	26
1.0mm²
2	32/0.20	0.6	0.8	7.2	19.5
3	32/0.20	0.6	0.8	8.4	19.5
4	32/0.20	0.6	0.8	9.2	19.5
5	32/0.20	0.6	0.9	10.2	19.5
7	32/0.20	0.6	1.0	11.0	19.5

LiHcH Cable LSZH

Application

Reference Standards

»VDE 0812
»VDE 0207
»DIN 1704
»RoHS Directive
»IEC60332-1
»IEC60754

Constructions

1. Conductor: Class 5 Oxygen Free Copper
2. Insulation: PE
3.Identification: White, Black
4.Bedding: PVC
5. Screened: Colored
6. Sheath: LSZH

>> Insulation cores are in blue and white color with number printed.
>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area	Rated Voltage	Test Voltage	Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm^²	250/250V	1200V	200
0.5~0.75mm^²	300V	2000V	200
1.0~1.5mm^²	300/500V	3000V	200

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max.DCR at 20°C (MΩ/km)
0.14mm²
2	12/0.12	0.3	0.6	4.0	148
3	12/0.12	0.3	0.6	4.2	148
4	12/0.12	0.3	0.6	4.5	148
5	12/0.12	0.3	0.6	4.8	148
7	12/0.12	0.3	0.6	5.1	148
8	12/0.12	0.3	0.6	5.4	148
10	12/0.12	0.3	0.6	6.2	148
12	12/0.12	0.3	0.7	6.6	148
14	12/0.12	0.3	0.7	6.9	148
0.25mm²
2	14/0.15	0.3	0.6	4.4	79.9
3	14/0.15	0.3	0.6	4.7	79.9
4	14/0.15	0.3	0.6	5.0	79.9
5	14/0.15	0.3	0.6	5.3	79.9
7	14/0.15	0.3	0.6	5.7	79.9
8	14/0.15	0.3	0.6	6.1	79.9
10	14/0.15	0.3	0.7	7.2	79.9
12	14/0.15	0.3	0.7	7.5	79.9
14	14/0.15	0.3	0.7	7.8	79.9
0.34mm²
2	20/0.15	0.3	0.6	4.6	57
3	20/0.15	0.3	0.6	4.9	57
4	20/0.15	0.3	0.6	5.2	57
5	20/0.15	0.3	0.6	5.6	57
7	20/0.15	0.3	0.6	6.0	57
8	20/0.15	0.3	0.6	6.4	57
10	20/0.15	0.3	0.7	7.6	57
12	20/0.15	0.3	0.7	7.9	57
14	20/0.15	0.3	0.7	8.2	57
0.5mm²
2	16/0.20	0.3	0.6	4.9	39
3	16/0.20	0.3	0.6	5.2	39
4	16/0.20	0.3	0.6	5.6	39
5	16/0.20	0.3	0.6	6.0	39
7	16/0.20	0.3	0.6	6.5	39
8	16/0.20	0.3	0.7	7.1	39
10	16/0.20	0.3	0.7	7.8	39
12	16/0.20	0.3	0.7	8.2	39
14	16/0.20	0.3	0.7	9.1	39
0.75mm²
2	24/0.20	0.4	0.6	5.8	26
3	24/0.20	0.4	0.6	6.2	26
4	24/0.20	0.4	0.6	6.7	26
5	24/0.20	0.4	0.7	7.2	26
7	24/0.20	0.4	0.7	7.8	26
8	24/0.20	0.4	0.7	8.8	26
10	24/0.20	0.4	0.8	10.4	26
12	24/0.20	0.4	0.8	10.8	26
14	24/0.20	0.4	0.9	11.5	26
1.0mm²
2	30/0.25	0.5	0.6	6.4	19.5
3	30/0.25	0.5	0.6	6.9	19.5
4	30/0.25	0.5	0.7	7.6	19.5
5	30/0.25	0.5	0.7	8.2	19.5
7	30/0.25	0.5	0.9	9.5	19.5
1.5mm²
2	30/0.25	0.5	0.6	7.0	13.3
3	30/0.25	0.5	0.7	7.7	13.3
4	30/0.25	0.5	0.7	8.3	13.3
5	30/0.25	0.5	0.8	9.4	13.3
7	30/0.25	0.5	1.0	10.6	13.3

LiYcY TP Cable PVC

Application

Reference Standards

»VDE 0812
»DIN 1704
»VDE 0207
»RoHS Directives
»IEC60332-1

Constructions

1.Conductor: Class 5 Oxygen Free Copper
2. Insulation: PVC
3. Identification: Colored
4. Cabling: Twisted Pair
5. Screen: Tinned Copper Wire Braided
6. Sheath: PVC

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC

Electrical Performance

Section Area	Rated Voltage	Test Voltage	Min.Insulation Resistance at 20°C (MΩ/km)
0.14~0.34mm^²	250/250V	1200V	200
0.5~0.75mm^²	300V	2000V	200
1.0~1.5mm^²	300/500V	3000V	200

No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Max.DCR at 20°C (MΩ/km)
0.14mm²
1	12/0.12	0.35	0.7	4.4	148
2	12/0.12	0.35	0.7	6.1	148
3	12/0.12	0.35	0.8	6.7	148
4	12/0.12	0.35	0.8	7.2	148
5	12/0.12	0.35	0.8	8.3	148
6	12/0.12	0.35	0.8	9.4	148
7	12/0.12	0.35	0.9	10.8	148
8	12/0.12	0.35	1.0	11.4	148
0.25mm²
1	14/0.15	0.4	0.7	4.8	79.9
2	14/0.15	0.4	0.8	7.0	79.9
3	14/0.15	0.4	0.8	7.4	79.9
4	14/0.15	0.4	0.8	8.0	79.9
5	14/0.15	0.4	0.8	9.6	79.9
6	14/0.15	0.4	0.9	10.8	79.9
7	14/0.15	0.4	1.0	12.3	79.9
8	14/0.15	0.4	1.1	12.6	79.9
0.34mm²
1	20/0.15	0.4	0.7	5.2	57.0
2	20/0.15	0.4	0.8	7.7	57.0
3	20/0.15	0.4	0.8	8.2	57.0
4	20/0.15	0.4	0.8	9.0	57.0
5	20/0.15	0.4	0.9	10.8	57.0
6	20/0.15	0.4	1.0	12.2	57.0
7	20/0.15	0.4	1.1	13.1	57.0
8	20/0.15	0.4	1.2	14.7	57.0
0.5mm²
1	24/0.20	0.5	0.8	6.4	26.0
2	24/0.20	0.5	0.8	9.6	26.0
3	24/0.20	0.5	0.9	10.5	26.0
4	24/0.20	0.5	1.0	11.4	26.0
5	24/0.20	0.5	1.1	13.1	26.0
6	24/0.20	0.5	1.2	15.0	26.0
7	24/0.20	0.5	1.3	17.7	26.0
0.75mm²
1	32/0.20	0.6	0.8	7.2	19.5
2	32/0.20	0.6	0.9	11.1	19.5
3	32/0.20	0.6	1.0	12.2	19.5
4	32/0.20	0.6	1.0	13.1	19.5
5	32/0.20	0.6	1.2	15.0	19.5
6	32/0.20	0.6	1.3	17.7	19.5
1.5mm²
1	30/0.25	0.6	0.8	7.8	13.3
2	30/0.25	0.6	1.0	12.3	13.3
3	30/0.25	0.6	1.1	13.5	13.3
4	30/0.25	0.6	1.2	14.7	13.3

218Y/B, 2192Y/B

Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

»BS 6500
»BS EN 50525-2-11
»BS EN 60228
»BS EN 50363
»RoHS Directives
»IEC60332-1

Constructions

1.Conductor:Class 5 Oxygen Free Copper
2. Insulation: PVC,LSZH
3. Identification:
2 Cores: Blue & Brown
3 Core: Green/Yellow, Blue & Brown
4 Core: Green/Yellow, Brown, Black & Grey
5 Core: Green/Yellow, Blue & Brown & Black
4. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V

Part No.	Conductor		Insulation Thickness (mm)	Cable Diameter (mm)		Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
Part No.	mm^²	No./mm	Insulation Thickness (mm)	Lower Limit	Upper Limit	Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
H03VVH2-F / 2192Y (H03Z1Z1H2-F / 2192B)
H03VVH2-F 2x0.5	0.5	16/0.20	0.5	3.0x4.9	3.7x5.9	39.0	0.011
H03VVH2-F 2x0.75	0.75	24/0.20	0.5	3.2x5.2	3.8x6.3	26.0	0.010
H03VV-F / 2182Y (H03Z1Z1-F / 2182B)
H03VV-F 2x0.5	0.50	16/0.20	0.5	4.6	5.9	39.0	0.011
H03VV-F 2x0.75	0.75	24/0.20	0.5	4.9	6.3	26.0	0.010
H03VV-F / 2183Y (H03Z1Z1-F / 2183B)
H03VV-F 3x0.5	0.5	16/0.20	0.5	4.9	6.3	39.0	0.011
H03VV-F 3x0.75	0.8	24/0.20	0.5	5.2	6.7	26.0	0.010
H03VV-F / 2184Y (H03Z1Z1-F / 2184B)
H03VV-F 4x0.5	0.5	16/0.20	0.5	5.4	6.9	39.00	0.011
H03VV-F 4x0.75	0.75	24/0.20	0.5	5.7	7.3	26.0	0.010

318Y/B, 3192Y/B

Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

»BS 6500
»BS EN 50525-2-11
»BS EN 60228
»BS EN 50363
»RoHS Directives
»IEC60332-1

Constructions

1.Conductor:Class 5 Oxygen Free Copper
2. Insulation: PVC,LSZH
3. Identification:
2 Cores: Blue & Brown
3 Core: Green/Yellow, Blue & Brown
4 Core: Green/Yellow, Brown, Black & Grey
5 Core: Green/Yellow, Brown, Black Grey & Blue
6. Sheath: PVC/LSZH

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V

Part No.	Conductor		Insulation Thickness (mm)	Sheath Thickness (mm)	Cable Diameter (mm)		Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
Part No.	mm^²	No./mm	Insulation Thickness (mm)	Sheath Thickness (mm)	Lower Limit	Upper Limit	Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
H05VVH2-F / 3192Y (H05Z1Z1-H2-F / 3192B)
H05VVH2-F 2x0.75	0.75	24/0.20	0.6	0.8	3.7x6.0	4.5x7.2	26.0	0.011
H05VVH2-F 2x1.0	1.0	32/0.20	0.6	0.8	3.9x6.2	4.7x7.5	19.5	0.010
H05VVH2-F 2x1.5	1.5	30/0.25	0.7	0.8	4.2x7.0	5.2x8.6	13.3	0.010
H05VV-F / 3182Y (H05Z1Z1-F / 3182B)
H05VV-F 2x0.75	0.75	24/0.20	0.6	0.8	5.7	7.2	26.0	0.011
H05VV-F 2x1.0	1.0	32/0.20	0.6	0.8	5.9	7.5	19.5	0.010
H05VV-F 2x1.5	1.5	30/0.25	0.7	0.8	6.8	8.6	13.3	0.010
H05VV-F 2x2.5	2.5	49/0.25	0.8	1.0	8.4	10.6	7.98	0.009
H05VV-F 2x4.0	4.0	81/0.25	0.8	1.1	9.7	12.1	4.95	0.008
H05VW-F / 3183Y (H05Z1Z1-F / 3183B)
H05VV-F 3x0.75	0.75	24/0.20	0.6	0.8	6.0	7.6	26.0	0.011
H05VV-F 3x1.0	1.0	32/0.20	0.6	0.8	6.3	8.0	19.5	0.010
H05VV-F 3x1.5	1.5	30/0.25	0.7	0.9	7.4	9.4	13.3	0.010
H05VV-F 3x2.5	2.5	49/0.25	0.8	1.0	9.2	11.4	7.98	0.009
H05VV-F 3x4.0	4.0	81/0.25	0.8	1.2	10.5	13.1	4.95	0.008
H05VW-F / 3184Y (H05Z1Z1-F / 3184B)
H05VV-F 4x0.75	0.75	24/0.20	0.6	0.8	6.6	8.3	26.0	0.011
H05VV-F 4x1.0	1.0	32/0.20	0.6	0.9	7.1	9.0	19.5	0.010
H05VV-F 4x1.5	1.5	30/0.25	0.7	1.0	8.4	10.5	13.3	0.010
H05VV-F 4x2.5	2.5	49/0.25	0.8	1.1	10.1	12.5	7.98	0.009
H05VV-F 4x4.0	4.0	81/0.25	0.8	1.2	11.5	14.3	4.95	0.008
H05VW-F / 3185Y (H05Z1Z1-F / 3185B)
H05VV-F 5x0.75	0.75	24/0.20	0.6	0.9	7.4	9.3	26.0	0.011
H05VV-F 5x1.0	1.0	32/0.20	0.6	0.9	7.8	9.8	19.5	0.010
H05VV-F 5x1.5	1.5	30/0.25	0.7	1.1	9.3	11.6	13.3	0.010
H05VV-F 5x2.5	2.5	49/0.25	0.8	1.2	11.2	13.9	7.98	0.009
H05VV-F 5x4.0	4.0	81/0.25	0.8	1.4	13.0	16.1	4.95	0.008

309Y to BS6500

Application

For use on small appliances with low mechanical stress and for connection for light household appliances.

Reference Standards

»BS 6500
»BS EN 50525-2-11
»BS EN 60228
»BS EN 50363
»RoHS Directives
»IEC60332-1

Constructions

1.Conductor:Class 5 Oxygen Free Copper
2. Insulation: PVC,LSZH
3. Identification:
2 Cores: Blue & Brown
3 Core: Green/Yellow, Blue & Brown
4 Core: Green/Yellow, Brown, Black & Grey
5 Core: Green/Yellow, Brown & Black &Grey & Blue
6. Sheath: PVC

>>Installation Temperature: Above 0ºC
>>Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/300V
»Test Voltage: 2000V

Part No.	Conductor		Insulation Thickness (mm)	Sheath Thickness (mm)	Cable Diameter (mm)		Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
Part No.	mm ^²	No./mm	Insulation Thickness (mm)	Sheath Thickness (mm)	Lower Limit	Upper Limit	Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
H05V2V2-F / 3092Y
H05V2V2-F 2x0.75	0.75	24/0.20	0.6	0.8	5.7	7.2	26.0	0.011
H05V2V2-F 2x1.0	1.0	32/0.20	0.6	0.8	5.9	7.5	19.5	0.010
H05V2V2-F 2x1.5	1.5	30/0.25	0.7	0.8	6.8	8.6	13.3	0.010
H05V2V2-F 2x2.5	2.5	49/0.25	0.8	1.0	8.4	10.6	7.98	0.009
H05V2V2-F 2x4.0	4.0	81/0.25	0.8	1.1	9.7	12.1	4.95	0.008
H05V2V2-F 2x6.0	6.0	84/0.30	0.8	1.1	10.6	12.6	3.30	0.007
H05V2V2-F / 3093Y
H05V2V2-F 3x0.75	0.75	24/0.20	0.6	0.8	6.0	7.6	26.0	0.011
H05V2V2-F 3x1.0	1.0	32/0.20	0.6	0.8	6.3	8.0	19.5	0.010
H05V2V2-F 3x1.5	1.5	30/0.25	0.7	0.9	7.4	9.4	13.3	0.010
H05V2V2-F 3x2.5	2.5	49/0.25	0.8	1.0	9.2	11.4	7.98	0.009
H05V2V2-F 3x4.0	4.0	81/0.25	0.8	1.2	10.5	13.1	4.95	0.008
H05V2V2-F 3x6.0	6.0	84/0.30	0.8	1.2	12.0	14.0	3.30	0.007
H05V2V2-F / 3094Y
H05V2V2-F 4x0.75	0.75	24/0.20	0.6	0.8	6.6	8.3	26.0	0.011
H05V2V2-F 4x1.0	1.0	32/0.20	0.6	0.9	7.1	9.0	19.5	0.010
H05V2V2-F 4x1.5	1.5	30/0.25	0.7	1.0	8.4	10.5	13.3	0.010
H05V2V2-F 4x2.5	2.5	49/0.25	0.8	1.1	10.1	12.5	7.98	0.009
H05V2V2-F 4x4.0	4.0	81/0.25	0.8	1.2	11.5	14.3	4.95	0.008
H05V2V2-F 4x6.0	6.0	84/0.30	0.8	1.2	13.0	15.0	3.30	0.007
H05V2V2-F / 3095Y
H05V2V2-F 5x0.75	0.75	24/0.20	0.6	0.9	7.4	9.3	26.0	0.011
H05V2V2-F 5x1.0	1.0	32/0.20	0.6	0.9	7.8	9.8	19.5	0.010
H05V2V2-F 5x1.5	1.5	30/0.25	0.7	1.1	9.3	11.6	13.3	0.010
H05V2V2-F 5x2.5	2.5	49/0.25	0.8	1.2	11.2	13.9	7.98	0.009
H05V2V2-F 5x4.0	4.0	81/0.25	0.8	1.4	13.0	16.1	4.95	0.008
H05V2V2-F 5x6.0	6.0	84/0.30	0.8	1.4	14.5	17.0	3.30	0.007

Single Core Non-sheathed Cable to EN50525-2-31

Application

For fixed wiring in domestic, Industrial power and lighting applications.

Reference Standards

»BS EN 60228
»BS EN 50525-2-31
»BS EN 50363
»IEC60332-1
»»RoHS Directives

Constructions

1.Conductor: Class 1/2/5 Oxygen Free Copper
2. Insulation: PVC
3. Identification: Green/Yellow, Black, Blue, Brown, Red, White, Yellow, Grey,Violet, Grey, Orange, Pink

»Installation Temperature: Above 0ºC
»Operating Temperature: -15ºC ~ 70ºC
»Rated Voltage: 300/500V, 450/750V
»Test Voltage: 2000V, 2500V

Electrical Performance

Part No.	Conductor		Insulation Thickness (mm)	Cable Diameter (mm)		Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
Part No.	mm ^²	No./mm	Insulation Thickness (mm)	Lower Limit	Upper Limit	Max. Resistance at 20°C (Ω/km)	Min. Insulation DCR at 70°C (MΩ/km)
H05V-U / 2491X (H05Z-U for LSZH) 300/500V
H05V-U 0.5	0.5	1/0.80	0.6	1.9	2.3	36.0	0.0140
H05V-U 0.75	0.75	1/0.97	0.6	2.1	2.5	24.5	0.0130
H05V-U 1.0	1.0	1/1.13	0.6	2.2	2.7	18.1	0.0120
H05V2-U 300/500V 90°C
H05V2-U 0.5	0.5	1/0.80	0.6	1.9	2.4	36.0	0.0140
H05V2-U 0.75	0.75	1/0.97	0.6	2.1	2.6	24.5	0.0130
H05V2-U 1.0	1.0	1/1.13	0.6	2.3	2.8	18.1	0.0120
H05V-R (H05Z-R for LSZH) 300/500V
H05V-R 0.5	0.5	7/0.30	0.6	2.0	2.4	36.0	0.0140
H05V-R 0.75	0.75	7/0.37	0.6	2.2	2.6	24.5	0.0130
H05V-R 1.0	1.0	7/0.43	0.6	2.3	2.8	18.1	0.0120
H05V2-R 300/500V 90°C
H05V2-R 0.5	0.5	7/0.30	0.6	2.0	2.4	36.0	0.0140
H05V2-R 0.75	0.75	7/0.37	0.6	2.2	2.6	24.5	0.0130
H05V2-R 1.0	1.0	7/0.43	0.6	2.3	2.8	18.1	0.0120
H05V-K / 2491X (H05Z-K for LSZH) 300/500V
H05V-K 0.5	0.5	16/0.20	0.6	2.1	2.5	36.0	0.0140
H05V-K 0.75	0.75	24/0.20	0.6	2.2	2.7	24.5	0.0130
H05V-K 1.0	1.0	32/0.20	0.6	2.4	2.8	18.1	0.0120
H05V2-K 300/500V 90°C
H05V2-K 0.5	0.5	16/0.20	0.6	2.1	2.5	36.0	0.0140
H05V2-K 0.75	0.75	24/0.20	0.6	2.2	2.7	24.5	0.0130
H05V2-K 1.0	1.0	32/0.20	0.6	2.4	2.8	18.1	0.0120
H07V-U / 6491X (H07Z-U for LSZH) 450/750V
H07V-U 1.5	1.5	1/1.38	0.7	2.6	3.2	12.1	0.0100
H07V-U 2.5	2.5	1/1.78	0.8	3.2	3.9	7.41	0.0090
H07V-U 4.0	4.0	1/2.25	0.8	3.6	4.4	4.61	0.0080
H07V-U 6.0	6.0	1/2.76	0.8	4.1	5.0	3.08	0.0070
H07V-U 10.0	10.0	1/3.57	1.0	5.3	6.4	1.83	0.0060
H07V2-U 450/750V 90°C
H07V2-U 1.5	1.5	1/1.38	0.7	2.6	3.2	12.1	0.0100
H07V2-U 2.5	2.5	1/1.78	0.8	3.2	3.9	7.41	0.0090
H07V2-U 4.0	4.0	1/2.25	0.8	3.6	4.4	4.61	0.0080
H07V2-U 6.0	6.0	1/2.76	0.8	4.1	5.0	3.08	0.0070
H07V2-U 10.0	10.0	1/3.57	1.0	5.3	6.4	1.83	0.0060
H07V-R / 6491X (H07Z-R for LSZH) 450/750V
H07V-R 1.5	1.5	7/0.52	0.7	2.7	3.3	12.1	0.0100
H07V-R 2.5	2.5	7/0.67	0.8	3.3	4.0	7.41	0.0090
H07V-R 4.0	4.0	7/0.85	0.8	3.8	4.6	4.61	0.0080
H07V-R 6.0	6.0	7/1.04	0.8	4.3	5.2	3.08	0.0070
H07V-R 10.0	10.0	7/1.35	1.0	5.6	6.7	1.83	0.0060
H07V-R 16.0	16.0	7/1.70	1.0	6.4	7.8	1.15	0.0055
H07V2-R 450/750V 90°C
H07V2-R 1.5	1.5	7/0.52	0.7	2.7	3.3	12.1	0.0100
H07V2-R 2.5	2.5	7/0.67	0.8	3.3	4.0	7.41	0.0090
H07V2-R 4.0	4.0	7/0.85	0.8	3.8	4.6	4.61	0.0077
H07V2-R 6.0	6.0	7/1.04	0.8	4.3	5.2	3.08	0.0065
H07V2-R 10.0	10.0	7/1.35	1.0	5.6	6.7	1.83	0.0065
H07V2-R 16.0	16.0	7/1.70	1.0	6.4	7.8	1.15	0.005
H07V-K / 6491X (H07Z-K for LSZH) 450/750V
H07V-K 1.5	1.5	30/0.25	0.7	2.8	3.4	12.1	0.0100
H07V-K 2.5	2.5	50/0.25	0.8	3.4	4.1	7.41	0.0090
H07V-K 4.0	4.0	56/0.30	0.8	3.9	4.8	4.61	0.0080
H07V-K 6.0	6.0	84/0.30	0.8	4.4	5.3	3.08	0.0070
H07V-K 10.0	10.0	80/0.40	1.0	5.7	6.8	1.83	0.0060
H07V-K 16.0	16.0	126/0.40	1.0	6.7	8.1	1.15	0.0053
H07V2-K 450/750V 90°C
H07V2-K 1.5	1.5	30/0.25	0.7	2.8	3.4	12.1	0.0100
H07V2-K 2.5	2.5	50/0.25	0.8	3.4	4.1	7.41	0.0095
H07V2-K 4.0	4.0	56/0.30	0.8	3.9	4.8	4.61	0.0078
H07V2-K 6.0	6.0	84/0.30	0.8	4.4	5.3	3.08	0.0068
H07V2-K 10.0	10.0	80/0.40	1.0	5.7	6.8	1.83	0.0065
H07V2-K 16.0	10.0	80/0.40	1.0	5.7	6.8	1.83	0.0065
H07V2-K 16.0	16.0	126/0.40	1.0	6.7	8.1	1.15	0.0053

Return to the previous page
