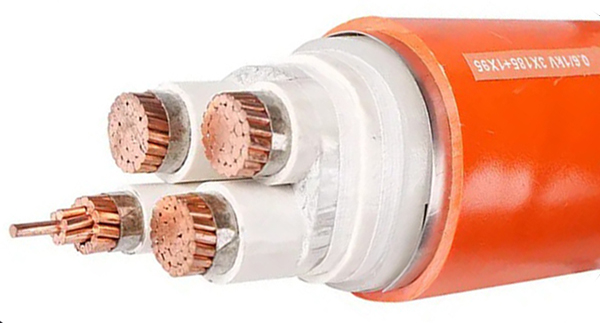

XLPE insulated naval ship (fire-resistance) power cable for rated
Voltage up to and including 0.6/1kV
Application
The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and
offshore building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-353 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
3.5kV/5min. without puncture
Type and Description
Type
Description
JYJ85/SC
交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用电力电缆，SC 型 XLPE insulated tinned copper wire braided armor XLPO sheathed naval ship power cable, SC type
JYJPJ/SC
交联聚乙烯绝缘交联聚烯烃护套舰船用电力电缆，SC 型 XLPE insulated XLPO sheathed naval ship power cable, SC type
JYJPJ80/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用电力电缆，SC 型 XLPE insulated XLPO inner sheathed tinned copper wire braided armor naval ship power cable, SC type
JYJPJ90/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用电力电缆，SC 型 XLPE insulated XLPO inner sheathed galvanized steel wire braided armor naval ship power cable, SC type
EPR insulated naval ship (fire-resistance) power cable for rated
Voltage up to and including 0.6/1kV
Application
The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore
building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-353 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
3.5kV/5min. without puncture
Type and Description
Type
Description
JE85/SC
乙丙绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用电力电缆，SC 型 EPR insulated tinned copper wire braided armor XLPO sheathed naval ship power cable, SC type
JEPJ/SC
乙丙绝缘交联聚烯烃护套舰船用电力电缆，SC 型 EPR insulated XLPO sheathed naval ship power cable, SC type
JEPJ80/SC
乙丙绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用电力电缆，SC 型 EPR insulated XLPO inner sheathed tinned copper wire braided armor naval ship power cable, SC type
JEPJ90/SC
乙丙绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用电力电缆，SC 型 EPR insulated XLPO inner sheathed galvanized steel wire braided armor naval ship power cable, SC type
Silicon Rubber insulated naval ship (fire-resistance) power cable for rated
Voltage up to and including 0.6/1kV
Application
The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore
building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-353 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permissible maximum operating temperature
95°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
3.5kV/5min. without puncture
Type and Description
Type
Description
JSPJ/SC
硅橡胶绝缘交联聚烯烃护套舰船用电力电缆，SC 型 Silicone rubber insulated XLPO sheathed naval ship power cable, SC type
JS85/SC
硅橡胶绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用电力电缆，SC 型 Silicone rubber insulated tinned copper wire braided armor XLPO sheathed naval ship power cable, SC type
JSPJ80/SC
硅橡胶绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用电力电缆，SC 型 Silicone rubber insulated XLPO inner sheathed tinned copper wire braided armor naval ship power cable, SC type
JSPJ90/SC
硅橡胶绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用电力电缆，SC 型 Silicone rubber insulated XLPO inner sheathed galvanized steel wire braided armor naval ship power cable, SC type
硅橡胶绝缘交联聚烯烃护套舰船用软电力电缆，NSC 型 Silicone rubber insulated XLPO sheathed naval ship flexible power cable, NSC type
Main technical parameter
Omit......

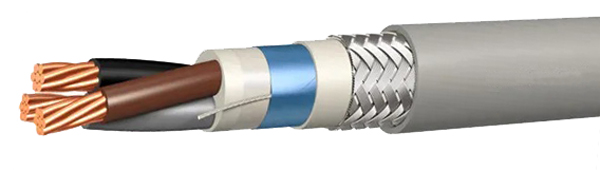

Control Cable for Naval Ship
XLPE insulated naval ship (fire-resistance) control cable for rated
Voltage up to and including 600V
Application
The cable is intended for general control systems of various naval ships, oil platform and offshore building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
600V
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
1.5kV/5min. without puncture
Type and Description
Type
Description
JKYJQ85/SC
交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃护套轻型舰船用控制电缆，SC 型 XLPE insulated tinned copper wire braided armor XLPO sheathed naval ship light control cable, SC type
JKYJPJ/SC
交联聚乙烯绝缘交联聚烯烃护套舰船用控制电缆，SC 型 XLPE insulated XLPO sheathed naval ship control cable, SC type
JKYJPJ80/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用控制电缆，SC 型 XLPE insulated XLPO inner sheathed tinned copper wire braided armor naval ship control cable, SC type
JKYJPJ90/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用控制电缆，SC 型 XLPE insulated XLPO inner sheathed galvanized steel wire braided armor naval ship control cable, SC type
EPR insulated naval ship (fire-resistance) Control cable for rated
Voltage up to and including 600V
Application
The cable is intended for electric power, lighting and general control systems of various naval ships, oil platform and offshore
building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
600V
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
1.5kV/5min. without puncture
Type and Description
型号 Type
产品名称 Description
JKE85/SC
乙丙橡胶绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用控制电缆，SC 型 EPR insulated tinned copper wire braided armor XLPO sheathed naval ship control cable, SC type
JKEPJ/SC
乙丙橡胶绝缘交联聚烯烃护套舰船用控制电缆，SC 型 EPR insulated XLPO sheathed naval ship control cable, SC type
JKEPJ80/SC
乙丙橡胶绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用控制电缆，SC 型 EPR insulated XLPO inner sheathed tinned copper wire braided armor naval ship control cable, SC type
JKEPJ90/SC
乙丙橡胶绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用控制电缆，SC 型 EPR insulated XLPO inner sheathed galvanized steel wire braided armor naval ship control cable, SC type

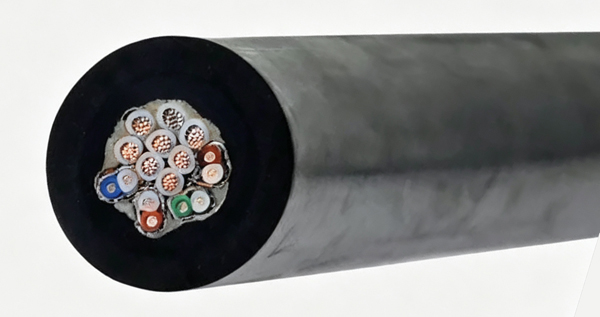

Instrumentation and Telecommunication Cable for Naval Ship
XLPE insulated naval ship (fire-resistance) Instrumentation and Telecommunication Cable for rated
Voltage up to and including 300V
Application
The cable is intended for general control systems of various naval ships, oil platform and offshore building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
300V
Long time permissible maximum operating temperature
EPR insulated naval ship (fire-resistance) insrumentation and instrumentation for rated
Voltage up to and including 300V
Application
The cable is intended for general control systems of various naval ships, oil platform and offshore building etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-353 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire Resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
300V
Long time permissible maximum operating temperature

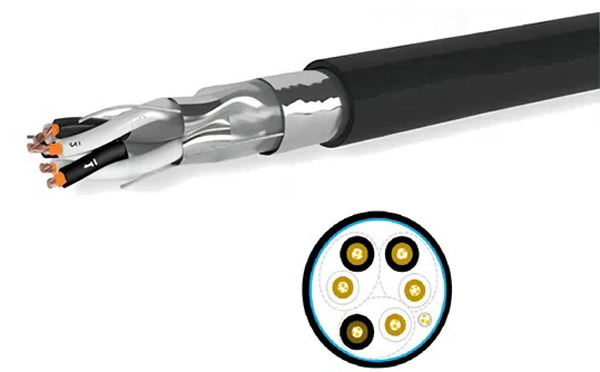

Low-smoke halogen-free flame-retardant light thin-walled
telecommunication cable for naval ships
Application
The cable is intended for transmission and control systems in telecommunication, computer and information
processing units on naval ships.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
300V
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
1.5kV/5min. without puncture
Type and Description
Type
Description
JHR85/SC
XLPE insulated tinned copper wire braided armor XLPO sheathed low-smoke halogen-free flame-retardant
telecommunication flexible cable for naval ship,SC type
XLPE insulated XLPO sheathed low-smoke halogen-free flame-retardant telecommunication flexible cable for naval ship, SC
type
Main technical parameter
Omit......

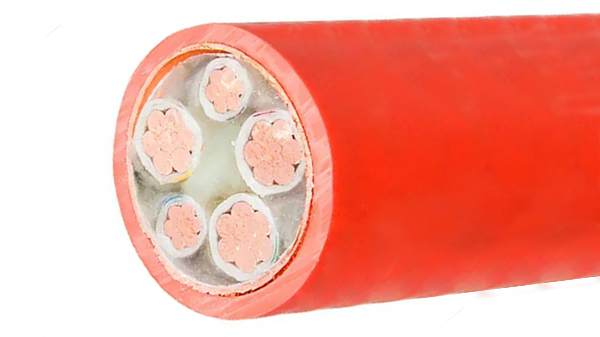

Naval ship water-tightness Power Cable
XLPE/EPR insulated naval ship water-tightness (fire-resistance) power
cable for rated voltage up to and including 0.6/1kV
Application
The cable is intended for electric power, lighting and general control systems requesting water-tightness on submarine.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-353 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
3.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test
Type and Description
型号 Type
产品名称 Description
JYJM85/SC
交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用水密型电力电缆，SC 型 XLPE insulated tinned copper wire braided armor XLPO sheathed naval ship water-tightness power cable, SC type
JYJPJM/SC
交联聚乙烯绝缘交联聚烯烃护套舰船用水密型电力电缆，SC 型 XLPE insulated XLPO sheathed naval ship water-tightness power cable, SC type
JYJPJM80/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用水密型电力电缆，SC 型 XLPE insulated XLPO inner sheathed tinned copper wire braided armor naval ship water-tightness power cable, SC type
JYJPJM90/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用水密型电力电缆，SC 型 XLPE insulated XLPO inner sheathed galvanized steel wire braided armor naval ship water-tightness power cable, SC type

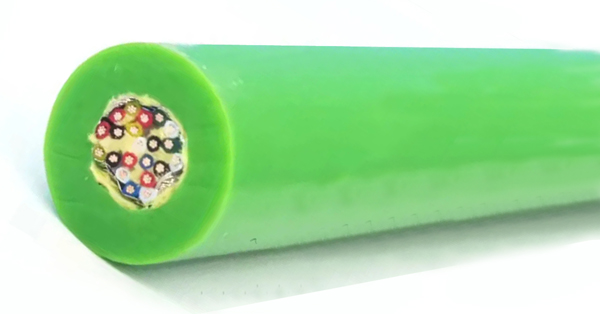

XLPE/EPR insulated naval ship water-tightness (fire-resistance) Control Cable for rated voltage up to and including 600V
Application
The cable is intended for general control systems requesting water-tightness on submarine.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
600V
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
1.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test
Type and Description
型号 Type
产品名称 Description
JKYJM85/SC
交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃护套舰船用水密型控制电缆，SC 型 XLPE insulated tinned copper wire braided armor XLPO sheathed naval ship water-tightness control cable, SC type
JKYJPJM/SC
交联聚乙烯绝缘交联聚烯烃护套舰船用水密型控制电缆，SC 型 XLPE insulated XLPO sheathed naval ship water-tightness control cable, SC type
JKYJPJM80/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锡铜丝编织铠装舰船用水密型控制电缆，SC 型 XLPE insulated XLPO inner sheathed tinned copper wire braided armor naval ship water-tightness control cable, SC type
JKYJPJM90/SC
交联聚乙烯绝缘交联聚烯烃内护套镀锌钢丝编织铠装舰船用水密型控制电缆，SC 型 XLPE insulated XLPO inner sheathed galvanized steel wire braided armor naval ship water-tightness control cable, SC type
XLPE/EPR insulated naval ship water-tightness (fire-resistant
)telecommunication cable for rated voltage up to and including 300V
Application
The cable is intended for general control systems requesting water-tightness on submarine.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-24643 --Design
»»IEC 60092-376 --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
»»IEC60331 --Fire resistant
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GJB1916.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
300V
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
A.C.voltage test
1.5kV/5min. without puncture
The cable can endure 6.0 MPa water pressure and two hour longtitudinal seal test. JKMEH-45 series cable can endure
water pressure equal to 45 atmosphere pressure and two hour longtitudinal seal test.

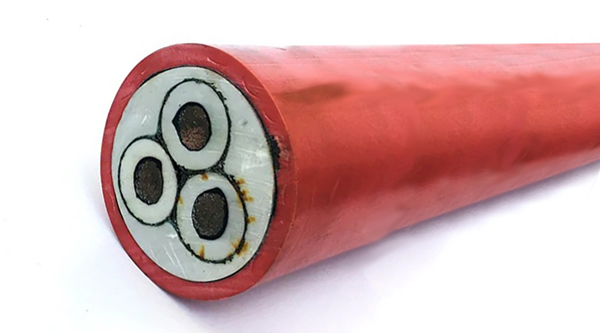

Low smoke halogen-free shore connection cable for naval ships
Application
The cable is intended for shore power connection when anchoring. The structure and material of cable comply with GJB
1916 and MIL-DTL24643/3C,vulcanizing cross-linked polyethylene is used for the sheath, the cables have better properties
of low temperature and flexibility, and flame-retardant, low smoke, halogen-free, low toxicity and good electrical performance
etc.
Executive Standards
»»GJB 1916 --Design
»»MIL-DTL-246432/3C --Design
»»IEC 60092-353 --Design
»»IEC 60092-351 --Insulation
»»IEC 60092-359 --Sheath
»»IEC 60332-3-22 --Flame Retardant
»»IEC60754 --Halogen free
»»IEC61034 --Low Smoke
Marking
Insulated core shall identified figure .
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
A.C. orD.C. 0.6/1KV
Long time permissible maximum operating temperature
90°C
Cable minimum bending radius
≥6D(D: cable diameter.mm)
Conductor Resistance
comply with the stipulations of GJB1916
Low temperature bending test
pass
Main technical parameter
Type
No. of cores × nominal cross sectional area (mm2)
Calculated Diameter mm
Calculated mass kg/km
nom.
Max.
JEPJR/SC-A
1 × 25
16.1
17.5
453
1 × 35
18.3
20.0
595
1 × 50
19.9
21.5
763
1 × 70
21.8
23.5
982
3 × 50
39.3
42.0
2366
3 × 70
43.4
46.5
3037
3 × 95
49.4
52.5
3945
3 × 120
53.3
56.5
4749
3 × 50+1 × 25
40.6
43.5
2667
3 × 70+1 × 35
45.4
48.5
3464
3 × 95+1 × 50
51.5
55.0
4518
3 × 120+1 × 70
55.9
59.5
5527
3 × 50+3 × 10
39.3
42.0
2731
3 × 70+3 × 10
43.4
46.5
3402
3 × 95+3 × 16
49.4
52.5
4495
3 × 120+3 × 25
53.3
56.5
5562
Note: ① The data above only for reference and to be confirmed by our technical department if you use,
we reserve the right to alter any information without notice.
② We can supply PCP sheathed shore connection cable if user needs. The tvpe is JEFR/SA-A.the parameter coincide with JEPJR/SC-A.
Rubber cable for underwater sound transducer
Application
The cable is intended for sonar transducer system fixed placed in naval ships, submarine and undersea, and adapt
to submarine pump and connecting circuit for undersea electrical equipment which the cable is require to have water-tight
performance.
Executive Standards
»»GJB 1916 --Design
»»IEC 60092-353 --Design
»»IEC 60092-351 --Insulation
»»IEC 60092-359 --Sheath
»»IEC 60332-3-22 --Flame Retardant
Marking
Insulated core shall identified figure .
The sheath color is printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
500V,1000V
Long time permissible maximum operating temperature
90°C
Water pressure test
The cable can endure water pressure 4.41MPa and two hour crosswise seal test
The insulation resistance of cable after 90 days immersing in the water at room temperature
Core--Core Not less than 150MΩ.Km Core--Shielding Not less than 150MΩ.Km Shielding--Water Not less than 75MΩ.Km
Note:The data above only for reference and to be confirmed by our technical department if you use,we reserve the right to alter any information
without notice.

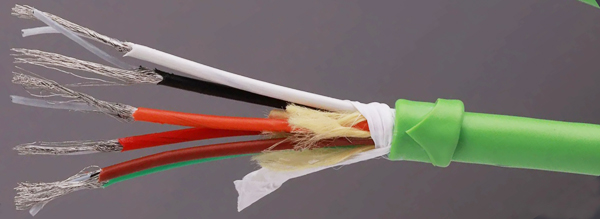

Aramid fiber strength signal cable for naval ships
Application
The cable is intended for special signal and lighting device of submarine. High quality aramid fiber material is used as
strength core instead of traditional tightwire with the properties of small diameter, light weight, flexible and good electrical
performance etc.
Executive Standards
»»GJB 1916 --Design
»»IEC 60092-376 --Design
»»IEC 60092-351 --Insulation
»»IEC 60092-359 --Sheath
»»IEC 60332-3-22 --Flame Retardant
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
A.C.250V,or D.C.500V
Long time permissible maximum operating temperature
90°C
Water pressure test
The cable can endure water pressure 4.41MPa and two hour crosswise seal test
Ambient temperature
-40°C~+50°C and allowable to operating in sea
Cable Tensile breaking force≥10000N
≥10000N
Type and Description
Type
No. of core × Nom. Cross section area (mm²)
Conductor structure (number/diameter)
Calculated diameter (mm)
Calculated mass kg/km
nom.
Max.
JFP
6 × 0.75
24/0.20
14.0
16.0
300

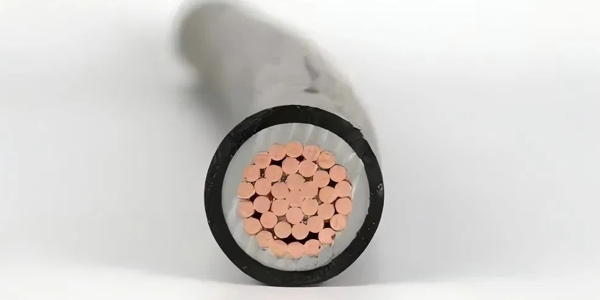

Degaussing cable
Application
The cable is intended for degaussing stations or the degaussing systems of degaussing ships. The structure and
material comply with CB1157 with the properties of oil resistance, abrasion resistance, sea water proof flexible and good
electrical performance etc.
Executive Standards
»»CB 1157 --Design
»»IEC 60092-353 --Design
»»IEC 60092-351 --Insulation
»»IEC 60092-359 --Sheath
»»IEC 60332-3-22 --Flame Retardant
Marking
The sheath is printed with manufacture name, manufacture year, type, specifications, voltage and
length etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1KV
Long time permissible maximum operating temperature
90°C
Water pressure test
The cable can endure water pressure 4.41MPa and two hour crosswise seal test
Ambient temperature
-2°C~+32°C in sea water or fresh water
Type and Description
Type
No. of cores × nominal cross sectional area (mm2)
Conductor structure (Number/diameter)
Calculated diameter
Calculated mass kg/km
nom.
Max.
DSEHR
1 × 70
999/0.30
22.5
24.5
1030
1 × 95
1344/0.30
24.2
27.0
1321
1 × 120
1702/0.30
27.1
29.0
1609
1 × 150
2109/0.30
29.7
32.0
1974
1 × 185
2623/0.30
32.6
35.0
2405
1 × 240
1891/0.40
36.5
40.0
3065
Low smoke digital communication LAN cable for naval ships
Application
The cable is intended for naval ship digital communication system such as general digital network, local area network
and digital communication system, the highest frequency band can reach 155MHz (Cat 5E) or 350 MHz (Cat6). The cable
have the property of stable transmission, low attenuation, good anti-interference & flame-retardant, low-smoke and halogen-
free etc.
Executive Standards
»»IEC 61156 --Design
»»TIA/EIA-568-B --Design
»»IEC 60332-3-22 --Flame Retardant
»»IEC 60754 --Halogen free
»»IEC 61034 --Low smoke
Marking
The insulation shall be identified by four color assembly: brown + white, orange + white and blue + white.
The sheath is printed with manufacture name, type, specifications, voltage and length etc.
Service Property Parameter
Item name
Unit
Cat 5E
Cat 6
Characteristic impedance
Ω
100 ± 15
100 ± 15
（1kHz）Operating capacitance
nF/100m
≤ 5.6
≤ 5.6
D.C. conductor resistance at 20℃
Ω/100m
≤ 9.38
≤ 6.658
Delay
ns/100m
≤ 538
≤ 536
D.C. resistance unbalance
%
≤ 3
≤ 3
Ground capacitance unbalance
pF/100m
≤ 330
≤ 330
Long time permissible maximum operating temperature
℃
60
60
Type and Description
型号 Type
产品名称 Description
JHQYJPA86/SC-C5 (SBYP86/SC-C5)
舰船用交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织屏蔽聚烯烃外护套低烟数字通信局域网电缆 XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communication LAN cable for naval ships
JHQYJPA86/SC-6 (SBYP86/SC-6)
舰船用交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织屏蔽聚烯烃外护套低烟数字通信局域网电缆 XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communication LAN cable for naval ships
JHQYJPA86/SC-2-C5 (SBYP86/SC-2-C5)
舰船用交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织屏蔽聚烯烃外护套低烟数字通信局域网电缆 XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communication LAN cable for naval ships
JHQYJPA86/SC-2-6 (SBYP86/SC-2-6)
舰船用交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织屏蔽聚烯烃外护套低烟数字通信局域网电缆 XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communication LAN cable for naval ships
C.S.Center
SKYPE
