Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Rated Voltage:
U0/U 0.6/1kV
Insulation
PE Insulation
Test Voltage
3500V/5min
Color Code
Black with Code/Color code
Min.Bending Radius

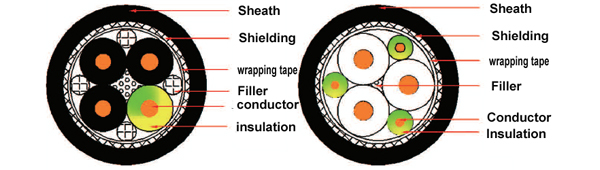

Laying-up
Optimal pitch stranding, interstices fully filled for round shape.
Fixed laying
5×D(Cable OD)
Wrapping tape
Aluminium foil
For moving installation
10×D(Cable OD)
Shielding
Tinned copper wire braided,density 85%
Operating temperature
-20 ° to +70°
Outer sheath
Abrasion resistant flexible PVC
Flame Retardant Property
comply with IEC60332-1
Sheath color
Black
Executive standard
GB/T12706.1/IEC60502.1
Performance Requirements
Applications
♦Low coupling capacitance. ♦Low coupling resistance. ♦Excellent electromagnetic compatibility (EMC). ♦High mechanical performance and tensile strength, long service life and low current interference.
The double-shielded design is suitable for applications with stringent EMC requirements. It is used for connecting motors and inverters, and can withstand moderate mechanical stress in both dry and humid environments.
The core insulation adopts low-capacitance PE (Polyethylene), which ensures interference-free operation for inverters, servo drives and DNC motors, especially in applications requiring long cable runs.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
4G1.5
0.23
10.6
4G2.5
0.30
12.3
4G4.0
0.49
14.6
4G6.0
0.63
16.4
4G10
0.86
20.1
4G16
1.29
23.4
4G25
1.86
27.0
4G35
2.61
32.7
4G50
2.95
36.1
4G70
3.95
42.3
4G95
5.30
47.7
4G120
6.60
51.9
4G150
7.04
57.5
4G185
8.38
61.1
4G240
12.17
69.3
3×1.5+3×0.25
0.21
10.2
3×2.5+3×0.5
0.22
11.9
3×4.0+3×0.75
0.32
14.1
3×6.0+3×1.0
0.42
15.8
3×10+3×1.5
0.64
19.0
3×16+3×2.5
0.85
23.4
3×25+3×4.0
1.40
26.2
3×35+3×6.0
1.72
29.0
3×50+3×10
2.34
34.6
3×70+3×10
3.17
38.8
3×95+3×16
4.16
45.0
3×120+3×16
5.25
50.8
3×150+3×25
6.43
55.2
3×185+3×35
8.34
62.0
3×240+3×40
12.25
67.0
Special Cables for High-temperature Resistant Frequency Converters
Executive Standard
Q/LB 115. 5, Based on the standard GB12706-2020
Usage
The cable is used in conveter-controlled drive as power supply cable or connecting cable and below in petroleum, chemistry,power geneating and metallurgy industries under high, low tempand acid, alkali,oilwater and corrosive circum-stances.
Using feature
Low effective operating capacitance.Excellent fire resistance and flams-retardante cable to be used in hazardous areas. Low transmission impedance:The shield hasresistance toEMF interference. The transmision impedance RX is ashield against induction and measureaent of the capacitancecoupling:Lowmission impedancetransprovides the cablewith good Emcompatibility. Symmetrical 3-core construction improved EM compatibility and better performance than 4-core cable,The threecores with weaterproof and heat-resist antresin insuIation arestranded evenly at gap to form arealconcentrie construction.
Rated voltage:0. 6/1KV. Operating temperature:
F. insulated -40℃-275℃
silicon-rubber insulated -40℃-180℃
Type and Description
Item
Code name
Explanation
Series code name
K
Heat-resistance Control cable
Plated layer of conductor
Y
Silver-plated
Insulation material
F F₁ F₂
FEP max operating temp 200℃ PTFE max operating temp 260℃ PFA max operating temp 285℃
Shield material
P₀ P P₂
Tinned Cu wire braided Cu wire braided Copper tape
Sheath material
F H11 H9 V₁₀₅ VF G
FEP max operating temp 200℃ PTFE max operating temp 260℃ PFA max operating temp 285℃ 105℃ Flame-retardant PVC sheathed NBR sheathed Silicon rubber sheathed
Single strand conductor 7-strand twisted conductor Multi-strand flexible conductor
Model and Name
Model
Name
BPGVF-P2R
Silicon-rubber insulated NBR sheathed shield converter power supply cable
BPF4H11-P2
F4 insulated H11 sheathed shield converter power supply cable
BPGG-P2R
Silicon-rubber insulated Silicon-rubber sheathed shield converter power supply cable
BPF4G-P2R
F4 insulated Silicon-rubber sheathed shield converter power supply cable
BPF4VF-P2R
F4 insulated NBR sheathed shield converter power supply cable
Technical Properties
Specifications (mm²)
Max. outer Diameter
BPGVF-P2R
BPF4H11-P2R
BPGG-P2R
BPF4G-P2R
BPF4VF-P2R
3×1.5+3×0.25
12.2
10.8
12.5
11.8
11.4
3×2.5+3×0.5
14.2
12.5
14.5
13.6
13.2
3×4+3×0.75
15.7
13.3
16.0
15.0
14.6
3×6+3×1
19.6
17.2
20.0
18.8
18.3
3×10+3×1.5
25.0
22.5
25.0
24.0
23.4
3×16+3×2.5
28.9
26.1
29.5
27.7
26.7
3×25+3×4
33.3
30.3
34.0
32.0
31.0
3×35+3×6
37.2
34.0
38.0
35.7
35.0
3×50+3×10
42.6
39.0
43.5
40.9
40.1
3×70+3×10
48.5
44.5
49.5
46.5
45.5
3×95+3×16
52.9
48.7
54.0
50.8
49.7
3×120+3×25
57.8
53.3
59.0
55.5
54.5
3×150+3×35
63.9
59.0
65.2
61.3
60.3
3×185+3×35
78.2
72.4
79.8
75.0
73.8
3×240+3×50
86.8
80.5
88.6
83.3
82.1
Described as e.g:BPGVF-P2R 0.6/1KV 3×25+3×4mm²
Special Cables for Cross-linked Polyethylene-insulated Variable-frequency Drives
Executive Standard
Q/LB 115. 5, Based on the standard GB12706-2020
Usage
The cable is used in converter-controlled driveas power supply cable or connecting cable. it isespecially suitable suitable for use in pumps fansconveyers transportation belt and conditioner usedin paper making, iron &steel industry textile metalprocessing and food processing.
