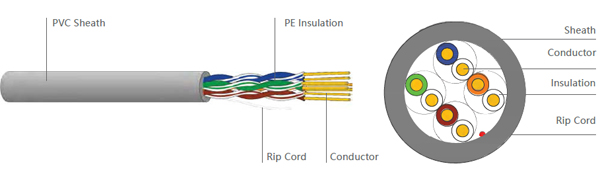

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Widely used for horizontal cabling in working area and LAN indoor
>Superior OFC (oxygen free copper) conductor, reliable electric transmission, meets or exceeds Cat.5e standard, provide plentiful redundancy for system link, fast and convenient installation

Reference Standards

• »»YD/T 1019-2013

Specification

Parameter	Data
Conductor Diameter	24AWG
Insulation Diameter	0.88±0.01mm
Sheah Material	PVC
Overall Diameter	5.4±0.2mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information

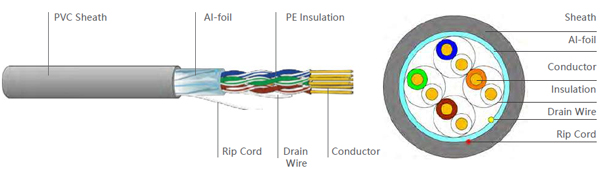

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI for confidential system, widely used for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric transmission, meets or exceeds Cat.5e standard
>Wrapping 0.06mm thickness Al-foil over 4pairs to improve anti-interference to 85dB, which is 20dB higher than UTP cable, used in EMI environment for signal screen and confidentiality

Reference Standards

• »»YD/T 1019-2013

Specification

Parameter	Data
Conductor Diameter	24AWG
Insulation Diameter	1.0±0.01mm
Sheah Material	PVC
Overall Diameter	6.0±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information

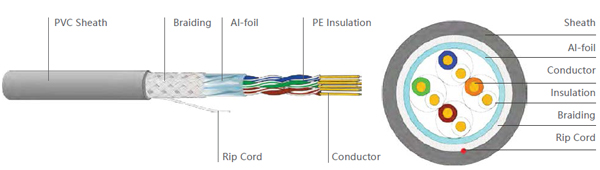

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI function for high-level confidential system, widely used for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric transmission, meets or exceeds Cat.5e standard
>Wrapping 0.06mm thickness Al-foil and TC braiding screen over 4p wires to improve anti-interference to 90dB, which is 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality

Reference Standards

• »»YD/T 1019-2013

Specification

Parameter	Data
Conductor Diameter	24AWG
Insulation Diameter	0.92±0.01mm
Sheah Material	PVC
Overall Diameter	6.4±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information

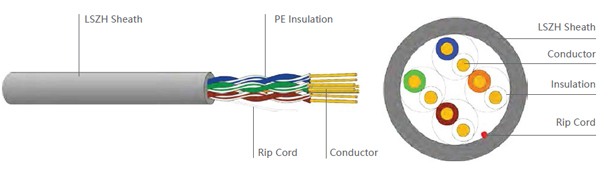

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Widely used for horizontal cabling in working area and LAN indoor, meets or exceeds Cat.5e standard
>High grade OFC (oxygen free copper) conductor, reliable electric transmission
>Comparing with normal PVC sheath, LSZH emits lower smoke when burnt (according to IEC 61034) and chloric acid <2mg/g (according to IEC 60754), decreasing smoke density and hazards for escape and rescue, eco-friendly product

Reference Standards

• »»YD/T 1019-2013
• »»GB/T 17650.1-1998
• »»GB/T 1765.1-2-1998
• »»IEC 61034
• »»IEC 60754

Specification

Parameter	Data
Conductor Diameter	24AWG
Insulation Diameter	0.88±0.01mm
Sheah Material	LSZH
Overall Diameter	5.3±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information
