Type and Description


Festoon (Shielded ) Round Cable
Festoon Encoder Cable
Festoon (Shielded ) Flat Cable

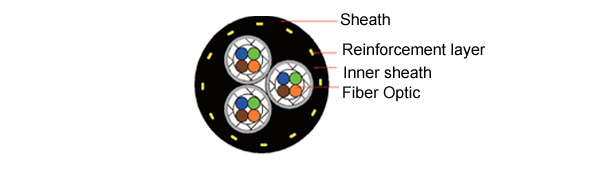

Festoon Fiber Optic Cable

Return to the previous page

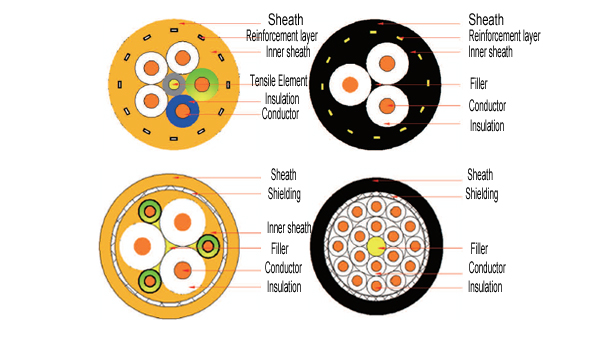

Festoon (Shielded ) Round Cable

Construction & Technical Parameters

Constructure
	NBR Festoon Round Cable	NBR Festoon Shielded Round Cable	PUR Festoon Round Cable	PUR Festoon Shielded Round Cable
Conductor:	Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard		Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Insulation	Special Elastomer	Special Elastomer	Special Elastomer	Special Elastomer
Color Code	Black with white code
Laying-up	Grouped short lay stranding, tensile fillers at core and gaps
Inner sheath	(if allicable) Abrasion ,oil resistant NBR Compound
Reinforcement layer	Aramid braiding		Aramid braiding
Shielding layer		tinned copper braid with braid coverage ≥80%		tinned copper braid with braid coverage ≥80%
Outer sheath	Abrasion ,oil resistant NBR Compound	Abrasion ,oil resistant NBR Compound	Abrasion ,oil resistant PUR Compound	Abrasion ,oil resistant PUR Compound
Sheath color	YellowBlack
Technical Index
Rated Voltage:	U₀/U 0.6/1kV
Test Voltage	3500V/5min
Min.Bending Radius Fixed laying For moving installation	5×D(Cable OD) 10×D(Cable OD)
Maximum Tensile Force	15N/mm²
Max Moving speed	120m/min	120m/min	180m/min	180m/min
Operating temperature	Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property	comply with IEC60332-1
Performance Requirements		Applications
♦Excellent tensile and tear resistance with stable performance. ♦ It features outstanding oil resistance, abrasion resistance, cold resistance and weather resistance. ♦ PUR sheath has various superior properties, such as excellent acid, alkali and UV resistance, suitable for outdoor applications.		Suitable for festoon trolleys, gantry cranes, mobile cranes, platform conveyors, transportation equipment, machine tools and other applications involving frequent bending and reciprocating motion. The cable can withstand moderate mechanical stress and can be used indoors or outdoors in dry or humid environments. As for Shielding Type Festoon cable , Copper shielding ensures accurate data transmission and protects the cable against electromagnetic interference.
Certification

Technical Properties

Cores No.X Cross Section	Appro. weight kg/m	Outer dia. mm±10%	Max.tensile force N
NBR Sheath Festoon Round Cable
1x10	0.19	10.7	150
1x16	0.27	12.4	240
1x25	0.37	14.1	375
1x35	0.50	16.0	525
1x50	0.71	18.9	750
1x70	0.91	21.1	1050
1x95	1.23	24.5	1425
1x120	1.47	26.2	1800
1x150	1.80	28.6	2250
1x185	2.19	31.2	2775
7x1.5	0.32	14.6	157.5
12x1.5	0.62	27.6	270
18x1.5	1.04	27.6	405
4x2.5	0.26	13.1	150
5x2.5	0.32	14.3	187.5
12x2.5	0.87	24.2	450
18x2.5	1.49	32.6	675
4G4	0.42	16.8	240
4G6	0.56	18.9	360
4G10	0.87	23.3	600
4G16	1.29	27.9	960
4G25	1.81	32.3	1500
4G35	2.50	37.5	2100
4G50	3.51	44.4	3000
4x(2x1.0)	0.58	20.6	120
6x(2x1.0)	0.83	24.7	180
2x(2x1.5)	0.56	20.7	90
3x(2x1.5)	0.64	21.7	135
3x10+3x1.5	0.75	21.4	518
3x16+3x2.5	1.10	25.3	833
3x25+3x4.0	1.52	29.1	1305
3x35+3x6	2.05	33.4	1845
3x50+3x10	2.90	39.2	2700
3x70+3x10	3.65	43.0	3600
NBR Sheath Festoon Shielded Round Cable
1x50	0.65	17.2	1000
1x70	0.87	18.6	1400
1x95	1.12	21.0	1900
1x120	1.14	24.0	2400
1x150	1.73	26.0	3000
1x185	2.07	27.7	3700
1x240	2.66	30.5	4800
3x1.5	0.25	13.0	68
3x2.5	0.31	14.5	113
3x4.0	0.39	16.0	240
3x6.0	0.52	18.2	360
3x10	0.76	21.3	600
3x16	1.08	24.6	960
3x25	1.47	28.0	1500
3x35	2.00	32.0	2100
3x50	2.68	37.0	3000
3x70	3.53	41.0	4000
3x95	4.40	45.5	5500
3x120	5.70	51.5	7000
3x50+3G25/3	2.73	35.8	3000
3x70+3G35/3	3.70	41.2	4200
3x95+3G50/3	4.69	45.5	5500
3x120+3G70/3	6.22	51.7	7000
4G1.5	0.28	14.3	90
4G2.5	0.35	15.3	150
4G4.0	0.46	17.0	320
4G6.0	0.61	19.5	480
4G10	0.92	23.0	800
4G16	1.31	26.5	1200
4G25	1.86	31.2	2000
4G35	2.45	34.8	2800
4G50	3.30	40.0	4000
4G70	4.42	44.0	5500
4G95	5.60	50.8	7500
5x1.5	0.32	15.0	110
5x2.5	0.41	16.8	188
5x4.0	0.57	19.0	400
5x6.0	0.72	21.0	600
5x10	1.14	25.5	1000
5x16	1.55	28.6	1600
5x25	2.10	34.3	2500
5x35	3.00	38.5	3500
5x50	4.00	43.8	5000
5x70	5.45	50.2	7000
5x95	7.00	56.8	9500
4x10+4x2.5	1.06	24.3	800
4x16+4x2.5	1.36	26.6	1250
4x25+4x2.5	1.91	31.2	2000
4x35+4x2.5	2.53	34.5	2800
4x50+4x4.0	3.30	39.6	4000
7x1.5	0.41	16.8	158
12x1.5	0.58	20.1	270
18x1.5	0.76	22.7	405
24x1.5	1.00	26.7	570
30x1.5	1.10	27.7	675
36x1.5	1.35	30.2	810
42x1.5	1.55	31.8	945
7x2.5	0.57	19.1	260
12x2.5	0.76	22.2	450
18x2.5	1.00	25.7	650
24x2.5	1.45	30.2	900
30x2.5	1.60	31.5	1100
36x2.5	1.85	33.4	1350
7x4.0	0.64	21.5	420
7x6.0	0.96	26.3	630
12x4.0	1.80	26.0	720
18x4.0	1.85	29.4	1080
3x(2x1.0)C	0.67	22.0	90
3x(2x1.5)C	0.74	22.5	135
3x(2x2.5)C	0.98	25.5	135
6x(2x1.0)C	1.00	28.0	180
6x(2x1.5)C	1.20	29.3	270
6x(2x2.5)C	1.57	32.1	450
4x16+2x(4x1.5)	1.55	32.4	1280

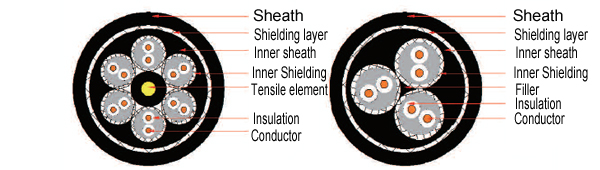

Festoon Encoder Cable

Structure & Technical Index

Construction		Technical Index
Conductor:	Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 6 standard	Rated Voltage:	U₀/U 450/750V
Insulation	Special Elastomer Insulation	Test Voltage	2500V/5min
Color Code	Black with white code/Color Code	Min.Bending Radius
Laying-up	Grouped short pitch stranding, tensile element filling core/interstrices	Fixed laying	5×D(Cable OD)
Inner sheath	abrasion ,oil resistant NBR compound( if applicable)	For moving installation	10×D(Cable OD)
Shielding layer	tinned copper wire braiding,density more than 80%	Max.Tensile Force	15M/mm²
Outer Sheath	Abrasion &Oil resistant NBR Compound Abrasion &Oil resistant PUR Compound	Max. moving speed	120m/min (NBR) 180m/min(PUR)
Sheath color	Black/Yellow	Operating temperature	Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
		Flame Retardant Property	comply with IEC60332-1
Performance Requirements		Applications
♦Excellent tensile and tear resistance with stable performance. ♦ It features outstanding oil resistance, abrasion resistance, cold resistance and weather resistance. ♦ PUR sheath has various superior properties, such as excellent acid, alkali and UV resistance, suitable for outdoor applications.		Suitable for festoon trolleys, gantry cranes, mobile cranes, platform conveyors, transportation equipment, machine tools and other applications involving frequent bending and reciprocating motion. The cable can withstand moderate mechanical stress and can be used indoors or outdoors in dry or humid environments. As for Shielding Type Festoon cable , Copper shielding ensures accurate data transmission and protects the cable against electromagnetic interference.
Certification

Technical Properties

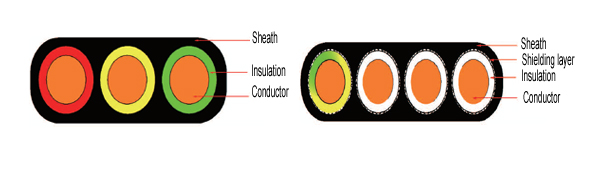

Festoon (Shielded ) Flat Cable

Construction & Technical Parameters

Constructure
	NBR Sheath Festoon Flat Cable	NBR Sheath Festoon Shielded Flat Cable
Conductor:	Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 or 6 standard
Insulation	Special Elastomer	Special Elastomer
Color Code	Black with white code+ Y/G or color code
Core Construction	Flat linear or cloverleaf arrangement
Reinforcement element	/
Shielding layer		tinned copper wire braiding,density more than 85%
Outer sheath	Special Abrasion ,oil resistant flexible NBR Compound	Special Abrasion ,oil resistant flexible NBR Compound
Sheath color	Black(RAL9005) or Grey (RAL7001)
Technical Index
Rated Voltage:	U₀/U 0.6/1kV Control core
Test Voltage	3500V/5min
Max. moving speed	120m/5min
Min.Bending Radius Fixed laying For moving installation	5×D(Cable OD) 10×D(Cable OD)
Maximum Tensile Force	15N/mm²
Operating temperature	Fixed laying:-40 °C to +90°C or moving installation: -30 °C to +90°C
Flame Retardant Property	comply with IEC60332-1
Performance Requirements	Applications
♦Excellent tensile and tear resistance with stable performance. ♦ It features outstanding oil resistance, abrasion resistance, cold resistance and weather resistance.	Suitable for festoon trolleys, gantry cranes, mobile cranes, platform conveyors, transportation equipment, machine tools and other applications involving frequent bending and reciprocating motion. The cable can withstand moderate mechanical stress and can be used indoors or outdoors in dry or humid environments. As for Shielding Type Festoon cable , Copper shielding ensures accurate data transmission and protects the cable against electromagnetic interference.
Certification

Technical Properties

Cores No.X Cross Section	Max.tensile force N	Width mm	Thichness mm	Appro. weight kg/m	Core Construction
NBR Sheath Flat Festoon Cable
3x1.5	68	12.3	5.6	0.12	Flat linear Arrangement
4x1.5	90	16.3	5.6	0.16	Flat linear Arrangement
5x1.5	113	20.2	5.6	0.20	Flat linear Arrangement
7x1.5	158	26.3	5.6	0.27	Flat linear Arrangement
10x1.5	225	35.5	5.6	0.37	Flat linear Arrangement
12x1.5	270	41.6	5.6	0.44	Flat linear Arrangement
16x1.5	360	54.7	5.6	0.58	Flat linear Arrangement
18x1.5	405	62.6	5.6	0.66	Flat linear Arrangement
6x4x1.5	540	56.6	10.5	1.04	Cloverleaf Arrangement
3x2.5	113	15.0	6.6	0.18	Flat linear Arrangement
4x2.5	150	19.7	6.6	0.24	Flat linear Arrangement
5x2.5	188	24.3	6.6	0.30	Flat linear Arrangement
7x2.5	263	31.8	6.6	0.40	Flat linear Arrangement
10x2.5	375	43.1	6.6	0.55	Flat linear Arrangement
12x2.5	450	50.6	6.6	0.65	Flat linear Arrangement
16x2.5	600	66.5	6.6	0.86	Flat linear Arrangement
18x2.5	675	75.8	6.6	0.98	Flat linear Arrangement
6x4x2.5	900	66.3	12.6	1.51	Cloverleaf Arrangement
3x4.0	180	17.4	7.5	0.25	Flat linear Arrangement
4x4.0	240	22.9	7.5	0.33	Flat linear Arrangement
5x4.0	300	28.3	7.5	0.42	Flat linear Arrangement
3x6.0	270	19.8	8.3	0.34	Flat linear Arrangement
4x6.0	360	26.1	8.3	0.44	Flat linear Arrangement
5x6.0	450	32.3	8.3	0.55	Flat linear Arrangement
3x10	450	27.6	9.8	0.55	Flat linear Arrangement
4x10	600	36.1	9.8	0.73	Flat linear Arrangement
5x10	750	44.6	9.8	0.91	Flat linear Arrangement
3x16	720	32.5	11.3	0.80	Flat linear Arrangement
4x16	960	42.5	11.3	1.05	Flat linear Arrangement
5x16	1200	52.5	11.3	1.30	Flat linear Arrangement
3x25	1125	37.0	13.2	1.12	Flat linear Arrangement
4x25	1500	48.5	13.2	1.48	Flat linear Arrangement
5x25	1875	60.0	13.2	1.84	Flat linear Arrangement
3x35	1575	43.1	15.3	1.53	Flat linear Arrangement
4x35	2100	56.3	15.3	2.02	Flat linear Arrangement
5x35	2625	69.5	15.3	2.51	Flat linear Arrangement
3x50	2250	51.9	18.3	2.20	Flat linear Arrangement
4x50	3000	67.7	18.3	2.90	Flat linear Arrangement
5x50	3750	83.5	18.3	3.59	Flat linear Arrangement
3x70	3150	58.9	21.3	2.98	Flat linear Arrangement
4x70	4200	76.7	21.3	3.91	Flat linear Arrangement
5x70	5250	94.5	21.3	4.85	Flat linear Arrangement
3x95	4275	68.4	25.8	4.13	Flat linear Arrangement
4x95	5700	89.2	25.8	5.43	Flat linear Arrangement
5x95	7125	110.0	25.8	6.73	Flat linear Arrangement
3x120	5400	76.0	29.0	5.18	Flat linear Arrangement
4x120	7200	99.0	29.0	6.81	Flat linear Arrangement
5x120	9000	122.0	29.0	8.44	Flat linear Arrangement
3x150	6750	83.0	32.0	6.33	Flat linear Arrangement
4x150	9000	108.0	32.0	8.32	Flat linear Arrangement
5x150	11250	133.0	32.0	10.31	Flat linear Arrangement
3x185	8325	90.6	35.2	7.69	Flat linear Arrangement
4x185	11100	117.8	35.2	10.10	Flat linear Arrangement
5x185	13875	145.0	35.2	12.51	Flat linear Arrangement
3x240	10800	99.1	37.7	9.41	Flat linear Arrangement
4x240	14400	128.8	37.7	12.37	Flat linear Arrangement
3x10+1x6	540	36.5	9.8	0.69	Flat linear Arrangement
3x16+1x10	870	42.5	11.5	0.99	Flat linear Arrangement
3x25+1x16	1365	48.5	13.2	1.39	Flat linear Arrangement
3x35+1x16	1815	53.1	15.3	1.79	Flat linear Arrangement
3x50+1x25	2625	63.4	18.3	2.57	Flat linear Arrangement
3x70+1x35	3675	72.7	21.5	3.52	Flat linear Arrangement
3x95+1x50	5025	84.7	25.8	4.87	Flat linear Arrangement
3x120+1x70	6445	94.3	29.0	6.16	Flat linear Arrangement
3x150+1x70	7800	101.3	32.0	7.35	Flat linear Arrangement
3x185+1x95	9750	111.4	35.2	9.02	Flat linear Arrangement
3x240+1x120	12600	122.1	37.7	11.04	Flat linear Arrangement
3x10+2x6	630	45.0	9.8	0.83	Flat linear Arrangement
3x16+2x10	1020	52.5	11.5	1.21	Flat linear Arrangement
3x25+2x16	1605	60.0	13.2	1.69	Flat linear Arrangement
3x35+2x16	2055	63.1	15.3	2.09	Flat linear Arrangement
3x50+2x25	3000	74.9	18.3	3.00	Flat linear Arrangement
3x70+2x35	4200	85.3	21.3	4.06	Flat linear Arrangement
3x95+2x50	5775	101.0	25.8	5.72	Flat linear Arrangement
3x120+2x70	7500	112.6	29.0	7.27	Flat linear Arrangement
3x150+2x70	8850	119.6	32.0	8.54	Flat linear Arrangement
3x185+2x95	10425	127.2	35.2	10.01	Flat linear Arrangement
4x10+1x6	690	44.8	9.8	0.86	Flat linear Arrangement
4x16+1x10	1110	52.5	11.5	1.24	Flat linear Arrangement
4x25+1x16	1740	58.5	13.2	1.72	Flat linear Arrangement
4x35+1x16	2340	66.3	15.3	2.27	Flat linear Arrangement
4x50+1x25	3375	79.2	18.3	3.25	Flat linear Arrangement
4x70+1x35	4725	89.9	21.3	4.40	Flat linear Arrangement
4x95+1x50	6450	105.5	25.8	6.14	Flat linear Arrangement
4x120+1x70	8250	117.3	29.0	7.75	Flat linear Arrangement
4x150+1x95	10050	126.3	32.0	9.30	Flat linear Arrangement
NBR Sheath Flat Shielded Festoon Cable
4G1.5	90	21.0	7.5	0.29	Flat linear Arrangement
5G1.5	113	25.0	7.5	0.35	Flat linear Arrangement
8x1.5	180	38.0	7.5	0.54	Flat linear Arrangement
12G1.5	270	55.0	7.5	0.80	Flat linear Arrangement
4G2.5	150	23.0	8.0	0.42	Flat linear Arrangement
6G2.5	225	32.0	8.0	0.54	Flat linear Arrangement
12G2.5	450	63.0	8.0	1.00	Flat linear Arrangement
4G4	240	27.0	9.0	0.44	Flat linear Arrangement
4G6	360	30.0	9.5	0.60	Flat linear Arrangement
4G10	600	36.0	11.3	0.96	Flat linear Arrangement
4G16	960	40.0	13.1	1.25	Flat linear Arrangement
4G25	1500	45.0	14.2	1.69	Flat linear Arrangement
4G35	2100	53.0	16.4	2.28	Flat linear Arrangement
4G50	3000	63.0	19.2	3.13	Flat linear Arrangement
4G70	4200	75.0	23.0	4.68	Flat linear Arrangement
4G95	5700	79.0	24.0	5.61	Flat linear Arrangement
4x(2x1)StD	120	32.0	11.7	0.53	Flat linear Arrangement
7x(2x1)StD	210	57.0	11.7	0.91	Flat linear Arrangement
12x(2x1)StD	360	68.0	15.4	1.50	Flat linear Arrangement
4x(4G1.5)StD	360	41.0	11.5	0.90	Flat linear Arrangement

Festoon Fiber Optic Cable

Structure & Technical Parameters

Construction		Technical Parameters
Fiber Optic type	9/125,50/125 or 62.5/125	Min.Bending Radius
Insulation	Special Elastomer	Fixed laying	5×D(Cable OD)
Color Code	Color Separation + Number Code	For moving installation	10×D(Cable OD)
Laying-up	Grouped short pitch stranding, tensile element filling core/interstrices	Max. moving speed	120m/min
Inner Sheath	Abrasion &Oil resistant NBR/ PUR	Operating temperature	Fixed laying -40 °C to +90°C For moving installation: -30 °C to +90°C
Reinforcement Layer	Aramid braiding	Flame Retardant Property	comply with IEC60332-1
Outer sheath	Abrasion &Oil resistant PUR
Sheath color	Black
Performance Requirements		Applications

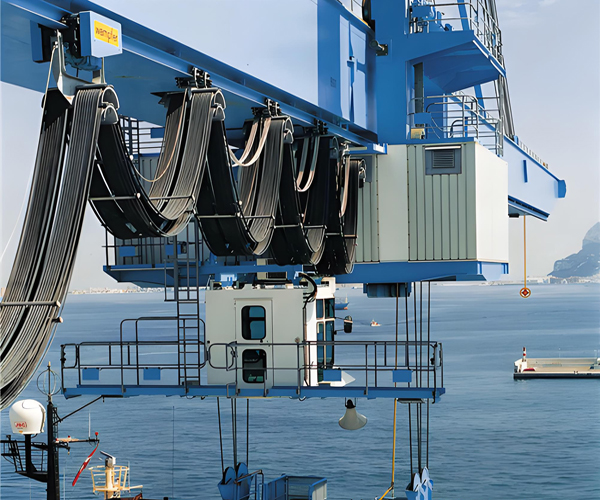

♦Flexible with excellent bendability. ♦Tear-resistant and tensile-resistant, featuring stable performance. ♦ Superior oil resistance, abrasion resistance, cold resistance and weather resistance. ♦ Acid & alkali resistant and UV-resistant, suitable for outdoor applications.		This product is a mobile communication optical cable for port equipment, designed for interference-free data and signal transmission. The cable boasts exceptional flexibility, tensile strength and torsion resistance. Its excellent flexibility and high mechanical strength make it suitable for automotive industry, machine tools and shipbuilding industry. This cable is applicable in dry or damp indoor environments as well as outdoor applications.
Certification

Technical Properties

Return to the previous page
