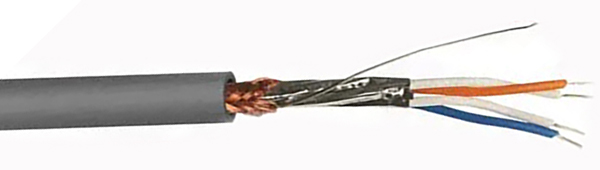

Type and Description
BMS cable also commonly known as Building Management System cable,intelligent building cables or automation cables are used to automate all of the systems in place within a building or home.
EIA RS485
Application
For data communication and automation systems, microprocessor to device, etc.
Constructions
1. Conductor: Stranded Tinned Copper Wire
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire<
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for Armoured Cable (Where Applicable):
Polyethylene (PE)
PVC
6. Armour (Where Applicable): Galvanized Steel Wire
7. Oversheath: PVC/LSZH
»» Installation Temperature: Above 0°C
Reference Standards
»» TIA/EIA-485
»» BS EN 50288-7
»» BS EN 60228
»» BS EN 50290
Identification of Insulation
1P
White，Blue
3P
White ,Green
2P
White ,Yellow
4P
White,Brown
Note :Other cores are available upon request
Electrical Performance
Working Voltage
300V
Characteristic Impedance
120 Ω ± 15 Ω
Velocity of Propagation
S-FPE: 78%, SPE: 66%
Conductor DCR
57.0 Ω/km (Max. @ 20°C) for 22AWG
91.80 Ω/km (Max. @ 20°C) for 24AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9841
TC
1x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9842
TC
2x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9843
TC
3x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9844
TC
4x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9841NH
TC
1x2x24AWG
S-PE
Al-foil + Braid
LSZH
LB9842NH
TC
2x2x24AWG
S-PE
Al-foil + Braid
LSZH
LB9843NH
TC
3x2x24AWG
S-PE
Al-foil + Braid
LSZH
LB9844NH
TC
4x2x24AWG
S-PE
Al-foil + Braid
LSZH
LB3105A
TC
1x2x22AWG
S-FPE
Al-foil + Braid
PVC
LB3107A
TC
2x2x22AWG
S-FPE
Al-foil + Braid
PVC
LB3108A
TC
3x2x22AWG
S-FPE
Al-foil + Braid
PVC
LB3109A
TC
4x2x22AWG
S-FPE
Al-foil + Braid
PVC
Back Top

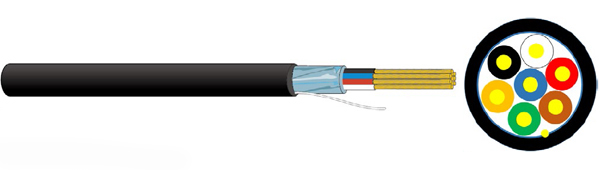

RS-232 Cable (Multi-Core, Foil Screened)
Application
For low data rate transmission as audio, control and instrumentation cables.
Reference Standards
ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened:Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Identification of Insulation
1 Core
Black
9 Core
Green/Black
2 Core
White
10 Core
Orange/Black
3 Core
Red
11 Core
Blue/Black
4 Core
Green
12 Core
Black/White
5 Core
Orange
13 Core
Red/White
6 Corer
Blue
14 Corer
Green/White
7 Core
White/Black
15 Core
Blue/White
8 Core
Red/Black
Working Voltage
300V
Test Voltage
800V
Conductor DCR
91.80 Ω/km (Max. @ 20°C)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9533
TC
3x24AWG
PVC
Al-foil
PVC
LB9534
TC
4x24AWG
PVC
Al-foil
PVC
LB9535
TC
5x24AWG
PVC
Al-foil
PVC
LB9536
TC
6x24AWG
PVC
Al-foil
PVC
LB9537
TC
7x24AWG
PVC
Al-foil
PVC
LB9538
TC
8x24AWG
PVC
Al-foil
PVC
LB9539
TC
9x24AWG
PVC
Al-foil
PVC
LB9540
TC
10x24AWG
PVC
Al-foil
PVC
LB9541
TC
15x24AWG
PVC
Al-foil
PVC
LB9534NH
TC
4x24AWG
S-PE
Al-foil
LSZH
LB9536NH
TC
6x24AWG
S-PE
Al-foil
LSZH
(Notes: Other cores are available upon request.)
Back Top

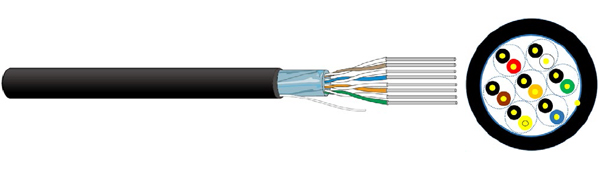

RS-232 Cable (Multi-Pair, Foil Screened )
Application
For low data rate transmission as audio, control and instrumentation cables.
Reference Standards
ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Identification of Insulation
1st Pair
Black, Red
6th Pair
Black, Brown
2nd Pair
Black, White
7th Pair
Black, Orange
3rd Pair
Black, Green
8th Pair
Red, White
4th Pair
Black, Blue
9th Pair
Red, Green
5th Pair
Black, Yellow
10th Pair
Red, Blue
Electrical Performance
Working Voltage
150V
Test Voltage
800V
Conductor DCR
91.80 Ω/km (Max. @ 20°C)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9501 TC 1x2x24AWG PVC Al-foil PVC LB9502 TC 2x2x24AWG PVC Al-foil PVC LB9530 TC 3x2x24AWG PVC Al-foil PVC LB9504 TC 4x2x24AWG PVC Al-foil PVC LB9550 TC 5x2x24AWG PVC Al-foil PVC LB9560 TC 6x2x24AWG PVC Al-foil PVC LB9570 TC 7x2x24AWG PVC Al-foil PVC LB9580 TC 8x2x24AWG PVC Al-foil PVC LB9590 TC 9x2x24AWG PVC Al-foil PVC LB9510 TC 10x2x24AWG PVC Al-foil PVC LB9520 TC 15x2x24AWG PVC Al-foil PVC LB9530NH TC 1x2x24AWG S-PE Al-foil LSZH LB9540NH TC 2x2x24AWG S-PE Al-foil LSZH LB9550NH TC 3x2x24AWG S-PE Al-foil LSZH LB9560NH TC 4x2x24AWG S-PE Al-foil LSZH LB9570NH TC 5x2x24AWG S-PE Al-foil LSZH LB9580NH TC 6x2x24AWG S-PE Al-foil LSZH LB9590NH TC 7x2x24AWG S-PE Al-foil LSZH LB9510NH TC 8x2x24AWG S-PE Al-foil LSZH
(Notes: Other cores are available upon request.)
Back Top

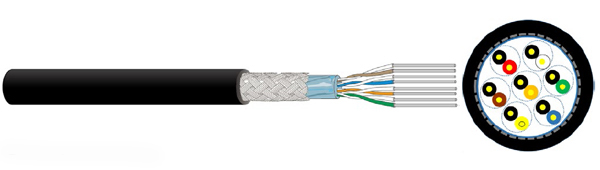

RS-232 Cable (Multi-Pair, Foil & Braid Screened)
Application
For EIA RS-232 and CAD/CAM applications, used as computer cables.
Reference Standards
UL 2464
BS EN 60228
BS EN 50290
RoHS Directive
<
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Identification of Insulation
1st Pair
Black, Red
9th Pair
Red, Green
2nd Pair
Black, White
10th Pair
Red, Blue
3rd Pair
Black, Green
11th Pair
Red, Yellow
4th Pair
Black, Blue
12th Pair
Red, Brown
5th Pair
Black, Yellow
13th Pair
Red, Orange
6th Pair
Black, Brown
14th Pair
Green, White
7th Pair
Black, Orange
15th Pair
Green, Blue
8th Pair
Red, White
Electrical Performance
Operating Voltage
300V
Test Voltage
1.0 KVdc
Conductor DCR
57.0 Ω/km (Max. @ 20°C) for 22AWG
91.8 Ω/km (Max. @ 20°C) for 24AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB8302
TC
2x2x22AWG
PVC
Al-foil + Braid
PVC
LB8303
TC
3x2x22AWG
PVC
Al-foil + Braid
PVC
LB8304
TC
4x2x22AWG
PVC
Al-foil + Braid
PVC
LB8305
TC
5x2x22AWG
PVC
Al-foil + Braid
PVC
LB8306
TC
6x2x22AWG
PVC
Al-foil + Braid
PVC
LB8307
TC
7x2x22AWG
PVC
Al-foil + Braid
PVC
LB8308
TC
8x2x22AWG
PVC
Al-foil + Braid
PVC
LB8310
TC
10x2x22AWG
PVC
Al-foil + Braid
PVC
LB8332
TC
2x2x24AWG
PVC
Al-foil + Braid
PVC
LB8333
TC
3x2x24AWG
PVC
Al-foil + Braid
PVC
LB8334
TC
4x2x24AWG
PVC
Al-foil + Braid
PVC
LB8335
TC
5x2x24AWG
PVC
Al-foil + Braid
PVC
LB8336
TC
6x2x24AWG
PVC
Al-foil + Braid
PVC
LB8337
TC
7x2x24AWG
PVC
Al-foil + Braid
PVC
LB8340
TC
10x2x24AWG
PVC
Al-foil + Braid
PVC
(Notes: Other cores are available upon request.)
Back Top

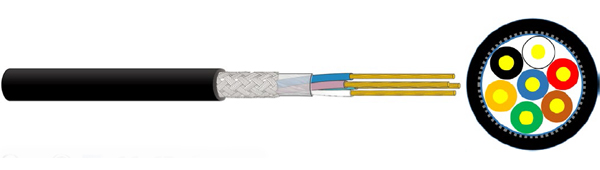

RS-232 Cable (Multi-Core, Foil &Braid Screened)
Application
For low data rate transmission as audio, control and instrumentation cables.
Reference Standards
ANSI/TIA/EIA-232
UL2464
BS EN 60228
BS EN 50290
RoHS Directives
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH<
>>Installation Temperature: Above 0ºC
Identification of Insulation
1 Core
Black
6 Corer
Blue
2 Core
White
7 Core
White/Black
3 Core
Red
8 Core
Red/Black
4 Core
Green
9 Core
Green/Black
5 Core
Orange
10 Core
< Orange/Black
Electrical Performance
Working Voltage
150V
Test Voltage
800V
Conductor DCR
91.80 Ω/km (Max. @ 20°C)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9608
TC
3x24AWG
PVC
Al-foil + Braid
PVC
LB9609
TC
4x24AWG
PVC
Al-foil + Braid
PVC
LB9610
TC
5x24AWG
PVC
Al-foil + Braid
PVC
LB9611
TC
6x24AWG
PVC
Al-foil + Braid
PVC
LB9612
TC
7x24AWG
PVC
Al-foil + Braid
PVC
LB9613
TC
8x24AWG
PVC
Al-foil + Braid
PVC
LB9614
TC
9x24AWG
PVC
Al-foil + Braid
PVC
LB9615
TC
10x24AWG
PVC
Al-foil + Braid
PVC
LB9939
TC
3x22AWG
PVC
Al-foil + Braid
PVC
LB9940
TC
4x22AWG
PVC
Al-foil + Braid
PVC
LB9941
TC
5x22AWG
PVC
Al-foil + Braid
PVC
LB9942
TC
6x22AWG
PVC
Al-foil + Braid
PVC
LB9943
TC
7x22AWG
PVC
Al-foil + Braid
PVC
LB9944
TC
8x22AWG
PVC
Al-foil + Braid
PVC
LB9945
TC
9x22AWG
PVC
Al-foil + Braid
PVC
LB9946
TC
10x22AWG
PVC
Al-foil + Braid
PVC
Back Top

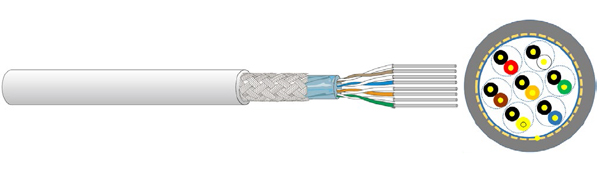

RS-232/422 Computer Cable
Application
For EIA RS232 or RS422 application,used as computer cable
Reference Standards
UL 2919 2493
BS EN 60228
BS EN 50290
RoHS Directive
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE &NBSP; S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened(Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Electrical Performance
Working Voltage
300V
Characteristic Impedance
100 Ω ± 15 Ω
Velocity of Propagation
S-FPE 78% S-PE &NBSP; 66%
Capacitance
55 pF/m for Conductor to Conductor
95 pF/m for Conductor to Other Conductor & Screen
Conductor DCR
91.80 Ω/km (Max. @ 20°C) for 24AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9680
TC
3x2x24AWG
S-PE
Al-foil
PVC
LB9681
TC
4x2x24AWG
S-PE
Al-foil
PVC
LB9682
TC
6x2x24AWG
S-PE
Al-foil
PVC
LB9683
TC
9x2x24AWG
S-PE
Al-foil
PVC
LB9684
TC
12x2x24AWG
S-PE
Al-foil
PVC
LB9829
TC
2x2x24AWG
S-PE
Al-foil+Braid
PVC
LB9830
TC
3x2x24AWG
S-PE
Al-foil+Braid
PVC
LB9832
TC
5x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9839
TC
6x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9833
TC
7x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9834
TC
9x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9835
TC
10x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9836
TC
12x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9837
TC
18x2x24AWG
S-PE
Al-foil + Braid
PVC
LB9829NH
TC
2x2x24AWG
S-PE
Al-foil + Braid
LSZH
LB8102
TC
2x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8103
TC
3x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8104
TC
4x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8105
TC
5x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8106
TC
6x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8107
TC
7x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8108
TC
8x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8110
TC
10x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8112
TC
12x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8115
TC
15x2x24AWG
S-FPE
Al-foil + Braid
PVC
LB8162
TC
2x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8163
TC
3x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8164
TC
4x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8165
TC
5x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8166
TC
6x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8167
TC
7x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8168
TC
8x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8170
TC
10x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
LB8175
TC
15x2x24AWG
S-FPE
I/OS Al-foil + Braid
PVC
Back Top

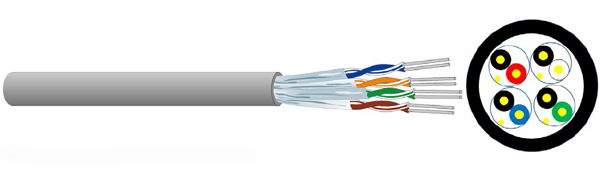

Copper Conductor RS-422 Computer Cable
Application
For EIA RS422 application,used as computer cable
Reference Standards
ANSI/TIA/EIA-422
UL 2493
BS EN 60228
BS EN 50290
RoHS Directive
Product Description
The cable is designed for for EIA RS 422 applications, used as computer cables. Multi-pair cables are available. It could be widely used for production process control and Device Converter.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºC
Identification of Insulation
1st Pair
Black, Red
9th Pair
Red, Green
2nd Pair
Black, White
10th Pair
Red, Blue
3rd Pair
Black, Green
11th Pair
Red, Yellow
4th Pair
Black, Blue
12th Pair
Red, Brown
5th Pair
Black, Yellow
13th Pair
Red, Orange
6th Pair
Black, Brown
14th Pair
Green, White
7th Pair
Black, Orange
15th Pair
Green, Blue
8th Pair
Red, White
Electrical Performance
Working Voltage
300V
Characteristic Impedance
100 Ω ± 15 Ω
Velocity of Propagation
78%
Capacitance
45 pF/m for Conductor to Conductor
80 pF/m for Conductor to Other Conductor & Screen
Conductor DCR
91.80 Ω/km (Max. @ 20°C) for 24AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9729
TC
2x2x24AWG
S-FPE
IS Al-foil
PVC
LB9730
TC
3x2x24AWG
S-FPE
IS Al-foil
PVC
LB9728
TC
4x2x24AWG
S-FPE
IS Al-foil
PVC
LB9731
TC
6x2x24AWG
S-FPE
IS Al-foil
PVC
LB9732
TC
9x2x24AWG
S-FPE
IS Al-foil
PVC
LB9734
TC
12x2x24AWG
S-FPE
IS Al-foil
PVC
LB9735
TC
15x2x24AWG
S-FPE
IS Al-foil
PVC
(Notes: Other cores are available upon request.)
Back Top

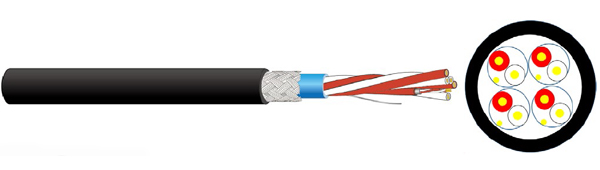

Audio Cable(Analog)
Application
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directive
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: S-PE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH
>> Insulation cores are in blue and white color with number printed.
Electrical Performance
Velocity of Propagation 66% Conductor DCR 134 Ω/km (Max. @ 20°C) for 26AWG 89.0 Ω/km (Max. @ 20°C) for 24AWG 56.0 Ω/km (Max. @ 20°C) for 22AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB70030 BC 1x2x24AWG S-PE Al-foil LSZH
LB70031 BC 1x2x22AWG S-PE I/OS Al-foil LSZH
LB70032 BC 4x2x26AWG S-PE Al-foil+Braided PVC
LB70033 BC 8x2x26AWG S-PE Al-foil+Braided PVC
LB70034 BC 12x2x26AWG S-PE Al-foil+Braided PVC
LB70041 BC 2x2x26AWG S-PE I/OS Al-foil LSZH
LB70042 BC 4x2x26AWG S-PE I/OS Al-foil LSZH
LB70043 BC 8x2x26AWG S-PE I/OS Al-foil LSZH
LB70044 BC 12x2x26AWG S-PE I/OS Al-foil LSZH
(Notes: Other cores are available upon request.)
Back Top

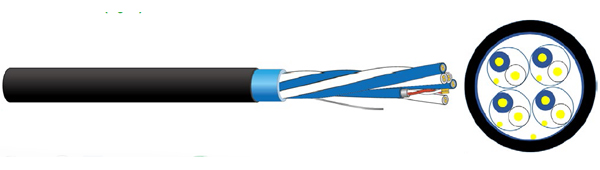

Audio Cable(Digital)
Application
For digital audio transmission.
Reference Standards
ANSI/TIA/EIA-422 | UL 2493 | BS EN 60228 | BS EN 50290 | RoHS Directive
The cable is designed for digital audio transmission, used in connecting for audio appliances, small electric tools and instruments.Multi-pair cables are available.
1. Conductor: Stranded Oxygen Free Copper
>> Insulation cores are in blue and white color with number printed.
Velocity of Propagation
76% Impedance 0.1-6MHz 110 Ω ± 15 Ω Test Voltage 1.0 KVdc Conductor DCR 134 Ω/km (Max. @ 20°C) for 26AWG 89.0 Ω/km (Max. @ 20°C) for 24AWG 56.0 Ω/km (Max. @ 20°C) for 22AWG
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB70049 BC
1x2x24AWG
S-FPE Al-foil LSZH
LB70057 BC 2x2x24AWG S-FPE I/OS Al-foil LSZH LB70058 BC 4x2x24AWG S-FPE I/OS Al-foil LSZH LB70059 BC 8x2x24AWG S-FPE I/OS Al-foil LSZH LB70060 BC 12x2x24AWG S-FPE I/OS Al-foil LSZH LB70050 BC 1x2x22AWG S-FPE Al-foil LSZH LB70051 BC 1x2x26AWG S-FPE Al-foil LSZH LB70052 BC 2x2x26AWG S-FPE I/OS Al-foil LSZH LB70053 BC 4x2x26AWG S-FPE I/OS Al-foil LSZH LB70054 BC 8x2x26AWG S-FPE I/OS Al-foil LSZH LB70055 BC 12x2x26AWG S-FPE I/OS Al-foil LSZH (Notes: Other cores are available upon request.)
Back Top

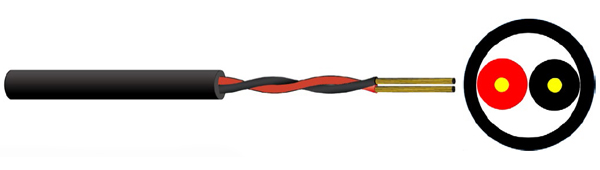

Speaker Cable
Reference Standards
Product Description
Constructions 1. Conductor: Stranded Oxygen Free CopperElectrical Perfromance
Operating Voltage 300V Test Voltage 1.0 KVdc Conductor DCR 13.3 Ω/km (Max. @ 20°C) for 1.5mm2 7.98 Ω/km (Max. @ 20°C) for 2.5mm2 4.95 Ω/km (Max. @ 20°C) for 4.0mm2 Insulation Resistance 200 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Sheath
Material
Size
LB70045 OFC 2x1.5mm2 LSZH LSZH LB70046 OFC 2x2.5mm2 LSZH LSZH LB70047 OFC 4x2.5mm2 LSZH LSZH LB70048 OFC 2x4.0mm2 LSZH LSZH LB1307A OFC 2x16AWG Polyolefin PVC LB1308A OFC 4x16AWG Polyolefin PVC LB1309A OFC 2x14AWG Polyolefin PVC LB1310A OFC 4x14AWG Polyolefin PVC LB1311A OFC 2x12AWG Polyolefin PVC LB1312A OFC 2x16AWG Polyolefin PVC
Back Top

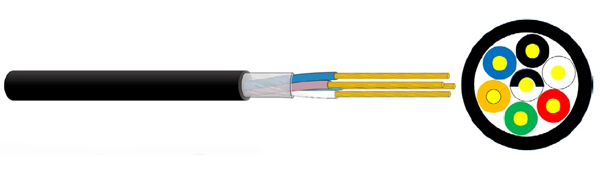

Audio, Control and Instrumentation Cables
Reference Standards BS EN 60228 | BS EN 50290 | RoHS Directives | IEC60332-1
Application
For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
1. Conductor: Stranded Oxygen Free Copper Electrical Perfromance
Operating Voltage 600V Operating Voltage 1.0 KVdc Conductor DCR
57.0 Ω/km (Max. @ 20°C) for 22AWG 39.50Ω/km (Max. @ 20°C) for 20AWG 25.0 Ω/km (Max. @ 20°C) for 18AWG 14.0 Ω/km (Max. @ 20°C) for 16AWG 9.3 Ω/km (Max. @ 20°C) for 14AWG Insulation Resistance 200 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Sheath
Material
Size
LB8620
TC
4X16AWG
PVC
PVC
LB9620 TC 5X16AWG PVC PVC LB8621 TC 7X16AWG PVC PVC LB9721 TC 8X16AWG PVC PVC LB9621 TC 9x16AWG PVC PVC LB8622 TC 12x16AWG PVC PVC LB8623 TC 15x16AWG PVC PVC LB8624 TC 19x16AWG PVC PVC LB8627 TC 4x14AWG PVC PVC LB9623 TC 5x14AWG PVC PVC LB8628 TC 7x14AWG PVC PVC LB8629 TC 12x14AWG PVC PVC LB8795 BC 2x22AWG S-PE PVC LB8794 BC 3x22AWG S-PE PVC LB9794 BC 4x22AWG S-PE PVC LB9443MN TC 3x20AWG S-PE PVC LB9444 TC 4x20AWG PVC PVC LB9445 TC 5x20AWG PVC PVC LB9439 TC 7x20AWG PVC PVC LB9439MN TC 7x20AWG S-PE PVC LB9455 TC 9x20AWG PVC PVC LB9455MN TC 9x20AWG S-PE PVC LB9457 TC 12x20AWG PVC PVC LB8463MN TC 3x18AWG PVC PVC LB8489 TC 4x18AWG PVC PVC LB8465 TC 5x18AWG PVC PVC LB8467 TC 7x18AWG PVC PVC LB8469 TC 9x18AWG PVC PVC LB8466 TC 12x18AWG PVC PVC LB8468 TC 15x18AWG PVC PVC LB8619 TC 19x18AWG PVC PVC LB8442 TC 2x22AWG PVC PVC LB8443 TC 3x22AWG PVC PVC LB8444 TC 4x22AWG PVC PVC
LB8445 TC 5x22AWG PVC PVC LB9430 TC 7x22AWG PVC PVC LB9421 TC 8x22AWG PVC PVC LB9423 TC 9x22AWG PVC PVC LB8456 TC 10x22AWG PVC PVC LB1242A BC 4x22AWG S-PE PVC
Back Top

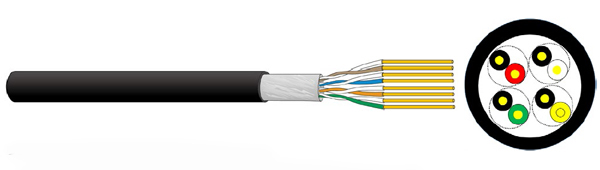

Audio, Control and Instrumentation Cables
Application
For loudspeaker application indoor & outdoor.
Reference Standards BS EN 60228 | BS EN 50290 | RoHS Directives | IEC60332-1
Constructions
1. Conductor: Stranded Oxygen Free Copper or Tinned Copper
Electrical Perfromance
Operating Voltage 150,300V,600V Test Voltage 1.0 KVdc Conductor DCR 57.0 Ω/km (Max. @ 20°C) for 22AWG 39.50Ω/km (Max. @ 20°C) for 20AWG 25.0 Ω/km (Max. @ 20°C) for 18AWG 14.0 Ω/km (Max. @ 20°C) for 16AWG 9.3 Ω/km (Max. @ 20°C) for 14AWG Insulation Resistance 200 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Sheath
Material
Size
LB8205
TC
1x2x20AWG
PVC PVC LB8205NH TC 1x2x20AWG S-PE LSZH LB9750 TC 3x2x20AWG PVC PVC LB9751 TC 6x2x20AWG PVC PVC LB9752 TC 9x2x20AWG PVC PVC LB9755 TC 15x2x20AWG PVC PVC LB8486 BC 1x2x19AWG PVC PVC LB8461 TC 1x2x18AWG PVC PVC LB8461NH TC 1x2x18AWG S-PE LSZH LB9740 TC 1x2x18AWG PVC PVC LB9740NH TC 1x2x18AWG S-PE LSZH LB9156 TC 2x2x18AWG PVC PVC LB9156NH TC 2x2x18AWG S-PE LSZH LB8690 TC 3x2x18AWG PVC PVC LB9157 TC 4x2x18AWG PVC PVC LB9159 TC 5x2x18AWG PVC PVC LB8691 TC 6x2x18AWG PVC PVC LB9161 TC 8x2x18AWG PVC PVC LB8692 TC 9x2x18AWG PVC PVC LB9741 TC 12x2x18AWG PVC PVC LB9742 TC 15x2x18AWG PVC PVC LB8471 TC 1x2x16AWG PVC PVC LB8471NH TC 1x2x16AWG S-PP LSZH LB8473 TC 1x2x14AWG PVC PVC LB8477 TC 1x2x12AWG PVC PVC LB9562 TC 2x2x24AWG PVC PVC LB9566 TC 6x2x24AWG PVC PVC LB9570 TC 10x2x24AWG PVC PVC LB8740 TC 1x2x22AWG PVC PVC LB8741 TC 2x2x22AWG PVC PVC LB8742 TC 3x2x22AWG PVC PVC LB8757 TC 4x2x22AWG PVC PVC LB8743 TC 6x2x22AWG PVC PVC LB9160 TC 8x2x22AWG PVC PVC LB8744 TC 9x2x22AWG PVC PVC LB9744 TC 2x2x22AWG PVC PVC LB9745 TC 3x2x22AWG PVC PVC LB9746 TC 4x2x22AWG PVC PVC LB8747 TC 6x2x22AWG PVC PVC LB8748 TC 9x2x22AWG PVC PVC LB9747 TC 12x2x22AWG PVC PVC LB8749 TC 15x2x22AWG PVC PVC
Back Top

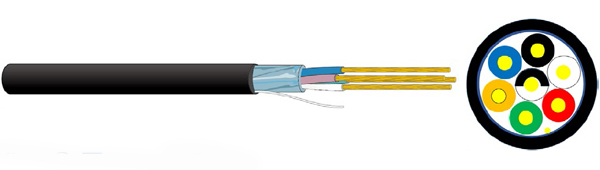

Audio, Control and Instrumentation Cables
Application
For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: Polyolefin
3. Cabling: Cores laying-up
4.Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Braided
Tinned Copper Spiral
5. Sheath: PVC/LSZH
>>Installation Temperature: Above 0ºCReference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage 300V,600V
Test Voltage 1.0 KVdc Conductor DCR 57.0 Ω/km (Max. @ 20°C) for 22AWG 39.50Ω/km (Max. @ 20°C) for 20AWG 25.0 Ω/km (Max. @ 20°C) for 18AWG 14.0 Ω/km (Max. @ 20°C) for 16AWG 9.3 Ω/km (Max. @ 20°C) for 14AWG Insulation Resistance
200 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB8771 TC 3x22AWG S-PE Al-foil PVC LB8772 TC 3x20AWG S-PE Al-foil PVC LB8770 TC 3x18AWG S-PE Al-foil PVC LB8618 TC 3x16AWG S-PE Al-foil PVC LB8771NH TC 3x22AWG S-PE Al-foil LSZH LB8772NH TC 3x20AWG S-PE Al-foil LSZH LB870NH TC 3x18AWG S-PE Al-foil LSZH LB8729 TC 4x22AWG S-PE Al-foil PVC LB9418 TC 4x18AWG PVC Al-foil PVC LB9770 TC 3x22AWG S-PP Al-foil PVC LB8735 TC 3x22AWG PVC Braid PVC LB9260 TC 6x20AWG PVC Braid PVC LB8791 TC 3x18AWG PVC Spiral PVC LB8734 TC 3x22AWG PVC Braid PVC
Back Top

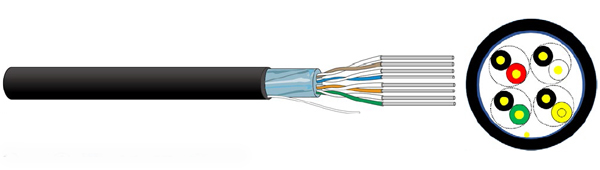

Audio, Control and Instrumentation Cables
Application
For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application indoor & outdoor.
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Constructions
Conductor: Stranded Tinned Copper Wire
Insulation: Polyolefin, PVC
Cabling: Twist laying-up
Screened: Individually Screened (Optional)
AI-PET tape with Tinned Copper Drain Wire
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Electrical Performance
Operating Voltage 300V,600V Test Voltage 1.0 KVdc> Conductor DCR
91.8 Ω/km (Max. @ 20°C) for 24AWG 57.0 Ω/km (Max. @ 20°C) for 22AWG 39.50Ω/km (Max. @ 20°C) for 20AWG 25.0 Ω/km (Max. @ 20°C) for 18AWG 14.0 Ω/km (Max. @ 20°C) for 16AWG 9.3 Ω/km (Max. @ 20°C) for 14AWG Insulation Resistance 200 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9414 TC 1x2x22AWG PVC Al-foil PVC LB8761 TC 1x2x22AWG S-PE Al-foil PVC LB8761NH TC 1x2x22AWG S-PP Al-foil LSZH LB9451 TC 1x2x22AWG S-PP Al-foil PVC LB8451 TC 1x2x22AWG S-PP Al-foil PVC LB1266A TC 1x2x22AWG PVC Al-foil PVC LB1503A TC 1x2x22AWG PVC Al-foil PVC LB9154 TC 1x2x20AWG PVC Al-foil PVC LB8762 TC 1x2x20AWG S-PE Al-foil LSZH LB8762NH TC 1x2x20AWG S-PE Al-foil LSZH LB8760 TC 1x2x18AWG S-PE Al-foil PVC LB8760NH TC 1x2x18AWG S-PE Al-foil LSZH LB8719 TC 1x2x16AWG S-PE Al-foil PVC LB8719NH TC 1x2x16AWG S-PE Al-foil LSZH LB8720 TC 1x2x14AWG S-PE Al-foil PVC LB8718 TC 1x2x12AWG S-PE Al-foil PVC LB9302 TC 2x2x22AWG PVC Al-foil PVC LB9305 TC 4x2x22AWG PVC Al-foil PVC LB9306 TC 6x2x22AWG PVC Al-foil PVC LB9309 TC 9x2x22AWG PVC Al-foil PVC LB1508A TC 1x2x24AWG S-PE Al-foil PVC LB8641 TC 1x2x24AWG S-PE Al-foil PVC LB1883A TC 1x2x24AWG S-PP Al-foil PVC LB9990 TC 3x2x24AWG S-PE IS Al-foil PVC LB9991 TC 6x2x24AWG S-PE IS Al-foil PVC LB9992 TC 9x2x24AWG S-PE IS Al-foil PVC LB9993 TC 12x2x24AWG S-PE IS Al-foil PVC LB8767 TC 3x2x22AWG PVC IS Al-foil PVC LB8768 TC 6x2x22AWG PVC IS Al-foil PVC LB8764 TC 9x2x22AWG PVC IS Al-foil PVC LB8723 TC 2x2x22AWG S-PP IS Al-foil PVC LB8723NH TC 2x2x22AWG S-PP IS Al-foil LSZH LB8778 TC 6x2x22AWG S-PP IS Al-foil PVC LB8774 TC 9x2x22AWG S-PP IS Al-foil PVC LB8775 TC 11x2x22AWG S-PP IS Al-foil PVC LB9402 TC 2x2x20AWG PVC IS Al-foil PVC LB9883 TC 3x2x20AWG S-PP IS Al-foil PE LB9886 TC 6x2x20AWG S-PP IS Al-foil PE LB9873 TC 3x2x20AWG S-PP IS Al-foil PVC LB9874 TC 6x2x20AWG S-PP IS Al-foil PVC LB9875 TC 9x2x20AWG S-PP IS Al-foil PVC LB9773 TC 3x2x18AWG S-PP IS Al-foil PE LB9774 TC 6x2x18AWG S-PP IS Al-foil PVC LB9775 TC 9x2x18AWG S-PP IS Al-foil PVC
Back Top
Audio, Control and Instrumentation Cables
Application
For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
Conductor: Stranded Tinned Copper Wire
Insulation: Polyolefin, PVC
Cabling: Twist laying-up
Screened: Individually Screened (Optional)
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage
200V, 300V
Test Voltage
1.0 KVdc
Conductor DCR
91.80 Ω/km (Max. @ 20°C) for 24AWG
57.0 Ω/km (Max. @ 20°C) for 22AWG
39.50 Ω/km (Max. @ 20°C) for 20AWG
Insulation Resistance
100 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB8787
TC
2x4x24AWG
S-PE
Al-foil
PVC
TC
2x22AWG
PVC
/
LB8788
TC
3x22AWG
PVC
IS Al-foil
PVC
TC
2x22AWG
PVC
/
LB8786
TC
4x24AWG
PVC
Al-foil
PVC
TC
2x22AWG
PVC
/
LB9685
TC
1x2x22AWG
PVC
Al-foil
PVC
TC
1x22AWG
PVC
/
LB8730
TC
1x2x22AWG
S-PP
Al-foil
PVC
TC
2x22AWG
S-PP
/
LB8728
TC
2x2x22AWG
S-PP
VOS Al-foil
PVC
LB8763
TC
1x2x20AWG
S-PE
Al-foil
PVC
TC
1x20AWG
S-PE
/
LB8722
TC
1x2x20AWG
PVC
Al-foil
PVC
TC
1x2x20AWG
PVC
/
LB8725
TC
4x2x20AWG
S-PP
IS Al-foil
PVC
LB9155
TC
1x2x18AWG
S-PE
/
PVC
TC
1x2x20AWG
S-PE
Al-foil
Back Top

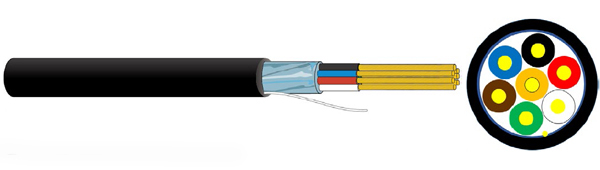

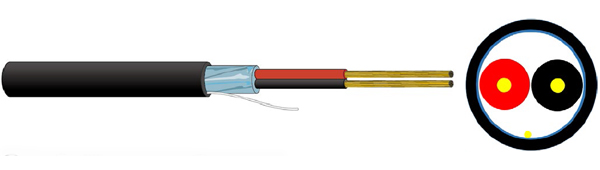

Security & Commercial Audio System
Application
For BMS, Sound, Audio, Intercom/PA, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
Conductor: Stranded Tinned Copper Wire
Insulation: Polyolefin
Cabling: Cores laying-up
Screened: AI-PET tape with Tinned Copper Drain Wire
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage
300V
Test Voltage
1.50 KVdc
Conductor DCR
86.0 Ω/km (Max. @ 20°C) for 24AWG
54.0 Ω/km (Max. @ 20°C) for 22AWG
39.0 Ω/km (Max. @ 20°C) for 20AWG
24.0 Ω/km (Max. @ 20°C) for 18AWG
Insulation Resistance
100 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB5300FE
BC
2x18AWG
S-PP
Al-foil
PVC
LB5301FE
BC
3x18AWG
S-PP
Al-foil
PVC
LB5302FE
BC
4x18AWG
S-PP
Al-foil
PVC
LB5303FE
BC
5x18AWG
S-PP
Al-foil
PVC
LB5304FE
BC
6x18AWG
S-PP
Al-foil
PVC
LB5305FE
BC
7x18AWG
S-PP
Al-foil
PVC
LB5306FE
BC
8x18AWG
S-PP
Al-foil
PVC
LB5307FE
BC
9x18AWG
S-PP
Al-foil
PVC
LB4300FE
BC
2x18AWG
S-PE
Al-foil
LSZH
LB4301FE
BC
3x18AWG
S-PE
Al-foil
LSZH
LB4302FE
BC
4x18AWG
S-PE
Al-foil
LSZH
LB4303FE
BC
5x18AWG
S-PE
Al-foil
LSZH
LB4304FE
BC
6x18AWG
S-PE
Al-foil
LSZH
LB4306FE
BC
8x18AWG
S-PE
Al-foil
LSZH
LB4307FE
BC
9x18AWG
S-PE
Al-foil
LSZH
LB5400FE
BC
2x20AWG
S-PP
Al-foil
PVC
LB5401FE
BC
3x20AWG
S-PP
Al-foil
PVC
LB5402FE
BC
4x20AWG
S-PP
Al-foil
PVC
LB5403FE
BC
5x20AWG
S-PP
Al-foil
PVC
LB5405FE
BC
7x20AWG
S-PP
Al-foil
PVC
LB5407FE
BC
9x20AWG
S-PP
Al-foil
PVC
LB4400FE
BC
2x20AWG
S-PE
Al-foil
LSZH
LB4401FE
BC
3x20AWG
S-PE
Al-foil
LSZH
LB4402FE
BC
4x20AWG
S-PE
Al-foil
LSZH
LB4403FE
BC
5x20AWG
S-PE
Al-foil
LSZH
LB4405FE
BC
7x20AWG
S-PP
Al-foil
LSZH
LB4407FE
BC
9x20AWG
S-PP
Al-foil
LSZH
LB5500FE
BC
2x22AWG
S-PP
Al-foil
PVC
LB5501FE
BC
3x22AWG
S-PP
Al-foil
PVC
LB5502FE
BC
4x22AWG
S-PP
Al-foil
PVC
LB5503FE
BC
5x22AWG
S-PP
Al-foil
PVC
LB5504FE
BC
6x22AWG
S-PP
Al-foil
PVC
LB5506FE
BC
8x22AWG
S-PP
Al-foil
PVC
LB5508FE
BC
10x22AWG
S-PP
Al-foil
PVC
LB4500FE
BC
2x22AWG
S-PE
Al-foil
LSZH
LB4501FE
BC
3x22AWG
S-PE
Al-foil
LSZH
LB4502FE
BC
4x22AWG
S-PE
Al-foil
LSZH
LB4503FE
BC
5x22AWG
S-PE
Al-foil
LSZH
LB4504FE
BC
6x22AWG
S-PE
Al-foil
LSZH
LB4506FE
BC
8x22AWG
S-PE
Al-foil
LSZH
LB4508FE
BC
10x22AWG
S-PE
Al-foil
LSZH
LB4509FE
BC
2x24AWG
S-PE
Al-foil
PVC
LB4600FE
TC
2x24AWG
S-PE
Al-foil
LSZH
LB5200FE
TC
2x16AWG
S-PE
Al-foil
PVC
LB4200FE
BC
2x16AWG
S-PE
Al-foil
LSZH
Back Top

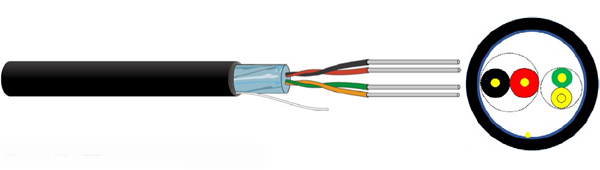

Security & Commercial Audio System
Application
For BMS, Sound, Audio, Intercom/PA, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
Conductor: Stranded Oxygen Free Copper
Insulation: Polyolefin
Cabling: Cores laying-up
Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage
300V
Test Voltage
1.0 KVdc
Conductor DCR
57.0 Ω/km (Max. @ 20°C) for 22AWG
39.5 Ω/km (Max. @ 20°C) for 20AWG
25.0 Ω/km (Max. @ 20°C) for 18AWG
14.0 Ω/km (Max. @ 20°C) for 16AWG
9.3 Ω/km (Max. @ 20°C) for 14AWG
5.3 Ω/km (Max. @ 20°C) for 12AWG
Insulation Resistance
100 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB5000FE
BC
2x12AWG
S-PP
Al-foil
PVC
LB4000FE
BC
2x12AWG
S-PP
Al-foil
LSZH
LB5100FE
BC
2x14AWG
S-PP
Al-foil
PVC
LB4100FE
BC
2x14AWG
S-PP
Al-foil
LSZH
LB5200FE
BC
2x16AWG
S-PP
Al-foil
PVC
LB4200FE
BC
2x16AWG
S-PP
Al-foil
LSZH
LB5300FE
BC
2x18AWG
S-PP
Al-foil
PVC
LB4300FE
BC
2x18AWG
S-PP
Al-foil
LSZH
LB5300FE
BC
2x18AWG
S-PP
Al-foil
PVC
LB4300FE
BC
2x18AWG
S-PP
Al-foil
LSZH
LB5400FE
BC
2x20AWG
S-PP
Al-foil
PVC
LB4400FE
BC
6x18AWG
S-PP
Al-foil
LSZH
LB5500FE
BC
2x22AWG
S-PP
Al-foil
PVC
LB4500FE
BC
2x22AWG
S-PP
Al-foil
LSZH
Back Top

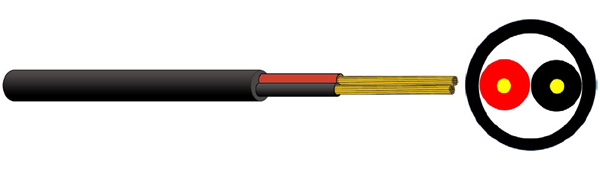

Security & Commercial Audio System
Application
For BMS, Sound, Audio, Intercom/PA, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
Conductor: Stranded Oxygen Free Copper
Insulation: Polyolefin
Cabling: Cores laying-up
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage
300V
Test Voltage
1.0 KVdc
Conductor DCR
57.0 Ω/km (Max. @ 20°C) for 22AWG
39.5 Ω/km (Max. @ 20°C) for 20AWG
25.0 Ω/km (Max. @ 20°C) for 18AWG
14.0 Ω/km (Max. @ 20°C) for 16AWG
9.3 Ω/km (Max. @ 20°C) for 14AWG
5.3 Ω/km (Max. @ 20°C) for 12AWG
Insulation Resistance
100 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB5000UE
BC
2x12AWG
S-PP
Al-foil
PVC
LB4000UE
BC
2x14AWG
S-PP
Al-foil
PVC
LB5100UE
BC
2x14AWG
S-PP
Al-foil
PVC
LB4100UE
BC
2x14AWG
S-PP
Al-foil
LSZH
LB5200UE
BC
2x16AWG
S-PP
Al-foil
PVC
LB4200UE
BC
2x16AWG
S-PP
Al-foil
LSZH
LB5300UE
BC
2x18AWG
S-PP
Al-foil
PVC
LB4300UE
BC
2x18AWG
S-PP
Al-foil
LSZH
LB5400UE
BC
2x20AWG
S-PP
Al-foil
PVC
LB4400UE
BC
2x20AWG
S-PP
Al-foil
LSZH
LB5500UE
BC
2x22AWG
S-PP
Al-foil
PVC
LB4500UE
BC
2x22AWG
S-PP
Al-foil
LSZH
Back Top

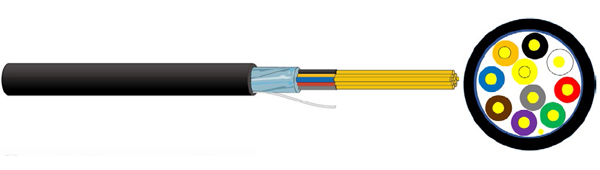

Computer, Instrumentation and Medical Electronics Cable
Application
For BMS, Sound, Audio, Intercom/PA, Security, Safety, Control and Instrumentation application indoor & outdoor.
Constructions
Conductor: Stranded Oxygen Free Copper
Insulation: Polyolefin
Cabling: Cores laying-up
Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Sheath: PVC/LSZH
- Installation Temperature: Above 0°C
Reference Standards
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Electrical Performance
Operating Voltage
300V
Test Voltage
1.0 KVdc
Conductor DCR
122.0 Ω/km (Max. @ 20°C) for 26AWG
39.5 Ω/km (Max. @ 20°C) for 20AWG
Insulation Resistance
100 MΩhms/km (Min.)
Part No.
Conductor Construction
Insulation
Screen
Sheath
Material
Size
LB9802
TC
2x20AWG
S-PP
Al-foil
PE
LB9803
TC
3x20AWG
S-PP
Al-foil
PE
LB9890
TC
10x20AWG
S-PP
Al-foil
PE
LB9894
TC
15x20AWG
S-PP
Al-foil
PE
LB1211A
TC
4x26AWG
PVC
Al-foil
PVC
LB1212A
TC
6x26AWG
PVC
Al-foil
PVC
LB1213A
TC
8x26AWG
PVC
Al-foil
PVC
LB1214A
TC
16x26AWG
PVC
Al-foil
PVC
Back Top
Return to the previous page
C.S.Center
WhatsApp
