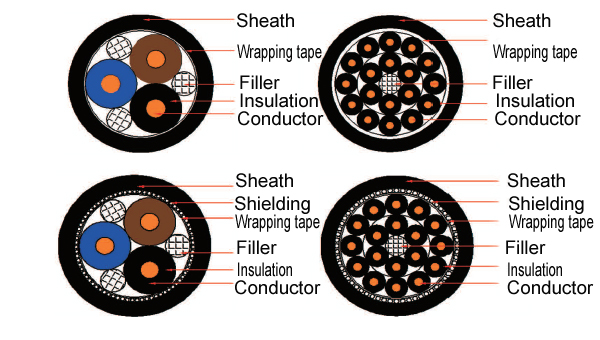

| Constructure |
|

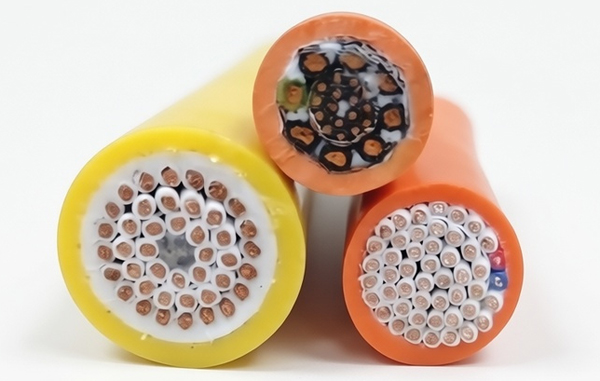

High Performance Special Cable for Robots |
High Performance Shielded Special Cable for Robots |
| Conductor: |
Multi strands precision twisted oxygen free copper wire
complies with VDE0295 Class 6 standard |
| Insulation |
Special Elastomer |
Special Elastomer |
| Color Code |
Black with white code/color code |
| Laying-up |
Optimal lay length layered stranding ,interstice filling for round. |
| Wrapping tape |
non-woven tape |
| Shielding layer |
|
tinned copper wire braiding,density more than 85% |
| Outer sheath |
Special Abrasion ,oil resistant flexible PUR Compound |
Special Abrasion ,oil resistant flexible PUR Compound |
| Sheath color |
Black |
| Technical Index |
| Rated Voltage: |
300/500V Control core |
| Test Voltage |
1500V/5min |
Min.Bending Radius
Fixed laying
For moving installation |
4×D(Cable OD)
8×D(Cable OD) |
| Maximum Tensile Force |
15N/mm2 |
| Max Torsion Angle |
±180° |
| Operating temperature |
Fixed laying:-40 °C to +90°C
or moving installation: -30 °C to +90°C |
| Flame Retardant Property |
comply with IEC60332-1 |
| Oil Resistance |
comply with VDE0281.13 part |
| Performance Requirements |
Applications |
♦Oil resistant,
♦ low temperature resistant,
♦ superior abrasion resistance
♦ high break resistance.
♦Good chemical resistance,
♦ smaller bending radius,
♦ torsion180° /s.
|
Designed for robot systems, automated handling equipment and machinery without special moving motions, it can be used both indoors and outdoors. The special cable structure and high-quality components enable the cable to meet stringent requirements of bending radius and torsion cycles over a long service life.
The PUR outer sheath features flame retardant, abrasion resistant, oil resistant and impact resistant properties, which guarantees an extended service life of the cable. |
