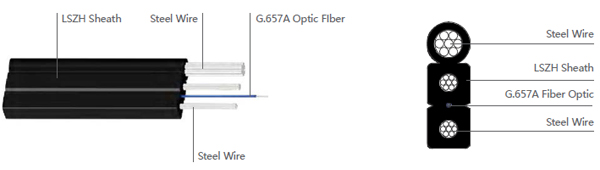

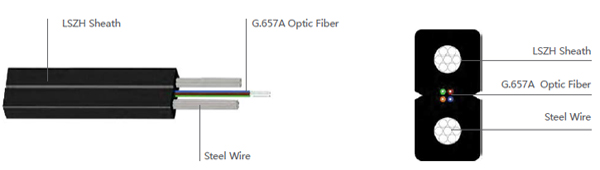

>Metal strength member, LSZH sheath, bow-type drop cable
>
In FTTH application, low-cost and good adaptability, meet design and conntion requirement for all kinds of drop cable; excellent anti-curved ability, support crowded cabling, low bending loss at small bend radius and high mechanical reliability, easy installation and distribution
>Suitable for FTTH indoor application, dimension: 2X3.0mm bow-type, steel wire strength member at each size, LSZH sheath, 1~4 cores G.657A optic fibers
Transmission: size, mode field diamter, cut-off wavelength, macrobend loss, etc. compliance with YD/T 1954-2009, GB/T 9771.1 or GB/T 9771.3.
Optical Characteristics
Fiber
Wavelength(nm)
Attenuation(db/km)
B6a
1310
0.4
1550
0.3
Order Information
Wooden Reel
1000m 2000m per reel
FTTH Bow-Type Drop Cable- GJXFH
Description
>Metal strength member, LSZH sheath, bow-type drop cable.
>
In FTTH application, low-cost and good adaptability, meet design and conntion requirement for all kinds of drop cable; excellent anti-curved ability, support crowded cabling, low bending loss at small bend radius and high mechanical reliability, convenient installation and distribution
>>Used for FTTH indoor, dimension: 2X3.0mm bow-type, steel wire strength member at each size, LSZH sheath, fiber: 1~4 cores G.657A
