Description
>Provide 600MHz bandwidth in 100m, typical speed rate: 10Gbps
>Optimizational Cat.7 design(S/FTP) for high-level shield confidential system anti-EMI, used in horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, chemical foam PE insulation, reliable transmission performance, meets and exceeds Cat.7 standard

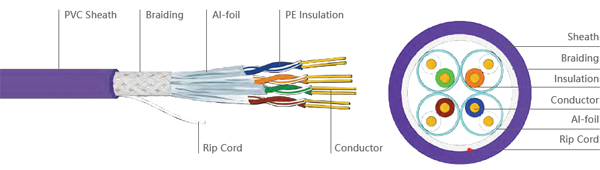

>Wrapping Al-foil paired separately and TC braid screen over 4p wires to improve anti-interference to 90dB, 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality
Reference Standards
Specification
| Parameter |
Data |
| Conductor Diameter |
23AWG |
| Insulation Diameter |
1.2±0.05mm |
| Sheah Material |
PVC |
| Overall Diameter |
7.8±0.3mm |
| Individual Conductor Resistance |
≤9.5Ω/100m |
| DC Resistance Unbalance |
≤2.5% |
| Dielectric,DC.1min |
1KV/1min |
| Capacity Max |
5.6nF/100m |
SFTP Cable
Bend Radius
D1≥8D
Installation Bend Radius: ≥8xDiameter
Installation
<110N
(Short Term)
Operation
<20N
(Long Term)
Installation Tension:Short Term: <110N, Long Term: <20N
Indoor
Order Information
| Model No. |
Model Name |
Package |
Unit |
| LB-7-01P |
CAT 7 SFTP 4Pairs |
305m/Reel |
Reel |
 |
