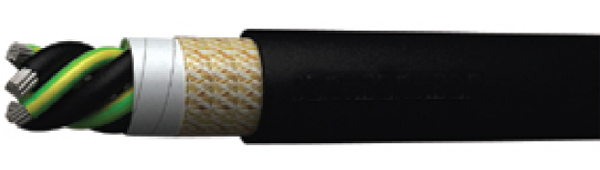

The cable is intended for port,dock movable facilities
such as fast movable cranes for container, hoisting
equipment, movable large facilities, grab dredgers.
mining on the ground/well bottoms and the site with high
machinery stress.
Reference Standards
»»Q/LB 55 --Design
»»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and
comply with the stipulations of O/LB 55-2013.
The sheath color is black and printed with manulacture
name, type, specifications. voltage rating etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permisssible maximum operating temperature
90℃
Cable minimum bending radius
≥6D (D: Cable diameter.mm)
A.C. voltage test
3.5kV/5min without puncture
The cable shall have the property of oil resistance.
Note: The specification can be added as customer required.

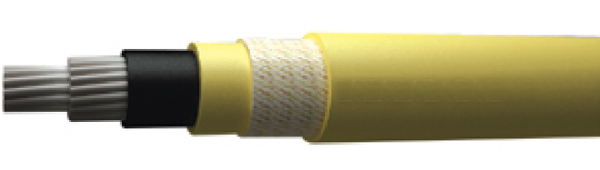

Spreader Reeling Cable
Application
The cable is intended for reeling under a higher
machinery stress, movable facilities such as movable
cables’s transportation and vehicles, as well as vertically
reeling and mining on the ground/well bottoms.
Reference Standards
»»Q/LB 55 --Design
»»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and
comply with the stipulations of O/LB 55-2013.
The sheath color is black and printed with manulacture
name, type, specifications. voltage rating etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permisssible maximum operating temperature
90℃
Cable minimum bending radius
≥6D (D: Cable diameter.mm)
A.C. voltage test
3.5kV/5min without puncture
The cable shall have the property of oil resistance.
Note: The specification can be added as customer required.

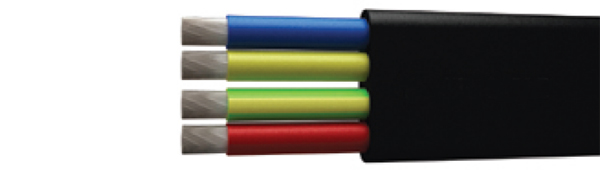

Flexible Power and Control Festoon Flat Cable
Application
The cable is intended for power supply and signal
transmission on port and dock with big acceleration, and
suitable for movable unit and material process equipment
to connecting the machine.
Reference Standards
»»Q/LB 55 --Design
»»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and
comply with the stipulations of O/LB 55-2013.
The sheath color is black and printed with manulacture
name, type, specifications. voltage rating etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permisssible maximum operating temperature
90℃
Cable minimum bending radius
≥6D (D: Cable diameter.mm)
A.C. voltage test
2.5kV/5min without puncture
The cable shall have the property of oil resistance.
Note: The specification can be added as customer required.

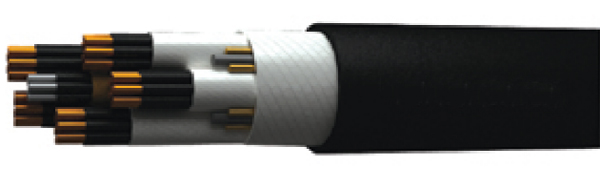

Spreader Basket Cable
Application
This product is designed for the feeder lines of material receivers and terminal lifting equipment in port and harbour, particularly suitable for vertical cage applications subjected to high mechanical stress.
Reference Standards
»»Q/LB 55 --Design
»»GB/T19666 --Flame Retardant
Marking
Insulated core shall identified by color or figure and
comply with the stipulations of O/LB 55-2013.
The sheath color is black and printed with manulacture
name, type, specifications. voltage rating etc.
Service Property Parameter
Main Parameter
Performance Index
Rated voltage
0.6/1kV
Long time permisssible maximum operating temperature
90℃
Cable minimum bending radius
≥6D (D: Cable diameter.mm)
A.C. voltage test
3.5kV/5min without puncture
The cable shall have the property of oil resistance.
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications.
It is used as cable for control and power transmission in drag chain systems, widely applied in port machinery drag chain systems, sensor technology, computers, mechanical control equipment and control engineering. Besides, it can also be used for handling equipment, and suitable for indoor and outdoor humid environments.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force
1×10
0.20
10.5
200
1×16
0.26
11.6
320
1×25
0.37
13.3
500
1×35
0.50
15.0
700
1×50
0.65
17.2
1000
1×70
0.87
18.6
1400
1×95
1.12
21.0
1900
1×120
1.14
24.0
2400
1×150
1.73
26.0
3000
1×185
2.07
27.7
3700
1×240
2.66
30.5
4800
3×1.5
0.25
13.0
68
3×2.5
0.31
14.5
113
3×4.0
0.39
16.0
240
3×6.0
0.52
18.2
360
3×10
0.76
21.3
600
3×16
1.08
24.6
960
3×25
1.47
28.0
1500
3×35
2.00
32.0
2100
3×50
2.68
37.0
3000
3×70
3.53
41.0
4000
3×95
4.40
45.5
5500
3×120
5.70
51.5
7000
3×150
7.00
57.5
9000
3×185
8.32
62.0
11000
3×240
10.80
70.0
14000
3×50+3G25/3
2.73
35.8
3000
3×70+3G35/3
3.70
41.2
4200
3×95+3G50/3
4.69
45.5
5500
3×120+3G70/3
6.22
51.7
7000
4G1.5
0.28
14.3
90
4G2.5
0.35
15.3
150
4G4.0
0.46
17.0
320
4G6.0
0.61
19.5
480
4G10
0.92
23.0
800
4G16
1.31
26.5
1200
4G25
1.86
31.2
2000
4G35
2.45
34.8
2800
4G50
3.30
40.0
4000
4G70
4.42
44.0
5500
4G95
5.60
50.8
7500
4G120
7.35
58.0
9500
4G150
8.70
63.2
12000
4G185
10.70
69.8
14000
4G240
13.50
76.2
19000
5G1.5
0.32
15.0
110
5G2.5
0.41
16.8
188
5G4.0
0.57
19.0
400
5G6.0
0.72
21.0
600
5G10
1.14
25.5
1000
5G16
1.55
28.6
1600
5G25
2.10
34.3
2500
5G35
3.00
38.5
3500
5G50
4.00
43.8
5000
5G70
5.45
50.2
7000
5G95
7.00
56.8
9500
4×10+4×2.5
1.06
24.3
800
4×16+4×2.5
1.36
26.6
1250
4×25+4×2.5
1.91
31.2
2000
4×35+4×2.5
2.53
34.5
2800
4×50+4×4.0
3.30
39.6
4000
7×1.5
0.41
16.8
158
12×1.5
0.58
20.1
270
18×1.5
0.76
22.7
405
24×1.5
1.00
26.7
570

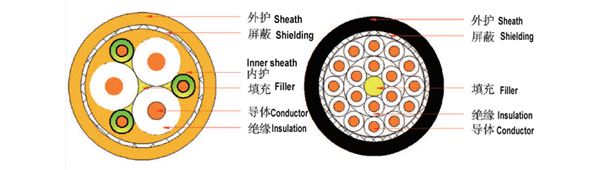

Port Machinery Chain Shielding Cable

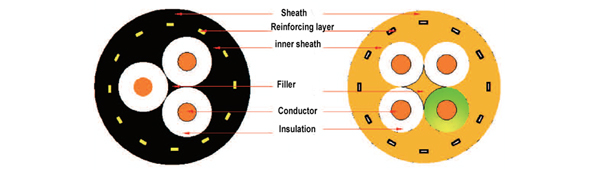

Structure & Technical Index
Constructure
Technical Index
Conductor:
Multi strands precision twisted oxygen free copper wire complies with VDE0295 Class 5 standard
Rated Voltage:
U0/U 0.6/1kV
Insulation
Special Elastomer Insulation
Test Voltage
3500V/5min
Color Code
Black with Code
Min.Bending Radius
Laying-up
Grouped short pitch stranding, central & interstitial tensile fillers
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications.
This cable is designed for drag chain systems to transmit power and control signals. It is widely applied to port machinery drag chains, sensor technology, computers, mechanical control equipment and control engineering. In addition, it can be adopted for handling equipment and suitable for humid indoor and outdoor areas. Its overall copper braided shield guarantees accurate data transmission and protects the cable against electromagnetic interference.
Certification
Technical Properties
Cores No.X Cross Section
Appro. weight kg/m
Appro. OD mm±10%
Max. Tensile Force
1x10
0.19
10.7
150
1x16
0.27
12.4
240
1x25
0.37
14.1
375
1x35
0.50
16.0
525
1x50
0.71
18.9
750
1x70
0.91
21.1
1050
1x95
1.23
24.5
1425
1x120
1.47
26.2
1800
1x150
1.80
28.6
2250
1x185
2.19
31.2
2775
7x1.5
0.32
14.6
157
12x1.5
0.62
27.6
270
18x1.5
1.04
27.6
405
4x2.5
0.26
13.1
150
5x2.5
0.32
14.3
187
12x2.5
0.87
24.2
450
18x2.5
1.49
32.6
675
4G4
0.42
16.8
240
4G6
0.56
18.9
360
4G10
0.87
23.3
600
4G16
1.29
27.9
960
4G25
1.81
32.3
1500
4G35
2.50
37.5
2100
4G50
3.51
44.4
3000
4x(2x1.0)
0.58
20.6
120
6x(2x1.0)
0.83
24.7
180
2x(2x1.5)
0.56
20.7
90
3x(2x1.5)
0.64
21.7
135

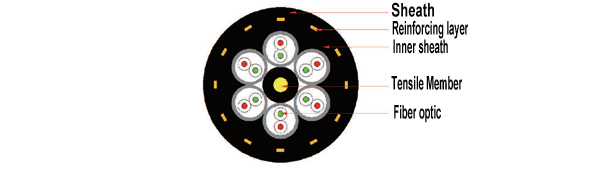

Port Machinery Chain Fiber Optic Cable
Structure & Technical Index
Constructure
Technical Index
Fiber Optic type
9/125,50/125 or 62.5/125
Min.Bending Radius
Insulation
Special Elastomer Insulation
Fixed laying
5×D(Cable OD)
Color Code
Number Code
For moving installation
10×D(Cable OD)
Laying-up
Grouped short pitch stranding, central & interstitial tensile fillers
Max. Moving Speed
120m/min
Inner sheath
Abrasion & oil resistant PVC/PUR inner sheath
Operating temperature
Reinforcing layer:
Aramid braided reinforcement layer
Fixed installation
-40℃ to +90℃
Outer sheath
Abrasion & oil resistant PUR sheath
Moving Installation
-30℃ to +90℃
Sheath color
Black
Flame Retardant Property
comply with IEC60332-1
Performance Requirements
Applications
♦Flexible, good bending, ♦tensile & tear resistance, stable performance; ♦Superior oil resistance, abrasion resistance, cold resistance, weather resistance, acid & alkali resistance and UV resistance, suitable for outdoor applications.
This product is a mobile communication optical cable suitable for port equipment, used for interference-free data and signal transmission. The cable features outstanding flexibility, tensile resistance and torsion resistance.
