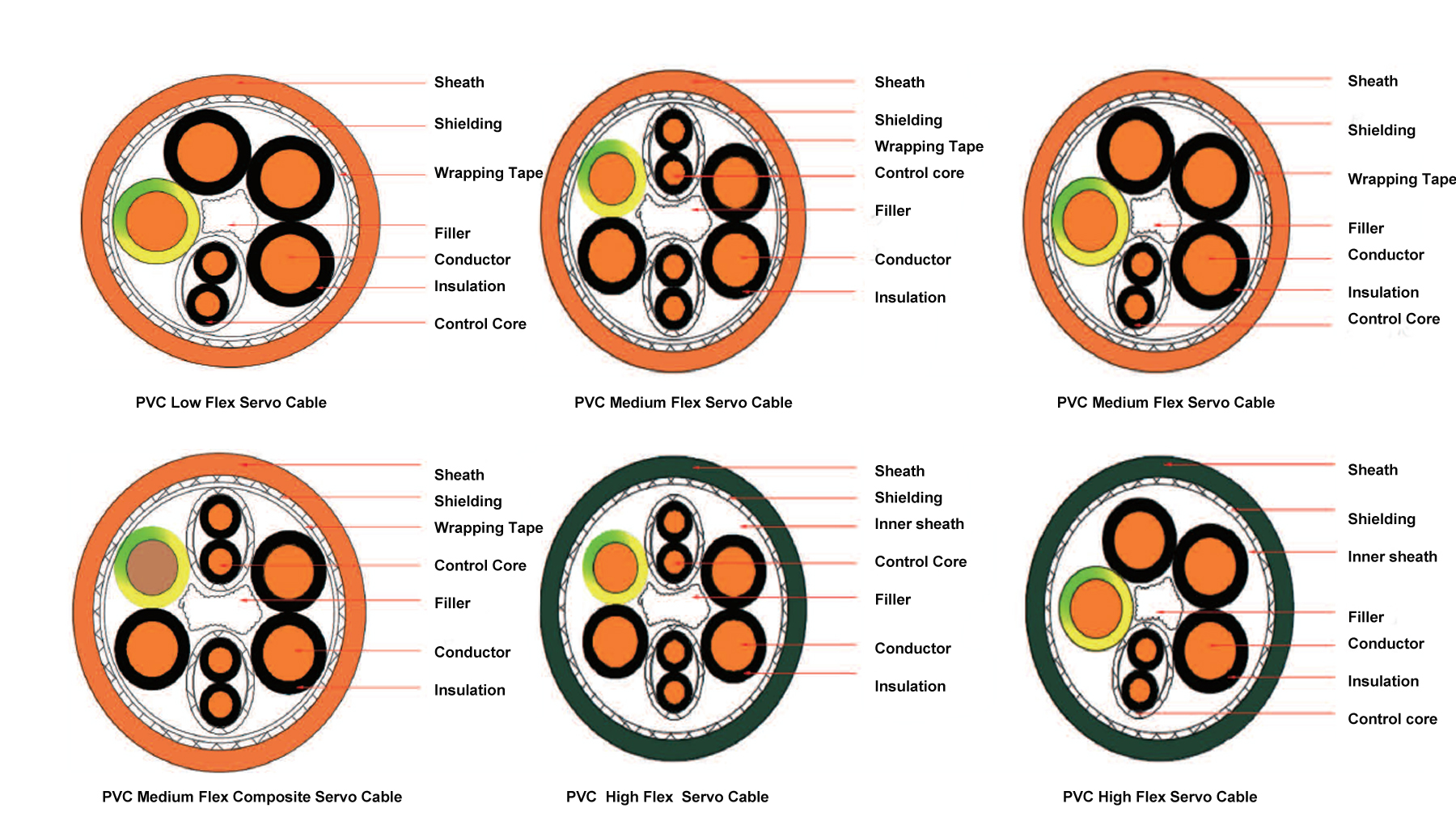

| Constructure |
|

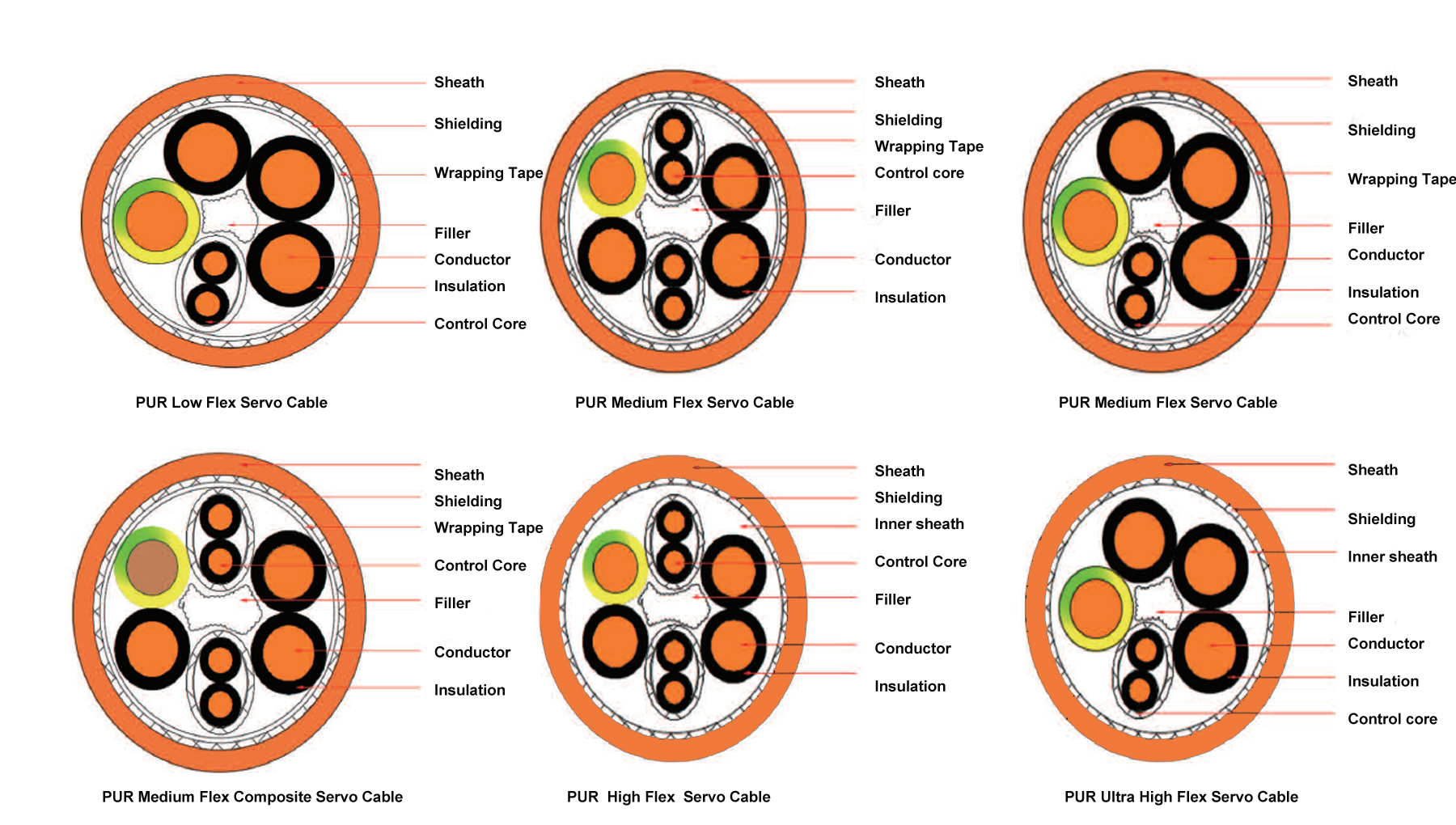

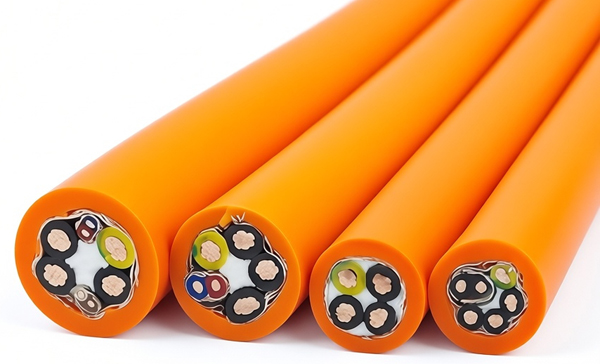

PUR Low Flex Servo Cable |
PUR Medium Flex Servo Cable |
PUR Medium Flex Composite Servo Cable |
PUR Ultra High Flex Servo Cable |
| Conductor: |
Multi strands precision twisted oxygen free copper wire
complies with VDE0295 Class 6 standard |
| Insulation |
Special TPE |
Special TPE |
Special TPE |
Special TPE |
| Color Code |
Power:Black with white code(1~3)+Y/G
Control core(if applicable 1~2 pairs)Black with white code(5~8) |
| laying-up(Individual) |
Control core with cross-section of 0.34mm2~1.5mm2are twisted in pairs, wrapped with aluminum foil shielding at 100% coverage. |
Control core with cross-section of 0.34mm2~1.5mm2are twisted in pairs, wrapped with aluminum foil shielding, then covered with tinned copper wire braiding at 85% coverage. |
| Laying-up(overall) |
Optimal lay length layered stranding of control & power cores, round compact filling. |
| Wrapping tape |
PET tape |
| Shielding layer |
tinned copper wire braiding,density more than 85% |
| Outer sheath |
Special Abrasion ,oil resistant flexible PUR Compound |
Special Abrasion ,oil resistant flexible NBR Compound |
Special Abrasion ,oil resistant flexible NBR Compound |
Special Abrasion ,oil resistant flexible NBR Compound |
| Sheath color |
Orange |
| Technical Index |
| Rated Voltage: |
0.6/1kV Power core
300/300V Control core |
| Test Voltage |
3500V/5min Power core
1000V/5min Control core |
Min.Bending Radius
Fixed laying
For moving installation |
8×D(Cable OD)
15×D(Cable OD) |
| Maximum Tensile Force(Round) |
15N/mm2 |
| Operating temperature |
Fixed laying:-50 °C to +80°C
or moving installation: -20 °C to +80°C |
| Flame Retardant Property |
comply with IEC60332-1 |
| Oil Resistance |
DIN EN50363-4-1 |
| Travel distance |
overhead application & sliding applications with travel distance less than 10 m |
| Performance Requirements |
Applications |
♦Oil resistant
♦Low temperature resistant
♦Enhanced abrasion resistance
♦High tensile breaking resistance
♦Excellent chemical resistance
♦Small bending radius
♦Excellent electromagnetic performance
♦Overhead service: 10 m/s;
sliding service: 2 m/s
|
This cable is mainly applied for electronic control servo motors, serving as power cables and feedback cables.
With an overall copper wire shielding structure, the cable complies with EMC requirements and guarantees interference-free operation against disturbances generated by servo motors.
PUR outer sheath features flame retardant, abrasion resistant, oil resistant and impact resistant properties, which ensures a long service life of the cable. |
