Fire alarm cables are suitable for high-rise office buildings, entertainment venues, hotels, guesthouses, and other structures, serving as wiring for fire alarms, smoke detectors, voice communication devices, security alarm systems, and fire protection circuits.

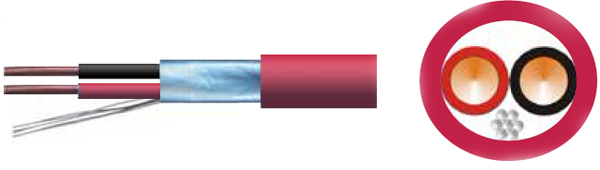

Cable Structure
Good physical and mechanical properties
The tensile strength of insulation and sheath materials isgreater than 10.3MPa, and the elongation at break ofinsulation and sheath materials is 100% greater
Waterproof, Oil Resistance, Armored, Compressive,
Eco-friendly, and Rodent Resistance
General Characteristics
Serial number
Model
Approximate wire diameter
Cable weight kg/km
Reference standards
1
FPL 24AWG~12AWG
/
/
UL1424
2
FRLR 24AWG~12AWG
/
/
3
FT1 24AWG~12AWG
/
/
CSA C22.2 NO.208-14
4
FT4 24AWG~12AWG
/
/
5
PH30 0.5mm2~5mm2
/
/
EN50200
6
PH50 0.5mm2~5mm2
/
/
7
PH120 0.5mm2~5mm2
/
/
8
CWZ 0.5mm2~5mm2
/
/
BS6387
9
J-Y(St)Y 0.5mm2~5mm2
/
/
VDE 0815
Alarm Cable
Application
Used in security cable system, access control system, building control system, starting system.lt is
characterized by the following:
• The material has flame retardant properties and is safer to use;
• Long service life, not easy to age;
• It is a shielded/unshielded cable for connecting safety systems.
• It can provide protection against frequency interference, which may cause false alarms.

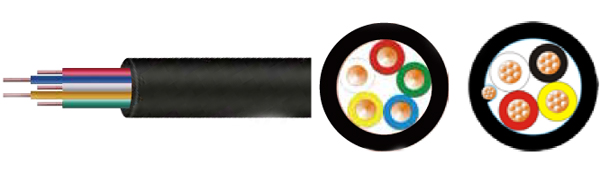

Cable Structure
Good physical and mechanical properties
The tensile strength of insulation and sheath materials is greater than 10.3MPa, and the elongation at break ofinsulation and sheath materials is 100% greater
Minimum bending radius
10D
Working voltage
300V
Test voltage
1500V
Operating temperature (optional)
60℃ ,75℃, 90℃,105℃
Environmental performance
RoHS 2.0 compliant
Flame retardant performance (optional)
FPL,FPLR,FPLP,FT1,FT4
Technical Parameter
Conductor
Bare copper, Tinner copper, Solid or Stranded
Insulation
Flame-retardant PVC,LSZH
Shielding
Drain wire + Aluminum foil wrapping
Rip cord
Fiber rope
Sheath
Flame-retardant PVC, Color optional
Special use scenarios
Waterproof, Oil Resistance, Armored, Compressive,
Eco-friendly, and Rodent Resistance
