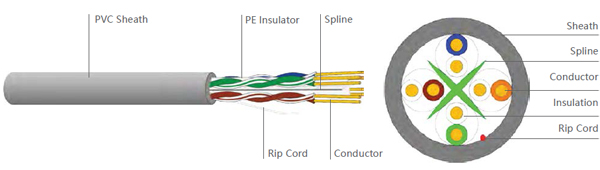

Description

>Provide 250MHz bandwidth in 100m, typical speed rate: 1000Mbps
>Widely used for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, 4pairs separately design by crossed PE spline, reliable transmission performance, meets or exceeds standard, provide plentiful redundancy for system link, fast and convenient installation

Reference Standards

• »»YD/T 1019-2013

Specification

Parameter	Data
Conductor Diameter	23AWG
Insulation Diameter	1.02±0.05mm
Sheah Material	PVC
Overall Diameter	6.3±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information

Description

>Provide 250MHz bandwidth in 100m, typical speed rate: 1000Mbps
>Widely used for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, 4pairs separately design by crossed PE spline, reliable transmission, performance, meets or exceeds Cat.6 standard, provide plentiful redundancy for system link

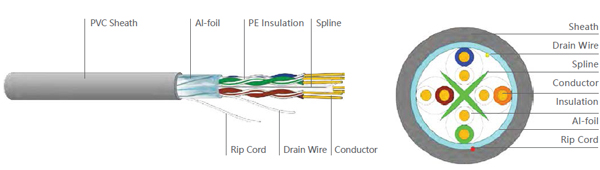

>Wrapping 0.06mm thickness Al-foil screen over 4p wires to improve anti-interference to 85dB, 20dB higher than UTP cable, used in EMI environment for signal screen and confidentiality

Reference Standards

• »»YD/T 1019-2013

Specification

Parameter	Data
Conductor Diameter	23AWG
Insulation Diameter	1.1±0.1mm
Sheah Material	PVC
Overall Diameter	7.6±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information

Description

>Provide 250MHz bandwidth in 100m, typical speed rate: 1000Mbps
>Widely used for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, 4pairs separatelyf design by crossed PE spline, reliable transmission performance, meets or exceeds Cat.6 standard, provide plentiful redundancy for system link

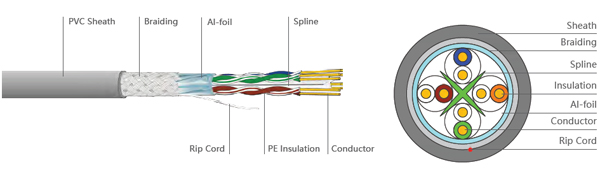

>Wrapping 0.06mm thickness Al-foil and TC braiding screen over 4p wires to improve anti-interference to 90dB, which is 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality

Reference Standards

• »»GB 50311-2007
• »»YD/T 926.2-2009

Specification

Parameter	Data
Conductor Diameter	23AWG
Insulation Diameter	1.1±0.05mm
Sheah Material	PVC
Overall Diameter	7.8±0.3mm
Individual Conductor Resistance	≤9.5Ω/100m
DC Resistance Unbalance	≤2.5%
Dielectric,DC.1min	1KV/1min
Capacity Max	5.6nF/100m

Order Information
