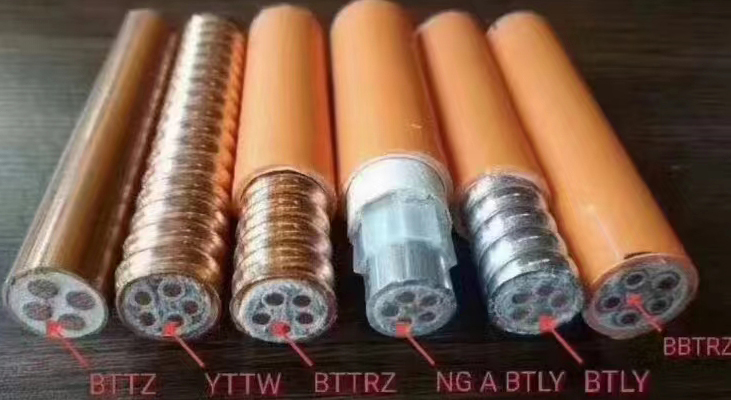

Type and Description


BTTZ Heavy-duty Copper Core Copper Sheαtiled Mlneral Insulated Cables
YTTW Series Metal Sheathed Inorganic Mineral Insulated cables with Ratated Voltage of 0.6/1kV and Below

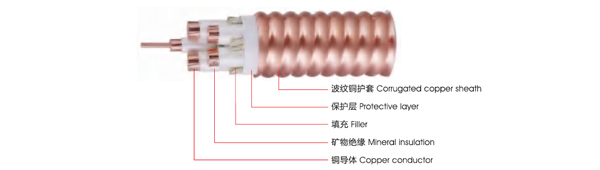

RTTZ Series Corrugated Copper Metalllc Sheath Mica Tape Mlneral Insulated Cable with a Rated Voltage up to and Including 0.6/1 kV

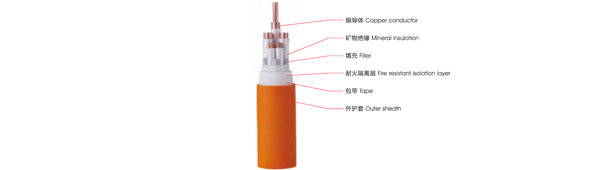

BBTRZ Series Mineral Insulated Flexible Fire-resistant Cables with Rated Voltage of 0.6/1kV

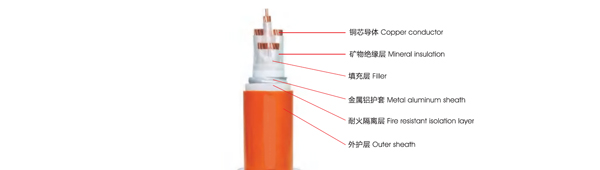

BTLY Mineral Insulated Fire-resistant Cable

Return to the previous page

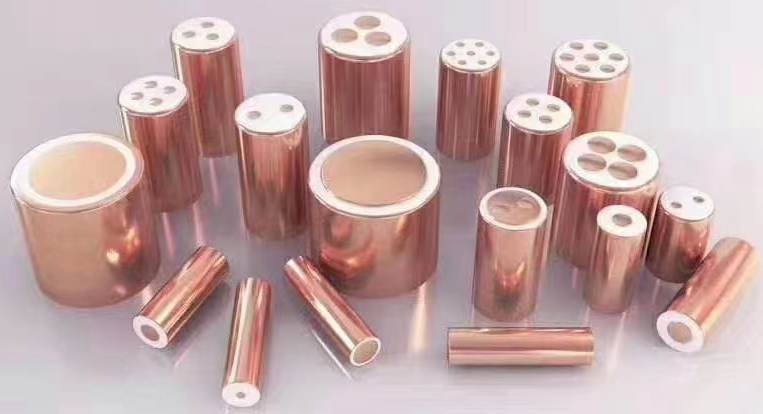

BTTZ Heavy-duty Copper CoreCopper Sheathed Mineral Insulated Cables

Executive Standards

This product is manufacturedin accordance with the standard GB/T 13033.1 «Mineral Insulated Cables and Their Terminations with a Rated Voltage Not Exceeding 750V Part 1: Cables .»

Scope of Application

Mainly suitable for high-rise buildings, entertainment venues, and numerous construction projects that require high quality andhigh safety productsin large cities.Applicable to applications where GB 51348 «Standard for Electrical Design of Civll Buildings » stipulates that "MineralInsulated Cables Should Have Flame Retardant Performance Nottower Than B, Level', such as fire pumps, fre control rooms, fire elevators, fire lighting, etc.

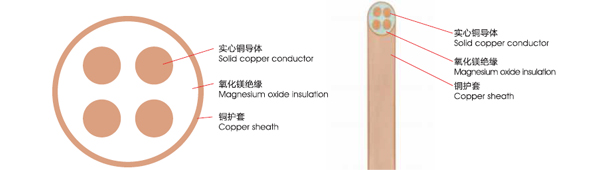

Product Structure

1. Conductor: Made of a single high conductivity copper metal as a conductor.
2. Insulation layer: High temperature resistant and non combustible inorganic magnesium oxide is used as the insulation material.
3. Metal sheath: Using copper tube as the sheath, it has good continuity and bending performance after special processing and can be used as a grounding wire.
4. Outer protective layer: If necessary. a plastic protective layer can be extruded outside the metal copper sheath to provide good corrosion resistance

Product Model,Description and Specification

Grade	Model	Description	Cross-section	Cores No.	Rated voltage
Heavy-duty	BTTZ	Heavy duty copper conductorcopper sheathed mineral insulated cable	1.5mm²~400mm²	1~5	750V
	BTTVZ	Heavy duty copper conductorcopper sheathed mineral insulated polyinylchloride sheathed cable
	BTTYZ	Heavy duty copper conductor copper sheathed mineral insulated polyolefin sheathed cable
	BTTZ-A	Heavy duty copper conductor copper sheathed combustion performance Grade A cable mineral insulation
	BTTZ-B	Heavy duty coppercopper sheath mineral insulated polyolefin sheath combustion performance Grade B, cable
	NW-BTTZ-A	NW type heavy-duty copper conductor copper sheath mineral insulated combustion performance Grade A cable
	NW-BTTZ-B	NW type heavy-duty copper conductor copper sheath mineral insulated polyolefin sheath combustion performance Grade B cable
Note: Multi-core cobles with a cross section of 25mm² or more are composed of sinale core cables

Electric Characteristic

1,Power frequency rated voltage U./U: 750 V.
2,Long term operating temperature of cable conductor: 250 °C.
3,The ambient temperature during cable laying should not be lower than 0 °C, and the cable ends should be treated with moisture-proof protection.
4,Minimum inner bending radius during cable installation

Cable OD mm	D≤7	7 <D≤12	12 <D≤15	D>15
Minimum bending radius of the inner side ofthe cable	2D	3D	4D	5D
Note:D presents the diameter of the cable.

Technical Parameters

Technical Parameters of BTTZ heavy-duty copper copper sheathed magnesium oxide insulated cable (single core)
Number of cores × Nominal cross-section n × mm²	Thickness of copper sheath mm	Reference outer diameter mm		Reference weight kg/km		Max DC resistance of conductor at 20 ℃ Ω/km	Max DC resistance of copper sheath at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
Number of cores × Nominal cross-section n × mm²	Thickness of copper sheath mm	Bare cable	Cable with jacket	Bare cable	Cable with jacket	Max DC resistance of conductor at 20 ℃ Ω/km	Max DC resistance of copper sheath at 20 ℃ Ω/km	Bare cable	Cable with jacket
1 × 10	0.50	7.3	8.8	247	276	1.83	2.23	89	99
1 × 16	0.54	8.3	9.8	334	366	1.16	1.81	118	131
1 × 25	0.60	9.6	11.1	464	501	0.727	1.40	153	169
1 × 35	0.64	10.7	12.2	595	636	0.524	1.17	185	206
1 × 50	0.69	12.1	13.6	785	831	0.387	0.959	228	253
1 × 70	0.76	13.7	15.2	1037	1088	0.263	0.767	276	307
1 × 95	0.80	15.4	17.4	1335	1412	0.193	0.646	330	366
1 × 120	0.85	16.8	18.8	1623	1707	0.153	0.556	378	420
1 × 150	0.90	18.4	20.4	1973	2064	0.124	0.479	427	474
1 × 185	0.94	20.4	22.9	2409	2536	0.0991	0.412	477	530
1 × 240	0.99	23.3	25.8	3102	3246	0.0754	0.341	531	591
1 × 300	1.08	26.0	28.5	3858	4018	0.0601	0.280	875	971
Technical Parameters of BTTZ heavy-duty copper copper sheathed magnesium oxide insulated cable (multi- cores)
Number of cores × Nominal cross-section n × mm²	Thickness of copper sheath mm	Reference outer diameter mm		Reference weight kg/km		Max DC resistance of conductor at 20 ℃ Ω/km	Max DC resistance of copper sheath at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
Number of cores × Nominal cross-section n × mm²	Thickness of copper sheath mm	Bare cable	Cable with jacket	Bare cable	Cable with jacket	Max DC resistance of conductor at 20 ℃ Ω/km	Max DC resistance of copper sheath at 20 ℃ Ω/km	Bare cable	Cable with jacket
2×6	0.65	10.9	12.4	474	515	3.08	1.13	59	66
2×10	0.71	12.7	14.2	655	703	1.83	0.887	81	90
2×16	0.78	14.7	16.2	891	946	1.15	0.695	108	120
2×25	0.85	17.1	19.1	1239	1324	0.727	0.546	141	156
2×35	0.90	20.4	22.0	1673	1772	0.524	0.437	156	171
3×4	0.63	10.4	11.9	439	479	4.61	1.23	40	44
3×6	0.68	11.5	13.0	554	597	3.08	1.03	51	56
3×10	0.75	13.6	15.1	791	842	1.83	0.783	68	76
3×16	0.82	15.6	17.6	1080	1159	1.15	0.622	91	101
3×25	0.87	18.2	20.2	1501	1592	0.727	0.500	119	132
3×35	0.91	20.4	22.9	1927	2055	0.524	0.424	134	147
4×4	0.68	11.4	12.9	535	578	4.61	1.04	40	44
4×6	0.71	12.7	14.2	679	727	3.08	0.887	51	56
4×10	0.78	14.8	16.3	954	1009	1.83	0.690	67	75
4×16	0.86	17.3	19.3	1344	1430	1.15	0.533	88	98
4×25	0.93	20.1	22.6	1871	1997	0.727	0.423	114	128
4×35	0.98	23.3	25.8	2509	2653	0.524	0.344	129	143
5×4	0.68	12.7	14.2	679	727	4.61	0.914	40	44
5×6	0.71	14.1	15.6	858	911	3.08	0.799	51	56
5×10	0.78	16.4	18.4	1194	1276	1.83	0.696	67	75
5×16	0.86	20.1	22.6	1811	1936	1.15	0.551	88	98
5×25	0.93	23.3	25.8	2481	2626	0.727	0.501	114	128
3×6+1×4	0.48	12.7	14.2	618	666	3.08/4.61	1.28	51	56
3×10+1×6	0.50	14.8	16.3	860	915	1.83/3.08	1.05	67	75
3×16+1×10	0.54	17.3	19.3	1214	1301	1.15/1.86	0.831	88	98
3×25+1×16	0.60	20.1	22.6	1705	1830	0.727/1.15	0.643	114	128
3×35+1×16	0.80	23.3	25.8	2325	2470	0.524/1.15	0.418	129	143
4×6+1×4	0.76	13.7	15.6	819	871	3.08/4.61	0.764	51	56
4×10+1×6	0.80	15.7	18.4	1130	1212	1.83/3.08	0.631	67	75
4×16+1×10	0.89	18.4	22.6	1721	1847	1.15/1.86	0.482	88	98
4×25+1×16	0.98	23.3	25.8	2371	2516	0.727/1.15	0.344	114	128
3×6+2×4	0.75	14.1	15.2	777	828	3.08/4.61	0.751	51	56
3×10+2×6	0.78	16.4	17.7	1049	1127	1.83/3.08	0.617	67	75
3×16+2×10	0.94	20.1	20.4	1487	1578	1.15/1.86	0.417	88	98
3×25+2×16	0.98	23.3	25.8	2140	2275	0.727/1.15	0.340	114	128

YTTW Series Metal Sheathed Inorganic Mineral Insulated cables with Ratated Voltage of 0.6/1kV and Below

Executive Standards

This product is produced in accordance with the standard of JG/T 313 «Metal Sheath Inorganic Minerallnsulated Cables and their Terminations with a Rated Voltage Not Exceeding 0.6/l kV»

Scope of Application

Mainly suitable for high-rise buildings, entertainment venues, and numerous construction proiects that require high quality and nigh safety productsin large cities.
Applicable to applications where «GB 51348 Standard for Electrical Design of Civil Buildings » stipulates that 'mineransulated cables should have flame retardant performance not lower than B, level, such as fire pumps. fire control rooms, fire elevators, fire lighting, etc.

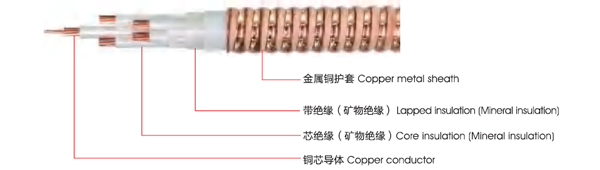

Product Structure

1. Conductor: Made of multiple stranded copper wres, it has good bending and electrical properties.
2. Insulation layer: Inorganic insulation materials with high temperature resistance and high insulation resistance are used
3. Metal sheath: Made of copper material, It has good bending characteristics after forming, welding, and rolling.
4. Outer protective layer: If necessary. a plastic protective layer can be extruded ouiside the metal copper sheath to provide good corrosion resistance.

Product Model,Description and Specification

Model	Description	Cross-section	Cores No.	Rated voltage
YTTW	Copper conductor embossed copper sheathed inorganic mineral insulated cable	Single core 1.0mm²~630mm² multi cores 1.5mm²~400mm²	1~5	0.6/1kV750V
YTTWY	Copper conductor embossed copper sheathed inorganic mineral insulated polyolefin sheathed cable
YTTW-A	Copper conductor embossed copper sheath inorganic mineral insulation combustion performance Grade A cable
YTTWY-B	Copper conductor embossed copper sheath inorganic mineral insulation polyolefin sheathed combustion performance Grade B,cable
NW-YTTW-A	NW type copper conductor embossed copper sheath inorganic mineral insulation combustion performanceGrade A cable
NW-YTTWY-B	NW type heavy-duty copper conductor copper sheath mineral insulated combustion performance Grade A cable

Electric Characteristic

1,Power frequency rated voltage U0/U: 0.6/1k V.
2,The long-term operating temperafure of the cable conductor is 90 °C, and during a short circuit (lasting up to 5 seconds),
the maximum temperature of the conductor is 250 °C.
3,The ambient temperature during cable laying should not be lower than 0 °C, and the cable ends should be treated with moisture-proof protection.
4,Minimum inner bending radius during cable installation

Cable OD mm	D≤12	12 <D≤20	20 <D≤40	D>40
Minimum bending radius of the inner side ofthe cable	6D	10D	15D	20D
Note:D presents the diameter of the cable.

Technical Parameters

Technical parameters of metal sheath inorganic mineral insulated cables(single core)
Number of cores × Nominal cross-section n × mm²	Reference outer diameter mm		Reference weight kg/km		Max DC resistance of conductor at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
	YTTW	YTTWY	YTTW	YTTWY		Parallel layout	Triangular layout
1×10	10.6	13.0	265	339	1.83	121	116
1×16	13.0	15.4	356	444	1.15	158	152
1×25	13.0	15.4	446	534	0.727	208	198
1×35	14.5	16.9	562	659	0.524	250	238
1×50	16.0	18.4	748	855	0.387	300	282
1×70	18.0	20.4	973	1093	0.268	374	353
1×95	21.5	23.9	1330	1471	0.193	454	429
1×120	21.5	24.0	1553	1701	0.153	520	491
1×150	23.0	25.5	1832	1989	0.124	590	554
1×185	25.0	27.5	2206	2376	0.0991	670	628
1×240	27.5	30.0	2854	3040	0.0754	783	732
1×300	30.0	32.5	3519	3722	0.0601	891	828
1×400	34.0	36.5	4356	4584	0.0470	1023	946
1×500	38.0	40.5	5511	5765	0.0366	1165	1067
1×630	40.0	42.5	6803	7070	0.0283	1317	1194
Technical parameters of metal sheath inorganic mineral insulated cables(two cores)
2×2.5	13.0	15.4	241	329	7.41	42
2×4	13.0	15.4	275	364	4.61	52
2×6	13.0	15.4	319	407	3.08	72
2×10	16.0	18.4	508	615	1.83	97
2×16	18.0	20.5	678	802	1.15	127
2×25	20.0	22.5	963	1101	0.727	166
2×35	23.0	25.5	1240	1397	0.524	199
2×50	21.5	24.0	1321	1469	0.387	238
2×70	25.0	27.5	1748	1918	0.268	292
2×95	27.5	30.0	2282	2469	0.193	352
2×120	30.0	32.5	2767	2969	0.153	402
2×150	30.0	32.5	3297	3500	0.124	452
2×185	34.0	36.5	4039	4268	0.0991	510
2×240	38.0	40.5	5262	5516	0.0754	591
2×300	40.0	42.5	6437	6704	0.0601	677
2×400	45.0	47.5	8286	8586	0.0470	820
Technical parameters of metal sheath inorganic mineral insulated cables(3 cores)
3×2.5	13.0	15.4	267	356	7.41	39
3×4	13.0	15.4	317	405	4.61	48
3×6	14.5	16.9	397	495	3.08	55
3×10	18.0	20.4	631	750	1.83	81
3×16	20.0	22.5	851	989	1.15	107
3×25	21.5	24.0	1213	1361	0.727	140
3×35	25.0	27.5	1583	1753	0.524	167
3×50	27.5	30.0	2018	2204	0.387	200
3×70	30.0	32.5	2782	2985	0.268	245
3×95	34.0	36.5	3666	3894	0.193	296
3×120	34.0	36.5	4073	4302	0.153	338
3×150	36.0	38.5	4938	5179	0.124	381
3×185	40.0	42.5	5972	6239	0.0991	431
3×240	45.0	47.5	7622	7922	0.0754	512
3×300	49.0	51.5	9397	9723	0.0601	600
3×400	55.0	57.5	12049	12413	0.0470	744
Technical parameters of metal sheath inorganic mineral insulated cables(4 cores)
4×2.5	13.0	15.4	297	386	7.41	39
4×4	14.5	16.9	381	479	4.61	48
4×6	14.5	17.0	462	564	3.08	55
4×10	20.0	22.5	801	938	1.83	81
4×16	21.5	24.0	1108	1255	1.15	107
4×25	25.0	27.5	1528	1698	0.727	140
4×35	27.5	30.0	1977	2163	0.524	167
4×50	30.0	32.5	2531	2734	0.387	200
4×70	34.0	36.5	3527	3755	0.268	245
4×95	36.0	38.5	4289	4531	0.193	296
4×120	38.0	40.5	5267	5522	0.153	338
4×150	42.0	44.5	6374	6655	0.124	381
4×185	45.0	47.5	7781	8080	0.0991	431
4×240	51.0	53.5	9965	10304	0.0754	512
4×300	58.0	60.5	12723	13107	0.0601	600
4×400	60.5	63.0	15689	16089	0.0470	744
Technical parameters of metal sheath inorganic mineral insulated cables(5 cores)
5×2.5	13.0	15.4	328	417	7.41	37
5×4	14.5	17.0	428	530	4.61	46
5×6	16.0	18.5	548	660	3.08	53
5×10	21.5	24.0	978	1126	1.83	77
5×16	25.0	27.5	1349	1519	1.15	97
5×25	27.5	30.0	1843	2029	0.727	138
5×35	30.0	32.5	2392	2595	0.524	180
5×50	32.0	34.5	3114	3330	0.387	218
5×70	36.0	38.5	4271	4512	0.268	261
5×95	42.0	44.5	5701	5981	0.193	307
5×120	45.0	47.5	6463	6763	0.153	358
5×150	49.0	51.5	7906	8231	0.124	381
5×185	49.0	51.5	9564	9890	0.0991	437
5×240	55.0	57.5	12607	12972	0.0754	486
5×300	60.5	63.0	15570	15970	0.0601	528
5×400	75.0	77.5	19586	20080	0.0470	661
Technical parameters of metal sheath inorganic mineral insulated cables(3+1 cores)
3×2.5+1×1.5	13.0	15.4	289	377	7.41/12.1	39
3×4+1×2.5	13.0	15.4	348	436	4.61/7.41	48
3×6+1×4	14.5	17.0	444	546	3.08/4.61	55
3×10+1×6	18.0	20.5	751	875	1.83/3.08	81
3×16+1×10	21.5	24.0	1057	1204	1.15/1.83	107
3×25+1×16	25.0	27.5	1451	1622	0.727/1.15	140
3×35+1×16	27.5	30.0	1796	1982	0.524/1.15	167
3×50+1×25	30.0	32.5	2323	2525	0.387/0.727	200
3×70+1×35	32.0	34.5	3177	3392	0.268/0.524	245
3×95+1×50	36.0	38.5	4173	4414	0.193/0.387	296
3×120+1×70	38.0	40.5	4847	5101	0.153/0.268	338
3×150+1×70	42.0	44.5	5656	5936	0.124/0.268	381
3×185+1×95	45.0	47.5	6970	7270	0.0991/0.193	431
3×240+1×120	51.0	53.5	8861	9200	0.0754/0.153	512
3×300+1×150	58.0	60.5	11320	11704	0.0601/0.124	600
3×400+1×185	60.5	63.0	13897	14297	0.0470/0.0991	744
Technical parameters of metal sheath inorganic mineral insulated cables(3+2 cores)
3×2.5+2×1.5	13.0	15.4	310	398	7.41/12.1	37
3×4+2×2.5	14.5	16.9	397	495	4.61/7.41	46
3×6+2×4	16.0	18.5	509	521	3.08/4.61	53
3×10+2×6	20.0	22.5	850	987	1.83/3.08	77
3×16+2×10	21.5	24.0	1180	1327	1.15/1.83	97
3×25+2×16	25.0	27.5	1637	1807	0.727/1.15	138
3×35+2×16	27.5	30.0	2020	2206	0.524/1.15	180
3×50+2×25	30.0	32.5	2687	2890	0.387/0.727	218
3×70+2×35	34.0	36.5	3585	3814	0.268/0.524	261
3×95+2×50	38.0	40.5	4703	4958	0.193/0.387	307
3×120+2×70	40.0	42.5	5476	5743	0.153/0.268	358
3×150+2×70	45.0	47.5	6367	6666	0.124/0.268	381
3×185+2×95	49.0	51.5	7943	8269	0.0991/0.193	437
3×240+2×120	55.0	57.5	10399	10763	0.0754/0.153	486
3×300+2×150	60.5	63.0	12762	13162	0.0601/0.124	528
3×400+2×185	65.0	67.5	15722	16151	0.0470/0.0991	661
Technical parameters of metal sheath inorganic mineral insulated cables(4+1 cores)
4×2.5+1×1.5	13.0	15.4	321	409	7.41/12.1	37
4×4+1×2.5	14.5	16.9	415	512	4.61/7.41	46
4×6+1×4	16.0	18.4	531	638	3.08/4.61	53
4×10+1×6	20.0	22.5	907	1045	1.83/3.08	77
4×16+1×10	23.0	25.5	1268	1425	1.15/1.83	97
4×25+1×16	27.5	30.0	1768	1955	0.727/1.15	138
4×35+1×16	30.0	32.5	2307	2509	0.524/1.15	180
4×50+1×25	32.0	34.5	2960	3175	0.387/0.727	218
4×70+1×35	36.0	38.5	3964	4205	0.268/0.524	261
4×95+1×50	40.0	42.5	5220	5487	0.193/0.387	307
4×120+1×70	42.0	44.5	5980	6260	0.153/0.268	358
4×150+1×70	45.0	47.5	7088	7388	0.124/0.268	381
4×185+1×95	51.0	53.5	8798	9136	0.0991/0.193	437
4×240+1×120	58.0	60.5	11585	11969	0.0754/0.153	486
4×300+1×150	65.0	67.5	14289	14719	0.0601/0.124	528
4×400+1×185	70.0	72.5	17656	18118	0.0470/0.0991	661

RTTZ Series Corrugated Copper Metalllc Sheath Mica Tape Mlneral Insulated Cable with a Rated Voltage up to and Including 0.6/1 kV

Executive Standards

This product is produced in accordance wth the standard ofGBr 34926 «Corrugated Copper Metallic Sheath Mica Tape Mineral Insulated Cables and Their Terminations with a Rated Voltage Up To and Including 0.6/1 kV»

Scope of Application

Mainly suitable for high-rise buildings, entertainment venues, and numerous construction projects that require high quality and high safety productsin large cities.
Applicable to applications where GB 51348 «Standard for Electrical Design of Civil Buildings» stipulates that "mineralInsulated cables should have flame retardant performance not lower than B, level', such as fire pumps. fire control rooms.fire elevators, fire lighting, etc.

Product Structure

1. Conductor: Made of multiple stranded copper wires, it has good bending and electrical properties.
2. Insulation layer: Inorganic insulation materials wth high temperature resitstance and high insulation resistance are used.
3.Protective layer: using fiame-retardant fape that is resistant to high temperatures and compatible with insulation maferials
4. Metal sheath: Made of copper material, It has good bending characteristics after forming, welding, and rolling
5. Outer protective layer: If necessary, a plastic protective layer can be extruded outside the metal copper sheath to provide good corrosion resistance.

Product Model,Description and Specification

Model	Description	Cross-section	Cores No.	Rated voltage
RTTZ	Copper conductor mica tape mineral insulated corrugated copper sheathed control cable	1.0mm²~2.5mm²	2~19	450/750V
RTTYZ	Heavy duty copper conductorcopper sheathed mineral insulated polyinylchloride sheathed cable
BTTYZ	Copper conductor mica tape mineral insulation corrugated copper sheath polyolefin sheath Control cable
NW-RTTZ-A	NW type copper conductor mica tape mineral insulation corrugatea copper sheath combustion performance Grade A control cable
NW-RTTYZ-B1	NW fype copper conductor mica tape mineral insulation corrugated copper sheath polyolefin sheath combustion performanceGrade B, control cable
RTTZ	Copper conductor mica tape mineral insulated corrugated copper sheathed power cable	1.5mm²~630mm²	1~5	0.6/1V
RTTYZ	Copper conductor mica fape mineral insulation corrugated copper sheath polyoletin sheath power cable
RTTZ-A	Copper conductor mica tape mineral insulation corrugated copper sheath combustion performance Grade A power cable
RTTYZ-B1	Copper conductor mica fape mineral insulation corrugated copper sheath polyoletin sheath combustion performance Grade B1 power cable
NW-RTTZ-A	NW type copper conductor mica tape mineral insulation corrugated copper sheath combustion performance Grade A power cable
NW-RTTYZ-B1	NW type copper conductor mica tape mineral insulation corrugated copper sheath polyolefin sheath combustion performance Grade B1 power cable

Electric Characteristic

1,Power frequency rated voltage U0/U: 450/750 V,0.6/1KV
2,The long-term operating femperature of the cable conductor is 90 °C, and during a short circuit (asting up to 5 seconds), the maximum temperature of the conductor is 250 °C
3,The ambient temperature during cable laying should not be lower than 0 °C, and the cable ends should be treated with moisture-proof protection.
4,Minimum inner bending radius during cable installation

Cable OD mm	D≤12	12⁢D≤20	20⁢D≤40	D>40
Minimum bending radius of the inner side ofthe cable	6D	10D	15D	20D
Note:D presents the diameter of the cable.

Technical Parameters

Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (single core)
Number of cores × Nominal cross-section n × mm²	Reference outer diameter mm		Reference weight kg/km		Max DC resistance of conductor at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
	RTTZ	RTTYZ	RTTZ	RTTYZ		Parellel layout	Triangular layout
1 × 10	10.6	13.4	265	352	1.83	121	116
1 × 16	13.0	15.8	356	460	1.15	158	152
1 × 25	13.0	15.8	446	551	0.727	208	198
1 × 35	14.5	17.5	562	686	0.524	250	238
1 × 50	16.0	19.2	748	894	0.387	300	282
1 × 70	18.0	21.2	973	1136	0.268	374	353
1 × 95	21.5	24.9	1330	1534	0.193	454	429
1 × 120	21.5	24.9	1553	1758	0.153	520	491
1 × 150	23.0	26.6	1832	2063	0.124	590	554
1 × 185	25.0	28.6	2206	2456	0.0991	670	628
1 × 240	27.5	31.3	2854	3143	0.0754	783	732
1 × 300	30.0	34.0	3499	3830	0.0601	891	828
1 × 400	32.0	36.2	4291	4662	0.0470	1023	945
1 × 500	38.0	42.6	5484	5964	0.0366	1165	1067
1 × 630	40.0	44.8	6774	7301	0.0283	1317	1194
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (2 cores)
2 × 2.5	13.0	16.6	241	379	7.41	42
2 × 4	13.0	16.6	275	413	4.61	52
2 × 6	13.0	16.6	319	457	3.08	72
2 × 10	16.0	19.6	517	683	1.83	97
2 × 16	18.0	21.6	689	874	1.15	127
2 × 25	21.5	25.1	1000	1218	0.727	166
2 × 35	25.0	28.6	1317	1567	0.524	199
2 × 50	23.0	26.6	1348	1580	0.387	238
2 × 70	25.0	28.8	1751	2016	0.268	292
2 × 95	27.5	31.7	2285	2607	0.193	352
2 × 120	30.0	34.4	2770	3137	0.153	402
2 × 150	32.0	36.6	3464	3873	0.124	452
2 × 185	34.0	38.8	4183	4636	0.0991	510
2 × 240	38.0	43.2	5304	5852	0.0754	591
2 × 300	42.0	47.4	6524	7149	0.0601	677
2 × 400	47.0	53.0	8388	9166	0.0470	820
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (3 cores)
3 × 2.5	13.0	16.6	267	406	7.41	39
3 × 4	13.0	16.6	317	455	4.61	48
3 × 6	14.5	18.1	397	550	3.08	55
3 × 10	18.0	21.6	642	826	1.83	81
3 × 16	20.0	23.6	864	1067	1.15	107
3 × 25	23.0	26.6	1252	1484	0.727	140
3 × 35	25.0	28.6	1638	1888	0.524	167
3 × 50	27.5	31.3	2044	2334	0.387	200
3 × 70	32.0	36.0	2852	3204	0.268	245
3 × 95	36.0	40.2	3739	4154	0.193	296
3 × 120	34.0	38.4	4107	4520	0.153	338
3 × 150	38.0	42.6	5025	5505	0.124	381
3 × 185	40.0	45.0	6022	6573	0.0991	431
3 × 240	45.0	50.2	7679	8320	0.0754	512
3 × 300	49.0	54.6	9461	10212	0.0601	600
3 × 400	55.0	61.2	12122	13055	0.0470	744
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (4 cores)
4 × 2.5	13.0	16.6	297	437	7.41	39
4 × 4	14.5	18.1	381	537	4.61	48
4 × 6	14.5	18.1	462	615	3.08	55
4 × 10	20.0	23.6	813	1016	1.83	81
4 × 16	23.0	26.6	1146	1378	1.15	107
4 × 25	25.0	28.6	1544	1794	0.727	140
4 × 35	27.5	31.3	2042	2332	0.524	167
4 × 50	30.0	34.0	2561	2893	0.387	200
4 × 70	34.0	38.2	3561	3954	0.268	245
4 × 95	36.0	40.6	4325	4782	0.193	296
4 × 120	38.0	42.8	5306	5809	0.153	338
4 × 150	42.0	47.0	6434	7011	0.124	381
4 × 185	47.0	52.4	7885	8581	0.0991	431
4 × 240	51.0	56.8	10040	10850	0.0754	512
4 × 300	58.0	64.2	12807	13789	0.0601	600
4 × 400	60.5	67.3	15785	16911	0.0470	744
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (5 cores)
5 × 2.5	13.0	16.6	328	468	7.41	37
5 × 4	14.5	18.1	428	582	4.61	46
5 × 6	16.0	19.6	548	716	3.08	53
5 × 10	21.5	25.1	992	1210	1.83	77
5 × 16	25.0	28.6	1365	1615	1.15	97
5 × 25	27.5	31.1	1861	2134	0.727	138
5 × 35	30.0	34.0	2471	2802	0.524	180
5 × 50	34.0	38.2	3183	3576	0.387	218
5 × 70	38.0	42.6	4347	4828	0.268	261
5 × 95	42.0	46.8	5745	6297	0.193	307
5 × 120	45.0	50.0	6510	7126	0.153	358
5 × 150	51.0	56.4	8020	8771	0.124	381
5 × 185	49.0	54.8	9646	10427	0.0991	437
5 × 240	55.0	61.2	12700	13634	0.0754	486
5 × 300	65.0	71.6	15791	16959	0.0601	528
5 × 400	75.0	82.2	19705	21172	0.0470	661
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (3+1 cores)
3×2.5+1×1.5	13.0	16.6	289	426	7.41/12.1	39
3×4+1×2.5	13.0	16.6	348	484	4.61/7.41	48
3×6+1×4	14.5	18.1	444	595	3.08/4.61	55
3×10+1×6	18.0	21.6	750	934	1.83/3.08	81
3×16+1×10	21.5	25.1	1057	1274	1.15/1.83	107
3×25+1×16	25.0	28.6	1451	1702	0.727/1.15	140
3×35+1×16	27.5	31.1	1829	2102	0.524/1.15	167
3×50+1×25	30.0	33.8	2323	2637	0.387/0.727	200
3×70+1×35	32.0	36.2	3192	3563	0.268/0.524	245
3×95+1×50	36.0	40.4	4173	4608	0.193/0.387	296
3×120+1×70	38.0	42.6	4847	5328	0.153/0.268	338
3×150+1×70	42.0	46.8	5701	6254	0.124/0.268	381
3×185+1×95	47.0	52.2	7059	7727	0.0991/0.193	431
3×240+1×120	51.0	56.6	8917	9698	0.0754/0.153	512
3×300+1×150	58.0	64.0	11398	12346	0.0601/0.124	600
3×400+1×185	60.5	67.1	13985	15076	0.0470/0.0991	744
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (3+2 cores)
3×2.5+2×1.5	13.0	16.6	310	447	7.41/12.1	37
3×4+2×2.5	14.5	18.1	397	549	4.61/7.41	46
3×6+2×4	16.0	19.6	509	675	3.08/4.61	53
3×10+2×6	20.0	23.6	848	1051	1.83/3.08	77
3×16+2×10	21.5	25.1	1180	1397	1.15/1.83	97
3×25+2×16	25.0	28.6	1637	1887	0.727/1.15	138
3×35+2×16	27.5	31.1	2051	2325	0.524/1.15	180
3×50+2×25	30.0	34.0	2687	3019	0.387/0.727	218
3×70+2×35	36.0	40.2	3652	4067	0.268/0.524	261
3×95+2×50	38.0	42.6	4703	5184	0.193/0.387	307
3×120+2×70	40.0	44.8	5476	6003	0.153/0.268	358
3×150+2×70	45.0	50.0	6412	7027	0.124/0.268	381
3×185+2×95	49.0	54.4	7993	8717	0.0991/0.193	437
3×240+2×120	55.0	60.8	10455	11325	0.0754/0.153	486
3×300+2×150	65.0	71.2	12971	14065	0.0601/0.124	528
3×400+2×185	70.0	76.6	15954	17208	0.0470/0.0991	661
Technical parameters of copper conductormica tape mineralinsulated corugated copper sheathed power cable (4+1 cores)
4×2.5+1×1.5	13.0	16.6	321	458	7.41/12.1	37
4×4+1×2.5	14.5	18.1	415	565	4.61/7.41	46
4×6+1×4	16.0	19.6	531	695	3.08/4.61	53
4×10+1×6	20.0	23.6	907	1110	1.83/3.08	77
4×16+1×10	23.0	26.6	1268	1499	1.15/1.83	97
4×25+1×16	27.5	31.1	1768	2042	0.727/1.15	138
4×35+1×16	30.0	33.8	2350	2665	0.524/1.15	180
4×50+1×25	32.0	36.0	2960	3312	0.387/0.727	218
4×70+1×35	36.0	40.4	3979	4414	0.268/0.524	261
4×95+1×50	40.0	44.6	5220	5724	0.193/0.387	307
4×120+1×70	42.0	47.0	5980	6557	0.153/0.268	358
4×150+1×70	47.0	52.2	7187	7855	0.124/0.268	381
4×185+1×95	51.0	56.6	8864	9645	0.0991/0.193	437
4×240+1×120	58.0	64.0	11660	12608	0.0754/0.153	486
4×300+1×150	65.0	71.4	14388	15520	0.0601/0.124	528
4×400+1×185	70.0	77.0	17768	19101	0.0470/0.0991	661

BBTRZ Series Mineral Insulated Flexible Fire-resistant Cables with Rated Voltage of 0.6/1kV

Executive Standards

This product is produced in accordance with the standard of Q/GzNY 11 «Mineral Insulated Flexible Fire-resistant Cable with Rated Voltage of 0.6/1 kV»

Scope of Application

Mainly suitable for high-tise buildings, entertainment venues, and numerous construction prolects that requre high quality and high safety productsin large cities
Applicable to applications where GB 51348 «Standard for Electrical Design of Civil Buildings » stipulates that "mineralinsulated cables should have flame retardant performance not lower than B, lever', such as fire pumps, fre control rooms fire elevators, fire lighting, etc.

Product Structure

1. Conductor: Made of multiple stranded copper wires, it has good bending and electrical properties.
2. Insulation layer: Inorganic insulatin materials with high temperature resistance and high insulation resistance are used.
3. Fire resistant isolation layer: Made of mineral materials, it plays a role in fire resistant and insulation.
4. Outer protective layer: wrapped with halogen-free. low smoke, and high fame refardant materials with corrosion resistance, chemical resistance, and other properties.

Product Model,Description and Specification

Model	Description	Cross-section	Rated voltage
BBTRZ	Mineral insulated flexible fire-resistant cable	Single cord 35mm²~800mm² multi-cores 2.5mm²~400mm²	0.6/1kv
BBTRZ-B1	Combustion performance grade B, mineral insulated flexible fire-resistant cable	Single cord 35mm²~800mm² multi-cores 2.5mm²~400mm²	0.6/1kv

Electric Characteristic

1,Power frequency rated voltage U0/U: 0.6/1kv.
2,The long-term operating temperature of the cable conductor is 90 °C, and during a short circuit (lasting up to 5 seconds), the maximum temperature of the conductor is 250 °C.
3,The ambient temperature during cable laying should not be lower than 0 °C, and the cable ends should be treated with moisture-proof protection.
4,Minimum inner bending radius during cable installation

Item	Single-core cable	Multi-core cables
Minimum bending radius of cable during installation	20D	15D
Minimum bending radius of cables near the connection box and terminal (bending should be carefully controlled, such as using formed guide plates)	15D	12D
Note:D presents the diameter of the cable.

Technical Parameters

Technical parameters of mineral insulated flexible fire-resistant cable (single core)
Number of cores × Nominal cross-section n × mm²	Reference outer diameter mm	Reference weight kg/km	Max DC resistance of conductor at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
Number of cores × Nominal cross-section n × mm²	Reference outer diameter mm	Reference weight kg/km	Max DC resistance of conductor at 20 ℃ Ω/km	parallelization	Triangular arrangement
1 × 35	18.6	627	0.524	185	190
1 × 50	19.3	749	0.387	224	232
1 × 70	20.9	967	0.268	284	293
1 × 95	22.6	1239	0.193	348	360
1 × 120	24.1	1489	0.153	407	420
1 × 150	25.4	1760	0.124	468	484
1 × 185	27.3	2136	0.0991	540	559
1 × 240	29.7	2702	0.0754	651	663
1 × 300	31.8	3280	0.0601	739	766
1 × 400	34.5	4081	0.0470	869	901
1 × 500	39.3	5238	0.0366	1012	1035
1 × 630	42.7	659	0.0283	1156	1178
Technical parameters of mineral insulated flexible fire-resistant cable (2 cores)
2 × 4	18.0	412	4.61	48
2 × 6	19.0	482	3.08	62
2 × 10	21.8	666	1.83	85
2 × 16	23.9	854	1.15	113
2 × 25	25.6	1088	0.727	153
2 × 35	27.8	1363	0.524	188
2 × 50	29.2	1638	0.387	229
2 × 70	32.4	2157	0.268	289
2 × 95	36.0	2820	0.193	354
2 × 120	38.8	3405	0.153	411
2 × 150	41.6	4064	0.124	471
2 × 185	45.2	4952	0.0991	541
2 × 240	49.8	6281	0.0754	640
2 × 300	54.4	7705	0.0601	734
2 × 400	59.8	9620	0.0470	851
Technical parameters of mineral insulated flexible fire-resistant cable (3 cores)
3 × 2.5	17.5	387	7.41	36
3 × 4	18.5	462	4.61	45
3 × 6	19.6	551	3.08	55
3 × 10	22.7	775	1.83	74
3 × 16	24.9	1015	1.15	97
3 × 25	26.8	1330	0.727	130
3 × 35	29.2	1692	0.524	155
3 × 50	30.7	2072	0.387	191
3 × 70	34.1	2766	0.268	241
3 × 95	38.0	3657	0.193	299
3 × 120	41.0	4445	0.153	350
3 × 150	44.0	5337	0.124	404
3 × 185	47.9	6537	0.0991	469
3 × 240	53.1	8375	0.0754	560
3 × 300	58.0	10310	0.0601	646
3 × 400	63.8	12927	0.0470	758
Technical parameters of mineral insulated flexible fire-resistant cable (4 cores)
4 × 2.5	18.3	435	7.41	39
4 × 4	19.5	528	4.61	46
4 × 6	20.7	639	3.08	57
4 × 10	24.1	914	1.83	76
4 × 16	26.6	1217	1.15	99
4 × 25	28.7	1623	0.727	133
4 × 35	31.4	2085	0.524	163
4 × 50	33.1	2579	0.387	200
4 × 70	37.1	3490	0.268	254
4 × 95	41.4	4639	0.193	316
4 × 120	44.8	5659	0.153	366
4 × 150	48.3	6835	0.124	424
4 × 185	52.6	8391	0.0991	490
4 × 240	58.4	10772	0.0754	574
4 × 300	63.8	13283	0.0601	659
4 × 400	70.3	16683	0.0470	765
Technical parameters of mineral insulated flexible fire-resistant cable (5 cores)
5 × 2.5	19.1	487	7.41	42
5 × 4	20.4	599	4.61	47
5 × 6	21.8	734	3.08	58
5 × 10	25.6	1065	1.83	78
5 × 16	28.4	1436	1.15	102
5 × 25	30.7	1935	0.727	136
5 × 35	33.7	2504	0.524	165
5 × 50	35.8	3131	0.387	198
5 × 70	40.3	4256	0.268	248
5 × 95	45.1	5676	0.193	294
5 × 120	49.0	6959	0.153	338
5 × 150	52.7	8390	0.124	391
5 × 185	57.7	10343	0.0991	451
5 × 240	64.1	13295	0.0754	538
5 × 300	70.1	16408	0.0601	617
5 × 400	77.5	20663	0.0470	717
Technical parameters of mineral insulated flexible fire-resistant cable (3+1 cores)
3 × 2.5+1 × 1.5	18.1	420	7.41/12.1	39
3 × 4+1 × 2.5	19.2	505	4.61/7.41	46
3 × 6+1 × 4	20.4	611	3.08/4.61	57
3 × 10+1 × 6	23.2	845	1.83/3.08	76
3 × 16+1 × 10	26.0	1140	1.15/1.83	99
3 × 25+1 × 16	28.2	1521	0.727/1.15	133
3 × 35+1 × 16	30.2	1864	0.524/1.15	163
3 × 50+1 × 25	32.0	2335	0.387/0.727	200
3 × 70+1 × 35	35.5	3119	0.268/0.524	254
3 × 95+1 × 50	39.4	4118	0.193/0.387	316
3 × 120+1 × 70	43.0	5113	0.153/0.268	366
3 × 150+1 × 70	45.5	5971	0.124/0.268	424
3 × 185+1 × 95	49.8	7426	0.0991/0.193	490
3 × 240+1 × 120	55.0	9460	0.0754/0.153	574
3 × 300+1 × 150	59.8	11596	0.0601/0.124	659
3 × 400+1 × 185	66.0	14557	0.0470/0.0991	765
Technical parameters of mineral insulated flexible fire-resistant cable (3+2 cores)
3 × 2.5+2 × 1.5	18.7	458	7.41/12.1	42
3 × 4+2 × 2.5	19.9	554	4.61/7.41	47
3 × 6+2 × 4	21.2	680	3.08/4.61	58
3 × 10+2 × 6	24.1	933	1.83/3.08	78
3 × 16+2 × 10	27.3	1285	1.15/1.83	102
3 × 25+2 × 16	29.8	1734	0.727/1.15	136
3 × 35+2 × 16	31.6	2068	0.524/1.15	165
3 × 50+2 × 25	33.7	2635	0.387/0.727	198
3 × 70+2 × 35	37.6	3539	0.268/0.524	248
3 × 95+2 × 50	41.3	4629	0.193/0.387	294
3 × 120+2 × 70	45.6	5861	0.153/0.268	338
3 × 150+2 × 70	47.7	6683	0.124/0.268	391
3 × 185+2 × 95	52.7	8431	0.0991/0.193	451
3 × 240+2 × 120	58.0	10696	0.0754/0.153	538
3 × 300+2 × 150	63.1	13097	0.0601/0.124	617
3 × 400+2 × 185	69.5	16417	0.0470/0.0991	717
Technical parameters of mineral insulated flexible fire-resistant cable (4+1 cores)
4 × 2.5+1 × 1.5	18.9	472	7.41/12.1	42
4 × 4+1 × 2.5	20.2	576	4.61/7.41	47
4 × 6+1 × 4	21.5	707	3.08/4.61	58
4 × 10+1 × 6	24.8	998	1.83/3.08	78
4 × 16+1 × 10	27.9	1360	1.15/1.83	102
4 × 25+1 × 16	30.3	1834	0.727/1.15	136
4 × 35+1 × 16	32.7	2285	0.524/1.15	165
4 × 50+1 × 25	34.6	2874	0.387/0.727	198
4 × 70+1 × 35	38.9	3886	0.268/0.524	248
4 × 95+1 × 50	43.3	5159	0.193/0.387	294
4 × 120+1 × 70	47.2	6396	0.153/0.268	338
4 × 150+1 × 70	50.2	7529	0.124/0.268	391
4 × 185+1 × 95	55.2	9380	0.0991/0.193	451
4 × 240+1 × 120	61.1	11985	0.0754/0.153	538
4 × 300+1 × 150	66.7	14753	0.0601/0.124	617
4 × 400+1 × 185	73.4	18505	0.0470/0.0991	717

BTLY Mineral Insulated Fire-resistant Cable

Executive Standards

This product is produced in accordance wth the standard of Q/GZNY 15 « BTLY Mineral Insulated Fire-resistant Cable»

Scope of Application

Mainly suitable for high-rise buildings, entertainment venues, and numerous constuction prolects that requite high quality and high safety productsin large cities.
Applicable to applications where GB 51348 « Standard for Electrical Design of Civil Buildings » stipulates that "mineral insulated cables should have flame retardant performance not lower than B, level', such as fre pumps, fire control rooms. fire elevators, fire lighting, etc.

Product Structure

1. Conductor: Made of multiple stranded copper wires, it has good bending and electrical properties.
2. Insulation layer: Inorganic insulation materials with high temperature resistance and high insulation resistance are used
3. Metal sheath layer: Made of aluminum material, t has good bending performance after forming, welding, and rolling.
4. Fire resistant isolation layer: Made of mineral materials, it plays a role in fire resistant and insulation.
5. Outer protective layer: wrapped with halogen-free, low smoke, and high flame retardant materials with corrosion resistance, chemical resistance, and other properties.

Product Model,Description and Specification

Model	Description	Cross-section
BTLY,BTLY(NG-A)	BTLY Mineral insulated fire-resistant cable	sinlge cord 35mm²~800mm² multi-cores 2.5mm²~400mm²
BTLY-B1	Combustion performance level B, BTLY mineral insulated fire-resistant cable
NW-BTLY-B1	NW type combustion performance grade B, BTLY mineral insulated fire-resistant cable

Electric Characteristic

1,Power frequency rated voltage U0/U: 0.6/1kV.
2,The long-term operating temperature of the cable conductor is 90 °C, and during a short circuit (lasting up to 5 seconds), the maximum temperature of the conductor is 250 °C.
3,The ambient temperature during cable laying should not be lower than 0 °C, and the cable ends should be treated with moisture-proof protection.
4,Minimum inner bending radius during cable installation

Cable OD mm	Minimum bending radius of the inner side ofthe cable	Minimum bending radius of cables near the connection box and terminal
D≤12	6D	4D
12⁢D≤20	10D	8D
20⁢D≤40	15D	13D
D>40	20D	18D
Note:D presents the diameter of the cable. Careful control should be exercised when bending, such as using molded guide plates, etc

Technical Parameters

Technical parameters of BTLY mineral insulated fire-resistant cable (1 core)
Number of cores × Nominal cross-section n × mm²	Reference outer diameter mm		Reference weight kg/km	Max DC resistance of conductor at 20 ℃ Ω/km	Rated capacity at ambient temperature of 40 ℃ A
Number of cores × Nominal cross-section n × mm²	Aluminum sheath	Finished product	Reference weight kg/km	Max DC resistance of conductor at 20 ℃ Ω/km	parallelization	Triangular arrangement
1 × 35	16.0	25.2	924	0.524	185	190
1 × 50	16.0	25.2	1031	0.387	224	232
1 × 70	18.0	27.2	1277	0.268	284	293
1 × 95	20.0	29.4	1590	0.193	348	360
1 × 120	21.5	31.1	1864	0.153	407	420
1 × 150	21.5	31.1	2108	0.124	468	484
1 × 185	25.0	34.8	2563	0.0991	540	559
1 × 240	27.5	37.3	3148	0.0754	651	663
1 × 300	30.0	40.0	3780	0.0601	739	766
1 × 400	32.0	42.2	4595	0.0470	869	901
1 × 500	38.0	48.4	5844	0.0366	1012	1035
Technical parameters of BTLY mineral insulated fire-resistant cable (2 core)
2 × 4	14.5	24.3	717	4.61	48
2 × 6	16.0	25.8	815	3.08	62
2 × 10	18.0	27.8	973	1.83	85
2 × 16	20.0	29.8	1179	1.15	113
2 × 25	21.5	31.3	1423	0.727	153
2 × 35	25.0	34.8	1761	0.524	188
2 × 50	21.5	31.3	1756	0.387	229
2 × 70	25.0	35.0	2253	0.268	289
2 × 95	27.5	37.7	2839	0.193	354
2 × 120	30.0	40.4	3382	0.153	411
2 × 150	32.0	42.6	3992	0.124	471
2 × 185	36.0	46.8	4824	0.0991	541
2 × 240	40.0	51.2	6043	0.0754	640
2 × 300	45.0	56.4	7335	0.0601	734
2 × 400	47.0	59.0	9039	0.0470	851
Technical parameters of BTLY mineral insulated fire-resistant cable (3 core)
3 × 2.5	14.5	24.3	701	7.41	36
3 × 4	16.0	25.8	804	4.61	45
3 × 6	16.0	25.8	872	3.08	55
3 × 10	20.0	29.8	1126	1.83	74
3 × 16	21.5	31.3	1365	1.15	97
3 × 25	23.0	32.8	1687	0.727	130
3 × 35	25.0	34.8	2060	0.524	155
3 × 50	27.5	37.5	2554	0.387	191
3 × 70	32.0	42.2	3347	0.268	241
3 × 95	36.0	46.4	4300	0.193	299
3 × 120	36.0	46.6	4701	0.153	350
3 × 150	40.0	50.8	5644	0.124	404
3 × 185	42.0	53.0	6740	0.0991	469
3 × 240	47.0	58.4	8514	0.0754	560
3 × 300	51.0	62.8	10435	0.0601	646
3 × 400	58.0	70.2	12939	0.0470	758
Technical parameters of BTLY mineral insulated fire-resistant cable (4 core)
4 × 2.5	14.5	24.3	734	7.41	39
4 × 4	16.0	25.8	853	4.61	46
4 × 6	18.0	27.8	1005	3.08	57
4 × 10	20.0	29.8	1235	1.83	76
4 × 16	23.0	32.8	1579	1.15	99
4 × 25	25.0	34.8	2002	0.727	133
4 × 35	30.0	39.8	2565	0.524	163
4 × 50	30.0	40.0	3095	0.387	200
4 × 70	34.0	44.4	4083	0.268	254
4 × 95	38.0	48.6	4988	0.193	316
4 × 120	42.0	52.8	6026	0.153	366
4 × 150	45.0	56.0	7195	0.124	424
4 × 185	49.0	60.4	8729	0.0991	490
4 × 240	53.0	64.8	11084	0.0754	574
4 × 300	58.0	70.0	13473	0.0601	659
4 × 400	65.0	77.6	16729	0.0470	765
Technical parameters of BTLY mineral insulated fire-resistant cable (5 core)
5 × 2.5	16.0	25.8	817	7.41	42
5 × 4	18.0	27.8	969	4.61	47
5 × 6	18.0	27.8	1078	3.08	58
5 × 10	21.5	31.3	1400	1.83	78
5 × 16	25.0	34.8	1821	1.15	102
5 × 25	27.5	37.3	2349	0.727	136
5 × 35	32.0	42.0	3016	0.524	165
5 × 50	34.0	44.2	3732	0.387	198
5 × 70	38.0	48.6	4926	0.268	248
5 × 95	45.0	55.8	6497	0.193	294
5 × 120	49.0	60.0	7400	0.153	338
5 × 150	53.0	64.4	8904	0.124	391
5 × 185	53.0	64.8	10711	0.0991	451
5 × 240	58.0	70.2	13533	0.0754	538
5 × 300	65.0	77.4	16550	0.0601	617
5 × 400	65.0	78.0	20679	0.0470	717
Technical parameters of BTLY mineral insulated fire-resistant cable (3+1 core)
3 × 2.5 + 1 × 1.5	14.5	24.3	723	7.41/12.1	39
3 × 4 + 1 × 2.5	16.0	25.8	835	4.61/7.41	46
3 × 6 + 1 × 4	18.0	27.8	983	3.08/4.61	57
3 × 10 + 1 × 6	20.0	29.8	1185	1.83/3.08	76
3 × 16 + 1 × 10	21.5	31.3	1467	1.15/1.83	99
3 × 25 + 1 × 16	25.0	34.8	1911	0.727/1.15	133
3 × 35 + 1 × 16	27.5	37.3	2290	0.524/1.15	163
3 × 50 + 1 × 25	30.0	40.0	2876	0.387/0.727	200
3 × 70 + 1 × 35	34.0	44.2	3739	0.268/0.524	254
3 × 95 + 1 × 50	36.0	46.4	4715	0.193/0.387	316
3 × 120 + 1 × 70	42.0	52.8	5572	0.153/0.268	366
3 × 150 + 1 × 70	45.0	55.8	6458	0.124/0.268	424
3 × 185 + 1 × 95	49.0	60.2	7898	0.0991/0.193	490
3 × 240 + 1 × 120	53.0	64.6	9959	0.0754/0.153	574
3 × 300 + 1 × 150	58.0	69.8	12067	0.0601/0.124	659
3 × 400 + 1 × 185	65.0	77.4	14938	0.0470/0.0991	765
Technical parameters of BTLY mineral insulated fire-resistant cable (3+2 core)
3 × 2.5 + 2 × 1.5	16.0	25.8	796	7.41/12.1	42
3 × 4 + 2 × 2.5	16.0	25.8	870	4.61/7.41	47
3 × 6 + 2 × 4	18.0	27.8	1035	3.08/4.61	58
3 × 10 + 2 × 6	20.0	29.8	1254	1.83/3.08	78
3 × 16 + 2 × 10	23.0	32.8	1631	1.15/1.83	102
3 × 25 + 2 × 16	27.5	37.3	2168	0.727/1.15	136
3 × 35 + 2 × 16	30.0	39.8	2543	0.524/1.15	165
3 × 50 + 2 × 25	32.0	42.0	3207	0.387/0.727	198
3 × 70 + 2 × 35	36.0	46.4	4191	0.268/0.524	248
3 × 95 + 2 × 50	40.0	50.6	5347	0.193/0.387	294
3 × 120 + 2 × 70	45.0	55.8	6308	0.153/0.268	338
3 × 150 + 2 × 70	47.0	58.0	7188	0.124/0.268	391
3 × 185 + 2 × 95	51.0	62.4	8871	0.0991/0.193	451
3 × 240 + 2 × 120	58.0	69.8	11278	0.0754/0.153	538
3 × 300 + 2 × 150	65.0	77.0	13731	0.0601/0.124	617
3 × 400 + 2 × 185	65.0	77.6	16859	0.0470/0.0991	717
Technical parameters of BTLY mineral insulated fire-resistant cable (4+1 core)
4 × 2.5 + 1 × 1.5	16.0	25.8	807	7.41/12.1	42
4 × 4 + 1 × 2.5	18.0	27.8	951	4.61/7.41	47
4 × 6 + 1 × 4	18.0	27.8	1056	3.08/4.61	58
4 × 10 + 1 × 6	21.5	31.3	1350	1.83/3.08	78
4 × 16 + 1 × 10	25.0	34.8	1757	1.15/1.83	102
4 × 25 + 1 × 16	27.5	37.3	2258	0.727/1.15	136
4 × 35 + 1 × 16	30.0	40.0	2755	0.524/1.15	165
4 × 50 + 1 × 25	32.0	42.2	3444	0.387/0.727	198
4 × 70 + 1 × 35	36.0	46.4	4510	0.268/0.524	248
4 × 95 + 1 × 50	42.0	52.8	5912	0.193/0.387	294
4 × 120 + 1 × 70	45.0	56.0	6791	0.153/0.268	338
4 × 150 + 1 × 70	49.0	60.2	8002	0.124/0.268	391
4 × 185 + 1 × 95	53.0	64.6	9782	0.0991/0.193	451
4 × 240 + 1 × 120	60.5	72.5	12511	0.0754/0.153	538
4 × 300 + 1 × 150	65.0	77.2	15145	0.0601/0.124	617
4 × 400 + 1 × 185	65.0	77.8	18876	0.0470/0.0991	717

Return to the previous page
