Extension and compensating cables for thermocouples
The compensation cable/wire is one or more pairs of wires/cables with insulated layer. It has the same value of thermopower with the matching thermocouple in a certain temperature range (including ambient temperature), which are used to connect the thermocouple and the measuring device, in order to compensate for the error caused by the temperature changes. Compensation wire and compensation cable is divided into two types: extended type and compensation type.
Executive Standard
GB/T4989-2013 & JB/T7495-2014.
Operational performance
1.Working Temperature
Max. 200°C for heat resistant cable
Max.-20~70°C & -20~100°C for common cable
2.Min Environment Temperature
Wire & cable with fluoroplastic insulation and sheath:-60°C for fixed installation,
-20°C for non-fixed installation
Wire & cable with PVC insulation and sheath:
-40°C for fixed installation
-15°C for non-fixed installation
3.Bending radius for compensational cable with copper tape shielding.for compensational cable with other structure.
It should be not less than 16 times that of cable outer diameter
It should be not less than 10 times that of cable outer diameter

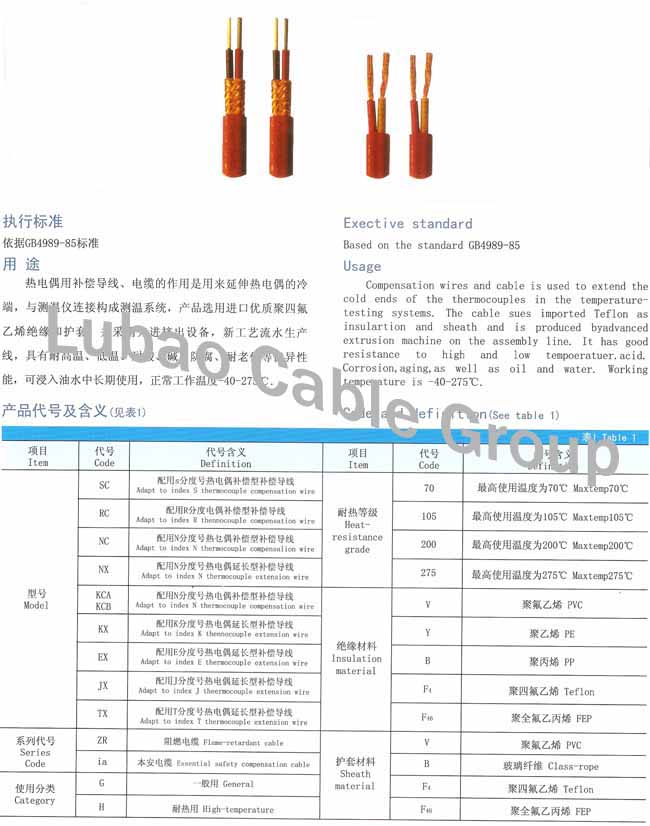

Type and Description
Extension and compensating wire for thermocouples
| Type |
Description |
| KX-GS-VV |
Precise grade compensating wire for K Type Thermocouple with PVC insulation and sheath for general purpose |
| KX-GS-VPV |
Precise grade compensating wire for K Type Thermocouple with PVC insulation and sheath, copper wire braided shielding for general purpose |
| KX-HS-FF |
Precise grade high temperature compensating wire for K Type Thermocouple with Fluoroplastic insulation and sheath for heat resistant purpose |
| KX-HS-FP1F |
Precise grade high temperature compensating wire for K Type Thermocouple with Fluoroplastic insulation and sheath, tinned copper wire braided shielding for heat resistant purpose |
| KX-HS-FB |
Precise grade high temperature compensating wire for K Type Thermocouple with F4 insulation and glass wire braided sheath for heat resistant purpose |
| KX-HS-FBP1 |
Precise grade high temperature compensating wire for K Type Thermocouple with F46 wrapped insulation glass wire braiding, tinned copper wire braided shielding and glass wire braided outer sheath for heat resistant purpose |
| KX-HS-FP1V105 |
Precise grade high temperature compensating wire for K Type Thermocouple with Fluoroplastic insulation, tinned copper wire braided shielding, 105℃ heat resistant and PVC sheath for heat resistant purpose |
|
Note: Type-naming method of common grade compensational wire: "S" should be omitted on the basis of precise grade compensational wire type. |
Extension and compensating cable for thermocouples
| Type |
Description |
| KX-GS-VV |
Precise grade compensating cable for K Type Thermocouple with PVC insulation and twinning PVC sheath for general purpose |
| KX-GS-VPV |
Precise grade compensating cable for K Type Thermocouple with PVC insulation, twinning copper wire braided individual shielding, PVC sheath for general purpose |
| KX-GS-VPVP |
Precise grade compensating cable for K Type Thermocouple with PVC insulation, twinning copper wire braided individual & general shielding, PVC sheath for general purpose |
| KX-GS-VVP |
Precise grade compensating cable for K Type Thermocouple with PVC insulation, twinning copper wire braided general shielding, PVC sheath for general purpose |
| KX-HS-FF |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation and twinning Fluoroplastic sheath |
| KX-HS-FP F |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided individual shielding and Fluoroplastic sheath |
| KX-HS-FP1FP1 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided individual & general shielding and Fluoroplastic sheath |
| KX-HS-FFP1 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided general shielding and Fluoroplastic sheath |
| KX-HS-FV105 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning 105℃ heat resistant PVC sheath |
| KX-HS-FP1V105 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided individual shielding 105℃ heat resistant PVC sheath |
| KX-HS-FP1V105P1 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided individual and general shielding 105℃ heat resistant PVC sheath |
| KX-HS-FV105P1 |
Precise grade high temperature compensating cable for K Type Thermocouple with Fluoroplastic insulation, twinning tinned copper wire braided general shielding 105℃ heat resistant PVC sheath |
|
Note: 1.Compensation wire types, such as KC JX SC EX NC TX etc., onlyneed to rewrite the first item of the model, like EX-G-VV and TX-H-FVP etc.
2.Suffix "R"is added to the original type for indication of cable with soft multi-strand core. eg. TX-G-VVPR insulation if needed.tape (P2)
3.We also produce compensational cable with PE (Y) insulation or XLPE (YJ)
4.Shielding layer material of compensational cable includes metallic tape wrapping such as compound aluminum tape (P3) and compound copper
5.Prefix "ZR-" is added to the original type for indication of flame retardant type compensational cable.
6.Suffix "-22" is added to the original type for indication of compensational cable with steel tape armor, "-32"for that with steel wire armor.
7.Prefix "ia-" is added to the original type for indication of intrinsic safety type compensating cable.
|

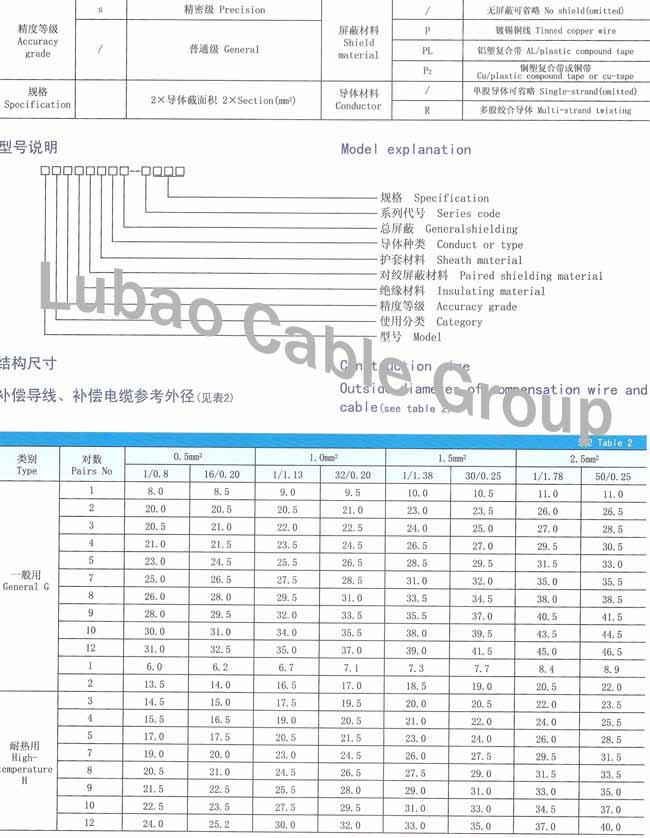

Specification Range
| Name |
Pair No. of core |
Nominal cross section area mm² |
Core structure |
|
|
|
A |
R |
| Compensating wire |
1 |
0.5 |
1/0.80 |
7/0.30 |
| Compensating wire |
1 |
1.0 |
1/1.13 |
7/0.43 |
| Compensating cable |
1~19 |
1.5 |
1/1.37 |
7/0.52 |
| Compensating cable |
1~19 |
2.5 |
1/1.76 |
19/0.41 |

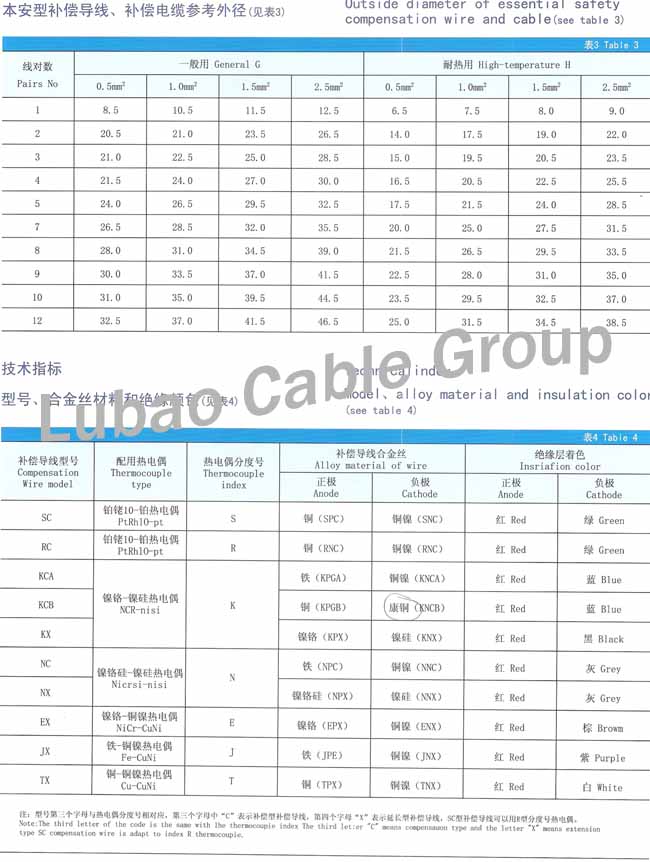

Main Technical Requirement
Extension and compensating cable for thermocouples
| Type |
Compensating wire & cable core |
Insulation color of compensating wire |
Thermocouple graduation |
|
Positive pole |
Negative pole |
Positive pole |
Negative pole |
|
| SC or RC |
Cu |
Cu-Ni 0.6 |
Red |
Green |
S (PtRh10-PT) or R (PtRh13-PT) |
| KCA |
Fe |
Cu-Ni 22 |
Red |
Blue |
|
| KCB |
Cu |
Cu-Ni 40 |
Red |
Blue |
K (NiCr-NiSi) |
| KX |
Ni-Cr 10 |
Ni-Si 3 |
Red |
Black |
|
| EX |
Ni-Cr 10 |
Cu-Ni 45 |
Red |
Brown |
E (NiCr-CuNi) |
| JX |
Fe |
Cu-Ni 45 |
Red |
Violet |
J (Fe-CuNi) |
| TX |
Cu |
Cu-Ni 45 |
Red |
White |
T (Cu-CuNi) |
| NC |
Fe |
Cu-Ni 18 |
Red |
Grey |
N (NiCrSi-NiSi) |
| NX |
Ni-Cr 14 Si |
Ni-Si 4 |
Red |
Grey |
|

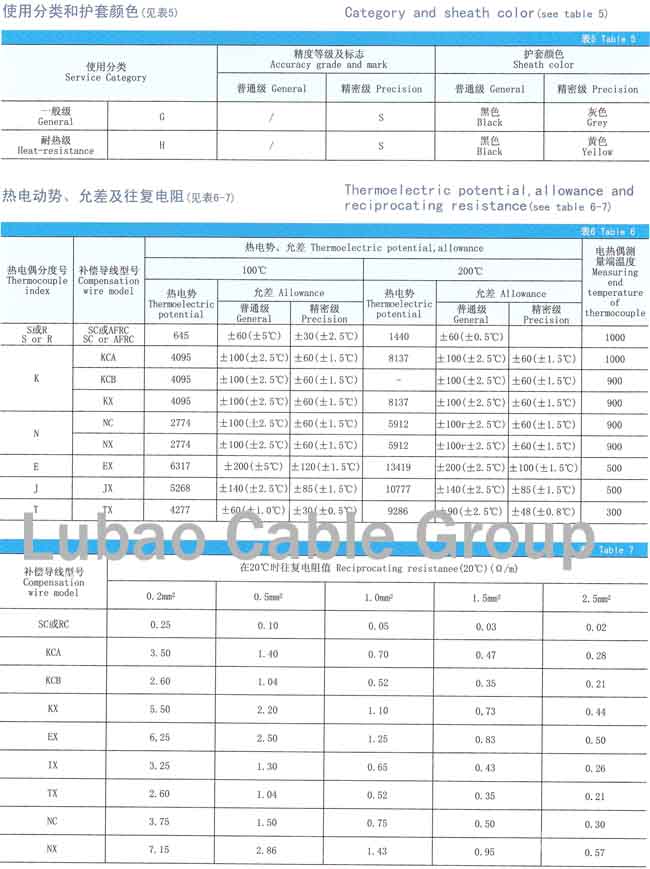

Category, Class mark and Sheath Color ofCompensational Cable and Wire
| Category |
Mark code |
Error allowance grade&mark |
Sheath color |
|
|
Common grade |
Precise grade |
Common grade |
Precise grade |
Intrinsic safety |
| General |
G |
Omitted |
S |
Black |
Grey |
Blue |
| Heat resistance |
H |
Black |
Yellow |
Blue |
A stands for precise grade and ErrorAllowance of Compensational Cable and Wire
| Type |
Category |
Tem range of cable&wire ℃ |
Pyro EMF μV |
Precise grade |
Common grade |
Measuring end tem. of thermocouple ℃ |
0.5mm² |
1.0mm² |
1.5mm² |
2.5mm² |
| SC&RC |
G |
0~100 |
646 |
±30(±2.5℃) |
±60(±5.0℃) |
1000 |
0.10 |
0.05 |
0.03 |
0.02 |
| H |
0~200 |
1441 |
/ |
±60(±5.0℃) |
| KCA |
G |
0~100 |
4096 |
±44(±1.1℃) |
±88(±2.2℃) |
1000 |
1.40 |
0.70 |
0.47 |
0.28 |
| H |
0~200 |
8138 |
900 |
| KCB |
G |
0~100 |
4096 |
900 |
1.04 |
0.52 |
0.35 |
0.21 |
| KX |
G |
-20~100 |
4096 |
900 |
2.20 |
1.10 |
0.73 |
0.44 |
| H |
-25~200 |
8138 |
±44(±1.1℃) |
±88(±2.2℃) |
| EX |
G |
-20~100 |
6319 |
±81(±1.1℃) |
±138(±1.7℃) |
500 |
2.50 |
1.25 |
0.83 |
0.50 |
| H |
-25~200 |
13421 |
| JX |
G |
-20~100 |
6319 |
±62(±1.1℃) |
±123(±2.0℃) |
500 |
1.30 |
0.65 |
0.43 |
0.26 |
| H |
-25~200 |
13421 |
| TX |
G |
-20~100 |
6319 |
±30(±0.5℃) |
±60(±1.0℃) |
300 |
1.04 |
0.52 |
0.35 |
0.21 |
| H |
-25~200 |
13421 |
| NC |
G |
0~100 |
6319 |
±48(±0.8℃) |
±90(±1.5℃) |
900 |
1.50 |
0.75 |
0.50 |
0.30 |
| H |
0~200 |
13421 |
| NX |
G |
-20~100 |
6319 |
±43(±1.1℃) |
±86(±2.2℃) |
900 |
2.86 |
1.43 |
0.95 |
0.57 |
| H |
-25~200 |
13421 |

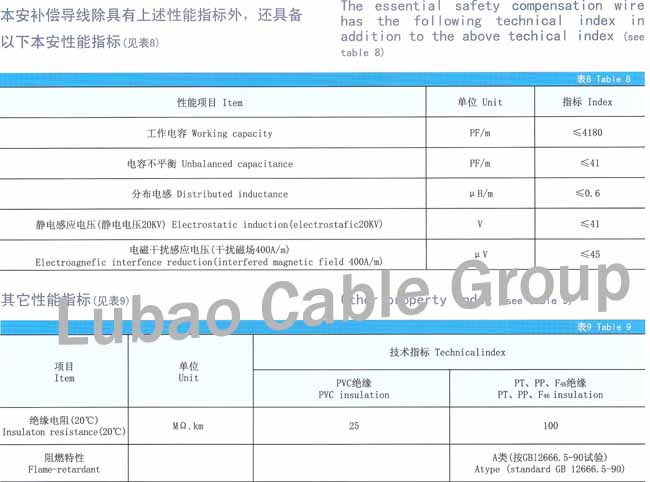

Others Parameter Indices
| Item |
Unit |
Parameter Indices |
|
|
PVC insulation |
PE, XLPE, F46&F insulation |
| Insulated resistance |
MΩ.km |
25 |
100 |
| Voltage test |
V/1min |
500 |
| Flame resistant performance |
Meet the requirement of flame retardance of category A, B,C stipulated in GB/T19666-2005 standard. |
Specification and Size
1,Extension and compensating wire for thermocouples
| Core No.*nominal cross section area mm² |
Conductor |
Max OD mm |
Calculated weight kg/km |
|
|
VV |
VPV |
FF |
FP1F |
VV |
VPV |
FF |
FP1F |
| 2×0.5 |
A |
3.7×6.4 |
4.7×7.4 |
2.6×4.6 |
3.2×5.2 |
30 |
50 |
27 |
45 |
| 2×0.5 |
R |
3.9×6.6 |
4.9×7.6 |
2.8×4.8 |
3.4×5.4 |
35 |
55 |
30 |
50 |
| 2×1.0 |
A |
5.0×7.7 |
6.0×8.7 |
3.0×5.3 |
3.6×5.9 |
56 |
82 |
39 |
64 |
| 2×1.0 |
R |
5.1×8.0 |
6.1×9.0 |
3.1×5.6 |
3.7×6.2 |
60 |
87 |
45 |
69 |
| 2×1.5 |
A |
5.2×8.3 |
6.2×9.3 |
3.2×5.8 |
3.8×6.4 |
68 |
93 |
54 |
77 |
| 2×1.5 |
R |
5.5×8.7 |
6.5×9.7 |
3.4×6.2 |
4.0×6.8 |
75 |
102 |
60 |
87 |
| 2×2.5 |
A |
5.7×9.3 |
6.7×10.3 |
3.6×6.7 |
4.2×7.3 |
94 |
121 |
77 |
103 |
| 2×2.5 |
R |
5.9×9.8 |
6.9×10.8 |
4.0×7.3 |
4.6×7.9 |
101 |
133 |
84 |
114 |
2,Extension and compensating cable for thermocouples
| Core No.X section area mm² |
Conductor |
Max OD mm |
Calculated weight kg/km |
|
|
VV |
VPV |
FV |
FP1V |
FF |
FP1F |
VV |
VPV |
FV |
FP1V |
FF |
FP1F |
| 1×2×0.5 |
A |
6.9 |
7.4 |
6.7 |
7.2 |
5.0 |
5.6 |
58 |
70 |
49 |
68 |
36 |
53 |
| 1×2×0.5 |
R |
7.3 |
7.7 |
7.0 |
7.4 |
5.2 |
5.8 |
59 |
73 |
52 |
73 |
38 |
56 |
| 1×2×1.0 |
A |
8.7 |
9.1 |
7.4 |
7.8 |
5.8 |
6.3 |
87 |
107 |
64 |
86 |
50 |
70 |
| 1×2×1.0 |
R |
8.9 |
9.4 |
7.6 |
8.3 |
6.1 |
6.8 |
94 |
113 |
70 |
95 |
54 |
80 |
| 1×2×1.5 |
A |
9.1 |
9.8 |
7.9 |
8.4 |
6.4 |
6.9 |
104 |
125 |
78 |
103 |
62 |
89 |
| 1×2×1.5 |
R |
9.6 |
10.5 |
8.1 |
8.8 |
6.6 |
7.4 |
109 |
131 |
83 |
110 |
72 |
95 |
| 1×2×2.5 |
A |
10.0 |
10.7 |
8.8 |
9.2 |
7.4 |
7.8 |
129 |
153 |
106 |
133 |
92 |
117 |
| 1×2×2.5 |
R |
10.7 |
11.3 |
9.2 |
10.1 |
7.8 |
8.7 |
143 |
179 |
113 |
144 |
99 |
126 |
| 2×2×0.5 |
A |
10.3 |
11.4 |
9.4 |
11.1 |
7.9 |
9.7 |
107 |
177 |
93 |
175 |
79 |
156 |
| 2×2×0.5 |
R |
10.6 |
12.0 |
9.5 |
11.4 |
8.1 |
10.0 |
115 |
186 |
98 |
183 |
84 |
164 |
| 2×2×1.0 |
A |
13.0 |
15.0 |
10.5 |
12.2 |
9.0 |
11.0 |
175 |
282 |
128 |
220 |
112 |
207 |
| 2×2×1.0 |
R |
13.3 |
15.4 |
10.9 |
12.9 |
9.5 |
11.7 |
177 |
293 |
135 |
236 |
120 |
221 |
| 2×2×1.5 |
A |
13.6 |
16.1 |
11.3 |
13.1 |
9.9 |
11.9 |
197 |
314 |
153 |
257 |
137 |
240 |
| 2×2×1.5 |
R |
15.1 |
16.8 |
11.9 |
14.4 |
10.7 |
13.0 |
226 |
338 |
174 |
294 |
158 |
277 |
| 2×2×2.5 |
A |
15.8 |
17.5 |
12.8 |
15.2 |
11.6 |
13.6 |
277 |
449 |
211 |
348 |
198 |
325 |
| 2×2×2.5 |
R |
16.8 |
18.6 |
13.6 |
16.6 |
12.4 |
15.1 |
302 |
488 |
239 |
383 |
236 |
360 |
| 3×2×0.5 |
A |
10.6 |
12.1 |
9.8 |
11.7 |
8.4 |
10.5 |
122 |
212 |
105 |
206 |
91 |
193 |
| 3×2×0.5 |
R |
11.2 |
12.7 |
10.0 |
12.1 |
8.6 |
10.9 |
134 |
220 |
110 |
210 |
96 |
204 |
| 3×2×1.0 |
A |
14.4 |
15.8 |
11.0 |
13.0 |
9.6 |
11.8 |
217 |
336 |
156 |
272 |
139 |
254 |
| 3×2×1.0 |
R |
14.7 |
16.3 |
11.6 |
13.6 |
10.3 |
12.4 |
230 |
356 |
170 |
291 |
155 |
273 |
| 3×2×1.5 |
A |
15.2 |
17.1 |
12.0 |
14.5 |
10.8 |
13.0 |
264 |
387 |
195 |
337 |
181 |
317 |
| 3×2×1.5 |
R |
16.0 |
17.8 |
12.5 |
15.3 |
11.3 |
13.8 |
278 |
411 |
214 |
362 |
198 |
344 |
| 3×2×2.5 |
A |
16.7 |
18.6 |
13.5 |
16.1 |
12.3 |
14.5 |
338 |
485 |
273 |
434 |
256 |
412 |
| 3×2×2.5 |
R |
17.9 |
19.8 |
15.2 |
17.6 |
13.6 |
16.1 |
359 |
553 |
314 |
454 |
246 |
436 |
| 4×2×0.5 |
A |
11.3 |
12.9 |
10.7 |
13.1 |
9.2 |
12.3 |
151 |
252 |
133 |
265 |
117 |
248 |
| 4×2×0.5 |
R |
12.0 |
14.5 |
10.5 |
14.7 |
9.2 |
12.1 |
160 |
283 |
139 |
254 |
172 |
246 |
| 4×2×1.0 |
A |
15.4 |
16.9 |
11.8 |
15.6 |
10.6 |
14.1 |
262 |
410 |
187 |
342 |
185 |
322 |
| 4×2×1.0 |
R |
16.2 |
17.4 |
12.4 |
16.6 |
11.2 |
15.1 |
271 |
418 |
201 |
368 |
218 |
346 |
| 4×2×1.5 |
A |
16.3 |
18.3 |
12.9 |
16.8 |
11.7 |
15.3 |
309 |
462 |
235 |
405 |
250 |
383 |
| 4×2×1.5 |
R |
18.3 |
19.1 |
13.5 |
17.8 |
12.3 |
16.3 |
330 |
487 |
270 |
431 |
327 |
408 |
| 4×2×2.5 |
A |
19.3 |
20.6 |
14.3 |
18.6 |
13.6 |
17.3 |
404 |
691 |
348 |
566 |
356 |
497 |
| 4×2×2.5 |
R |
12.7 |
21.9 |
16.3 |
21.5 |
14.7 |
19.7 |
440 |
691 |
377 |
522 |
214 |
540 |
| 5×2×0.5 |
A |
13.7 |
15.0 |
11.1 |
14.9 |
10.7 |
13.6 |
196 |
343 |
172 |
337 |
251 |
319 |
| 5×2×0.5 |
R |
17.4 |
18.9 |
13.1 |
16.9 |
11.9 |
14.5 |
318 |
485 |
230 |
410 |
288 |
392 |
| 5×2×1.0 |
A |
18.3 |
19.4 |
14.5 |
17.2 |
13.0 |
15.6 |
334 |
591 |
269 |
448 |
311 |
468 |
| 5×2×1.5 |
R |
19.3 |
21.0 |
15.1 |
18.1 |
14.5 |
17.4 |
383 |
624 |
300 |
492 |
423 |
468 |
| 5×2×2.5 |
A |
20.9 |
23.0 |
17.1 |
21.4 |
15.5 |
17.6 |
531 |
750 |
434 |
640 |
453 |
699 |
| 5×2×2.5 |
R |
22.3 |
24.5 |
18.3 |
21.8 |
16.7 |
20.0 |
574 |
848 |
473 |
726 |
411 |
612 |
| 6×2×0.5 |
A |
15.0 |
16.8 |
13.2 |
16.8 |
12.0 |
14.7 |
234 |
384 |
195 |
385 |
178 |
361 |
| 6×2×0.5 |
R |
15.7 |
17.7 |
13.5 |
16.8 |
12.3 |
15.3 |
250 |
410 |
209 |
406 |
192 |
383 |
| 6×2×1.0 |
A |
19.7 |
22.1 |
15.5 |
19.0 |
14.0 |
16.5 |
382 |
609 |
304 |
503 |
283 |
473 |
| 6×2×1.0 |
R |
20.9 |
22.8 |
16.5 |
19.1 |
15.0 |
17.6 |
433 |
643 |
326 |
539 |
303 |
507 |
| 6×2×1.5 |
A |
21.5 |
23.9 |
17.1 |
19.5 |
16.5 |
17.9 |
521 |
750 |
363 |
592 |
352 |
562 |
| 6×2×1.5 |
R |
22.7 |
25.1 |
18.0 |
21.2 |
17.5 |
19.5 |
571 |
870 |
405 |
785 |
381 |
634 |
| 6×2×2.5 |
A |
23.9 |
26.4 |
19.4 |
22.4 |
19.8 |
20.7 |
697 |
1048 |
527 |
870 |
573 |
767 |
| 6×2×2.5 |
R |
25.5 |
28.1 |
21.4 |
24.8 |
19.8 |
21.5 |
697 |
1043 |
603 |
811 |
502 |
836 |
| 7×2×0.5 |
A |
15.2 |
17.4 |
14.4 |
18.5 |
12.2 |
15.5 |
248 |
413 |
207 |
470 |
287 |
388 |
| 7×2×0.5 |
R |
16.1 |
17.9 |
14.4 |
18.2 |
12.9 |
15.5 |
269 |
435 |
235 |
436 |
215 |
405 |
| 7×2×1.0 |
A |
20.7 |
22.4 |
15.8 |
19.0 |
14.3 |
16.5 |
429 |
650 |
318 |
531 |
296 |
505 |
| 7×2×1.0 |
R |
21.2 |
23.1 |
16.8 |
19.4 |
15.3 |
17.9 |
452 |
675 |
341 |
573 |
318 |
546 |
| 7×2×1.5 |
A |
21.9 |
24.3 |
17.3 |
19.7 |
15.7 |
18.4 |
514 |
750 |
398 |
631 |
375 |
606 |
| 7×2×1.5 |
R |
23.0 |
25.4 |
18.7 |
21.5 |
16.5 |
19.8 |
576 |
796 |
426 |
704 |
402 |
625 |
| 7×2×2.5 |
A |
24.2 |
27.1 |
19.7 |
22.7 |
18.2 |
21.0 |
677 |
977 |
562 |
857 |
535 |
829 |
| 7×2×2.5 |
R |
26.0 |
28.8 |
21.9 |
25.2 |
20.1 |
23.4 |
726 |
1113 |
637 |
932 |
607 |
897 |
| 8×2×0.5 |
A |
16.5 |
18.5 |
15.2 |
17.8 |
13.6 |
16.3 |
279 |
464 |
245 |
400 |
228 |
435 |
| 8×2×0.5 |
R |
17.5 |
19.5 |
15.6 |
18.5 |
14.1 |
16.9 |
294 |
485 |
263 |
483 |
242 |
457 |
| 8×2×1.0 |
A |
22.4 |
24.4 |
17.2 |
19.8 |
15.6 |
18.3 |
480 |
730 |
357 |
595 |
333 |
568 |
| 8×2×1.0 |
R |
23.1 |
25.1 |
18.3 |
21.8 |
16.7 |
20.0 |
490 |
759 |
380 |
671 |
360 |
640 |
| 8×2×1.5 |
A |
23.8 |
26.8 |
20.1 |
22.1 |
17.3 |
20.4 |
604 |
840 |
451 |
750 |
426 |
710 |
| 8×2×1.5 |
R |
25.1 |
28.2 |
20.6 |
22.4 |
18.8 |
21.7 |
786 |
1022 |
663 |
968 |
480 |
934 |
| 8×2×2.5 |
A |
26.8 |
29.5 |
22.1 |
24.4 |
20.4 |
22.4 |
844 |
1250 |
718 |
1074 |
686 |
1046 |
| 8×2×2.5 |
R |
28.3 |
31.5 |
23.5 |
27.4 |
22.4 |
25.4 |
844 |
1059 |
713 |
503 |
252 |
1046 |
| 9×2×0.5 |
A |
17.3 |
19.5 |
16.0 |
18.7 |
14.5 |
17.2 |
300 |
559 |
288 |
530 |
265 |
511 |
| 9×2×0.5 |
R |
18.4 |
21.1 |
16.5 |
19.5 |
14.9 |
17.9 |
327 |
602 |
291 |
560 |
269 |
531 |
| 9×2×1.0 |
A |
23.7 |
25.7 |
19.5 |
21.9 |
16.5 |
19.7 |
527 |
859 |
491 |
830 |
472 |
803 |
| 9×2×1.0 |
R |
24.3 |
26.8 |
19.8 |
22.9 |
17.7 |
21.1 |
543 |
955 |
497 |
816 |
478 |
783 |
| 9×2×1.5 |
A |
25.1 |
28.3 |
19.8 |
22.4 |
18.2 |
21.5 |
633 |
1010 |
563 |
965 |
530 |
837 |
| 9×2×1.5 |
R |
27.0 |
30.7 |
21.7 |
24.6 |
21.9 |
24.9 |
686 |
1201 |
734 |
1091 |
703 |
1064 |
| 9×2×2.5 |
A |
28.3 |
31.1 |
23.3 |
26.4 |
23.6 |
26.8 |
932 |
1423 |
795 |
1186 |
761 |
1157 |
| 9×2×2.5 |
R |
30.5 |
33.2 |
25.2 |
27.4 |
24.4 |
27.9 |
946 |
1499 |
806 |
1226 |
770 |
1184 |
| 10×2×0.5 |
A |
17.5 |
18.5 |
16.1 |
18.8 |
14.5 |
17.3 |
346 |
541 |
293 |
540 |
271 |
543 |
| 10×2×0.5 |
R |
18.5 |
21.2 |
16.5 |
19.6 |
15.0 |
17.9 |
346 |
599 |
310 |
570 |
287 |
543 |
| 10×2×1.0 |
A |
23.8 |
25.8 |
18.1 |
21.6 |
16.6 |
19.8 |
566 |
862 |
423 |
756 |
400 |
701 |
| 10×2×1.0 |
R |
24.5 |
26.9 |
19.4 |
23.0 |
17.8 |
21.1 |
584 |
922 |
458 |
791 |
433 |
758 |
| 10×2×1.5 |
A |
26.0 |
28.9 |
20.4 |
23.1 |
18.6 |
22.0 |
660 |
1034 |
572 |
978 |
541 |
943 |
| 10×2×1.5 |
R |
27.9 |
31.5 |
22.4 |
25.5 |
22.6 |
25.7 |
718 |
1247 |
753 |
1126 |
722 |
1094 |
| 10×2×2.5 |
A |
29.2 |
32.1 |
24.2 |
27.3 |
24.4 |
27.7 |
978 |
1476 |
821 |
1242 |
784 |
1209 |
| 10×2×2.5 |
R |
31.4 |
34.2 |
26.1 |
28.4 |
25.2 |
28.8 |
993 |
1557 |
832 |
1284 |
795 |
1237 |
| 10×2×1.5 |
A |
25.2 |
28.4 |
19.8 |
23.3 |
18.2 |
21.6 |
684 |
1027 |
538 |
878 |
514 |
844 |
| 10×2×1.5 |
R |
27.1 |
29.8 |
21.8 |
24.7 |
20.0 |
22.9 |
742 |
1085 |
606 |
934 |
575 |
903 |
| 10×2×2.5 |
A |
28.5 |
31.2 |
23.4 |
26.6 |
21.7 |
24.4 |
941 |
1296 |
797 |
1180 |
767 |
1152 |
| 10×2×2.5 |
R |
30.6 |
33.3 |
25.3 |
29.5 |
23.5 |
26.8 |
1009 |
1536 |
863 |
1279 |
827 |
1250 |
| 12×2×0.5 |
A |
18.5 |
21.5 |
17.1 |
20.7 |
15.5 |
18.9 |
372 |
641 |
336 |
636 |
313 |
617 |
| 12×2×0.5 |
R |
19.7 |
22.6 |
17.6 |
21.5 |
16.1 |
19.7 |
396 |
680 |
354 |
681 |
332 |
650 |
| 12×2×1.0 |
A |
25.2 |
27.5 |
19.4 |
23.0 |
17.8 |
21.2 |
647 |
1014 |
490 |
843 |
465 |
811 |
| 12×2×1.0 |
R |
26.5 |
28.7 |
21.3 |
24.4 |
19.6 |
22.7 |
697 |
1054 |
557 |
908 |
526 |
874 |
| 12×2×1.5 |
A |
27.3 |
30.1 |
21.9 |
24.9 |
20.1 |
23.1 |
812 |
1191 |
655 |
1014 |
625 |
980 |
| 12×2×1.5 |
R |
28.8 |
31.8 |
23.2 |
26.8 |
21.5 |
25.1 |
856 |
1254 |
700 |
1119 |
668 |
1091 |
| 12×2×2.5 |
A |
30.4 |
33.3 |
25.0 |
28.4 |
23.2 |
26.2 |
1086 |
1541 |
929 |
1367 |
896 |
1339 |
| 12×2×2.5 |
R |
32.7 |
35.6 |
26.5 |
31.5 |
25.9 |
28.9 |
1167 |
1767 |
1030 |
1404 |
1011 |
1455 |
| 14×2×0.5 |
A |
20.6 |
22.9 |
18.3 |
22.1 |
- |
- |
420 |
736 |
380 |
732 |
- |
- |
| 14×2×0.5 |
R |
21.9 |
24.2 |
18.9 |
22.9 |
- |
- |
473 |
770 |
401 |
769 |
- |
- |
| 14×2×1.0 |
A |
27.7 |
30.1 |
21.5 |
24.6 |
- |
- |
763 |
1161 |
588 |
960 |
- |
- |
| 14×2×1.0 |
R |
28.6 |
30.9 |
22.9 |
26.7 |
- |
- |
792 |
1199 |
634 |
1061 |
- |
- |
| 14×2×1.5 |
A |
29.4 |
32.6 |
23.5 |
27.2 |
- |
- |
925 |
1379 |
749 |
1183 |
- |
- |
| 14×2×1.5 |
R |
31.0 |
34.2 |
25.0 |
28.8 |
- |
- |
975 |
1459 |
801 |
1266 |
- |
- |
| 14×2×2.5 |
A |
32.8 |
35.9 |
27.2 |
30.5 |
- |
- |
1241 |
1762 |
1090 |
1564 |
- |
- |
| 14×2×2.5 |
R |
35.2 |
38.8 |
28.7 |
33.8 |
- |
- |
1335 |
2063 |
1180 |
1734 |
- |
- |
| 16×2×0.5 |
A |
21.5 |
23.9 |
19.0 |
23.7 |
- |
- |
501 |
820 |
427 |
815 |
- |
- |
| 16×2×0.5 |
R |
22.8 |
25.2 |
19.7 |
23.9 |
- |
- |
528 |
860 |
453 |
861 |
- |
- |
| 16×2×1.0 |
A |
28.9 |
31.4 |
22.3 |
25.6 |
- |
- |
855 |
1300 |
663 |
1075 |
- |
- |
| 16×2×1.0 |
R |
29.8 |
32.2 |
23.9 |
27.8 |
- |
- |
893 |
1380 |
715 |
1186 |
- |
- |
| 16×2×1.5 |
A |
30.7 |
34.0 |
24.5 |
28.3 |
- |
- |
1050 |
1546 |
845 |
1328 |
- |
- |
| 16×2×1.5 |
R |
32.5 |
35.8 |
26.5 |
30.0 |
- |
- |
1100 |
1648 |
927 |
1418 |
- |
- |
| 16×2×2.5 |
A |
34.2 |
38.0 |
28.5 |
31.8 |
- |
- |
1408 |
1982 |
1237 |
1796 |
- |
- |
| 16×2×2.5 |
R |
36.7 |
40.6 |
30.9 |
35.3 |
- |
- |
1516 |
2326 |
1341 |
1956 |
- |
- |
| 19×2×0.5 |
A |
23.2 |
25.7 |
21.2 |
24.9 |
- |
- |
571 |
936 |
517 |
934 |
- |
- |
| 19×2×0.5 |
R |
24.6 |
27.6 |
22.0 |
25.7 |
- |
- |
598 |
1005 |
546 |
985 |
- |
- |
| 19×2×1.0 |
A |
31.4 |
34.0 |
24.2 |
28.0 |
- |
- |
978 |
1528 |
758 |
1263 |
- |
- |
| 19×2×1.0 |
R |
32.9 |
34.9 |
25.9 |
30.0 |
- |
- |
1008 |
1577 |
818 |
1361 |
- |
- |
| 19×2×1.5 |
A |
33.3 |
36.9 |
27.0 |
30.6 |
- |
- |
1193 |
1773 |
998 |
1528 |
- |
- |
| 19×2×1.5 |
R |
35.8 |
39.3 |
28.7 |
32.5 |
- |
- |
1254 |
1920 |
1065 |
1665 |
- |
- |
| 19×2×2.5 |
A |
37.2 |
41.2 |
30.9 |
34.4 |
- |
- |
1615 |
2417 |
1420 |
2072 |
- |
- |
| 19×2×2.5 |
R |
40.5 |
44.1 |
33.6 |
38.7 |
- |
- |
1763 |
2677 |
1543 |
2284 |
- |
- |
|
Note for ordering
1.When ordering, be sure to specify the product model, specification, type of conductor, quantity, etc.
2.Allow any length of delivery according to the agreement between the parties.The length measurement error is not more than +0.5%.
|
Intrinsically safe compensating wire / cable also have the following indicators
| Item |
Unit |
Index |
| Operating capacitance |
PF/m |
≤180 |
| Unbalance capacitance |
pF/m |
≤1 |
| Distributed inductance |
uH/m |
≤0.6 |
| Static induction voltage (Static voltage 20kV) |
V |
≤1 |
| Induction voltage of EMI (EMI 400mA/m) |
uV |
≤5 |
|
|
|
|
|
C.S.Center
WhatsApp
